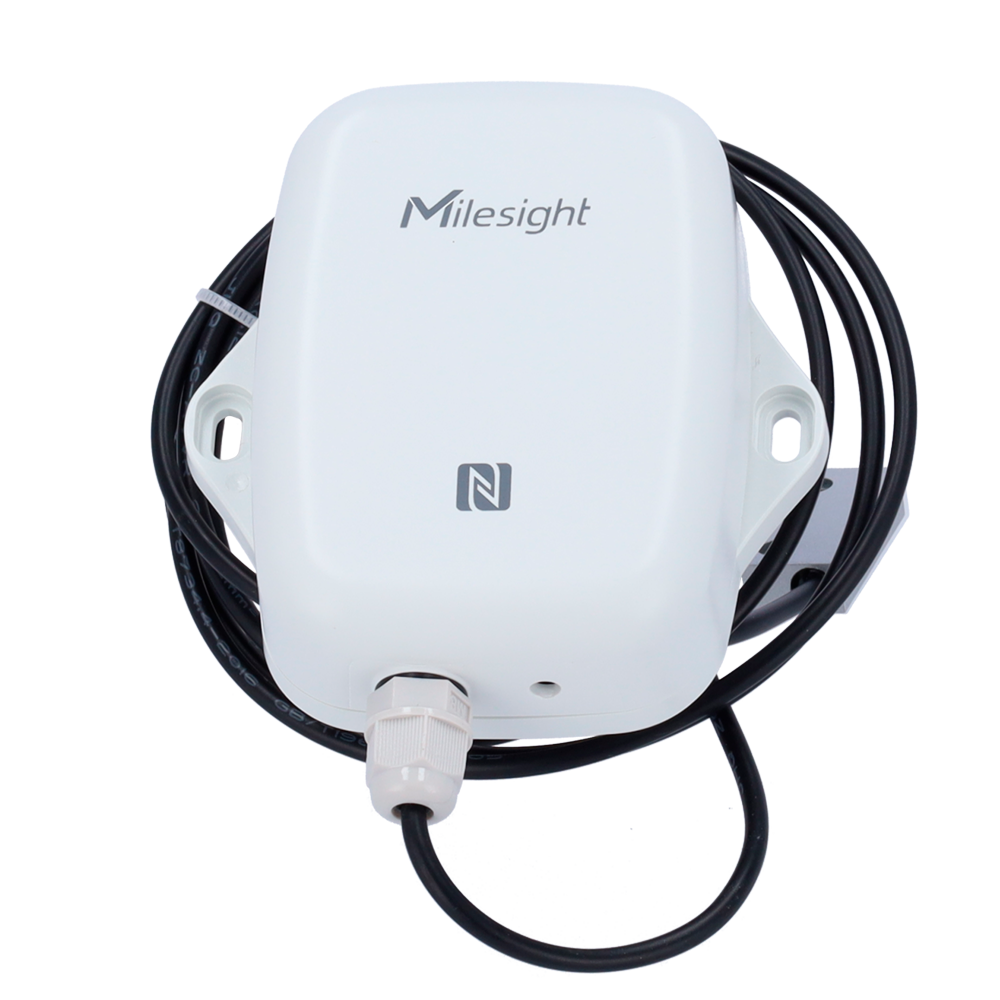

Milesight LoRaWAN magnetic contact - 1.5m cable length
Regular price
€126,82
Final price
Regular price
-9%
€140,00
Sale price
€126,82
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
LoRaWAN magnetic contact - Range up to 15km line-of-sight - Cable length 1.5m - Configuration via NFC and APP - IP67 protection rating - Long battery life
📋 SPECIFICATIONS:
• Technology: LoRaWAN®
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class A
• Magnetic sensor type: Normally closed
• Magnetic sensor distance: 20-30mm
• Cable length: 1.5m
• Temperature measurement range: -30°C to +70°C
• Temperature accuracy: 0 ~ 70°C: ±0.3°C; -30 ~ 0°C: ±0.6°C
• Temperature resolution: 0.1°C
• Humidity measurement range: 0%~100% RH
• Humidity accuracy: ±3%(10~90%RH); ±5%(Other ranges)
• Humidity resolution: 0.5%
• Power supply: 1 × 4000 mAh ER18505 Li-SOCL2 (expandable to 2 batteries)
• Battery life: 5 years for 1 battery (10-minute interval and 48 activations per day)
• Operating temperature: -30°C to 70°C
• Environmental protection: IP67
• Dimensions: Transmitter 105.6×85.3×27 mm; Magnet 32×15×8 mm
• Installation: On flat surfaces with screws or 3M tape
📦 INCLUDED:
• Magnetic contact • Battery • Installation accessories • User manual
| Technology | LoRaWAN® |
|---|---|
| Frequency band | 868 MHz |
| Output power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Magnetic sensor type | Normally closed |
| Magnetic sensor distance | 20-30mm |
| Cable length | 1.5m |
| Temperature measurement range | -30°C to +70°C |
| Temperature accuracy | 0 ~ 70°C: ±0.3°C -30 ~ 0°C: ±0.6°C |
| Temperature resolution | 0.1°C |
| Humidity measurement range | 0%~100% RH |
| Humidity accuracy | ±3%(10~90%RH) ±5%(other ranges) |
| Humidity resolution | 0.5% |
| Power supply | 1 × 4000 mAh ER18505 Li-SOCL2 battery (extendable to 2 batteries) |
| Battery life | 5 years for 1 battery (10-minute interval and 48 triggers per day) |
| Operating temperature | -30°C to 70°C |
| Environmental protection | IP67 |
| Dimensions | Transmitter 105.6×85.3×27 mm Magnet 32×15×8 mm |
| Installation | On flat surfaces with screws or 3M tape |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
