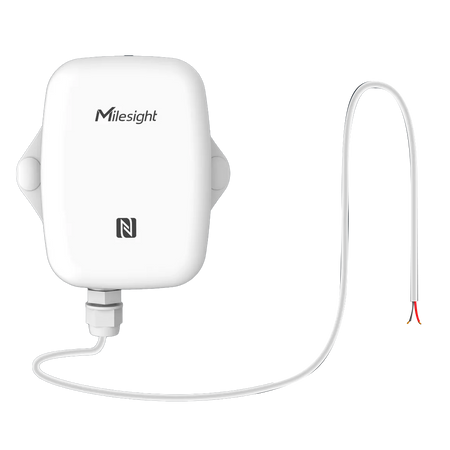

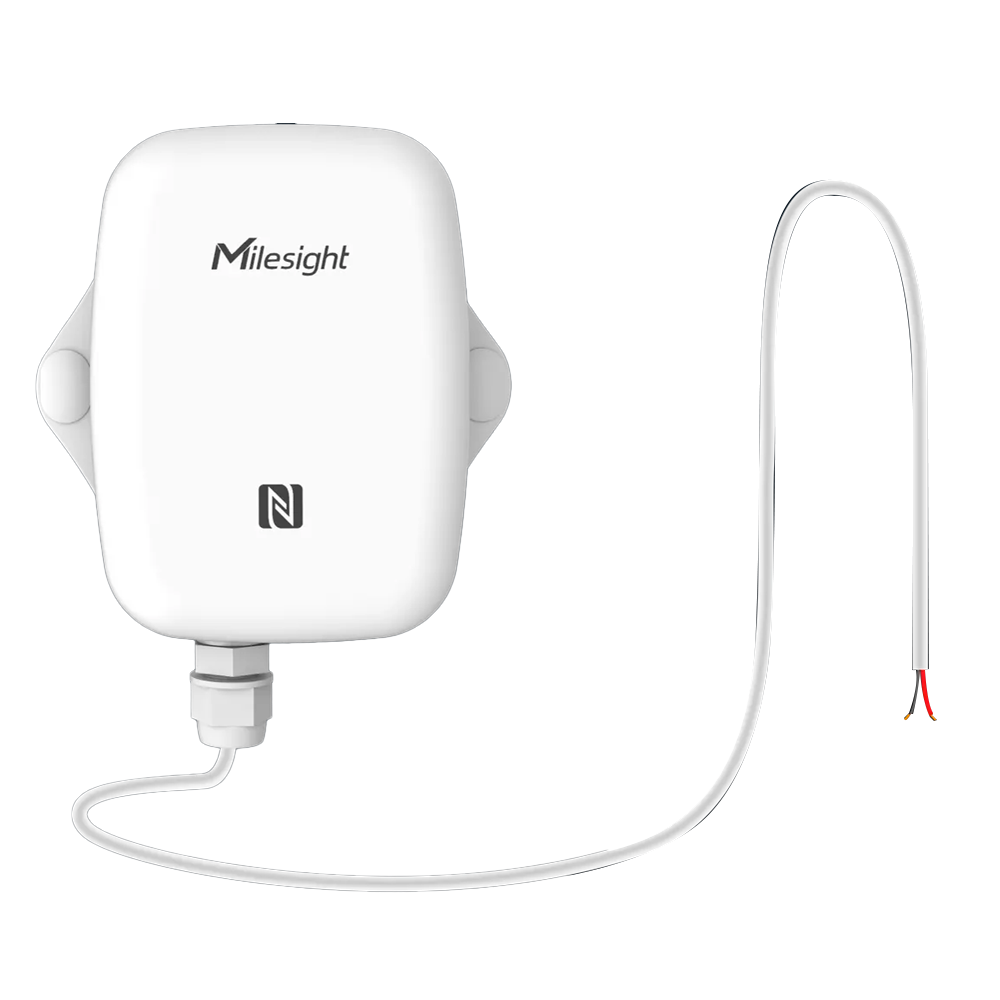

Milesight LoRaWAN pulse counter
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
LoRaWAN pulse counter - Range up to 15km with direct visualization - Configuration via NFC and APP - IP67 Protection rating - Long battery life
📋 SPECIFICATIONS:
• Technology: LoRaWAN®
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class A
• Port: 1 × GPIO interface, dry contact
• Operating mode: Pulse counter, digital input
• Cable length: 1m
• Humidity sensor: Range: 0% to 100% RH; Accuracy: ±3% RH (10% – 90%), ±5% RH (0% – 10%, 90% – 100%); Resolution: 0.5% RH
• Power supply: 1 × 4000 mAh ER18505 Li-SOCL2 (extendable to 2 batteries)
• Battery life: 5 years (10-minute interval)
• Operating temperature: -30°C to 70°C
• Environmental protection: IP67
• Dimensions: 105.6 x 85.3 x 27 mm
📦 INCLUDED:
• Pulse counter• Battery• Installation accessories• User manual
| Technology | LoRaWAN® |
|---|---|
| Frequency band | 868 MHz |
| Output Power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Port | 1 × GPIO interface, dry contact |
| Operating mode | Pulse counter, digital input |
| Cable length | 1m |
| Humidity sensor | Range: 0% to 100% RH Accuracy: ±3% RH (10% – 90%), ±5% RH (0% – 10%, 90% – 100%) Resolution: 0.5% RH |
| Power supply | 1 × 4000 mAh ER18505 Li-SOCL2 (extendable to 2 batteries) |
| Battery life | 5 years (10-minute interval) |
| Operating temperature | -30°C to 70°C |
| Environmental protection | IP67 |
| Dimensions | 105.6 x 85.3 x 27 mm |
