Autonomous operation High precision 3.3kHz Milesight
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Autonomous operation - High precision 3.3kHz - Real-time accumulated Ah calculation - Non-invasive installation - Consumption/temperature alert - LoRaWAN communication
📋 SPECIFICATIONS:
• Detection parameters: RMS current
• Sampling rate: 3.3 kHz
• Working frequency: 50~60 Hz
• Primary rated current (via CT): 300 Arms
• Rated secondary current: 150 mArms
• Minimum consumption report: 25Arms (1 min interval); 15Arms (10 min interval)
• Accuracy: ±1 %
• Resolution: 1 mA
• Temperature sensor: Sensor type: 1 NTC sensor; Measurement range: -20 °C ~ 100 °C; Measurement accuracy: ±1 %
• Protocol: LoRaWAN®
• Antenna connector: 1 × 50 Ω SMA connector (center pin: SMA female)
• Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
• Transmit power: 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm(470 MHz)
• Sensitivity: -137dBm
• Mode: OTAA/ABP Class A
• Buttons: 1 × Reset button
• LED indicators: 1 × Status/alarm indicator

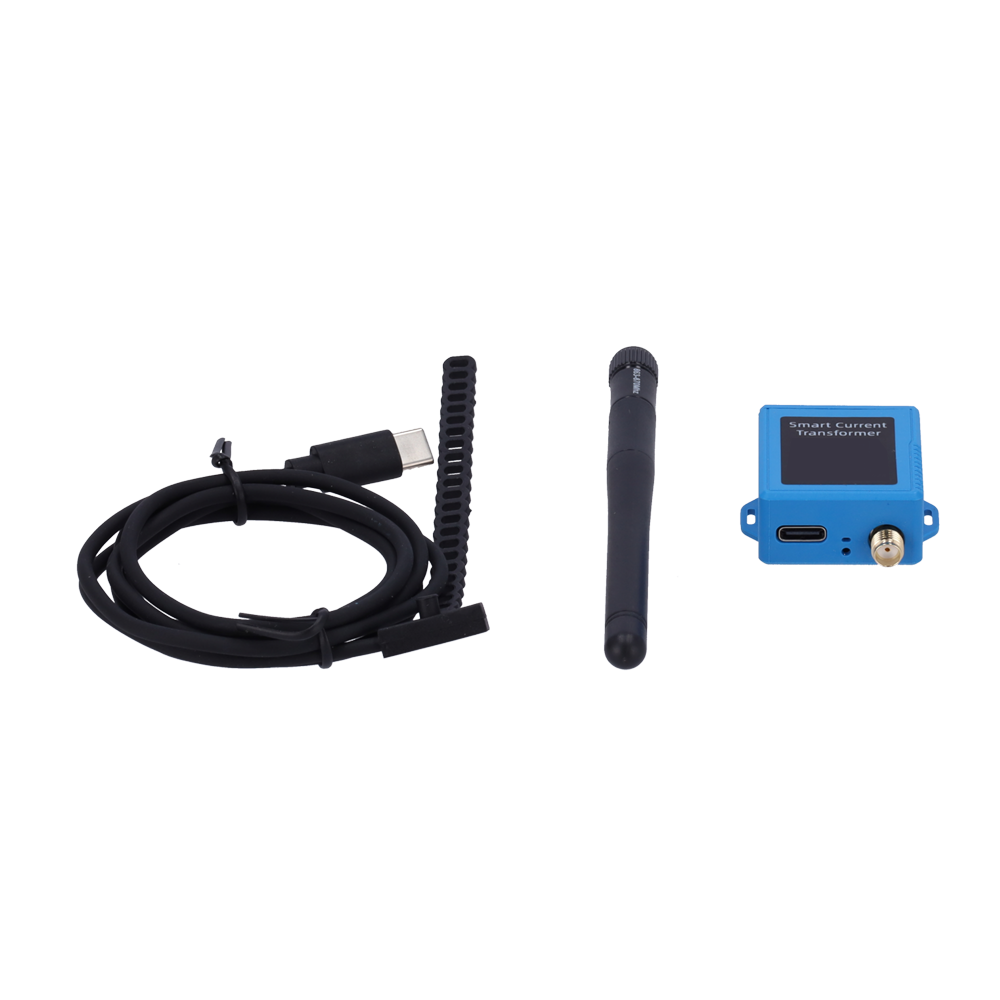

• Port: 1 × USB Type-C for power supply, configuration, console, or wired temperature sensor connection
• Configuration: USB Type-C or downlink connection
• Advanced features: Threshold alarm, overload alarm, FUOTA
• Power supply: 1. Current-induced power supply; 2. 5 V via USB Type-C port
• Isolation voltage: 3 kVAC (true value) (1 mA/1 min)
• Color / material: Light blue, PBT+PC (UL94 V0)

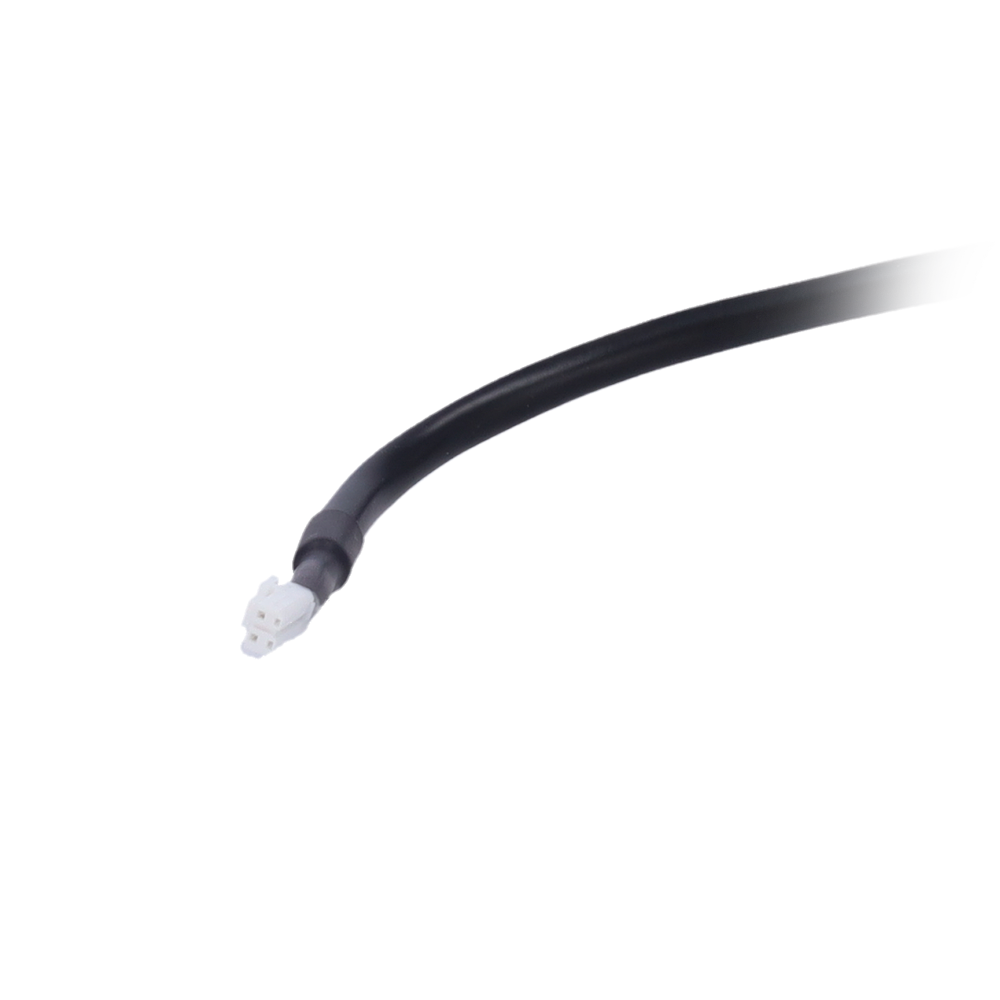

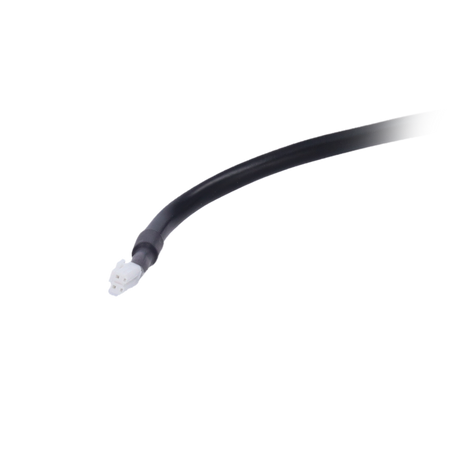

• Cable length: 1 meter
• Operating temperature: Transceiver: -20 °C ~ 70 °C (-4 °F ~ 158 °F); CT clamp: -40 °C ~ 55 °C (-40 °F ~ 131 °F)
• Storage temperature: Transceiver: -25 °C ~ 80 °C (-13 °F ~ 176 °F); CT clamp: -40 °C ~ 55 °C (-40 °F ~ 131 °F)
• Relative humidity: ≤ 95% (non-condensing)
• Protection: IP30

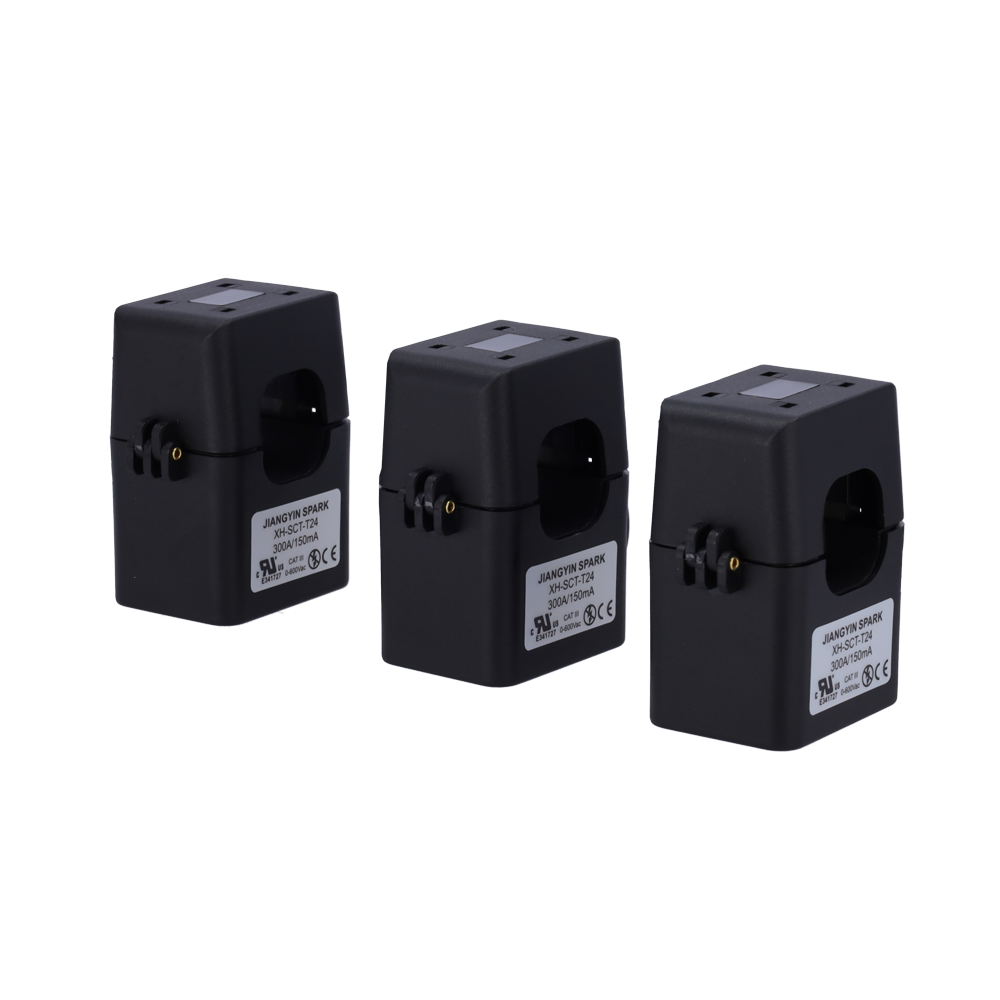

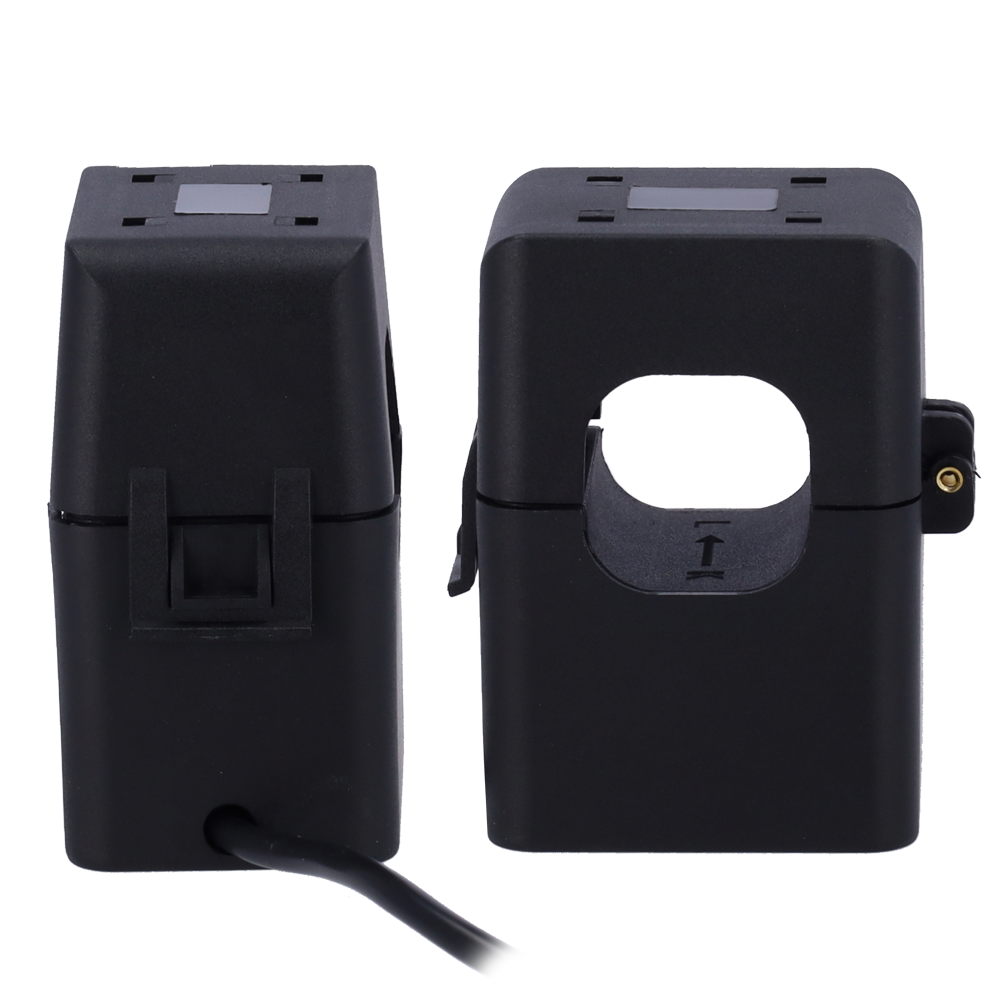

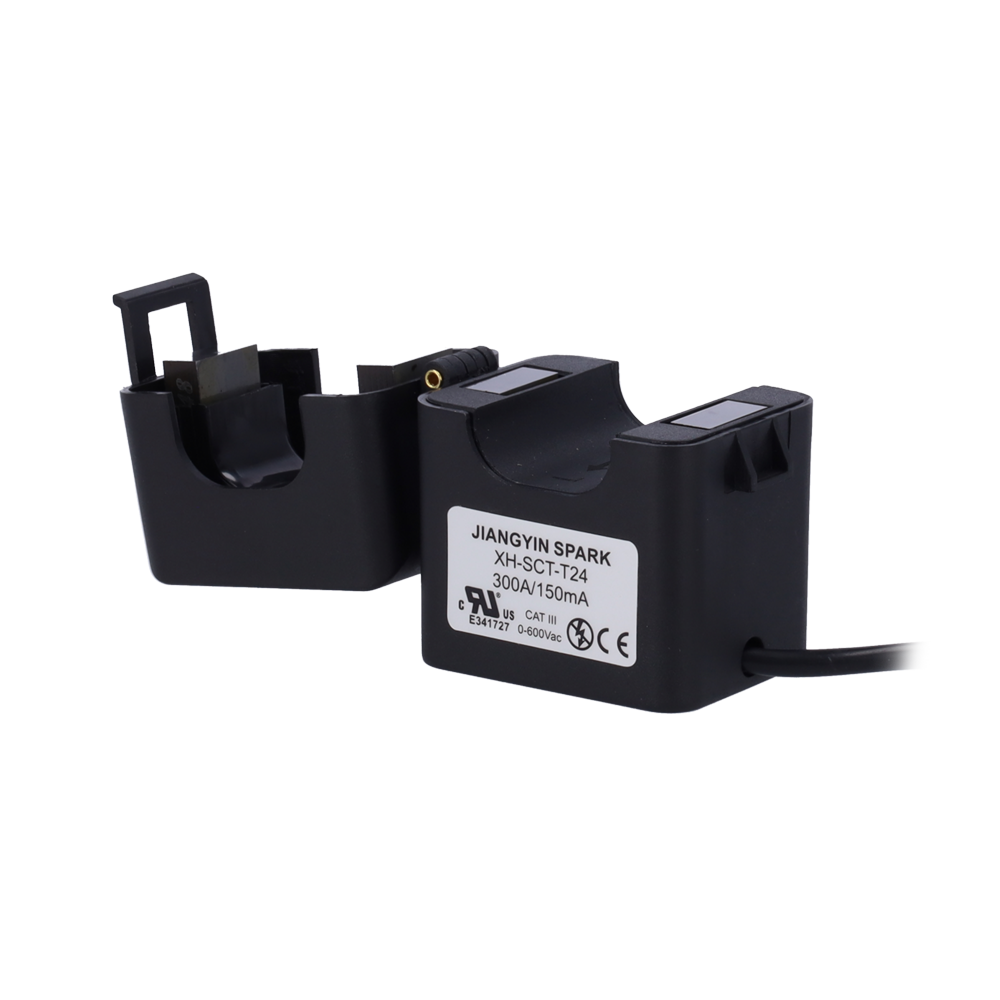

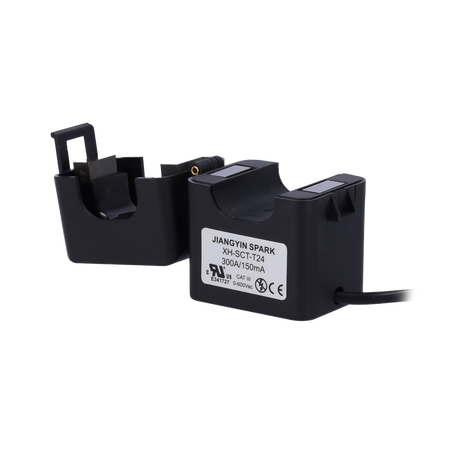

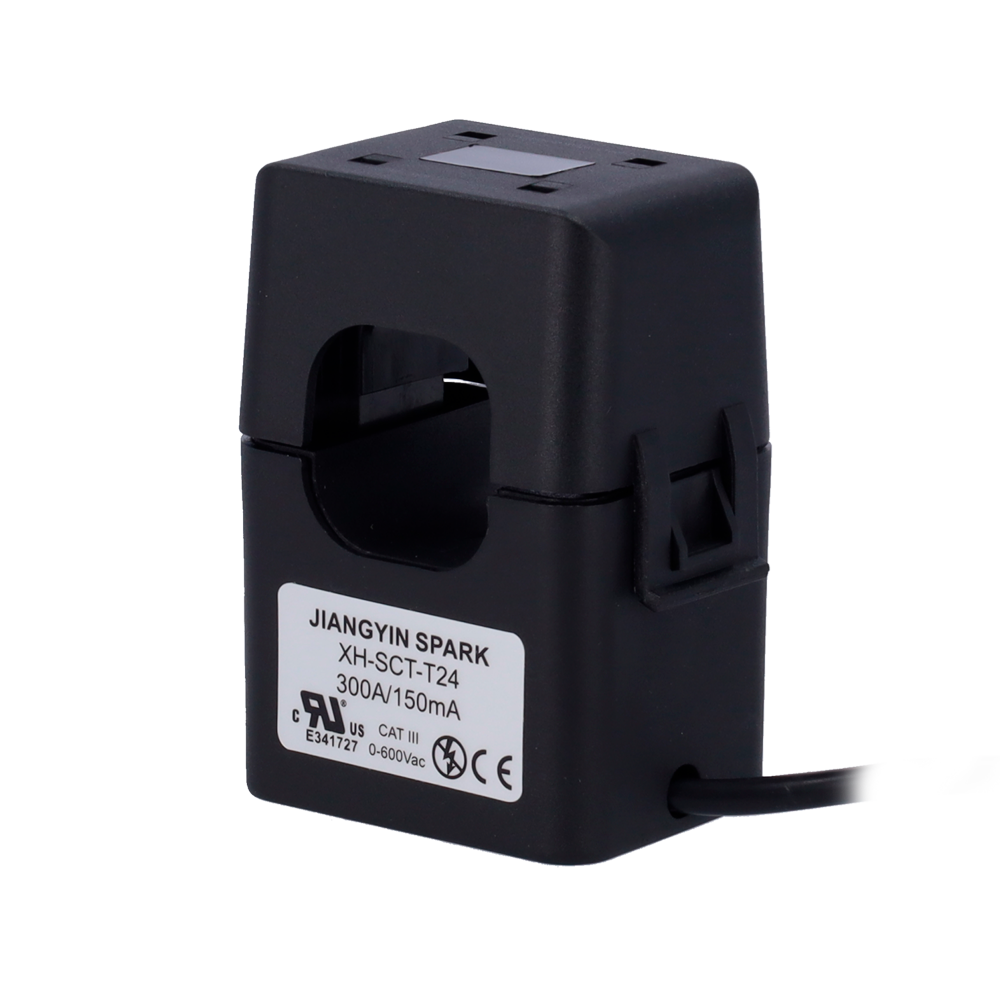

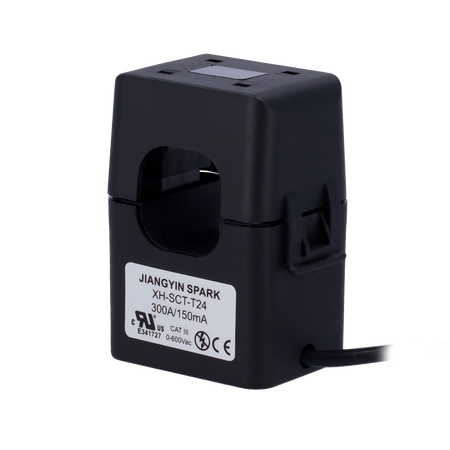

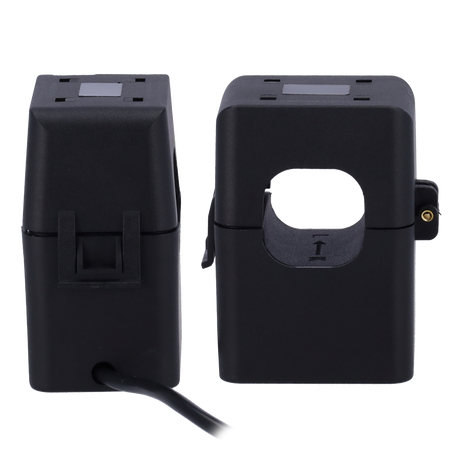

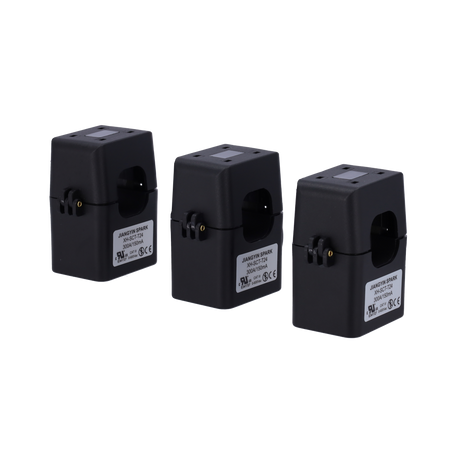

• Dimensions: Transceiver: 38 × 34.5 × 16 mm (1.5 × 1.36 × 0.63 in); CT clamp: 56.5 × 36.5 × 68.5 mm (2.24 × 1.44 × 2.70 in); Cable pass-through: Ф 24.2 mm (Ф 0.95 in)
• Weight: Transceiver: 13.05 g; With CT clamp: 250 g
• Installation: Transceiver: Flange mounting (in integrated mode); CT clamp: Fixed to test cable
• Regulations: CE, FCC, UL508
| Detection parameters | RMS current |
|---|---|
| Sampling frequency | 3.3 kHz |
| Working frequency | 50~60 Hz |
| Primary rated current (via CT) | 300 Arms |
| Secondary rated current | 150 mArms |
| Minimum consumption ratio | 25Arms (1 min interval) 15Arms (10 min interval) |
| Accuracy | ±1 % |
| Resolution | 1 mA |
| Temperature sensor | Sensor type: 1 NTC sensor Measurement range: -20 °C ~ 100 °C Measurement accuracy: ±1 % |
| Protocol | LoRaWAN® |
| Antenna connector | 1 × 50 Ω SMA connector (center pin: SMA female) |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Transmit power | 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm(470 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Buttons | 1 × Reset button |
| LED indicators | 1 × Status/alarm indicator |
| Port | 1 × USB Type-C for power supply, configuration, console, or wired temperature sensor connection |
| Configuration | USB Type-C or downstream link |
| Advanced features | Threshold alarm, overload alarm, FUOTA |
| Power supply | 1. Current-induced power supply 2. 5 V via USB Type-C port |
| Isolation voltage | 3 kVAC (true value) (1 mA/1 min) |
| Color / material | Light blue, PBT+PC (UL94 V0) |
| Cable length | 1 meter |
| Operating temperature | Transceiver: -20 °C ~ 70 °C (-4 °F ~ 158 °F) CT clamp: -40 °C ~ 55 °C (-40 °F ~ 131 °F) |
| Storage temperature | Transceiver: -25 °C ~ 80 °C (-13 °F ~ 176 °F) CT clamp: -40 °C ~ 55 °C (-40 °F ~ 131 °F) |
| Relative humidity | ≤ 95% (non-condensing) |
| Protection | IP30 |
| Dimensions | Transceiver: 38 × 34.5 × 16 mm (1.5 × 1.36 × 0.63 inches) CT clamp: 56.5 × 36.5 × 68.5 mm (2.24 × 1.44 × 2.70 inches) Cable passage: Ф 24.2 mm (Ф 0.95 inches) |
| Weight | Transceiver: 13.05 g With CT clamp: 250 g |
| Installation | Transceiver: Flange mounting (integrated mode) CT clamp: Attached to the test cable |
| Regulations | CE, FCC, UL508 |
