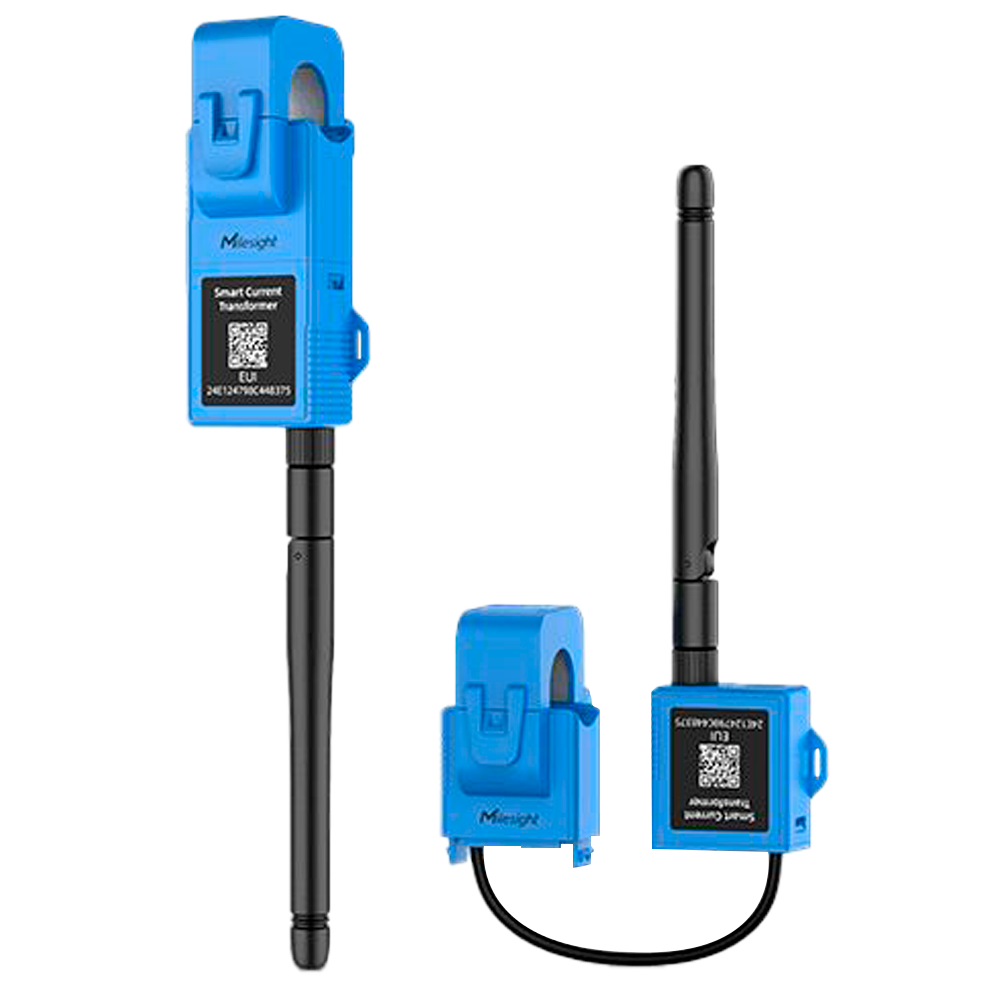

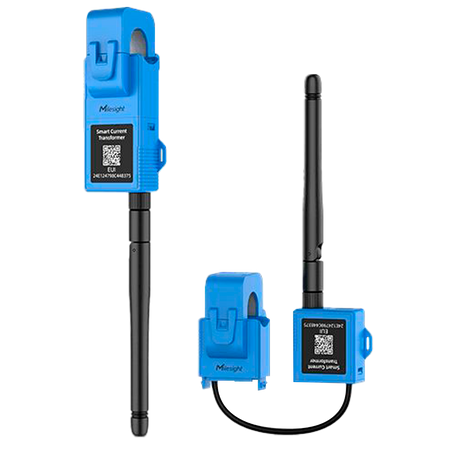

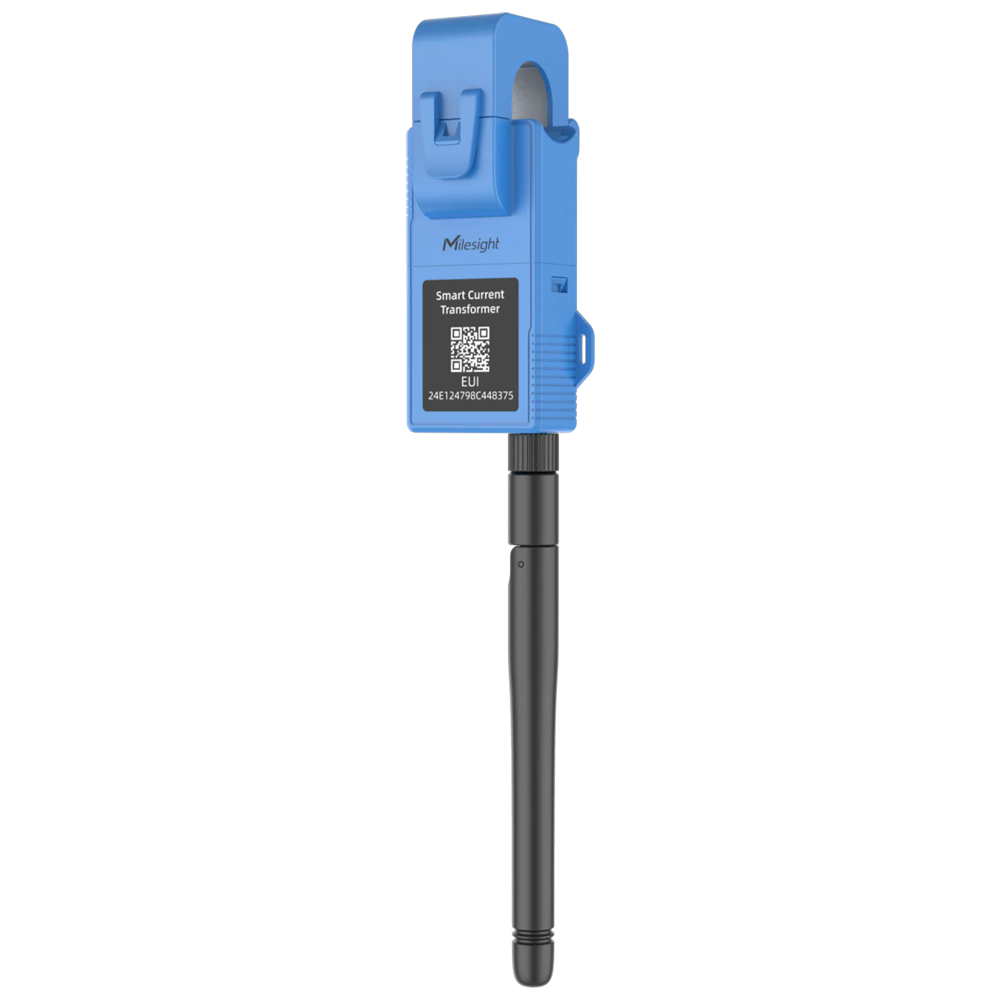

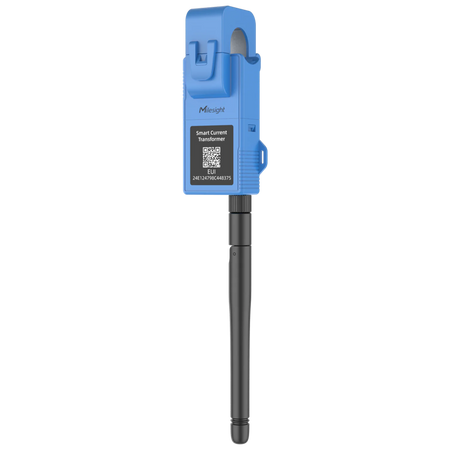

Milesight LoRaWAN IoT CT Meter - Measures up to 250A
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
LoRaWAN IoT CT Meter - Measures up to 250A - Measures energy consumption - Self-powered with simple installation - Range up to 15km with direct visualization - Configuration via NFC and APP
📋 SPECIFICATIONS:
• Technology: LoRaWAN®
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm
• Mode: OTAA/ABP Class A
• Detection parameter: RMS Current
• Sampling frequency: 3.3kHz
• Measurement frequency: 50~60 Hz
• Maximum measured current: 250 A
• Minimum current: 1 A
• Accuracy: ±1 % (>5Arms), ±3 % (≤ 5Arms)
• Resolution: 1 mA

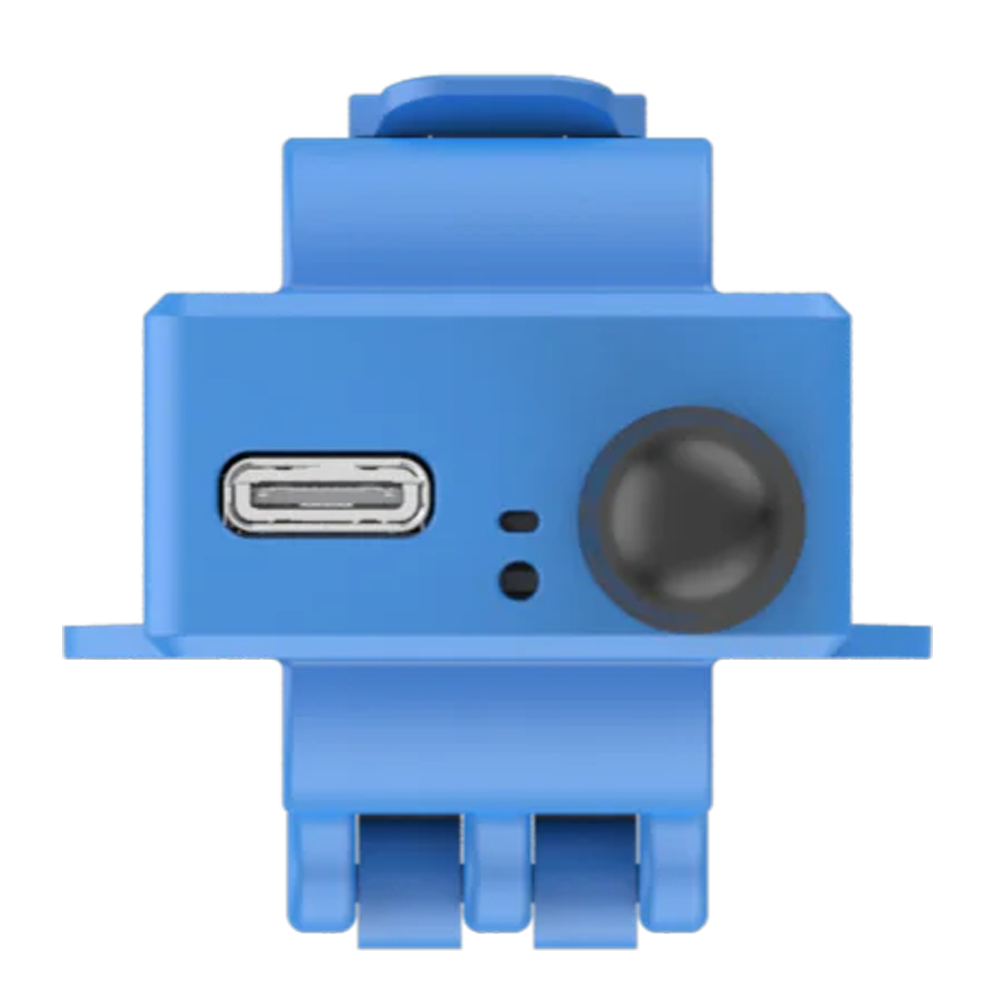

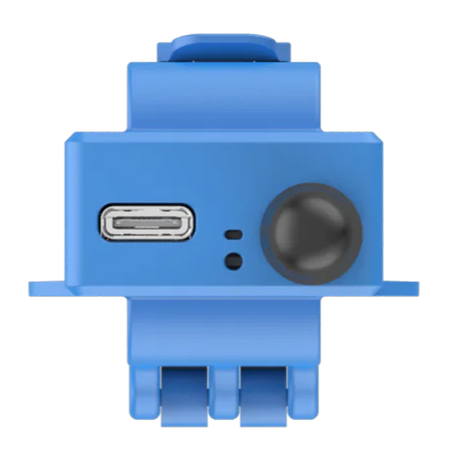

• Power supply: Directly from the measurement cable or via USB Type-C
• Operating temperature: -20ºC ~ 70ºC
• Protection rating: IP30
• Dimensions: 86.5 × 31 × 37.4 mm; Clamp: Ф 16 mm
• Installation: CT Clamp: Suspended on the test cable; Emitter: flange mounting (in integrated mode)
📦 INCLUDED:
• IoT light control• Connector• Installation accessories• User manual
| Technology | LoRaWAN® |
|---|---|
| Frequency band | 868 MHz |
| Output Power | 16dBm Max. |
| Sensitivity | -137 dBm |
| Mode | OTAA/ABP Class A |
| Detection parameter | RMS current |
| Sampling frequency | 3.3kHz |
| Measurement frequency | 50~60 Hz |
| Maximum measured current | 250 A |
| Minimum current | 1 A |
| Accuracy | ±1% (>5Arms), ±3% (≤ 5Arms) |
| Resolution | 1 mA |
| Power supply | Directly from the measurement cable or via USB Type-C |
| Operating temperature | -20ºC ~ 70ºC |
| Protection rating | IP30 |
| Dimensions | 86.5 × 31 × 37.4 mm Clamp: Ф 16 mm |
| Installation | CT Clamp: Suspended on the test cable Transmitter: flange mounting (in integrated mode) |
