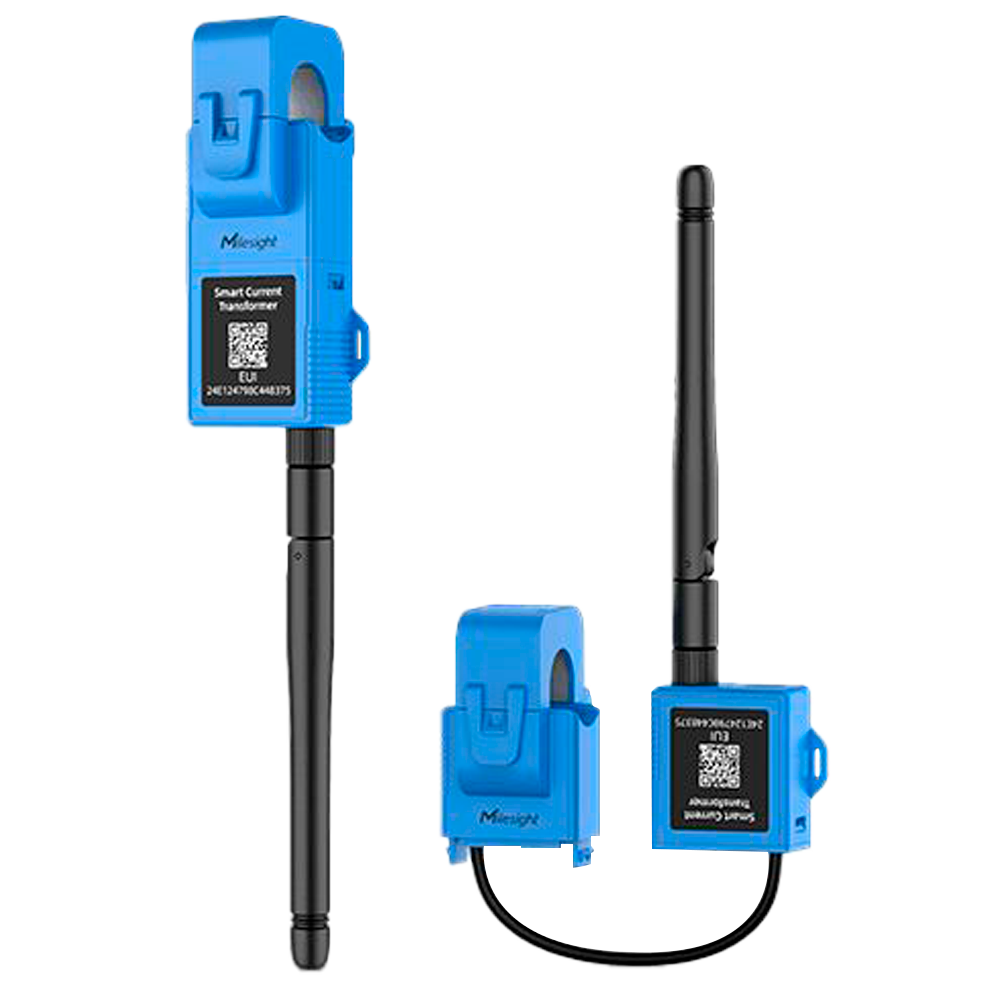

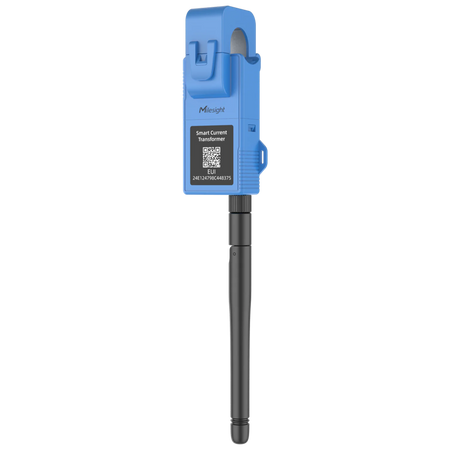

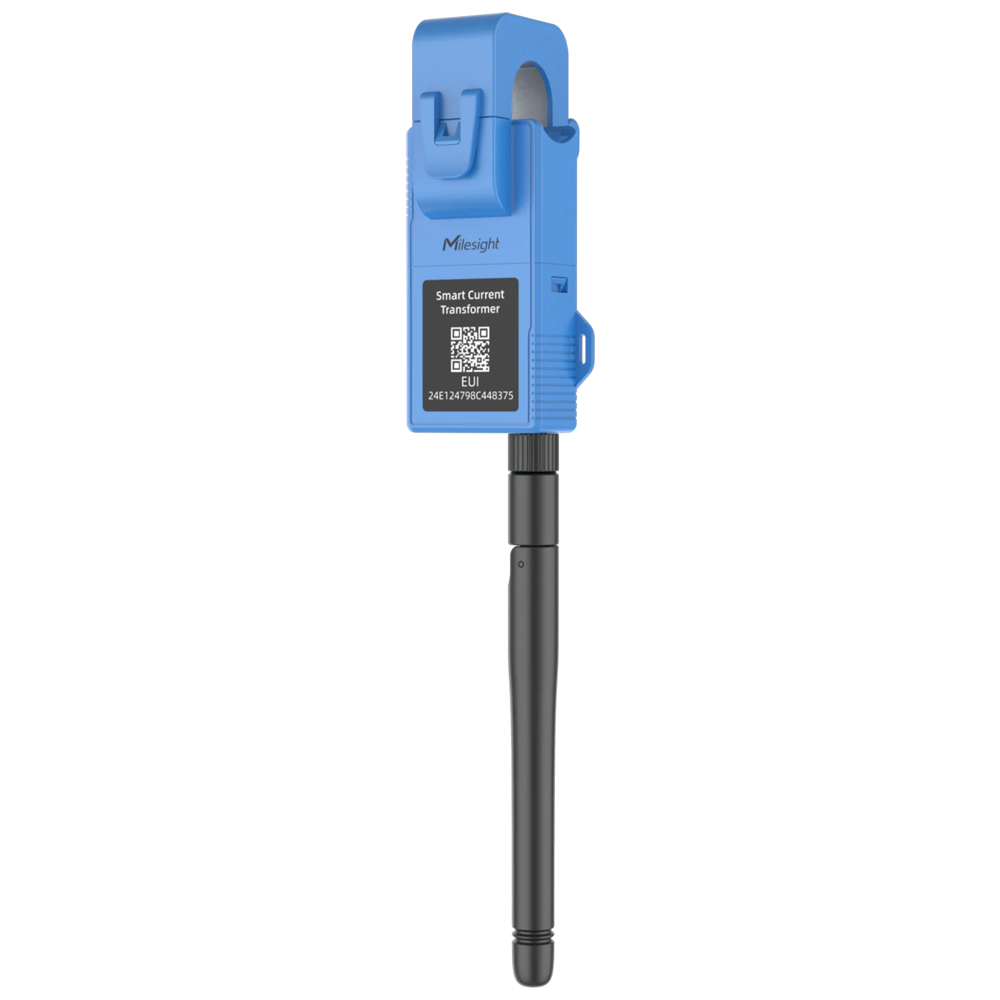

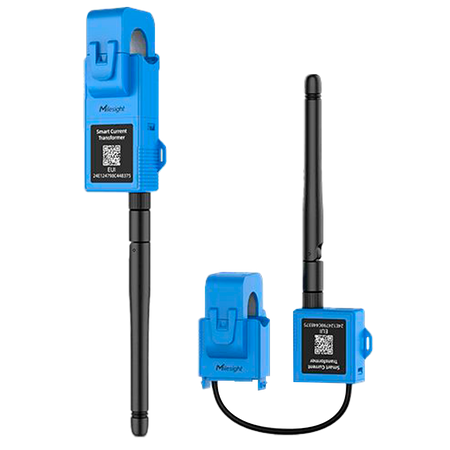

Milesight LoRaWAN CT Meter - Allows measuring up to 100A
Regular price
€133,73
Final price
Regular price
-4%
€140,00
Sale price
€133,73
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
LoRaWAN IoT CT Meter - Allows measuring up to 100A - Measures energy consumption - Self-powered with simple installation - Range up to 15km with direct visualization - Configuration via NFC and APP
đź“‹ SPECIFICATIONS:
• Technology: LoRaWAN®
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm
• Mode: OTAA/ABP Class A
• Detection parameter: RMS current
• Sampling frequency: 3.3kHz
• Measurement frequency: 50~60 Hz
• Maximum measured current: 100 A
• Minimum current: 1 A
• Accuracy: ±1 % (>5Arms), ±3 % (≤ 5Arms)
• Resolution: 1 mA
• Power supply: Directly from the measurement cable or via USB Type-C
• Operating temperature: -20ºC ~ 70ºC
• Protection rating: IP30
• Dimensions: 86.5 × 31 × 37.4 mm; Clamp: Ф 16 mm
• Installation: CT Clamp: Suspended on the test cable; Transmitter: flange mounting (integrated mode)
📦 INCLUDED:
• IoT light control• Connector• Installation accessories• User manual
| Technology | LoRaWAN® |
|---|---|
| Frequency band | 868 MHz |
| Output power | 16dBm Max. |
| Sensitivity | -137 dBm |
| Mode | OTAA/ABP Class A |
| Detection parameter | RMS Current |
| Sampling rate | 3.3kHz |
| Measurement frequency | 50~60 Hz |
| Maximum measured current | 100 A |
| Minimum current | 1 A |
| Accuracy | ±1 % (>5Arms), ±3 % (≤ 5Arms) |
| Resolution | 1 mA |
| Power supply | Directly from the measurement cable or via USB Type-C |
| Operating temperature | -20ÂşC ~ 70ÂşC |
| Protection rating | IP30 |
| Dimensions | 86.5 × 31 × 37.4 mm Clamp: Ф 16 mm |
| Installation | CT Clamp: Suspended on the test cable Emitter: flange mounting (in integrated mode) |
