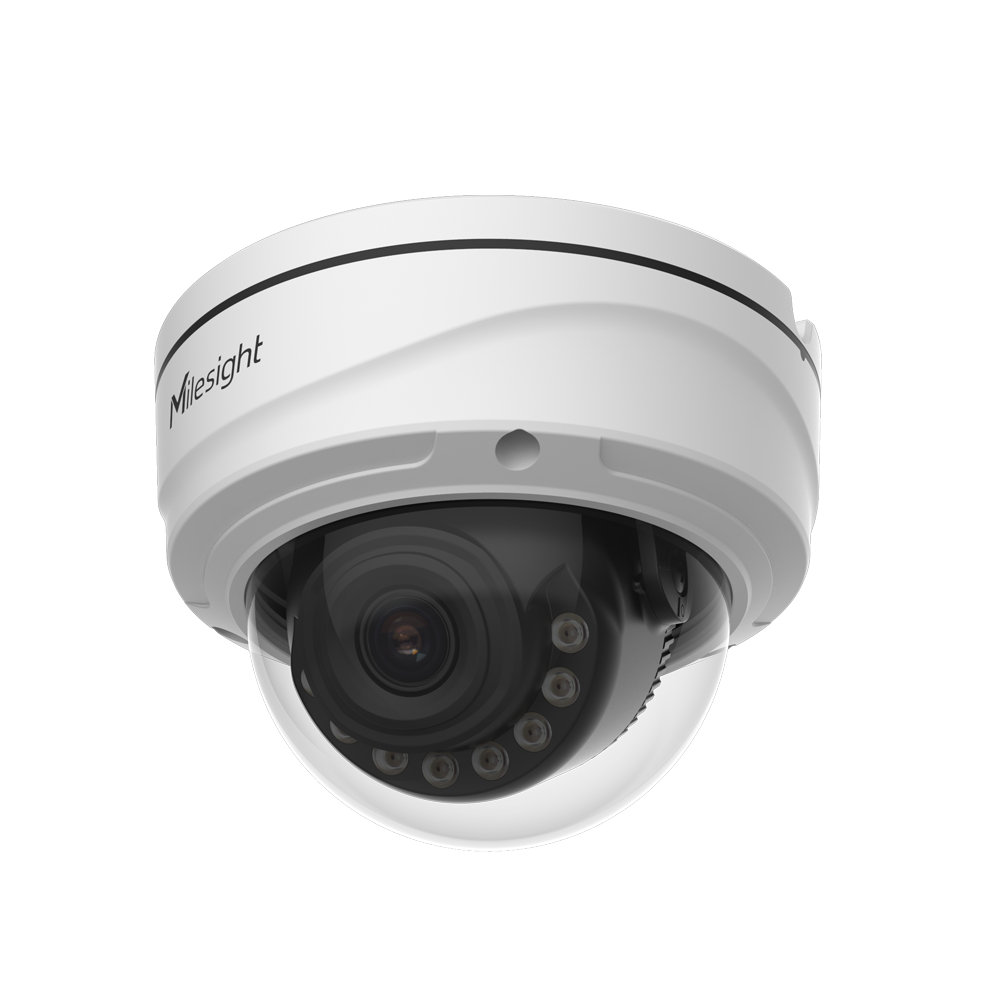

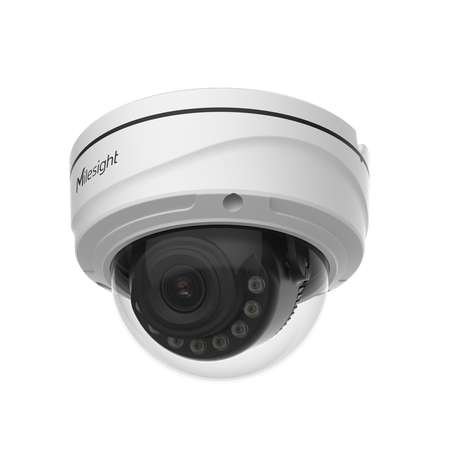

Milesight 8MP AI TrueColor IP Dome Camera - 1/1.8" Progressive Scan CMOS | 4 mm Lens

SKU: MS-CQ8272-HPG1/4mm
(0)
Out of stock
€433,49 Final price
-2% €442,16 €433,49 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

8MP AI TrueColor Dome IP Camera - 1/1.8" Progressive Scan CMOS | 4mm Lens - Red and Blue Light | 6 x Smart Hybrid Light - IR 40m | White Light 30m | Built-in Microphone - VCA 2.0 | Face Detection | Heat Map - Alarm | ONVIF | IP67 | IK10 | NDAA

📋 SPECIFICATIONS:
• Brand: MILESIGHT
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Min. Illumination: Color: 0.0008 Lux@F1.0; B/W: 0 Lux with IR ON
• Day / Night: Day / Night / Auto / Customizable
• DORI: D: 111 m; O: 43.5 m; R: 22 m; I: 11 m
• Illumination Type: 6 x Smart Hybrid Lights
• Infrared Illumination: 40 m
• White Light: 30 m
• Red and Blue Light: 1 x Red Light, 1 x Blue Light
• Lens: 4 mm@ F1.0
• FOV: H: 93°, V: 49.5°, D: 111.5°
• Pan/Tilt: Pan: 0° ~ 355°, Tilt: 0° ~ 80°, Rotation: 0° ~ 355º
• Max Resolution: 8 Megapixel (3840x2160)
• Main Stream Frame Rate: 60Hz:30fps@(3840x2160,3200x1800,2688x1520,1920x1080,1280x720); 50Hz:25fps@(3840x2160,3200x1800,2688x1520,1920x1080,1280x720)
• Sub Stream Frame Rate: 60Hz:30fps@(704x576,640x480,640x360); 50Hz:25fps@(704x576,640x480,640x360)
• Third Stream Frame Rate: 60Hz:30fps@(1920x1080,1280x720,704x576,640x480,640x360); 50Hz:25fps@(1920x1080,1280x720,704x576,640x480,640x360)
• Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• AI ISP: Supported
• Privacy Masking: Up to 8 areas
• Image Enhancement: Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, Anti-flicker, Corridor Mode
• Audio: Microphone / 1 Input / 1 Output
• Two-way Audio: Supported
• Audio Bit Rate: 16~256Kbps
• Audio Compression: G.711/AAC/G.722/G.726
• Bitrate: 16 Kbps ~ 16 Mbps (CBR / VBR Adjustable)
• Alarm: 1/1
• ROI: Up to 8 Areas
• SIP/VoIP: Supported (Voice and Video over IP)
• Intelligent Analysis: VCA 2.0: Motion Detection, Line Crossing, Loitering Detection, Enter Area, Exit Area, Object Abandoned, Object Removed
• Target Counting & Report: Count targets crossing the line, including people and vehicles. Supports up to 4 people counting areas
• Heat Map: Statistical analysis of behavior allows for identifying the most frequently visited areas.
• Face Capture: Supported
• Event Action: Image upload to FTP, SMTP, MicroSD card, Alarm output activation, SIP phone, HTTP notification
• Communication Interface: 1xRJ45 10M/100M Ethernet port
• Internal Storage: MicroSD card, Max 1 TB
• One-click Disable: Supported
• Remote Access: Web Browser, Smartphone App, Milesight Central Management System software, and Milesight Enterprise software
• Interoperability: ONVIF (Profile G/M/S/T), API
• Power Supply: DC 12 V / MAX 8 W, PoE IEEE802.3af
• Material: Metal
• Protection Rating: Waterproof IP67, Vandal-proof IK10
• NDAA: Supported
• Operating Temp.: -40º C ~ +60º C
• Dimensions: Φ143mm X 108.4 mm
• Weight: 1000 g

📦 INCLUDED:
• AI TrueColor IP Camera• Installation hardware• Template for easy installation
Image sensor 1/1.8" Progressive Scan CMOS
Min. illumination Color: 0.0008 Lux@F1.0 B/W: 0 Lux with IR ON
Day / Night Day / Night / Auto / Customizable
DORI D: 111 m O: 43.5 m R: 22 m I: 11 m
Illuminator type 6 x Smart hybrid lights
Infrared illumination 40 m
White light 30 m
Red and blue light 1 x Red light, 1 x Blue light
Lens 4 mm@ F1.0
FOV H: 93°, V: 49.5°, D: 111.5°
Pan/Tilt Pan: 0° ~ 355°, Tilt: 0° ~ 80°, Rotation: 0° ~ 355º
Max. resolution 8 Megapixel (3840x2160)
Main stream frame rate 60Hz: 30fps@(3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720) 50Hz: 25fps@(3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720)
Sub stream frame rate 60Hz: 30fps@(704x576, 640x480, 640x360) 50Hz: 25fps@(704x576, 640x480, 640x360)
Third stream frame rate 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360)
Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
AI ISP Supported
Privacy Masking Up to 8 areas
Image enhancement Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, Anti-flicker, Corridor mode
Audio Microphone / 1 Input / 1 Output
Two-way audio Supported
Audio bit rate 16~256Kbps
Audio compression G.711/AAC/G.722/G.726
Bitrate 16 Kbps ~ 16 Mbps (CBR / VBR adjustable)
Alarm 1/1
ROI Up to 8 areas
SIP/VoIP Supports voice and video over IP
Smart analysis VCA 2.0: Motion detection, Line crossing, Loitering detection, Area entrance, Area exiting, Abandoned object, Removed object
Target counting & report Counting targets crossing the line, with the ability to include people and vehicles. Supports up to 4 people counting areas
Heat map Statistical behavior analysis allows identifying the most frequented areas.
Face capture Supported
Event action Image upload to FTP, SMTP, MicroSD card, Alarm output trigger, SIP phone, HTTP notification
Communication interface 1xRJ45 10M/100M Ethernet port
Internal memory MicroSD card, Max 1 TB
One-click disable Supported
Remote access Web browser, Smartphone App, Milesight Central Management System software and Milesight Enterprise software
Interoperability ONVIF (Profile G/M/S/T), API
Power supply DC 12 V / MAX 8 W, PoE IEEE802.3af
Material Metal
Protection rating Waterproof IP67, Vandal-proof IK10
NDAA Supported
Operating temp. -40º C ~ +60º C
Dimensions Φ143mm X 108.4 mm
Weight 1000 g
