MILESIGHT

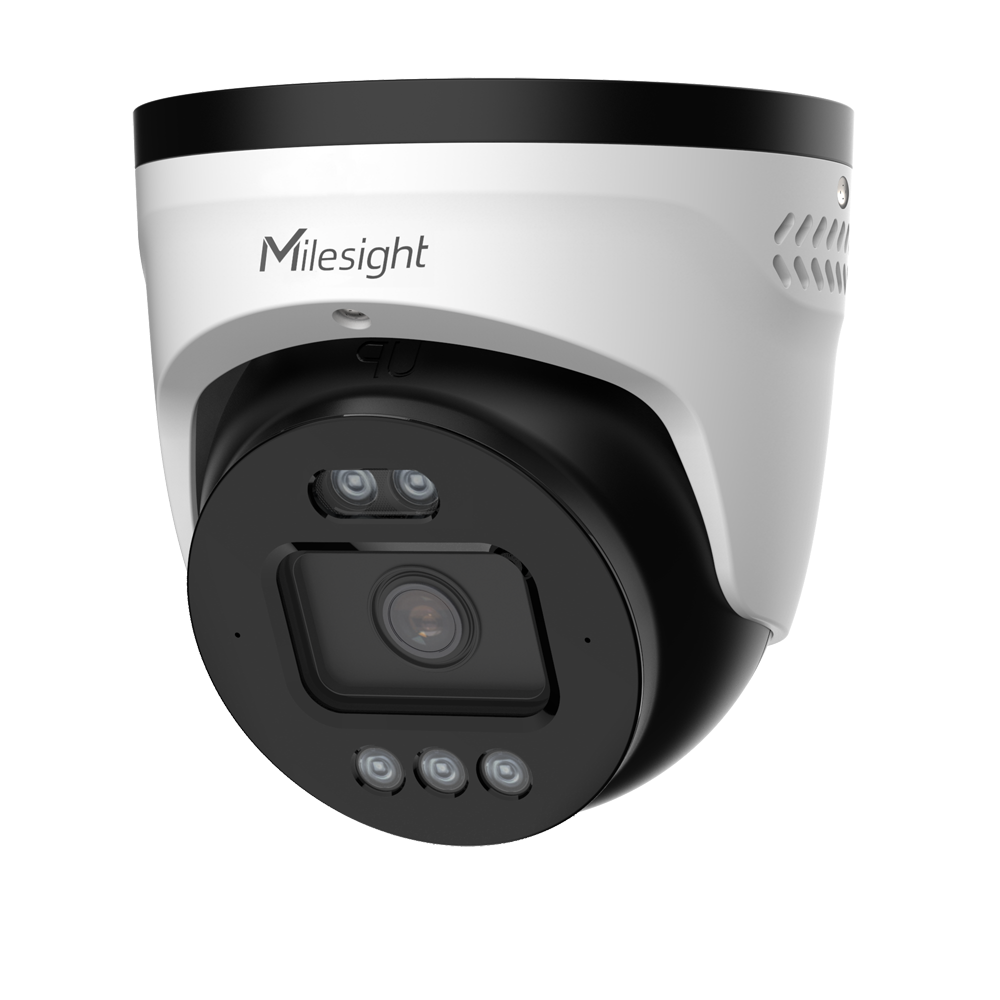

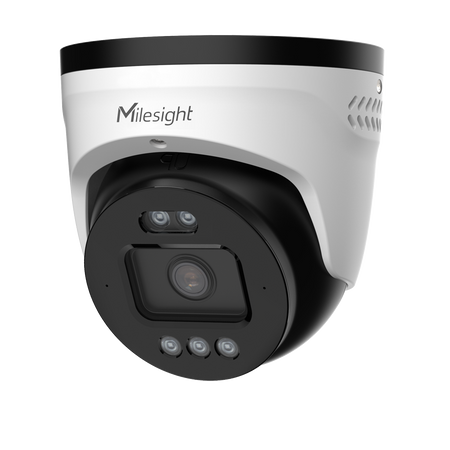

Milesight 8MP TrueColor IP Turret Camera

SKU: MS-CQ8231-HYPG1-0280
(0)
In stock
Usually shipped within 24 hours
€433,49 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

8Mpx TrueColor Turret IP Camera - 1/1.8" Progressive Scan CMOS | 2.8 mm Lens - Red and blue light | 3 x Smart hybrid light - IR 40m | White light 30m | Integrated microphone - Face capture | Heat Map | Alarm - ONVIF | IP67 | IK10 | 4 KV surge protection | NDAA

📋 SPECIFICATIONS:
• Brand: MILESIGHT
• Optical sensor: 1/1.8" Progressive Scan CMOS
• Minimum illumination: Color: 0.0008 Lux@F1.0; B/W: 0 Lux with IR ON
• Day / Night: Day / Night / Auto / Customizable
• DORI: D: 91.5m; O: 36m; R: 18m; I: 9m
• Lighting type: 3 x Smart hybrid lights
• Infrared illumination: 40 m
• White light: 30 m
• Red and blue light: 1 x Red light, 1 x Blue light
• Lens: 2.8mm@ F1.0
• FOV: H:112° V:61.5° D:137º
• Pan/Tilt: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360º
• Maximum resolution: 8 Megapixels (3840x2160)
• Main Stream frame rate: 60Hz: 30fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720); 50Hz: 25fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720)
• Sub Stream frame rate: 60Hz: 30fps@ (704x576, 640x480, 640x360); 50Hz: 25fps@ (704x576, 640x480,640x360)
• Third Stream frame rate: 60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360); 50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360)
• Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• Privacy Masking: Up to 8 areas
• Image enhancements: Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, Defog function, AWB, EIS, IP address filter, AGC, Anti Flicker, Corridor mode, Watermarking
• Audio: Microphone / 1 Input / 1 Output
• Two-Way Audio: Supported
• Audio Bit Rate: 16~256Kbps
• Audio Compression: G.711/AAC/G.722/G.726
• Bitrate: 16 Kbps ~ 16 Mbps (Adjustable CBR / VBR)
• SIP/VoIP: Supported. Voice and Video over IP
• Alarms: 1/1
• ROI: Up to 8 areas
• Intelligent Analysis: VCA 2.0: Motion detection, Line crossing, Loitering detection, Area entry, Area exit, Abandoned object, Removed object
• Target Counting & Report: Target counting crossing the line, with the possibility to include people and vehicles. Supports up to 4 people counting areas
• Heat Map: Statistical behavior analysis allows for identifying the most frequented areas.
• Event Action: Image upload to FTP, SMTP, MicroSD card, Alarm output activation, SIP phone, HTTP notification
• Communication interface: 1xRJ45 10M/100M Ethernet port
• Internal memory: MicroSD card, Max 1 TB
• One-click deactivation: Supported
• Remote access: Web browser, Smartphone App, Milesight Central Management System software and Milesight Enterprise software
• Interoperability: ONVIF (Profile G/M/S/T), API
• Power supply: DC 12 V / MAX 11.5W(with IR ON), PoE IEEE802.3af
• Protection rating: Waterproof IP67, Vandal-proof IK10
• Surge protection: 4000 V
• NDAA: Supported
• Operating temp.: -40º C ~ +60º C
• Dimensions: Φ122mm X 108 mm
• Weight: 900 g

📦 INCLUDED:
• AI TrueColor Turret IP camera• Installation material• Template for easy installation
Image sensor 1/1.8" Progressive Scan CMOS
Min. illumination Color: 0.0008 Lux@F1.0 B/W: 0 Lux with IR ON
Day / Night Day / Night / Auto / Customizable
DORI D: 91.5m O: 36m R: 18m I: 9m
Illumination type 3 x Smart hybrid lights
Infrared illumination 40 m
White light 30 m
Red and blue light 1 x Red light, 1 x Blue light
Lens 2.8mm@ F1.0
FOV H:112° V:61.5° D:137º
Pan/Tilt Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360º
Max. resolution 8 Megapixel (3840x2160)
Main stream frame rate 60Hz: 30fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720) 50Hz: 25fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720)
Sub stream frame rate 60Hz: 30fps@ (704x576, 640x480, 640x360) 50Hz: 25fps@ (704x576, 640x480, 640x360)
Third stream frame rate 60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360)
Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Privacy masking Up to 8 areas
Image enhancement Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP address filtering, AGC, Anti-flicker, Corridor mode, Watermarking
Audio Microphone / 1 Input / 1 Output
Two-way audio Supported
Audio bit rate 16~256Kbps
Audio compression G.711/AAC/G.722/G.726
Bitrate 16 Kbps ~ 16 Mbps (CBR / VBR adjustable)
SIP/VoIP Supported. Voice and video over IP
Alarms 1/1
ROI Up to 8 areas
Smart analysis VCA 2.0: Motion detection, Line crossing, Loitering detection, Area entrance, Area exiting, Abandoned object, Removed object
Target counting & report Target counting that crosses the line, with the ability to include people and vehicles. Supports up to 4 people counting areas
Heat map Statistical behavior analysis allows for identifying the most frequented areas.
Event action Image upload to FTP, SMTP, MicroSD card, Alarm output activation, SIP phone, HTTP notification
Communication interface 1xRJ45 10M/100M Ethernet port
Internal memory MicroSD card, Max 1 TB
One-click deactivation Supported
Remote access Web browser, Smartphone app, Milesight Central Management System software, and Milesight Enterprise software
Interoperability ONVIF (profile G/M/S/T), API
Power supply DC 12 V / MAX 11.5W (with IR ON), PoE IEEE802.3af
Protection rating Waterproof IP67, Vandal-proof IK10
Surge protection 4000 V
NDAA Supported
Operating temp. -40º C ~ +60º C
Dimensions Φ122mm X 108 mm
Weight 900 g
