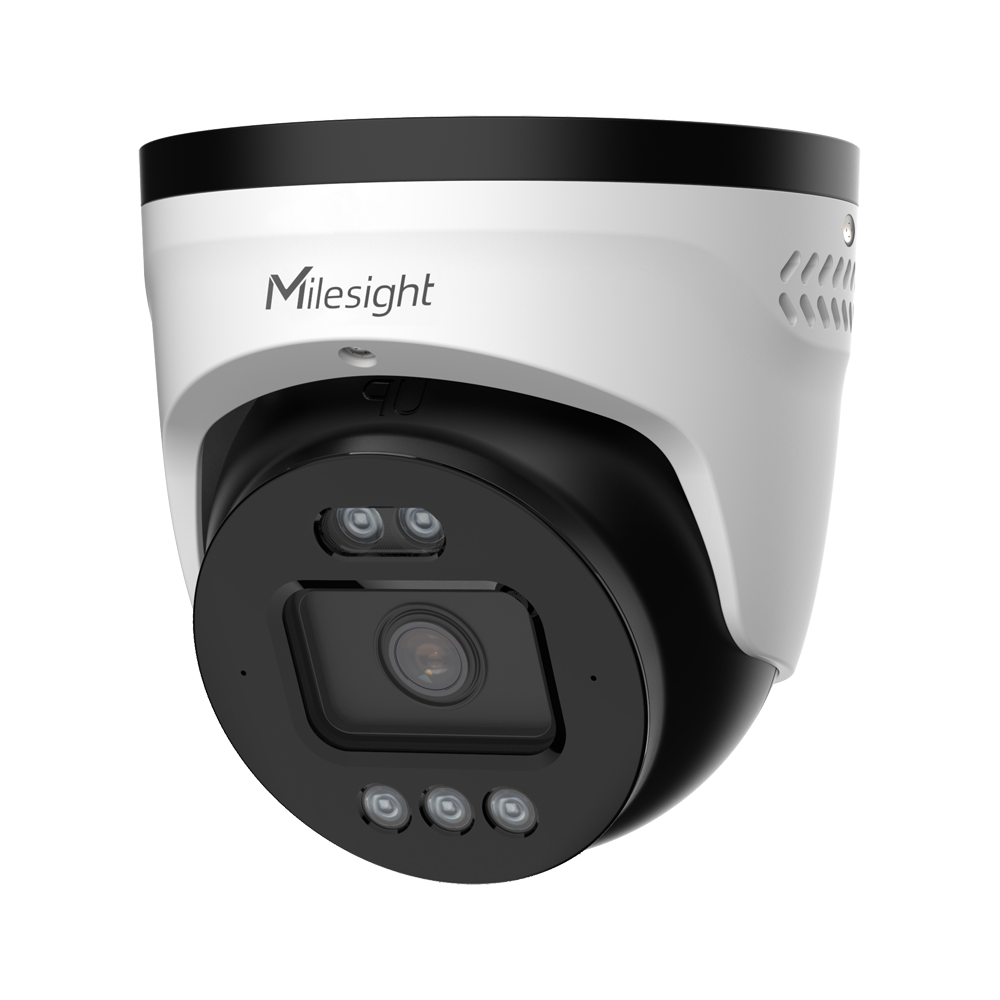

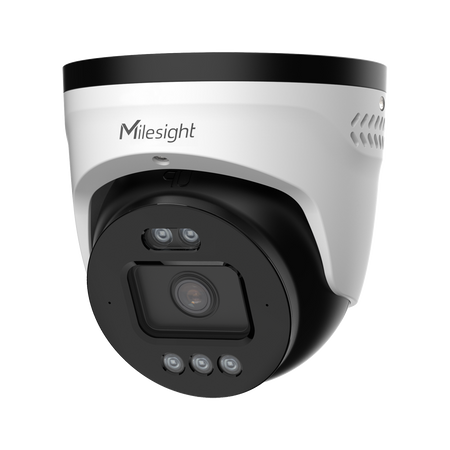

Milesight 4MP TrueColor Turret IP Camera - 1/1.8" Progressive Scan CMOS | 2.8 mm Lens

SKU: MS-CQ4431-HYPG1/2.8mm
(0)
Out of stock
€368,93 Final price
-9% €404,00 €368,93 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

4Mpx TrueColor Turret IP Camera - 1/1.8" Progressive Scan CMOS | 2.8 mm Lens - Red and blue light | 3 x Smart hybrid light - 40m IR | 30m White light | Built-in microphone - Face capture | Heat Map | Alarm - ONVIF | IP67 | IK10 | 4 KV Surge protection | NDAA

📋 SPECIFICATIONS:
• Brand: MILESIGHT
• Image sensor: 1/1.8" Progressive Scan CMOS
• Min. illumination: Color: 0.0008 Lux@F1.0; B/W: 0 Lux with IR ON
• Day / Night: Day / Night / Auto / Customizable
• DORI: D: 44 m; O: 17 m; R: 8.5 m; I: 4 m
• Lighting type: 3 x Smart hybrid lights
• Infrared illumination: 40 m
• White light: 30 m
• Red and blue light: 1 x Red light, 1 x Blue light
• Lens: 2.8 mm@ F1.0
• FOV: H:112° V:61.5° D:137°
• Pan/Tilt: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360º
• Max resolution: 4 Megapixel (2688x1520)
• Main Stream frame rate: 60Hz: 30fps@(2688×1520, 2304×1296, 1920×1080, 1280×720); 50Hz: 25fps@(2688×1520, 2304×1296, 1920×1080, 1280×720)
• Sub Stream frame rate: 60Hz: 30fps@(704x576, 640x480, 640x360); 50Hz: 25fps@(704x576, 640x480, 640x360)
• Third Stream frame rate: 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360); 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360)
• Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• AI ISP: Supported
• Privacy Masking: Up to 8 areas
• Image enhancement: Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP address filtering, AGC, Anti-flicker, Corridor mode, Watermarking
• Audio: Dual microphone / 1 Input / 1 Output
• Two-way audio: Supported
• Audio Bit Rate: 16~256Kbps
• Audio Compression: G.711/AAC/G.722/G.726
• Bitrate: 16 Kbps ~ 16 Mbps (CBR / VBR Adjustable)
• SIP/VoIP: Supported. Voice and Video over IP
• Alarms: 1/1
• ROI: Up to 8 Areas
• Intelligent analysis: VCA 2.0: Motion detection, Line crossing, Loitering detection, Area entry, Area exit, Object abandoned, Object removed
• Target counting & Report: Counting targets crossing lines, with the ability to include people and vehicles. Supports up to 4 people counting areas
• Heat Map: Behavioral statistical analysis allows for identifying the most visited areas.
• Event action: Image upload to FTP, SMTP, MicroSD card, Alarm output activation, SIP phone, HTTP notification
• Communication interface: 1xRJ45 10M/100M Ethernet port
• Internal storage: MicroSD card, Max 1 TB
• One-click deactivation: Supported
• Remote access: Web browser, Smartphone App, Milesight Central Management System software, and Milesight Enterprise software
• Interoperability: ONVIF (Profile G/M/S/T), API
• Power supply: DC 12 V / MAX 11.5W (with IR ON), PoE IEEE802.3af
• Protection rating: Waterproof IP67, Vandal-proof IK10
• Surge protection: 4000 V
• NDAA: Supported
• Operating temp: -40º C ~ +60º C
• Dimensions: Φ122mm X 108 mm
• Weight: 900 g

📦 INCLUDED:
• AI TrueColor Turret IP Camera• Installation hardware• Template for easy installation
Optical sensor 1/1.8" Progressive Scan CMOS
Min. illumination Color: 0.0008 Lux@F1.0 B/W: 0 Lux with IR ON
Day / Night Day / Night / Auto / Customizable
DORI D: 44 m O: 17 m R: 8.5 m I: 4 m
Illumination type 3 x Smart Hybrid Lights
Infrared illumination 40 m
White light 30 m
Red and blue light 1 x Red light, 1 x Blue light
Lens 2.8 mm@ F1.0
FOV H:112° V:61.5° D:137°
Pan/Tilt Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360º
Max. resolution 4 Megapixel (2688x1520)
Main Stream frame rate 60Hz: 30fps@(2688×1520, 2304×1296, 1920×1080, 1280×720) 50Hz: 25fps@(2688×1520, 2304×1296, 1920×1080, 1280×720)
Sub Stream frame rate 60Hz: 30fps@(704x576, 640x480, 640x360) 50Hz: 25fps@(704x576, 640x480, 640x360)
Third Stream frame rate 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360)
Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
AI ISP Supported
Privacy Masking Up to 8 areas
Image enhancement Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP address filtering, AGC, Anti-flicker, Corridor mode, Watermarking
Audio Dual microphone / 1 Input / 1 Output
Two-way audio Supported
Audio bit rate 16~256Kbps
Audio compression G.711/AAC/G.722/G.726
Bitrate 16 Kbps ~ 16 Mbps (CBR / VBR adjustable)
SIP/VoIP Supported. Voice and Video over IP
Alarms 1/1
ROI Up to 8 areas
Intelligent Analysis VCA 2.0: Motion detection, Line crossing, Loitering detection, Area entrance, Area exiting, Abandoned object, Removed object
Target counting & Reporting Counting targets crossing the line, with the ability to include people and vehicles. Supports up to 4 people counting areas
Heat Map Statistical behavior analysis allows for identifying the most frequented areas.
Event action Upload image to FTP, SMTP, MicroSD card, Alarm output activation, SIP phone, HTTP notification
Communication interface 1xRJ45 10M/100M Ethernet port
Internal memory MicroSD card, Max 1 TB
One-click disable Supported
Remote access Web browser, Smartphone app, Milesight Central Management System software, and Milesight Enterprise software
Interoperability ONVIF (Profile G/M/S/T), API
Power supply DC 12 V / MAX 11.5W(with IR ON), PoE IEEE802.3af
Protection rating Waterproof IP67, Vandal-proof IK10
Surge protection 4000 V
NDAA Supported
Operating temp. -40º C ~ +60º C
Dimensions Φ122mm X 108 mm
Weight 900 g
