Milesight LoRaWAN Smart Office IoT Solution Kit
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Smart Office IoT LoRaWAN Solution Kit - Gateway, zone occupancy sensor - Desk sensor and E-ink display - 1 year of Milesight IoT Cloud Pro - 8 channels and connection for 2000 devices - Ethernet and Wi-Fi communication
📋 SPECIFICATIONS:
• Hardware: CPU: Quad-core 1.3 GHz, 64-bit ARM Cortex-A35; Memory: 512 MB DDR4 RAM; Flash: 8 GB eMMC; Supports 1x Micro SD
• Antennas: 1x External LoRa antenna with N-Female connector; Internal Wi-Fi antenna
• Channels: 8
• Connected devices: 2000 end devices
• Frequency band: 868 MHz
• Sensitivity: 140dBm@292bps
• Output power: 27dBm Max.
• Protocol: V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C
• Ethernet: 1x RJ45 10/100/1000Mbps Base-T (IEEE 802.3); Full or Half-Duplex mode with auto-detection; Auto MDI/MDIX
• WiFi: IEEE 802.11 b/g/n
• WiFi transmission power: 802.11b: 18 dBm +/-2.0 dBm (11 Mbps); 802.11g: 15 dBm +/-2.0 dBm (6 Mbps); 802.11g: 15 dBm +/-2.0 dBm (54 Mbps); 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20); 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20); 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40); 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
• Network protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
• VPN Tunnels: OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
• Access authentication: CHAP/PAP/MS-CHAP/MS-CHAPV2
• Firewall: ACL/DMZ/Port mapping/MAC Binding/URL filter
• Management: Web, CLI, SMS, On-demand dial-up, Hub, Milesight IoT Cloud
• Reliability: WAN Failover
• Built-in functions: Watchdog, RTC, Timer
• Power supply: 5V/2A Type-C / PoE 802.3af, ≤ 4.2W Max.
• Operating temperature: -20ºC to 60ºC (Relative humidity <95%)
• Storage temperature: -40ºC to 85ºC
• Ethernet isolation: 1.5kV RMS
• Protection rating: IP65
• Dimensions: 110 x 75 x 24 mm
• Mounting: Desktop or wall
• Technology: LoRaWAN®
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class C
• Communication range: Up to 15km line-of-sight range
• Field of view: 190° Horizontal, 112° Vertical
• Detection area: 5m radius at a height of 3m (78㎡)
• Light sensor: Bright/Dark (configuration between 1-60000 lux as Bright or Dark based on custom threshold)
• Configuration: NFC via smartphone APP
• Power supply: 1x 1650 mAh ER14335 Li-SOCl2 battery
• Battery life: 4 years (30 detections / day)
• Operating temperature: -20ºC to 60ºC (Relative humidity < 90%)
• Protection rating: IP30
• Dimensions: 23.8 (D) x 50 (H) x 50 (W) mm
• Material: Flame retardant polycarbonate
• Color: White
• Certifications: CE, FCC, RoHS
• Installation height: 2.5~4m
• Recognition rate: Area counting: up to 95%; Line crossing counting: up to 98%
• Technology: LoRaWAN®, Milesight D2D
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class A
• Communication range: Up to 15km line-of-sight range
• Detection technology: PIR / Up to 1m distance
• Recognition accuracy: 95%
• Detection area: 107º Horizontal, 107º Vertical
• Configuration: NFC via smartphone APP
• Power supply: 1x 4000 mAh ER18505 Li-SOCl2 battery
• Battery life: 5 years (100 detections / day)
• Operating temperature: -20ºC to 60ºC (Relative humidity < 95%)
• Protection rating: IP30
• Dimensions: 26 (D) x 73 (H) x 73 (W) mm / 90g
• Material: Flame retardant polycarbonate
• Color: White and gray
• Certifications: CE, FCC, RoHS
• Technology: LoRaWAN®
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class A/B
• Screen: 4.2" e-ink
• Colors: Black, white, and red electronic ink
• Resolution: 400x300 pixels
• DPI: 119
• Viewing angle: 180º
• Battery life: Approx. 5 years
• Power supply: 3x 590mAh CR2450 lithium
• Operating temperature: 0°C to +40°C
• Environmental protection: IP30
• Dimensions: 99 x 87 x 10.5 mm

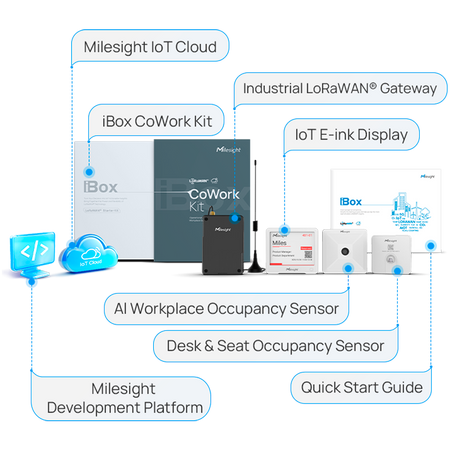

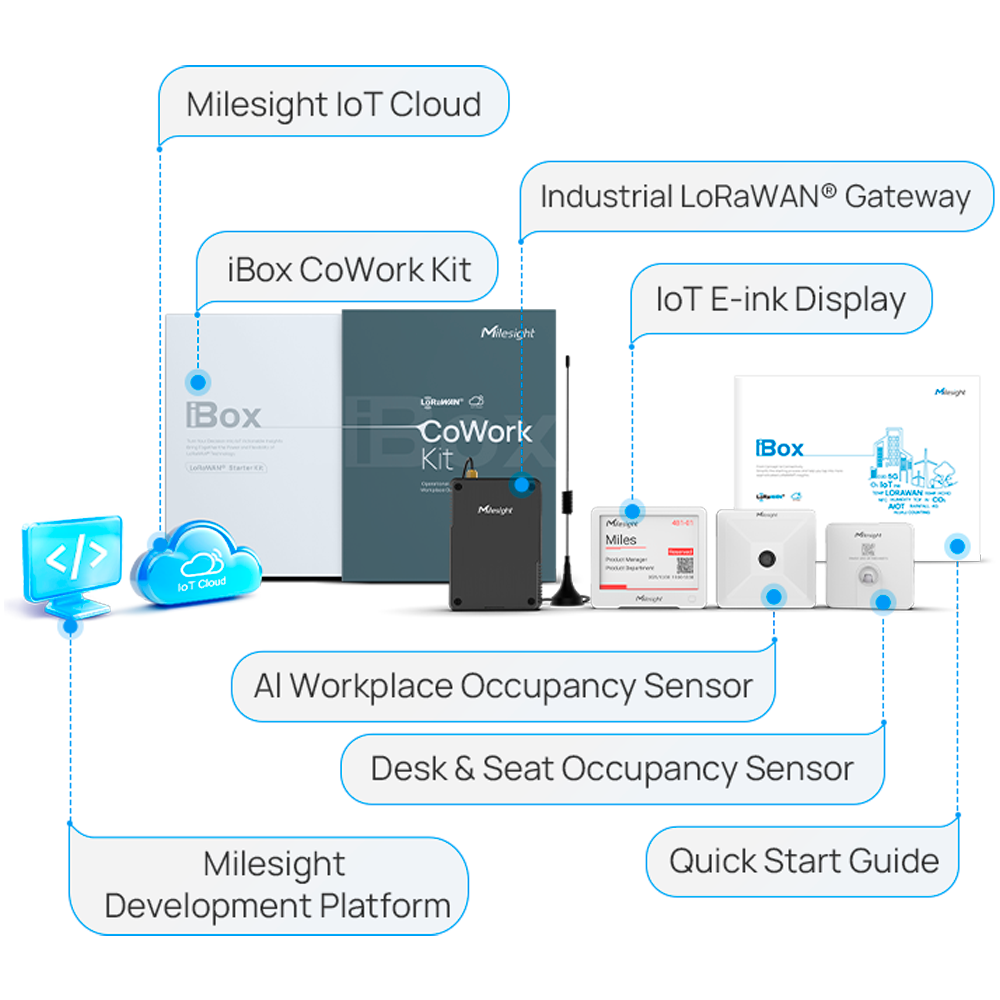

📦 INCLUDED:
• Gateway (UG56)
• Zone occupancy sensor (VS121)
• Desk occupancy sensor (VS340)
• E-ink display (DS3604)
| Hardware | CPU: Quad-core 1.3 GHz, 64-bit ARM Cortex-A35 Memory: 512 MB DDR4 RAM Flash: 8 GB eMMC Supports 1x Micro SD |
|---|---|
| Antennas | 1x External LoRa antenna N-Female connector Internal Wi-Fi antenna |
| Channels | 8 |
| Connected devices | 2000 end devices |
| Frequency Band | 868 MHz |
| Sensitivity | 140dBm@292bps |
| Output Power | 27dBm Max. |
| Protocol | V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C |
| Ethernet | 1x RJ45 10/100/1000Mbps Base-T (IEEE 802.3) Full or Half-Duplex mode with auto-detection Auto MDI/MDIX |
| WiFi | IEEE 802.11 b/g/n |
| WiFi Transmit Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| Firewall | ACL/DMZ/Port mapping/MAC binding/URL filter |
| Management | Web, CLI, SMS, Dial-on-demand, Hub, Milesight IoT Cloud |
| Reliability | WAN Failover |
| Built-in functions | Watchdog, RTC, Timer |
| Power Supply | 5V/2A Type-C / PoE 802.3af, ≤ 4.2 Max. |
| Operating Temperature | -20ºC to 60ºC (Relative humidity <95%) |
| Storage Temperature | -40ºC to 85ºC |
| Ethernet isolation | 1.5kV RMS |
| Protection Degree | IP65 |
| Dimensions | 110 x 75 x 24 mm |
| Mounting | Desktop or wall |
| Technology | LoRaWAN® |
| Frequency Band | 868 MHz |
| Output Power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class C |
| Communication range | Up to 15km line of sight |
| Field of view | 190° Horizontal, 112° Vertical |
| Detection area | 5m radius at a height of 3m (78㎡) |
| Light Sensor | Bright/Dark (setting between 1-60000 lux as Bright or Dark according to custom threshold) |
| Configuration | NFC via smartphone APP |
| Power Supply | 1x 1650 mAh ER14335 Li-SOCI2 battery |
| Battery Life | 4 years (30 detections / day) |
| Operating Temperature | -20ºC to 60ºC (Relative humidity < 90%) |
| Protection Degree | IP30 |
| Dimensions | 23.8 (D) x 50 (H) x 50 (W) mm |
| Material | Flame-retardant polycarbonate |
| Color | White |
| Certificates | CE, FCC, RoHS |
| Installation height | 2.5~4m |
| Recognition rate | Region counting: up to 95% Line crossing counting: up to 98% |
| Technology | LoRaWAN®, Milesight D2D |
| Frequency Band | 868 MHz |
| Output Power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Communication range | Up to 15km line of sight |
| Detection technology | PIR / Up to 1m distance |
| Recognition accuracy | 95% |
| Detection area | 107º Horizontal, 107º Vertical |
| Configuration | NFC via smartphone APP |
| Power Supply | 1x 4000 mAh ER18505 Li-SOCI2 battery |
| Battery Life | 5 years (100 detections / day) |
| Operating Temperature | -20ºC to 60ºC (Relative humidity < 95%) |
| Protection Degree | IP30 |
| Dimensions | 26 (D) x 73 (H) x 73 (W) mm / 90g |
| Material | Flame-retardant polycarbonate |
| Color | White and gray |
| Certificates | CE, FCC, RoHS |
| Technology | LoRaWAN® |
| Frequency Band | 868 MHz |
| Output Power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A/B |
| Display | 4.2" E-ink. |
| Colors | Black, white and red E-ink |
| Resolution | 400x300 pixels |
| DPI | 119 |
| Viewing angle | 180º |
| Battery life | About 5 years |
| Power Supply | 3x 590mAh CR2450 lithium |
| Operating Temperature | 0°C to +40°C |
| Environmental protection | IP30 |
| Dimensions | 99 x 87 x 10.5 mm |
