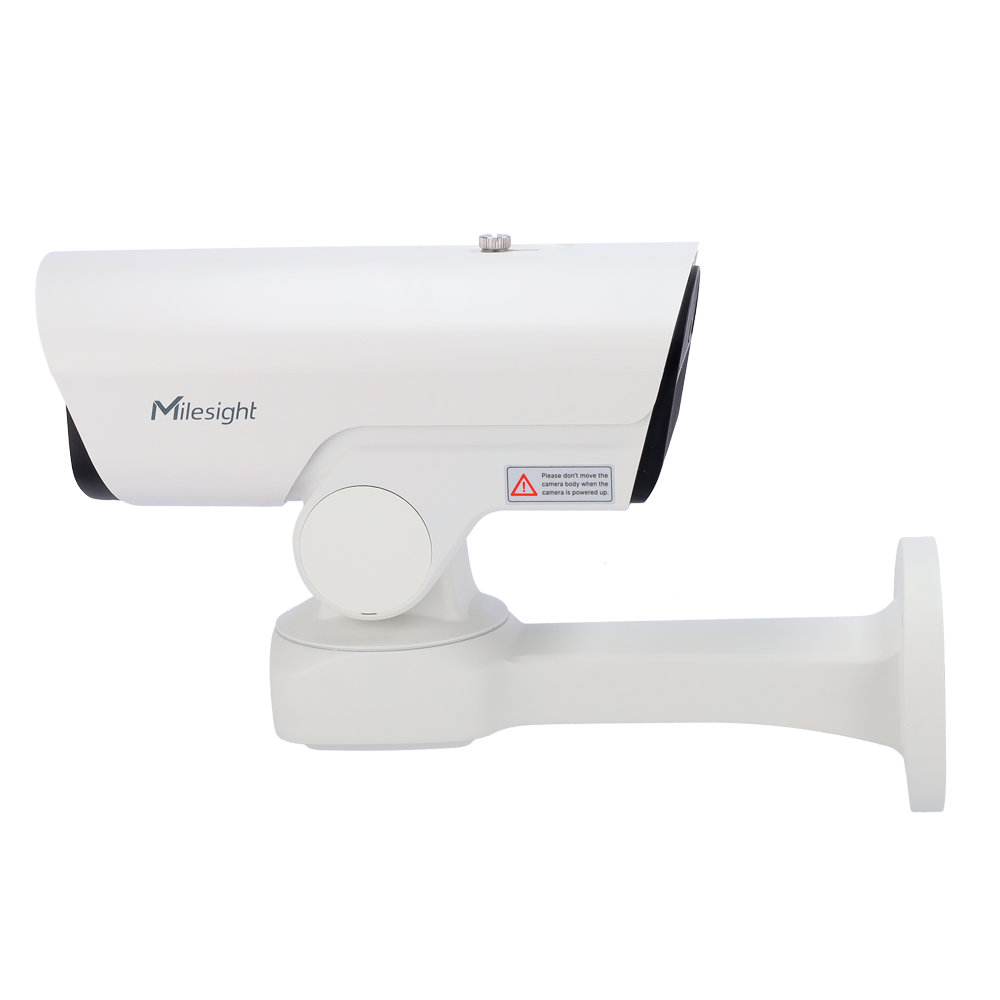

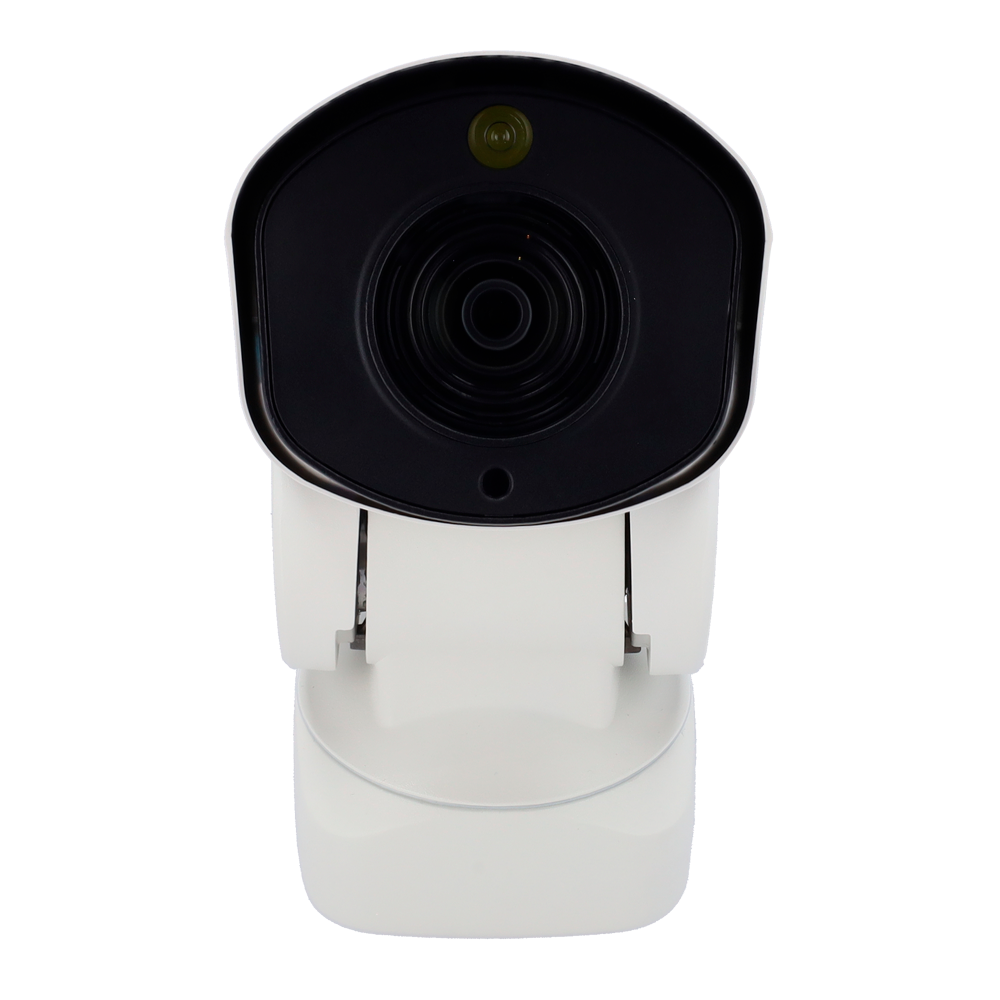

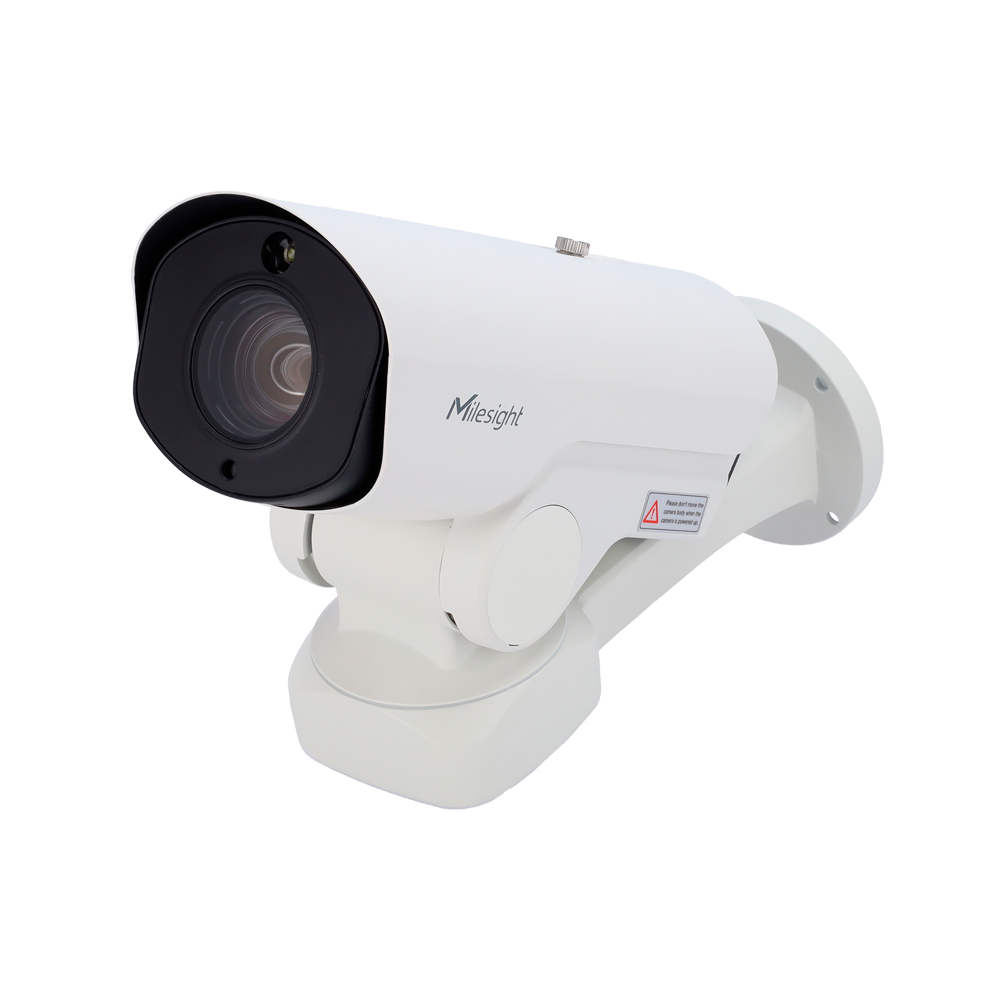

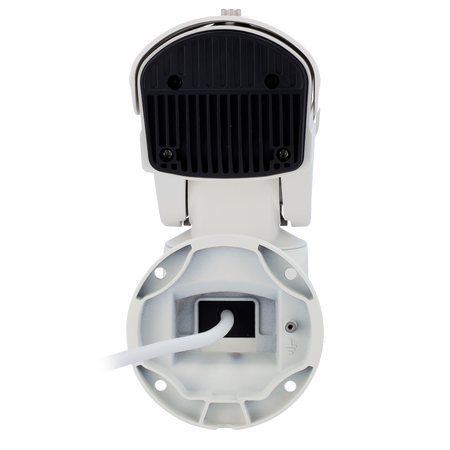

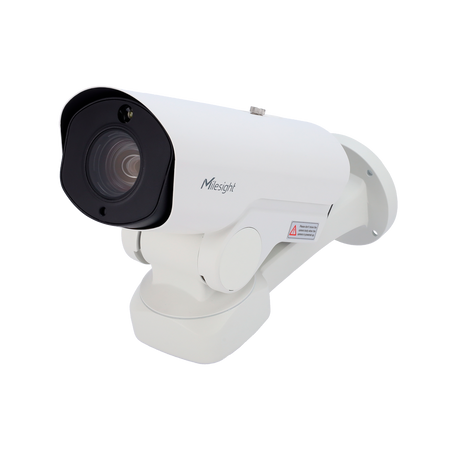

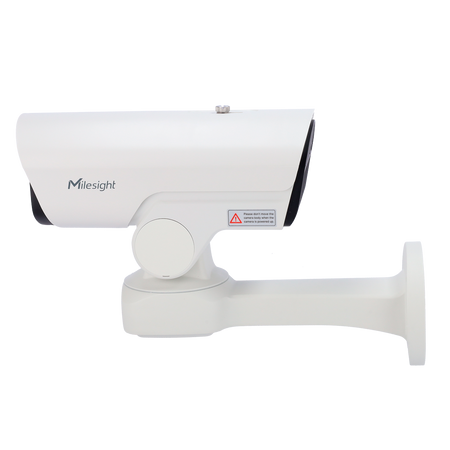

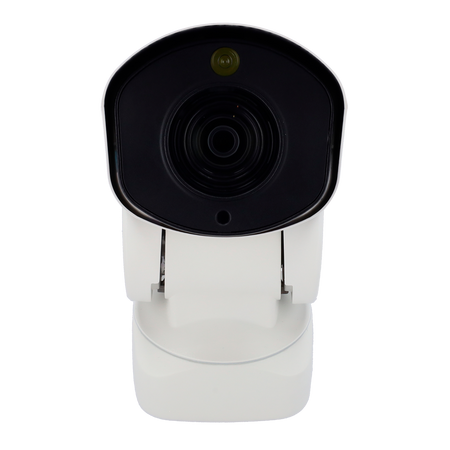

20X AI PTZ Bullet IP Camera - 4K Resolution - 1/1.8" CMOS 6.4mm~128mm lens - AI video analytics based on humans and vehicles - IP66 certified - NDAA compliant
📋 SPECIFICATIONS:
• Brand: Milesight
• Range: AI 12X/20X/23X PTZ Bullet Network Camera
• Optical sensor: 1/1.8" Progressive Scan CMOS
• Minimum illumination: Color: 0.009 Lux@F1.6; B/W: 0 Lux with IR ON
• WDR: 120dB Super WDR
• Day / Night: Day / Night / Auto / Customizable / Programmable
• Lens: 6.4mm~128mm, 20X optical zoom
• FOV: H60°~H3° / D67°~D4° / V37°~V1° (6.4~128mm)
• Focus control: Auto/Semi-auto/Manual
• Iris control: Auto
• Pan range/pan speed: 360° endless / manual pan speed: 0.1°~50°/s, preset pan speed: 50°/s
• Tilt range/tilt speed: -45°~30° / manual tilt speed: 0.1°~30°/s, preset tilt speed: 30°/s
• Proportional zoom: Supported
• Number of presets: 300
• Patrols: 8 patrols, up to 48 presets per patrol
• Patterns: 4 patterns
• Auto tracking: Supported
• Power-off memory: Supported
• Other features: Auto Scan, Auto Home, preset freeze, 3D positioning, PTZ limits, Home position
• Infrared illumination: 180m

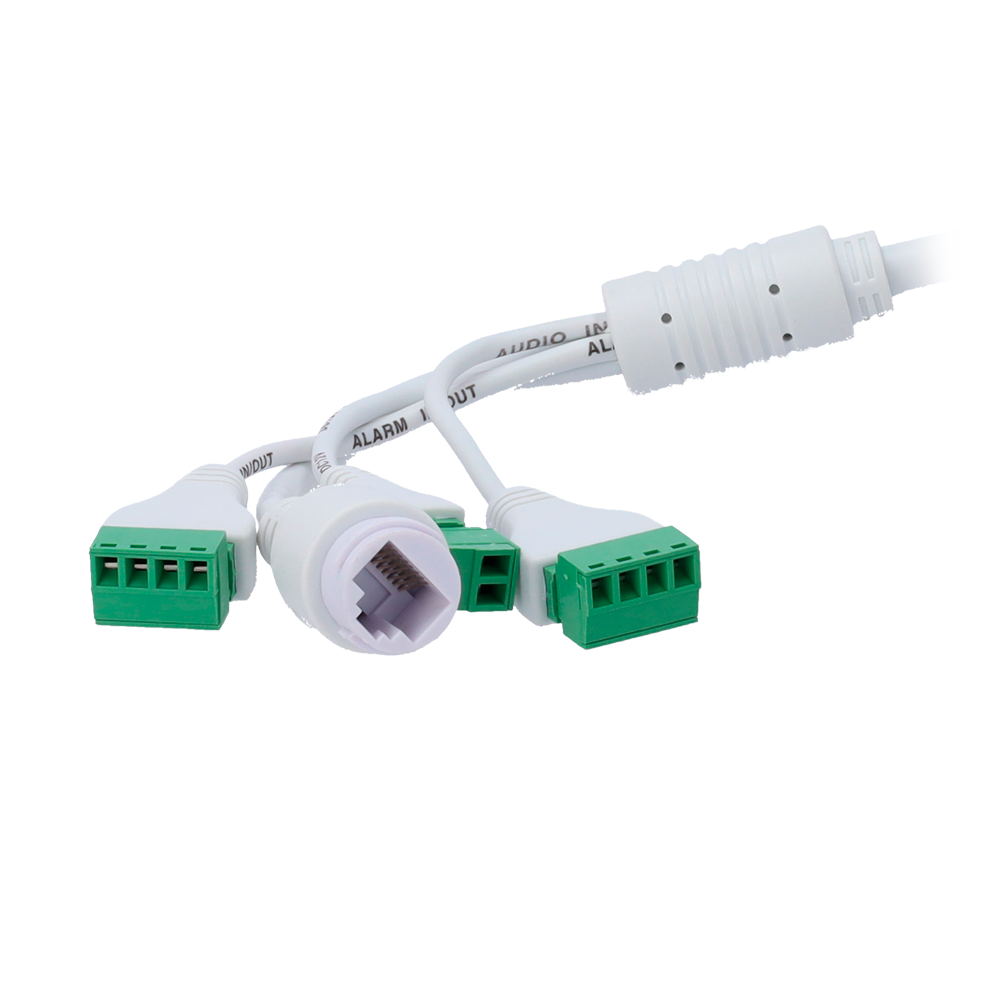

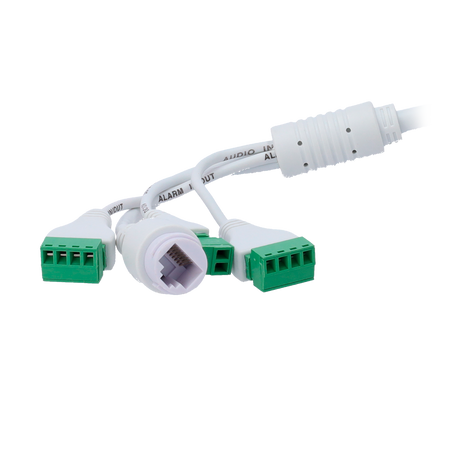

• Ethernet interface: 1*RJ45 10M/100M Ethernet port
• Audio connections: 1 input / 1 output
• Alarm connections: 1 input / 1 output
• Maximum resolution: 4K (3840x2160)
• Main Stream frame rate: 25fps@(3840x2160,3072x2048, 2592x1944, 2592x1520, 2048x1536,1920x1080, 1280x960, 1280x720, 704x576)
• Sub Stream frame rate: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
• 3rd Stream: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
• Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• Bitrate: 16 Kbps ~ 16Mbps (CBR / VBR adjustable)
• Privacy: Up to 8 areas (masked area and mosaic area are optional)
• ROI: Up to 8 areas
• Image enhancement: BLC, HLC, 2D DNR, 3D DNR, defog, AWB, AGC, anti-flicker, corridor mode, deblur
• Network storage: NAS (supports NFS, SMB/CIFS), ANR
• Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2
• Audio compression: G.711/AAC/G.722/G.726
• Audio Bit Rate: 16~256Kbps
• Video analytics: VCA 2.0: Advanced motion detection, line crossing, loitering detection, enter area, exit area, abandoned object, removed object
• Feature detection: Simultaneously detects up to 5 objects and captures humans and vehicles in real time; Recognizes features, including upper and lower clothing color, helmet, and vehicle types (bicycle, car, motorcycle, bus, truck, and e-scooter)
• Face and feature detection: Detects and captures faces, takes real-time images; Features include age, gender, glasses, face mask, and hat; Supports face privacy mode, faces detected in the detection area are automatically masked.
• Object counting and reporting: Detects the number of objects crossing a line, including humans and vehicles; Supports people counting up to 4 detection areas.
• Basic event: Motion detection, exceptions, alarm input, audio alarm, etc.
• Event actions: Image upload to FTP, SMTP, MicroSD card, alarm output enabling, SIP call, HTTP notification
• Internal storage: Supports local storage on microSD/SDHC/SDXC card up to 1TB
• SIP/VoIP: Yes. Voice and video over IP
• Compatibility: ONVIF (Profile G/S/T/M)
• Remote access: Web browser, smartphone App and Milesight Central Management System software, Milesight VMS Enterprise
• Operating temp.: -40ºC~+60ºC
• Operating humidity: 0~90% (non-condensing)
• Power supply: PoE (802.3at) / DC 12V / 3A±10%
• Power consumption: Max.: 21W (DC 12V), 25W (PoE)
• Dimensions: 110mm x 337mm x 220mm
• Weight: 2.9Kg
• EMC: CE-EMC (EN 55032, EN 55035), FCC (PART 15B)
• Safety: CE-LVD (EN IEC 62368-1)
• Environmental protection: CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
• Protection rating: IP66
• NDAA compliant: Compliant with NDAA standards
📦 INCLUDED:
• 20X AI PTZ Bullet IP Camera• Installation hardware• Template for easy installation
| Series | AI 12X/20X/23X PTZ Bullet Network Camera |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.009 Lux@F1.6, B/W: 0 Lux with IR ON |
| WDR | 120dB Super WDR |
| Day/Night | Day / Night / Auto / Customizable / Scheduled |
| Lens | 6.4mm~128mm, 20X optical zoom |
| FOV | H60°~H3° / D67°~D4° / V37°~V1° (6.4~128mm) |
| Focus Control | Auto/Semi-auto/Manual |
| Iris Control | Auto |
| Pan Range/Pan Speed | 360° endless / Manual Pan Speed: 0.1°~50°/s, Preset Pan Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Manual Tilt Speed: 0.1°~30°/s, Preset Tilt Speed: 30°/s |
| Proportional Zoom | Supported |
| Number of Presets | 300 |
| Patrols | 8 patrols, up to 48 presets per patrol |
| Patterns | 4 patterns |
| Auto Tracking | Supported |
| Power-off Memory | Supported |
| Other Functionality | Auto Scan, Auto Home, Preset Freeze, 3D Positioning, PTZ Limits, Home Position |
| IR Distance | 180m |
| Ethernet Interface | 1*RJ45 10M/100M Ethernet port |
| Audio Connections | 1 input / 1 output |
| Alarm Connections | 1 input / 1 output |
| Max. Resolution | 4K (3840x2160) |
| Frame Rate Main Stream | 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Frame Rate Sub Stream | 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| 3rd Stream | 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Bitrate | 16 Kbps ~ 16Mbps (CBR / VBR adjustable) |
| Privacy | Up to 8 areas (Mask area and mosaic area are optional) |
| ROI | Up to 8 areas |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, defog, AWB, AGC, anti-flicker, corridor mode, deblur |
| Network Storage | NAS (support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Bit Rate | 16~256Kbps |
| Video Analysis | VCA 2.0: Advanced motion detection, line crossing, loitering detection, region entrance, region exiting, object left, object removed |
| Feature Detection | Detect up to 5 objects simultaneously and capture people and vehicles in real time. Recognizes attributes, including top and bottom clothing colors, helmets, and vehicle types (bicycle, car, motorcycle, bus, truck, and e-scooter) |
| Face and Attribute Detection | Detects and captures faces, takes real-time snapshots; Attributes include age, gender, glasses, mask, and hat. Supports face privacy mode; faces detected in the detection area are automatically masked. |
| Object Counting and Reporting | Detects the number of objects crossing a line, including humans and vehicles. Supports people counting for up to 4 detection areas. |
| Basic Event | Motion detection, exceptions, alarm input, audio alarm, etc. |
| Event Actions | Image upload to FTP, SMTP, MicroSD card, alarm output activation, SIP call, HTTP notification |
| Internal Storage | Supports local storage on microSD/SDHC/SDXC card up to 1TB |
| SIP/VoIP | Yes. Voice and video over IP |
| Compatibility | ONVIF (Profile G/S/T/M) |
| Remote Access | Web browser, smartphone App, Milesight Central Management System software, Milesight VMS Enterprise |
| Operating Temperature | -40ºC~+60ºC |
| Operating Humidity | 0~90% (non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V / 3A±10% |
| Power Consumption | Max.: 21W (DC 12V), 25W (PoE) |
| Dimensions | 110mm x 337mm x 220mm |
| Weight | 2.9Kg |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environmental Protection | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Ingress Protection | IP66 |
| NDAA Compliant | Compliant with NDAA standards |
