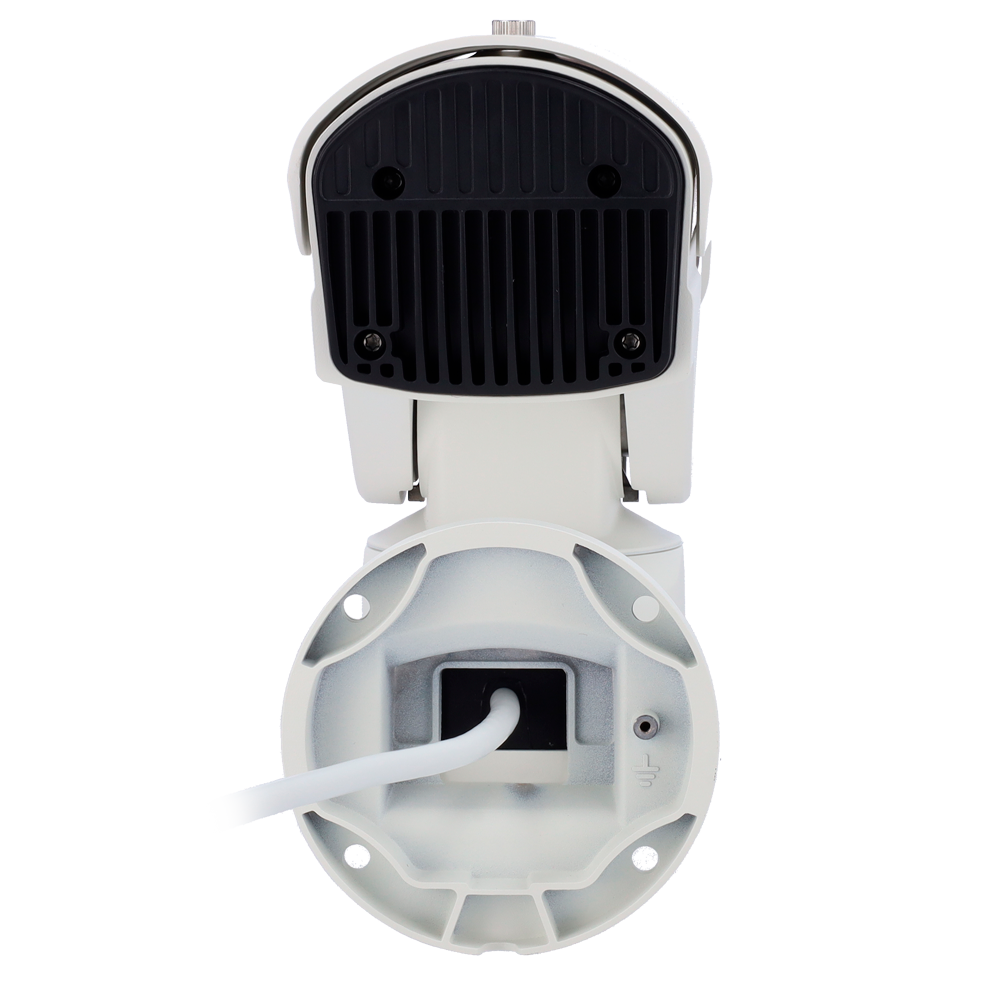

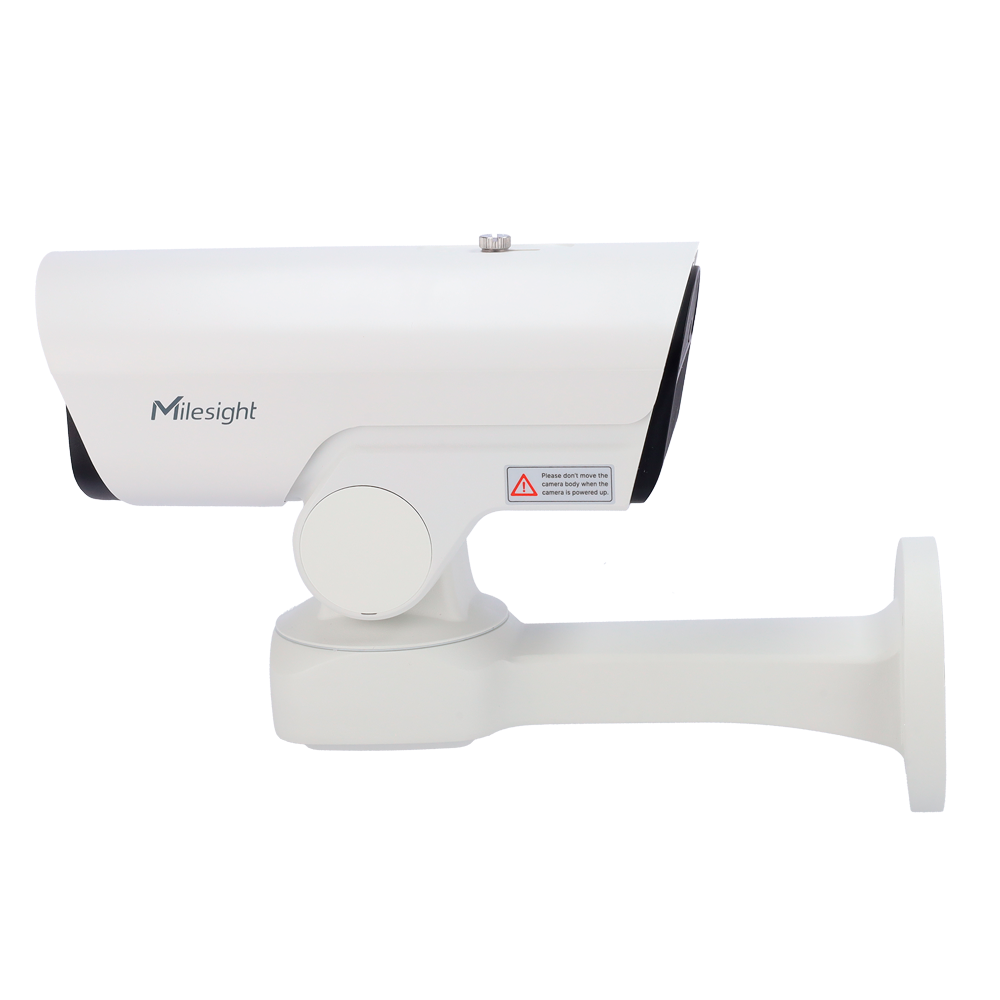

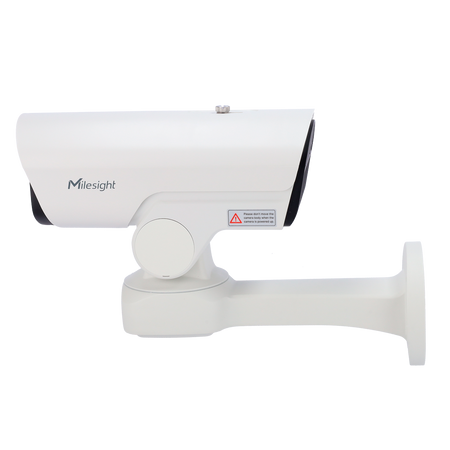

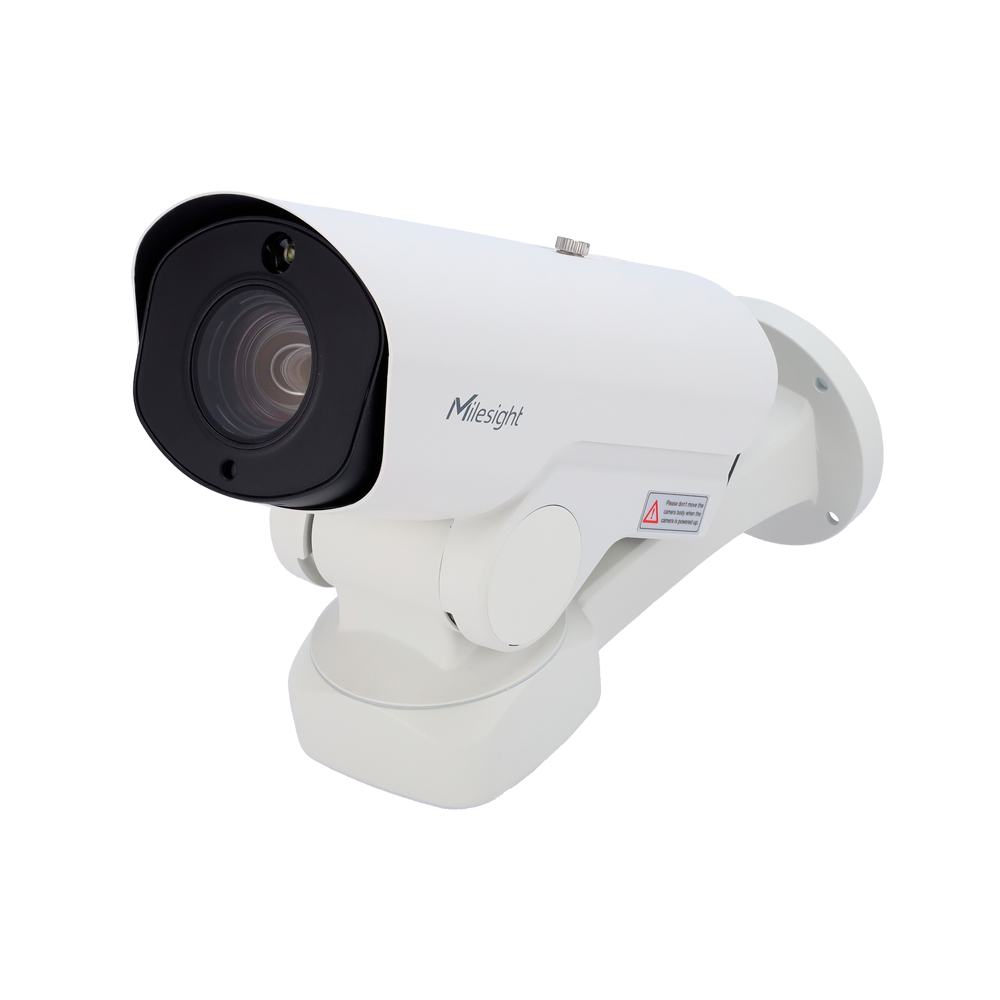

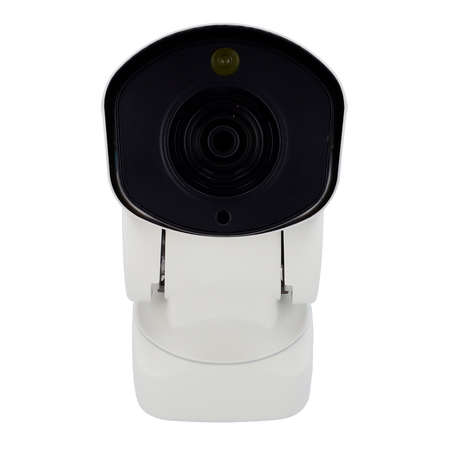

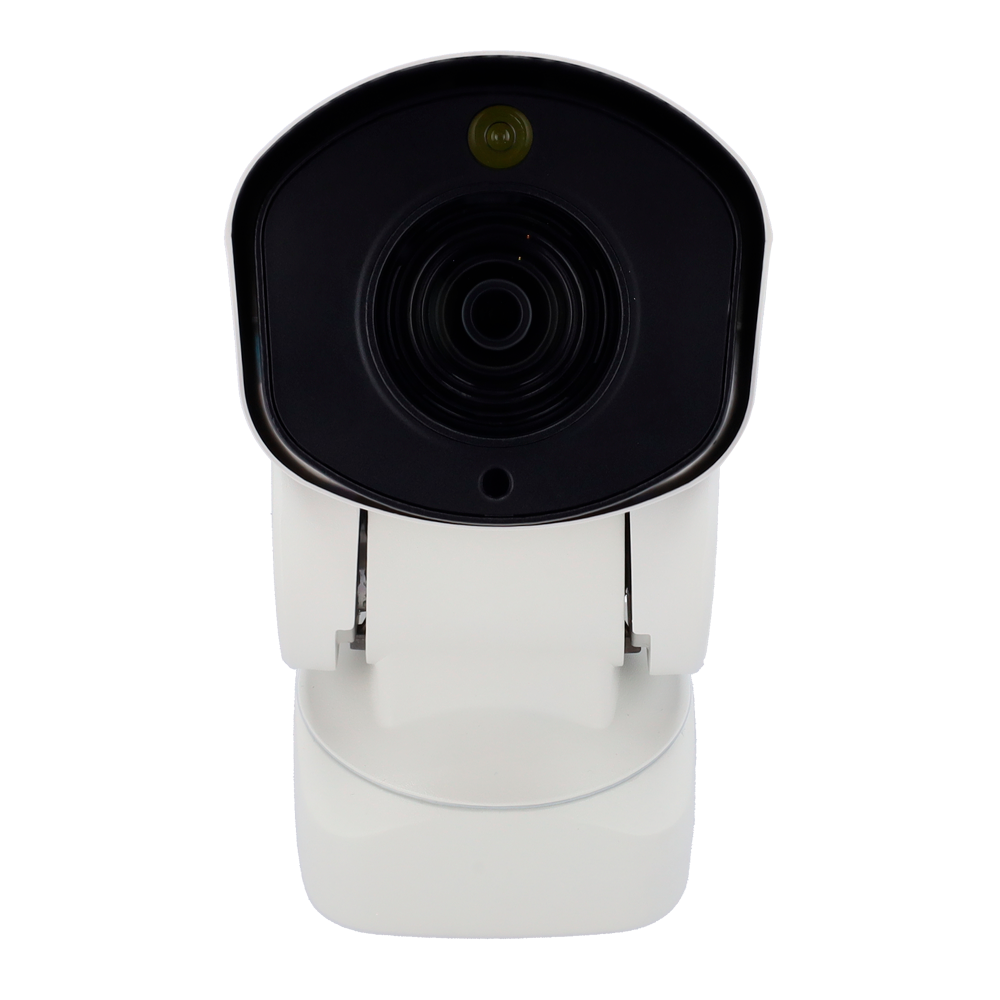

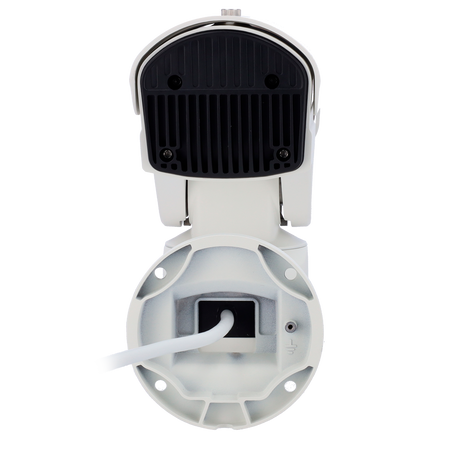

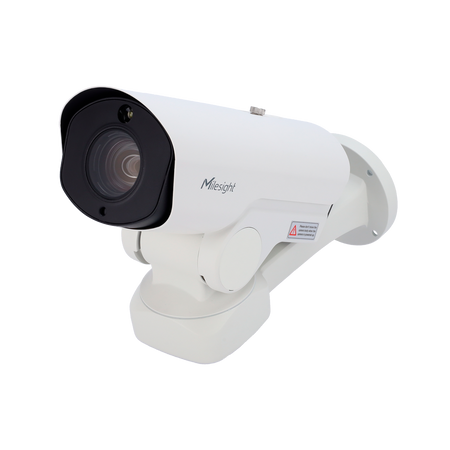

Milesight 23X PTZ AI Bullet IP Camera

AI 23X PTZ Bullet IP Camera - 5Mpx Resolution - 1/2.8" CMOS 5~117mm lens - AI video analysis based on people and vehicles - IP66 Certified - NDAA Compliant

📋 SPECIFICATIONS:
• Brand: Milesight
• Range: AI 12X/20X/23X PTZ Bullet
• Optical sensor: 1/2.8" Progressive Scan CMOS
• Maximum resolution: 5 Megapixel (2592x1944)
• Main Stream frame rate: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720)
• Sub Stream frame rate: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
• 3rd Stream: 25fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240)
• Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• Bitrate: 16 Kbps ~ 16Mbps (CBR / VBR adjustable)
• Lens: 5~117mm
• FOV: H55°~H3° / D68°~D4° / V42°~V2° (5~117mm)
• Focus control: Auto/Semi-auto/Manual
• Iris control: Auto
• Minimum illumination: Color: 0.008 Lux@F1.5; B/W: 0 Lux with IR ON
• Infrared illumination: 180m
• Day / Night: Day / Night / Auto / Customizable / Scheduled
• Advanced functions: BLC, HLC, 2D DNR, 3D DNR, defog, AWB, AGC, anti-flicker, corridor mode, deblur
• ROI: Up to 8 Areas
• Intelligent analysis: VCA 2.0: Advanced motion detection, line crossing, loitering detection, region entrance, region exiting, abandoned object, removed object
• Feature extraction: Simultaneously detects up to 50 objects and captures people and vehicles in real time; Recognizes characteristics such as top and bottom clothing color, helmet, and vehicle types (bicycle, car, motorcycle, bus, truck, electric scooter)
• Face and feature detection: Detects and captures faces, takes snapshots in real time; Features include age, gender, glasses, mask, and hat; Supports face privacy mode, faces detected in the face detection area are automatically masked.
• Object counting and reporting: Detects the number of objects crossing a line, including humans and vehicles; Supports people counting up to 4 detection areas.
• Event Trigger: Motion Detection, Exceptions, Alarm Input, Audio Alarm, etc.
• Event Action: Image upload to FTP, SMTP, MicroSD card, alarm output enable, SIP call, HTTP notification

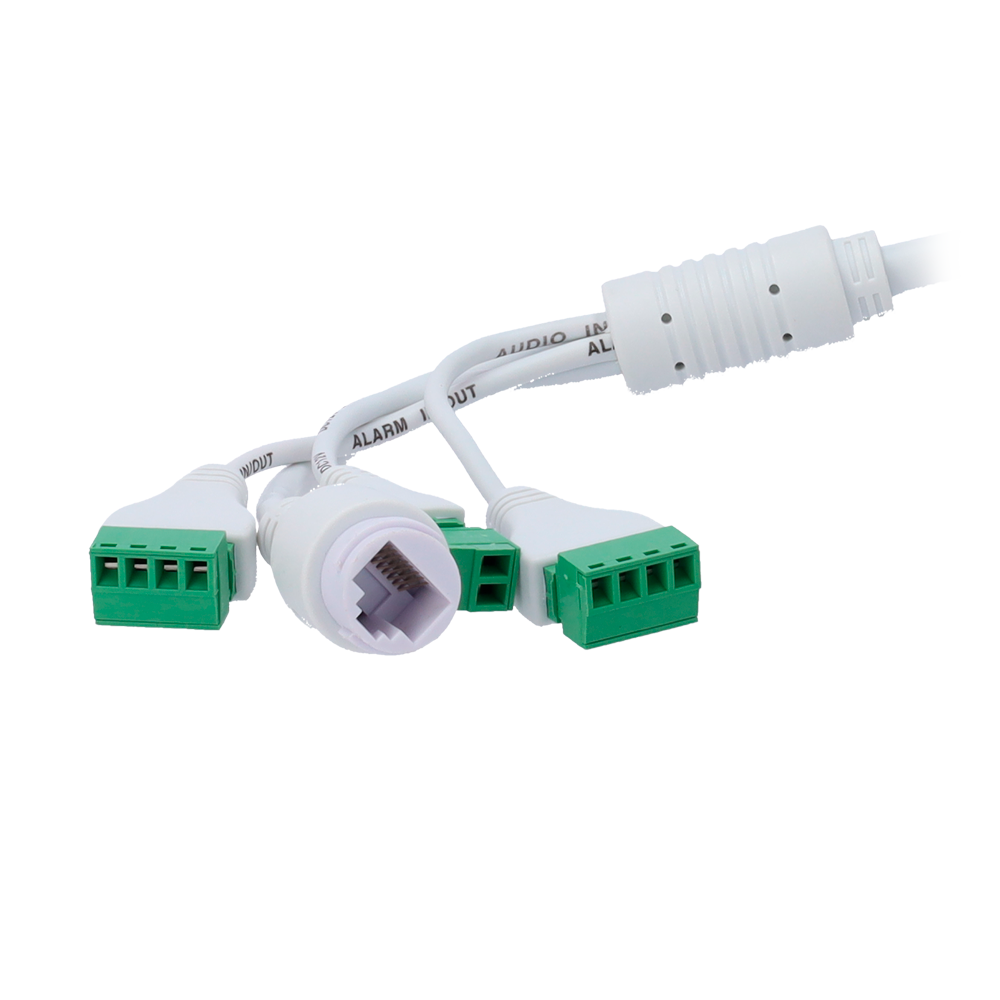

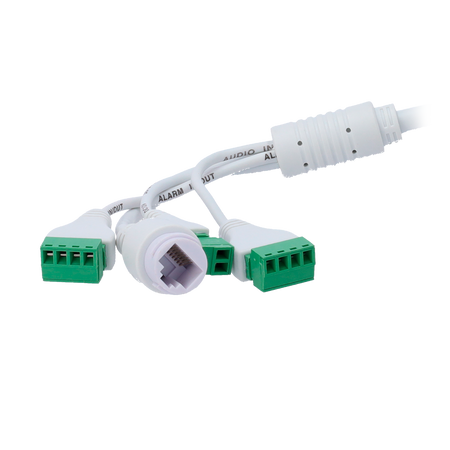

• Communication interface: 1*RJ45 10M/100M Ethernet port

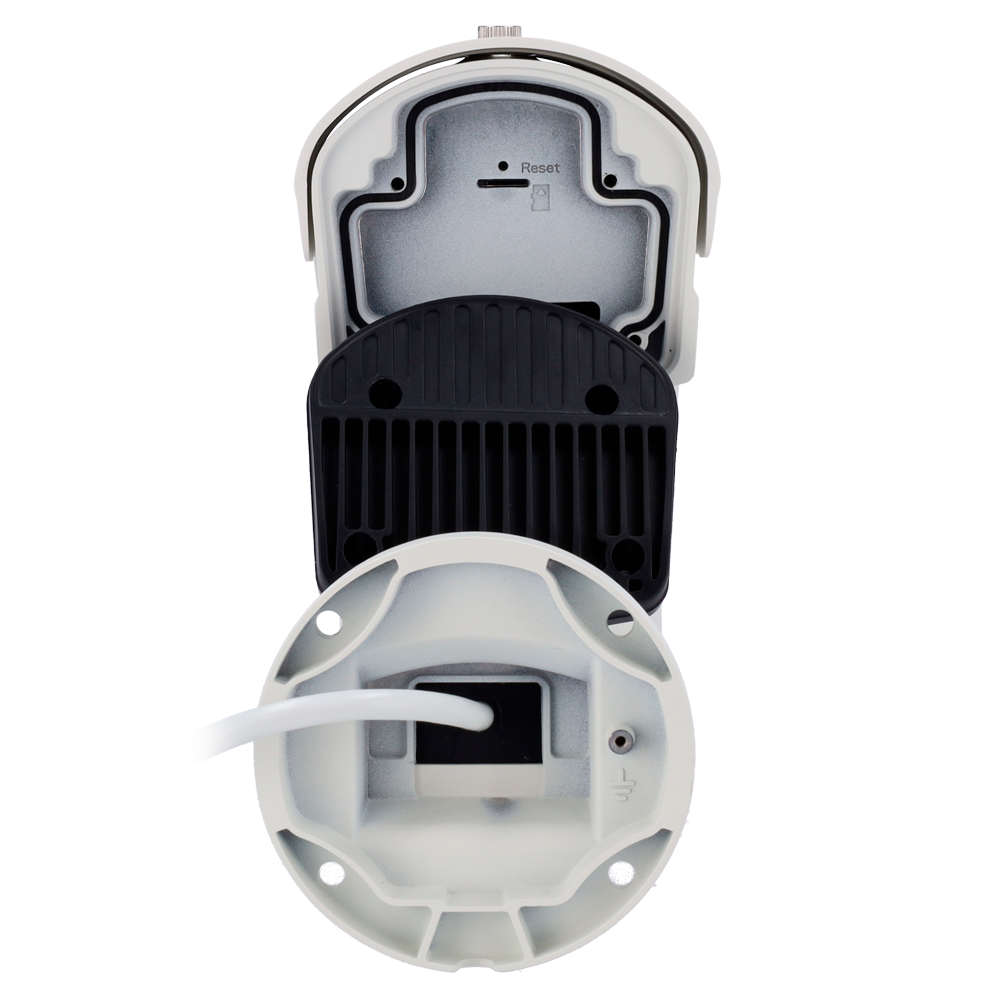

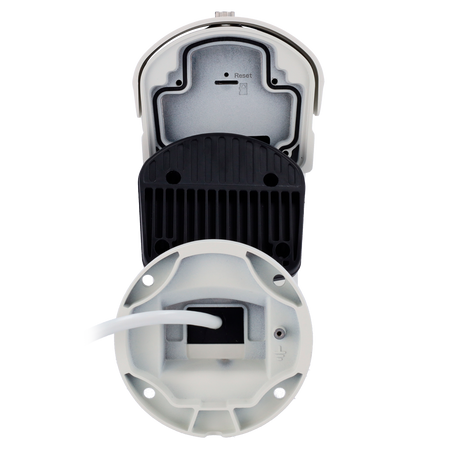

• Internal memory: Supports local storage on microSD/SDHC/SDXC card up to 1TB
• Audio compression: G.711/AAC/G.722/G.726
• Audio Bit Rate: 16~256Kbps
• SIP/VoIP: Yes. Voice and video over IP
• Remote access: Web browser, smartphone app, Milesight Central Management System software, Milesight VMS Enterprise
• Interoperability: ONVIF (Profile G/S/T/M)
• Power supply: PoE (802.3at) / DC 12V/3A±10%
• Consumption: Max.: 19.7W (DC 12V), 25W (PoE)
• Protection degree: Waterproof IP66
• Operating temp.: -40ºC~+60ºC
• Operating humidity: 0~90% (non-condensing)
• Dimensions: 110mm x 337mm x 220mm
• Weight: 2.9Kg
• Certifications: EMC: CE-EMC (EN 55032, EN 55035), FCC (PART 15B); Safety: CE-LVD (EN IEC 62368-1); Environment protection: CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

📦 INCLUDED:
• AI 23X PTZ Bullet IP Camera• Installation hardware• Installation template
