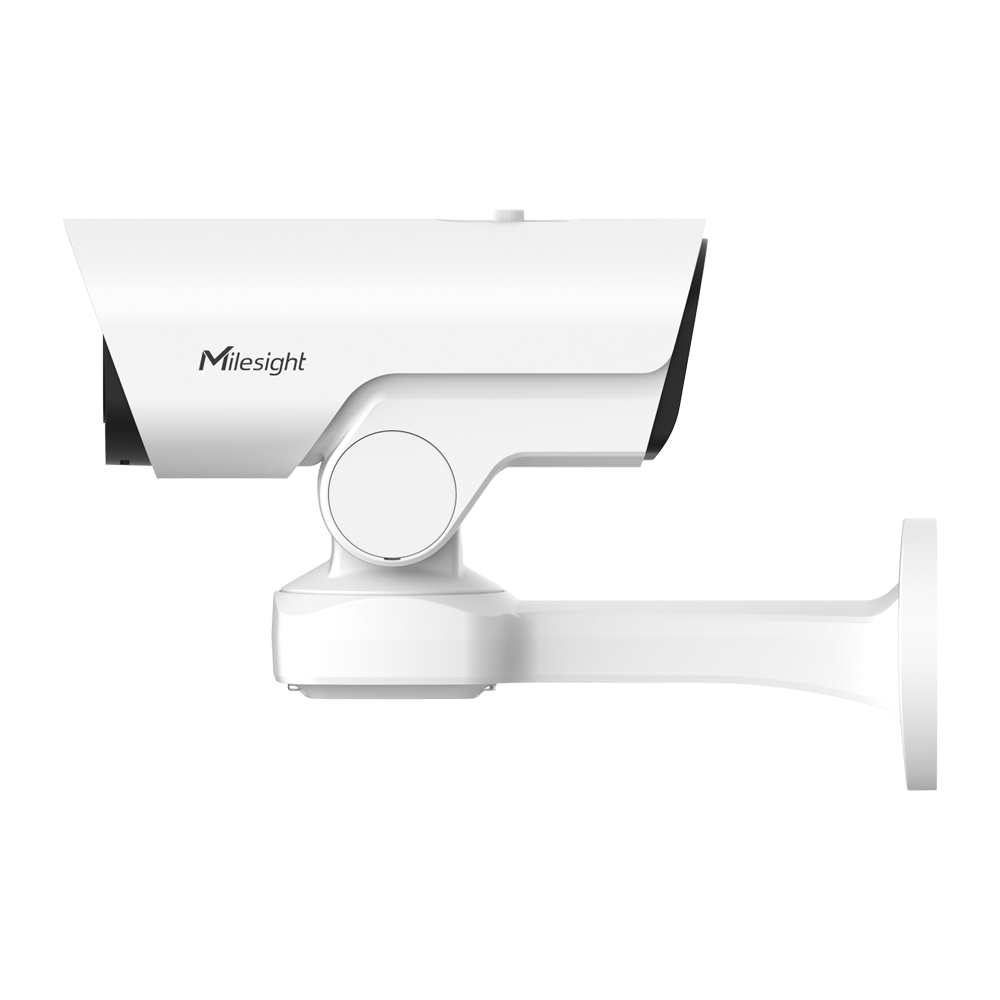

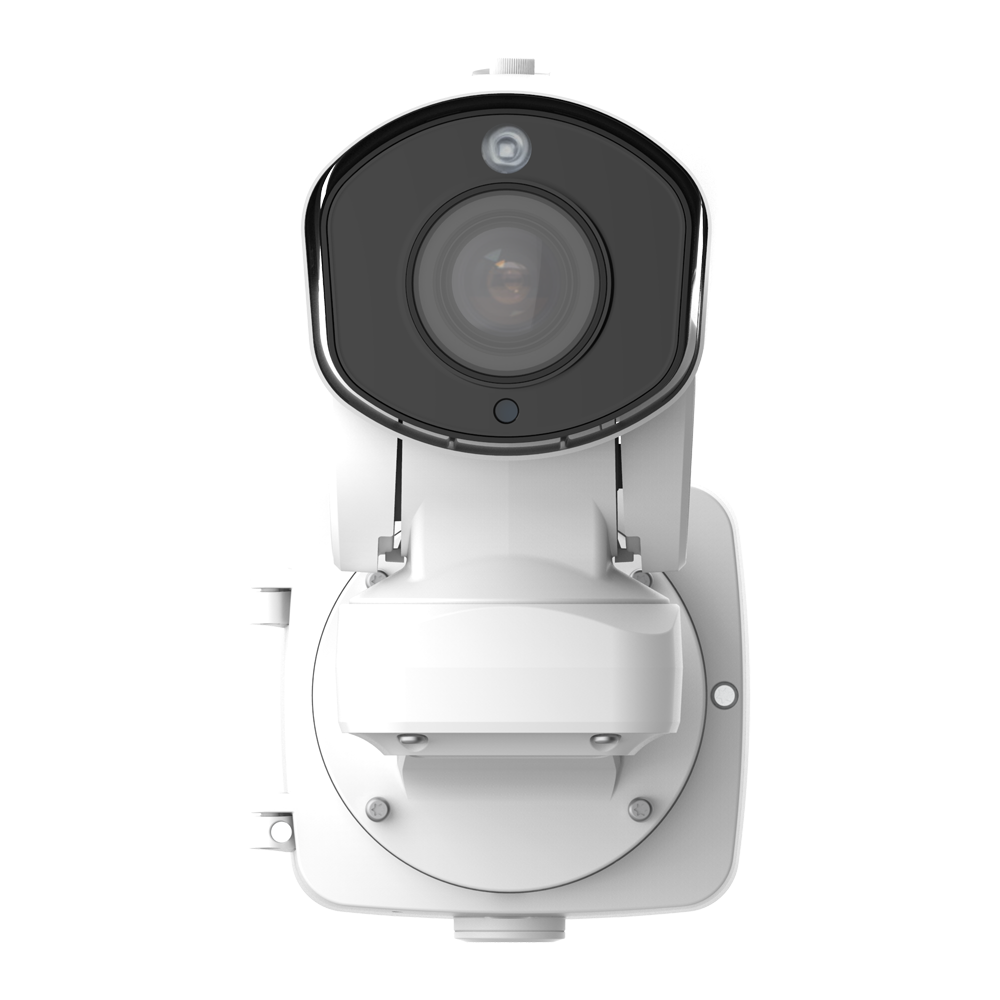

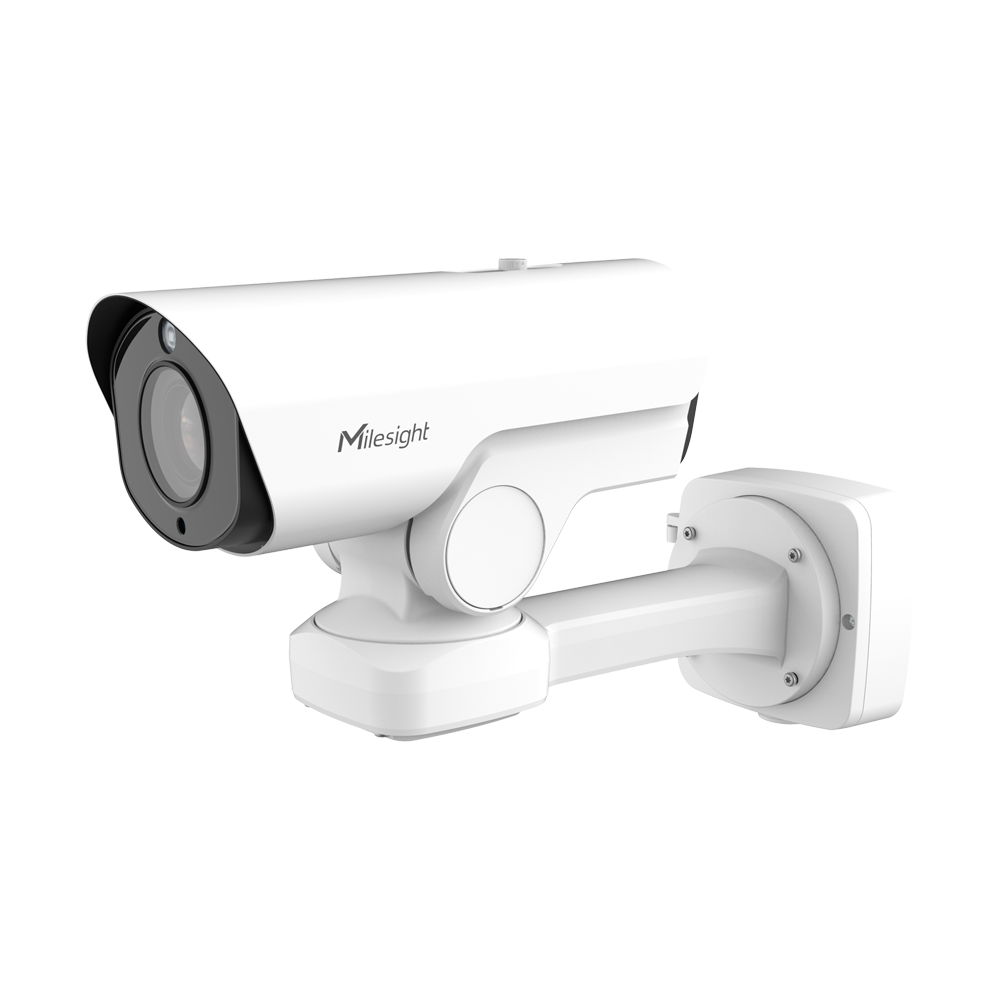

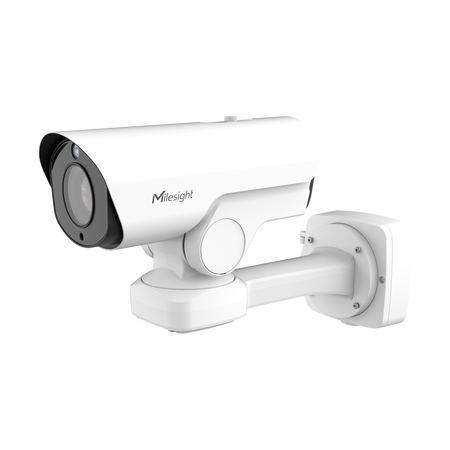

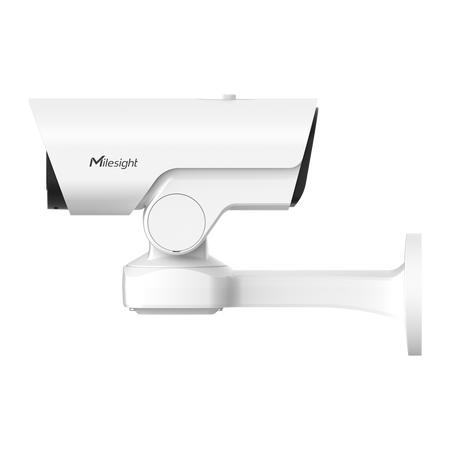

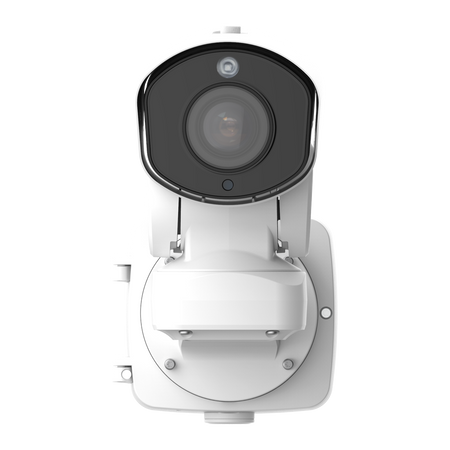

Milesight 12X PTZ Bullet AI IP Camera

12X AI PTZ Bullet IP Camera - 5Mpx Resolution | 12X Optical Zoom - 1/2.8" CMOS 5.3~64mm lens - AI video analysis based on people and vehicles - IP66 Certified - NDAA Compliant

📋 SPECIFICATIONS:
• Brand: Milesight
• Range: AI 12X/20X/23X PTZ Bullet
• Optical sensor: 1/2.8" Progressive Scan CMOS
• Maximum resolution: 5 Megapixels (2592x1944)
• Main Stream frame rate: 60Hz: 30fps@(2592x1944,2592x1520), 45fps@(2048x1536), 60fps@(1920x1080,1280x960,1280x720); 50Hz: 25fps@(2592x1944,2592x1520), 45fps@(2048x1536), 50fps@(1920x1080,1280x960,1280x720)
• Sub Stream frame rate: 60Hz: 30fps@(704x576,640x480,640x360,352x288,320x240,320x192,320x180); 50Hz: 25fps@(704x576,640x480,640x360,352x288,320x240,320x192,320x180)
• 3rd Stream: 60Hz: 30fps@(2048x1536,1920x1080,1600x1200,1280x720,704x576,640x480,640x360,320x240); 50Hz: 25fps@(2048x1536,1920x1080,1600x1200,1280x720,704x576,640x480,640x360,320x240)
• Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• Bitrate: 16 Kbps ~ 16Mbps (CBR / VBR adjustable)
• Lens: 5.3~64mm
• FOV: H 61°~H 5°/D 69°~D 5°/V 36°~V 2°
• Focus control: Auto/Semi-auto/Manual
• Iris control: Auto
• Minimum illumination: Color: 0.008 Lux@F1.6; B/W: 0 Lux with IR ON
• Infrared illumination: 180m
• Day / Night: Day / Night / Auto / Customizable / Programmable
• Advanced functions: BLC, HLC, 2D DNR, 3D DNR, defog, AWB, AGC, anti-flicker, corridor mode, deblur
• ROI: Up to 8 areas
• Intelligent Analysis: VCA 2.0: Advanced motion detection, line crossing, loitering detection, area entry, area exit, abandoned object, removed object
• Feature extraction: Simultaneously detects up to 50 objects and captures people and vehicles in real-time; recognizes features such as top and bottom clothing color, helmet, and vehicle types (bicycle, car, motorcycle, bus, truck, electric scooter)
• Face and feature detection: Detects and captures faces, takes images in real-time; features include age, gender, glasses, mask, and hat; supports face privacy mode, faces detected in the detection area are automatically blurred.
• Object counting and reports: Detects the number of objects crossing a line, including humans and vehicles; supports people counting up to 4 detection areas.
• Event Trigger: Motion Detection, Exceptions, Alarm Input, Audio Alarm, etc.
• Event Action: Image upload to FTP, SMTP, MicroSD card, alarm output enable, SIP call, HTTP notification
• Communication interface: 1*RJ45 10M/100M Ethernet port
• Internal memory: Supports local storage on microSD/SDHC/SDXC card up to 1TB
• Audio compression: G.711/AAC/G.722/G.726
• Audio Bit Rate: 16~256Kbps
• SIP/VoIP: Yes. Voice and video over IP
• Remote access: Web browser, smartphone App and Milesight Central Management System software, Milesight VMS Enterprise
• Interoperability: ONVIF (Profile G/S/T/M)
• Power supply: PoE (802.3at) / DC 12V/3A±10%
• Consumption: Max.: 20W (DC 12V), 21.7W (PoE)
• Protection rating: Waterproof IP66
• Operating temperature: -40ºC~+60ºC
• Operating humidity: 0~90% (non-condensing)
• Dimensions: 110mm x 337mm x 220mm
• Weight: 2.9Kg
• Certifications: EMC: CE-EMC (EN 55032, EN 55035), FCC (PART 15B); Safety: CE-LVD (EN IEC 62368-1); Environmental protection: CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

📦 INCLUDED:
• AI 23X PTZ Bullet IP Camera • Installation hardware • Easy installation template
