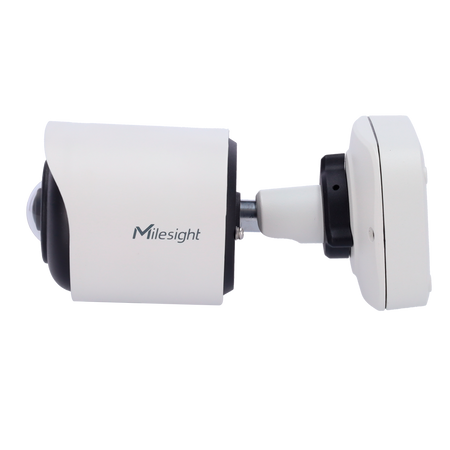

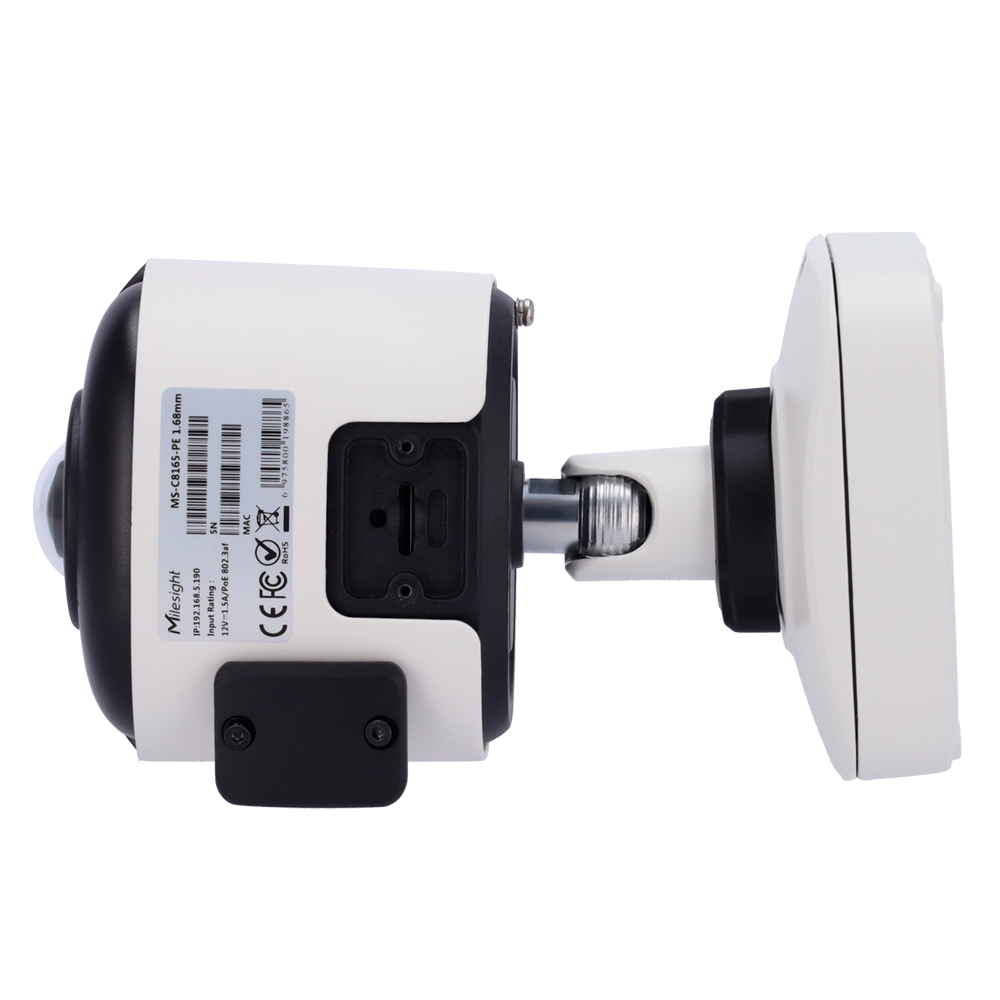

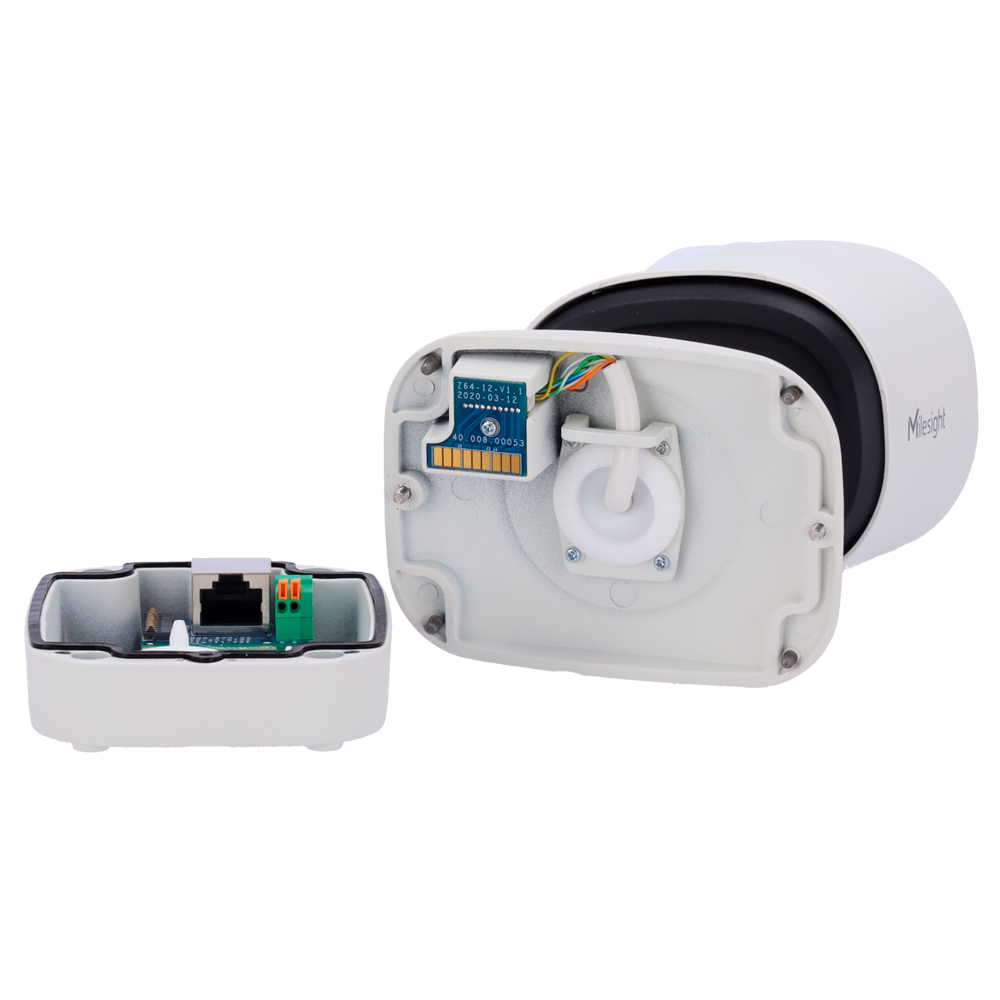

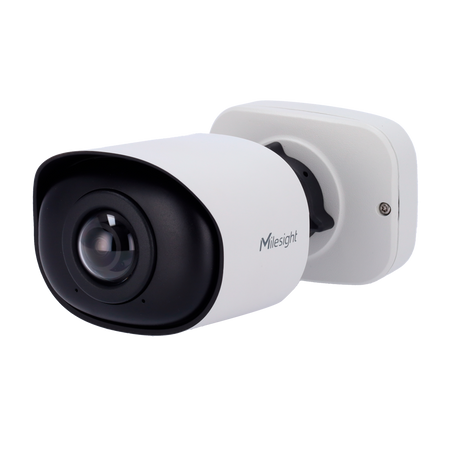

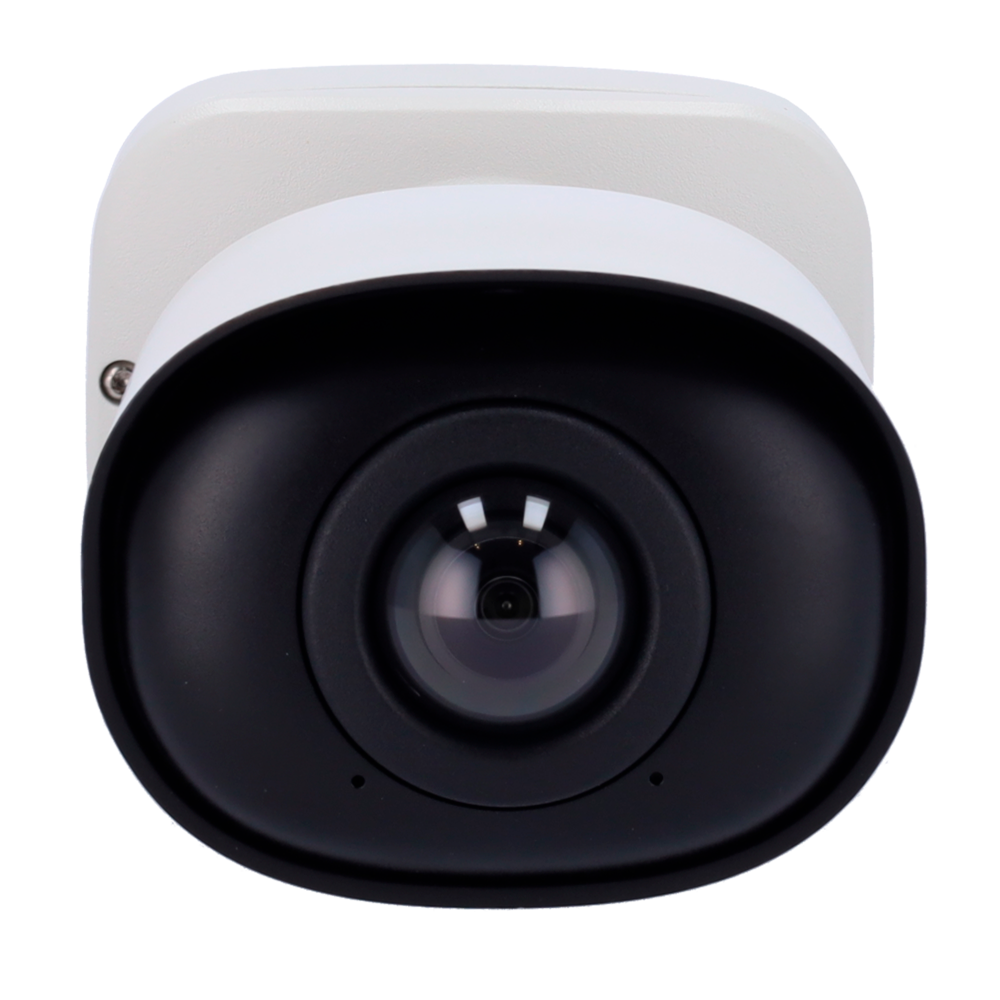

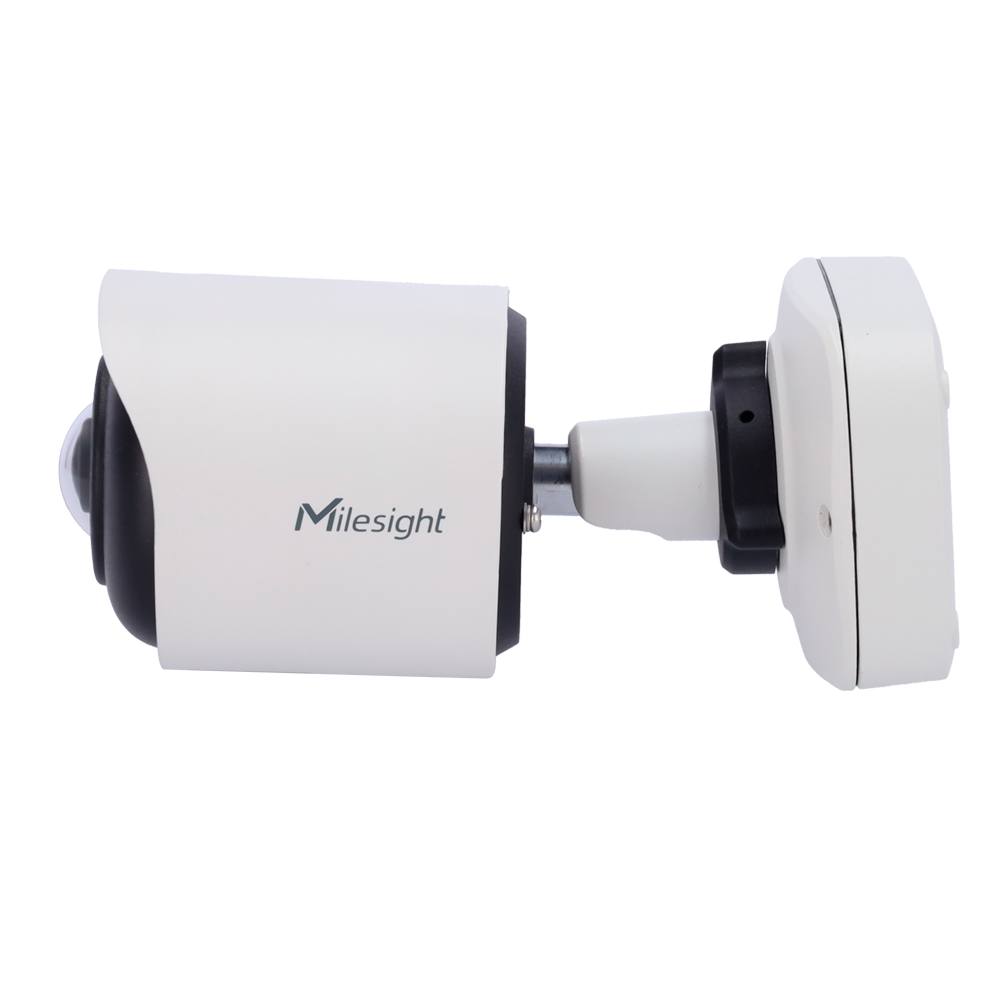

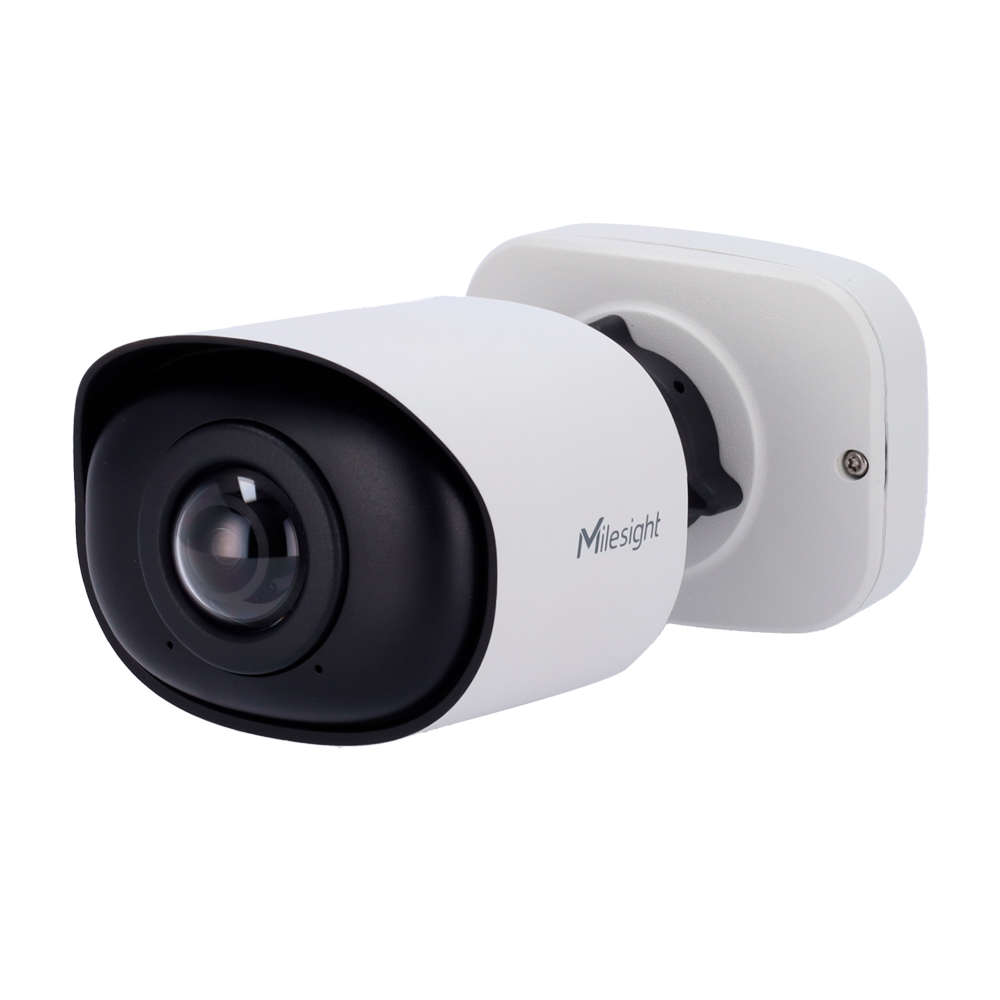

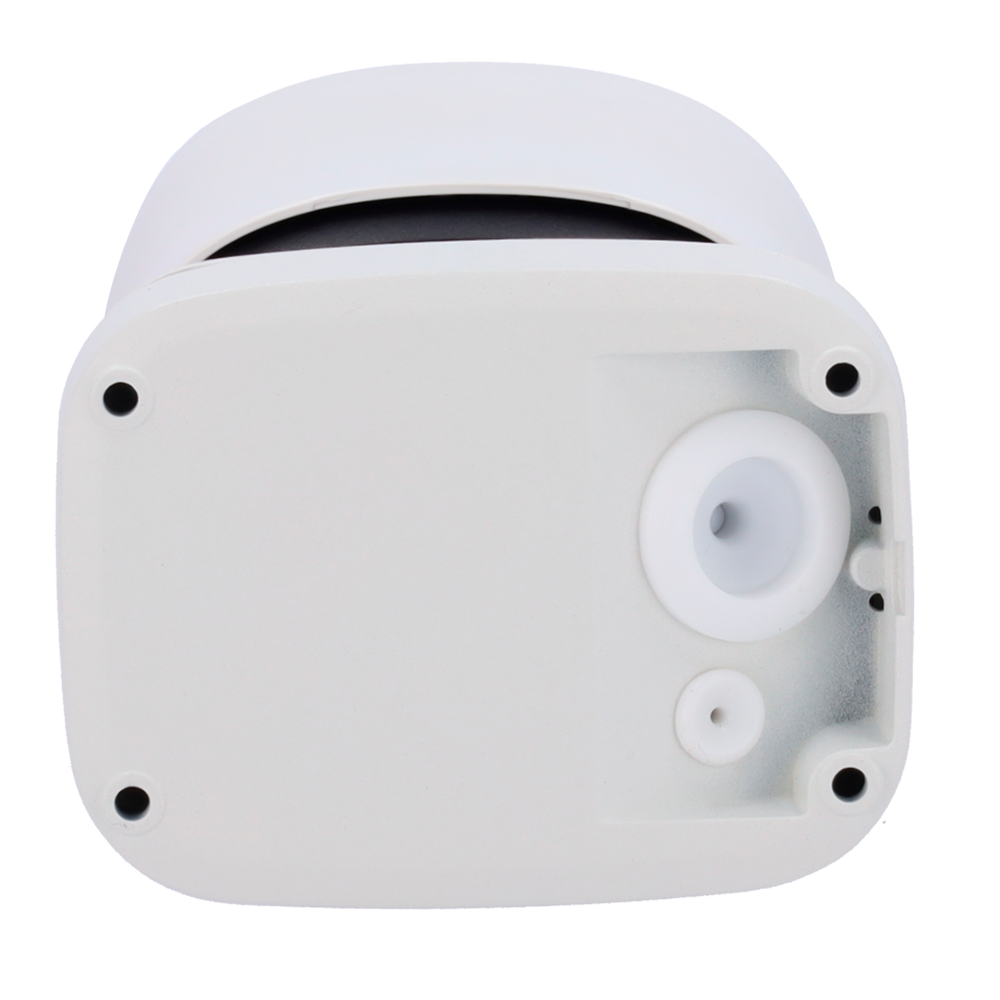

Milesight 5 MP 180º Panoramic IP Camera
Regular price
€336,99
Final price
Regular price
-8%
€367,72
Sale price
€336,99
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
5 MP 180º Panoramic IP Camera - 1/2.8" Progressive Scan CMOS - 1.68mm Lens @ F2.0 - IR Illumination up to 15m - WEB, CMS Software, Smartphone and NVR - ONVIF compatible | Metadata
📋 SPECIFICATIONS:
• Brand: MILESIGHT
• Image sensor: 1/2.8" Progressive Scan CMOS
• Maximum resolution: 5 Megapixels (2592x1944)
• Main Stream frame rate: 60Hz:30fps@(2592x1944,2592x1520,2048x1536,1920x1080,1280x960,1280x720,704x576); 50Hz:25fps@(2592x1944,2592x1520,2048x1536,1920x1080,1280x960,1280x720,704x576)
• Sub Stream frame rate: 60Hz:30fps@(704x576,640x480,640x360,352x288,320x240); 50Hz:25fps@(704x576,640x480,640x360,352x288,320x240)
• 3rd Stream: 60Hz:30fps@(2048x1536,1920x1080,1600x1200,1280x720,704x576,640x480,640x360,352x288,320x240); 50Hz:25fps@(2048x1536,1920x1080,1600x1200,1280x720,704x576,640x480,640x360,352x288,320x240)
• Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• Bitrate: 16 Kbps ~ 16 Mbps (Adjustable CBR / VBR)
• Lens: 1.68mm @ F2.0
• FOV: H: 180°/ V: 95°
• DORI: D: 37.5 m; O: 15 m; R: 7.5 m; I: 3.5 m
• IRIS control: Auto
• Minimum illumination: Color: 0.008 Lux @ F2.0; B/W: 0 Lux with IR ON
• Infrared illumination: 15 m
• Day / Night: Day / Night / Auto / Customizable / Programmable
• Image enhancements: Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, Defog function, AWB, EIS, IP address filter, AGC, Anti-flicker, Corridor mode, Watermarking
• ROI: Up to 8 areas
• Intelligent analysis: VCA 2.0: Motion detection, Line crossing, Loitering detection, Area entry, Area exit, Abandoned object, Removed object
• Face detection: Real-time face detection
• People counting & Report: People counting at entrances and exits. Supports up to 4 people counting areas
• Event Trigger: Motion detection, Exceptions, Alarm input
• Event action: Image upload to FTP, SMTP, MicroSD card, Alarm output activation, SIP phone, HTTP notification
• Communication interface: 1x RJ45 10M/100M Ethernet port
• Internal memory: MicroSD card, Max 256 GB
• Alarms: 1/1
• Audio: 1/1
• Audio compression: G.711/AAC/G.722/G.726
• Two-way audio: Supported
• Audio Bit Rate: 16~256Kbps
• SIP/VoIP: Supported. Voice and Video over IP
• Remote access: Web browser, Smartphone App, Milesight Central Management System software and Milesight Enterprise software
• Interoperability: ONVIF (Profile G/Q/S/T)
• Power supply: DC 12 V / MAX 8.3W (with IR ON), PoE IEEE802.3af
• Protection rating: Waterproof IP67, Vandal-proof IK10
• Operating temp.: -40º C ~ +60º C
• Dimensions: 95.8 (W) X 74 (H) X 158.5 (D) mm
• Weight: 630 g
📦 INCLUDED:
• 180º Panoramic IP Camera• Installation material• Template for easy installation
| Image sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Maximum resolution | 5 Megapixel (2592x1944) |
| Main Stream frame rate | 60Hz:30fps@(2592x1944,2592x1520,2048x1536,1920x1080,1280x960,1280x720,704x576) 50Hz:25fps@(2592x1944,2592x1520,2048x1536,1920x1080,1280x960,1280x720,704x576) |
| Sub Stream frame rate | 60Hz:30fps@(704x576,640x480,640x360,352x288,320x240) 50Hz:25fps@(704x576,640x480,640x360,352x288,320x240) |
| 3rd Stream | 60Hz:30fps@(2048x1536,1920x1080,1600x1200,1280x720,704x576,640x480,640x360,352x288,320x240) 50Hz:25fps@(2048x1536,1920x1080,1600x1200,1280x720,704x576,640x480,640x360,352x288,320x240) |
| Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Bitrate | 16 Kbps ~ 16 Mbps (CBR / VBR adjustable) |
| Lens | 1.68mm@ F2.0 |
| FOV | H: 180°/ V:95° |
| DORI | D: 37.5 m O: 15 m R: 7.5 m I: 3.5 m |
| IRIS control | Auto |
| Min. illumination | Color: 0.008 Lux @ F2.0 B/W: 0 Lux with IR ON |
| Infrared illumination | 15 m |
| Day/Night | Day/Night/Auto/Custom/Programmable |
| Image enhancement | Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filter, AGC, Anti-Flicker, Corridor Mode, Watermarking |
| ROI | Up to 8 areas |
| Intelligent analysis | VCA 2.0: Motion Detection, Line Crossing, Loitering Detection, Area Entrance, Area Exiting, Abandoned Object, Removed Object |
| Face detection | Real-time face detection |
| People Counting & Report | People counting at entrances and exits. Supports up to 4 people counting areas |
| Event trigger | Motion Detection, Exceptions, Alarm Input |
| Event action | Image upload to FTP, SMTP, MicroSD card, Alarm output activation, SIP phone, HTTP notification |
| Communication interface | 1xRJ45 10M/100M Ethernet port |
| Internal memory | MicroSD card, Max 256 GB |
| Alarms | 1/1 |
| Audio | 1/1 |
| Audio compression | G.711/AAC/G.722/G.726 |
| Two-way audio | Supported |
| Audio bit rate | 16~256Kbps |
| SIP/VoIP | Supported. Voice and video over IP |
| Remote access | Web browser, Smartphone App, Milesight Central Management System software, and Milesight Enterprise software |
| Interoperability | ONVIF (Profile G/Q/S/T) |
| Power supply | DC 12 V / MAX 8.3W (with IR ON), PoE IEEE802.3af |
| Protection rating | Waterproof IP67, Vandal-proof IK10 |
| Operating temperature | -40º C ~ +60º C |
| Dimensions | 95.8 (W) X 74(H) X 158.5 (D) mm |
| Weight | 630 g |
