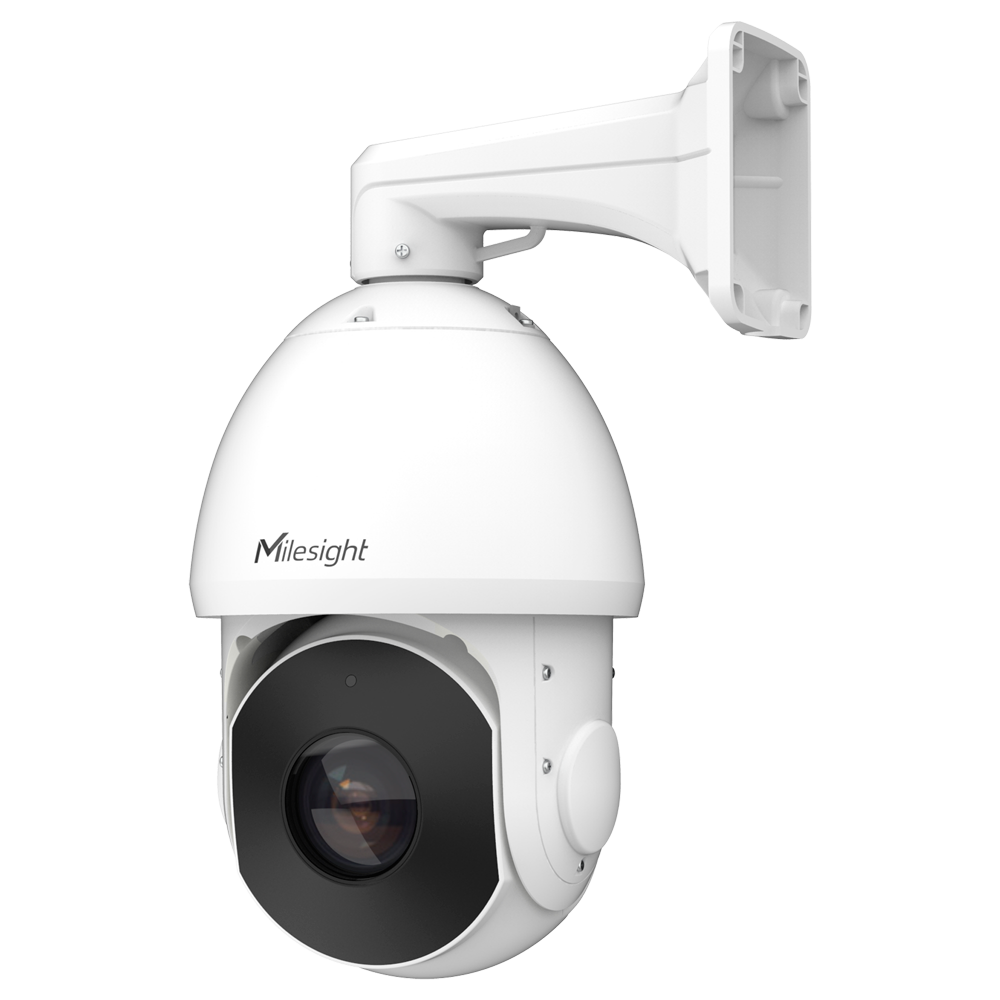

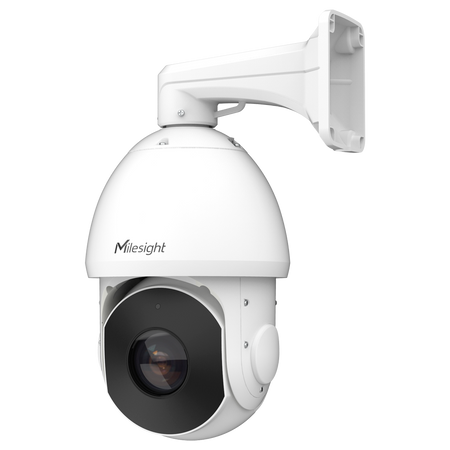

Milesight 25X AI Speed Dome IP Camera - 5MP (2592x1944)

AI 25X Speed Dome IP Camera - 5MP (2592x1944) - 1/2.8" CMOS 4.8~120mm lens - AI video analysis based on humans and vehicles - IP66 | IK10 (optional) - NDAA Compliant

📋 SPECIFICATIONS:
• Brand: Milesight
• Range: AI 25X/30X/36X/42X Speed Dome
• Optical sensor: 1/2.8" Progressive Scan CMOS
• Minimum illumination: Color: 0.008 Lux@F1.5; B/W: 0 Lux with IR ON
• WDR: 120dB Super WDR
• Day / Night: Day / Night / Auto / Customizable / Programmable
• Lens: 4.8~120mm, 25X optical zoom
• FOV: H57°~H2.8° / D69.8°~D3.2° / V43.8°~V1.5°
• Focus control: Auto/Semi-auto/Manual
• Iris control: Auto
• Pan range/pan speed: 360° continuous / manual pan speed: 0.1°~250°/s, preset pan speed: 250°/s
• Tilt range/tilt speed: -5°~90° (Auto Flip) / manual tilt speed: 0.1°~160°/s, preset tilt speed: 160°/s
• Proportional zoom: Supported
• Number of presets: 300
• Patrols: 8 patrols, up to 48 presets per patrol
• Patterns: 4 patterns
• Auto tracking: Supported
• Power-off memory: Supported
• Other features: Auto Scan, Auto Home, preset freezing, 3D positioning, PTZ limits, Home position
• Infrared illumination: 200 m
• IR angle: Auto/Manual
• Ethernet interface: 1*RJ45 10M/100M Ethernet port
• Audio connections: 1 input / 1 output
• Alarm connections: 4 inputs / 2 outputs
• RS485 interface: Supported
• Maximum resolution: 5Mpx (2592x1944)
• Main Stream frame rate: 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720); 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720)
• Sub Stream frame rate: 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240); 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288,
• 3rd Stream: 60Hz: 30fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240); 50Hz: 25fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240
• Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• Bitrate: 16 Kbps ~ 16Mbps (CBR / VBR adjustable)
• Privacy: Up to 8 areas (masked area and mosaic area are optional)
• ROI: Up to 8 Areas
• Image enhancement: BLC, HLC, 2D DNR, 3D DNR, defog, AWB, AGC, anti-flicker, corridor mode, deblur, LDC
• Network storage: NAS (supports NFS, SMB/CIFS), ANR
• Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2
• Audio compression: G.711/AAC/G.722/G.726
• Audio Bit Rate: 16~256Kbps
• Video analysis: VCA 2.0: Advanced motion detection, line crossing, loitering detection, area entrance, area exit, abandoned object, removed object
• Feature detection: Simultaneously detect up to 5 objects and capture people and vehicles in real-time; Recognizes features including upper and lower clothing color, helmet, and vehicle types (bicycle, car, motorcycle, bus, truck, and electric scooter)
• Face and feature detection: Detects and captures faces, takes real-time images; features include age, gender, glasses, mask, and hat; Supports face privacy mode, faces detected in the detection area will be automatically masked.
• Object counting and reporting: Detects the number of objects crossing a line, including humans and vehicles; Supports people counting up to 4 detection areas.
• Basic event: Motion Detection, Exceptions, Alarm Input, Audio Alarm, etc.
• Event actions: Image upload to FTP, SMTP, MicroSD card, alarm output enabled, SIP call, HTTP notification
• Internal memory: Supports local storage on microSD/SDHC/SDXC card up to 1TB
• SIP/VoIP: Yes. Voice and video over IP
• Compatibility: ONVIF (Profile G/S/T/M), API
• Remote access: Web browser, smartphone App and Milesight Central Management System software, Milesight VMS Enterprise
• Operating temp.: -40ºC~+60ºC
• Operating humidity: 0~95% (non-condensing)
• Power supply: PoE (802.3at) / AC 24V / DC 24V / 3A±10%
• Consumption: Max.: 25W (DC 24V), 27.7W (PoE)
• Heater: Supported
• Surge protection: 6KV
• Dimensions: Φ205mm. x 308mm.
• Weight: 4 Kg
• EMC: CE-EMC (EN 55032, EN 55035), FCC (PART 15B)
• Safety: CE-LVD (EN IEC 62368-1)
• Environmental protection: CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
• Protection rating: IP66, IK10 (optional)
• NDAA compliant: Compliant with NDAA standards

📦 INCLUDED:
• AI 30X Speed Dome IP Camera• Installation material• Installation template
