MILESIGHT

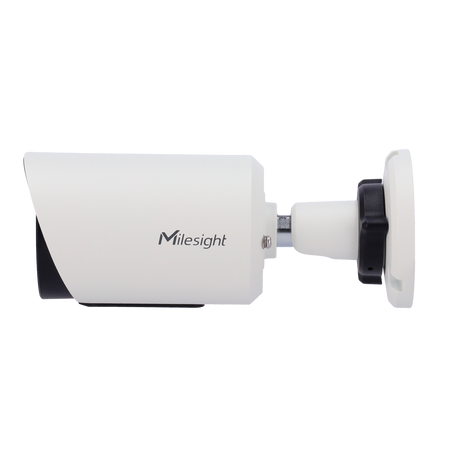

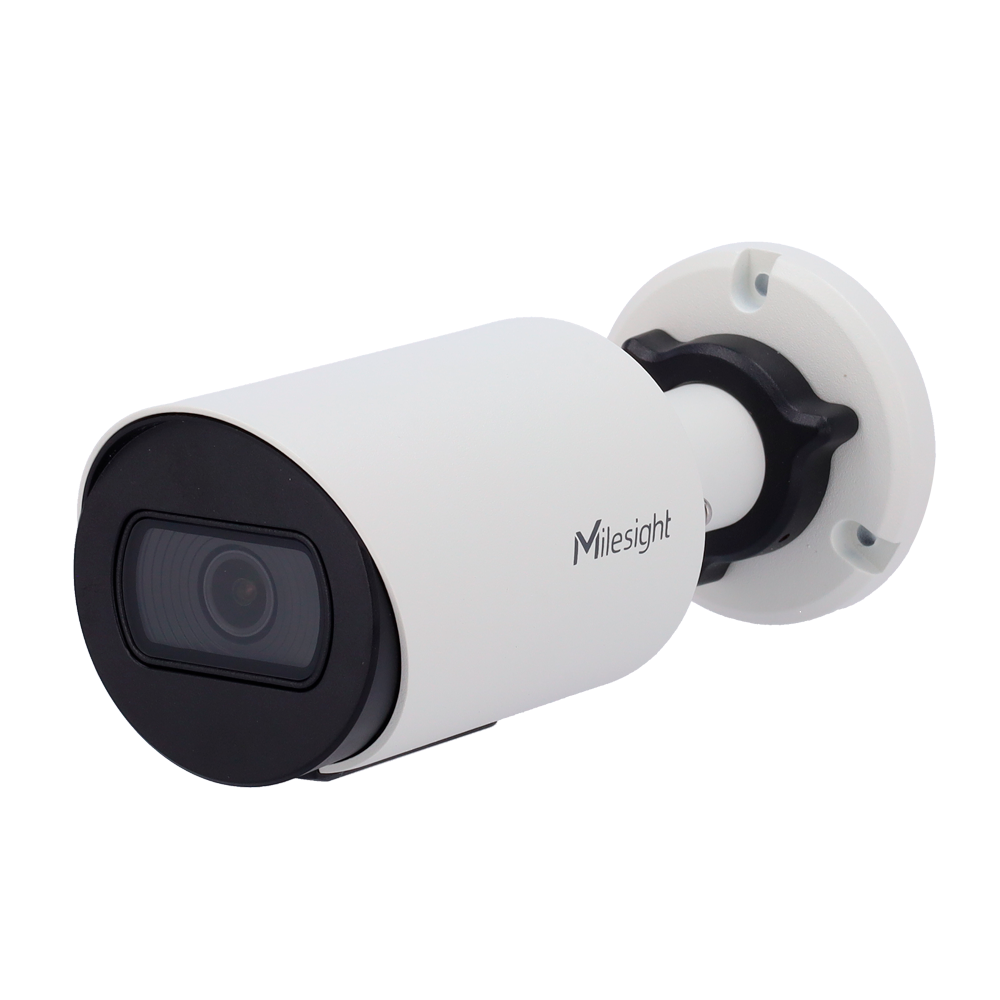

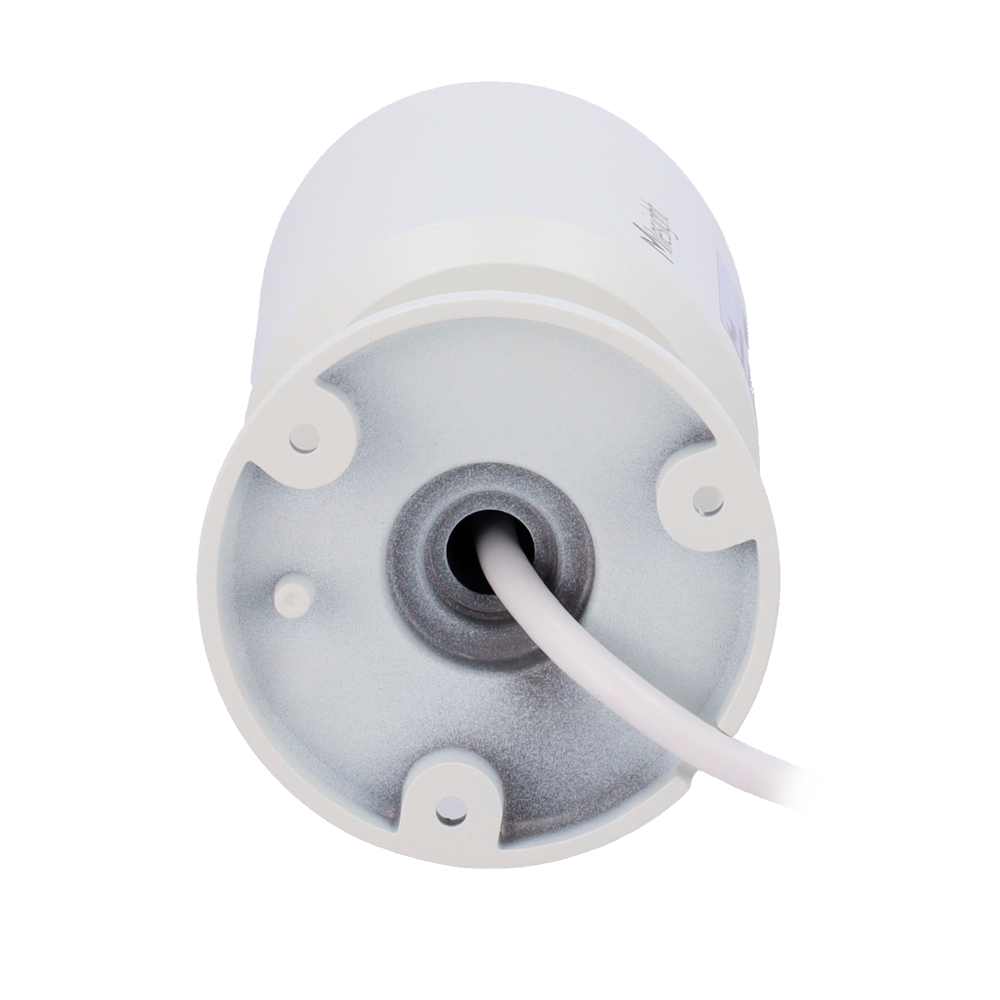

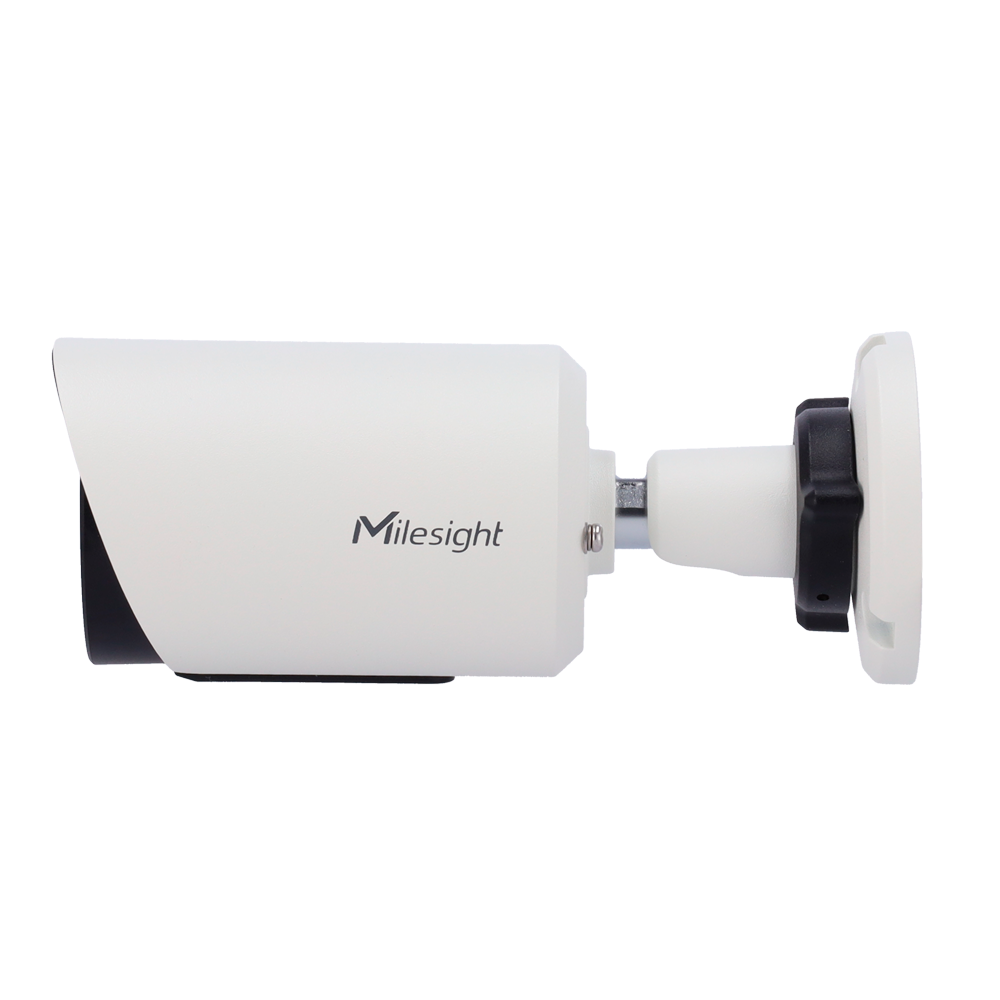

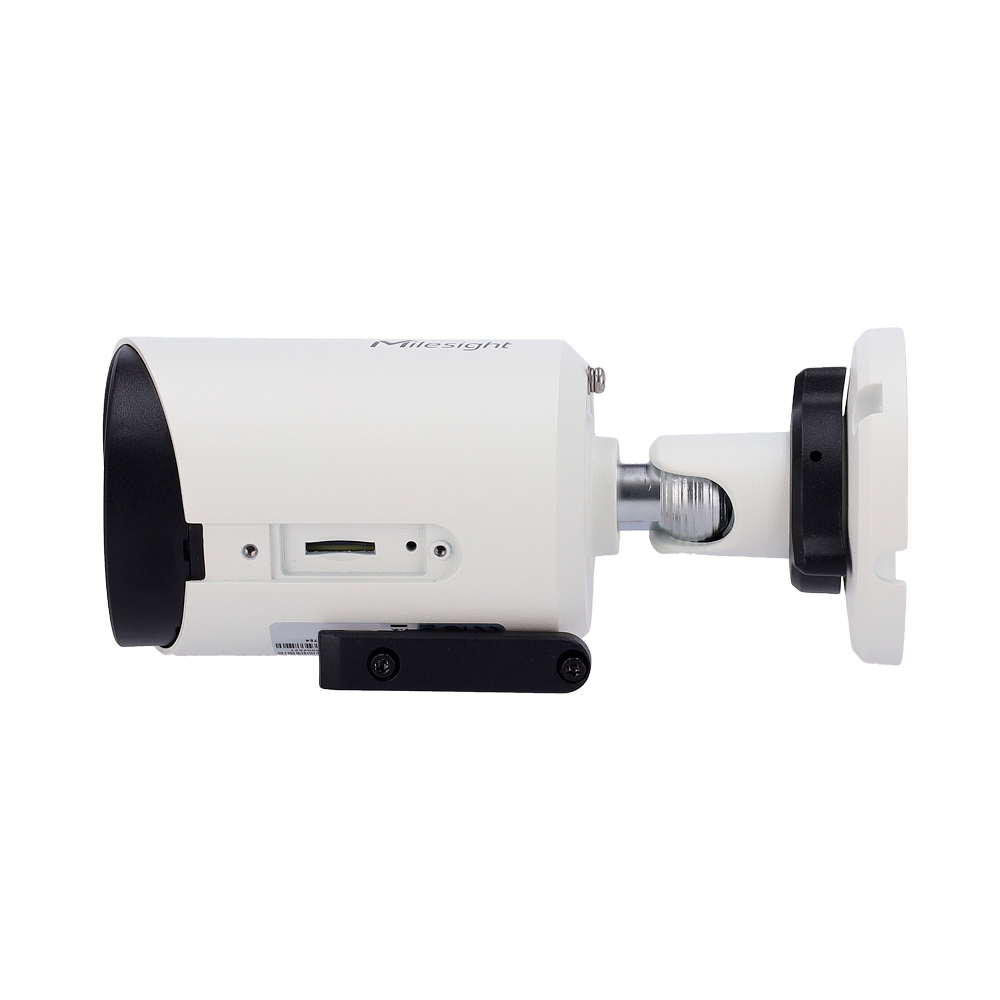

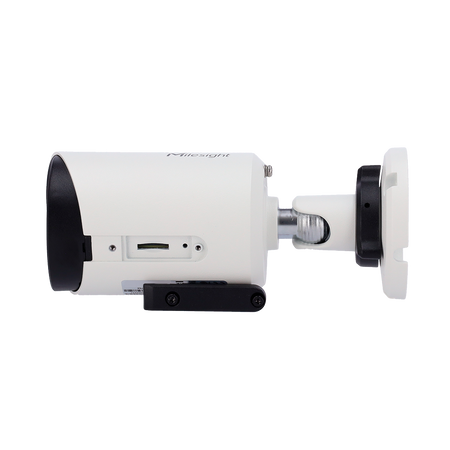

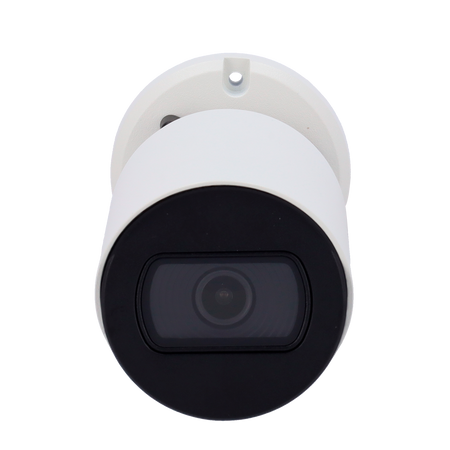

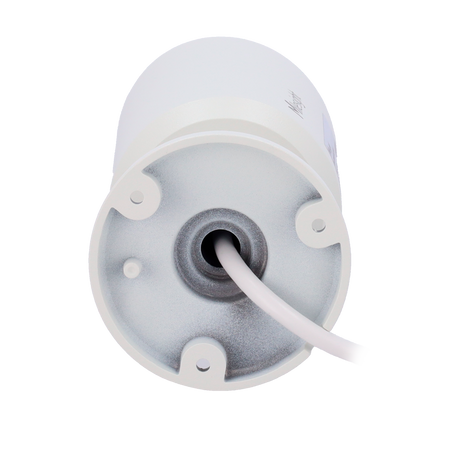

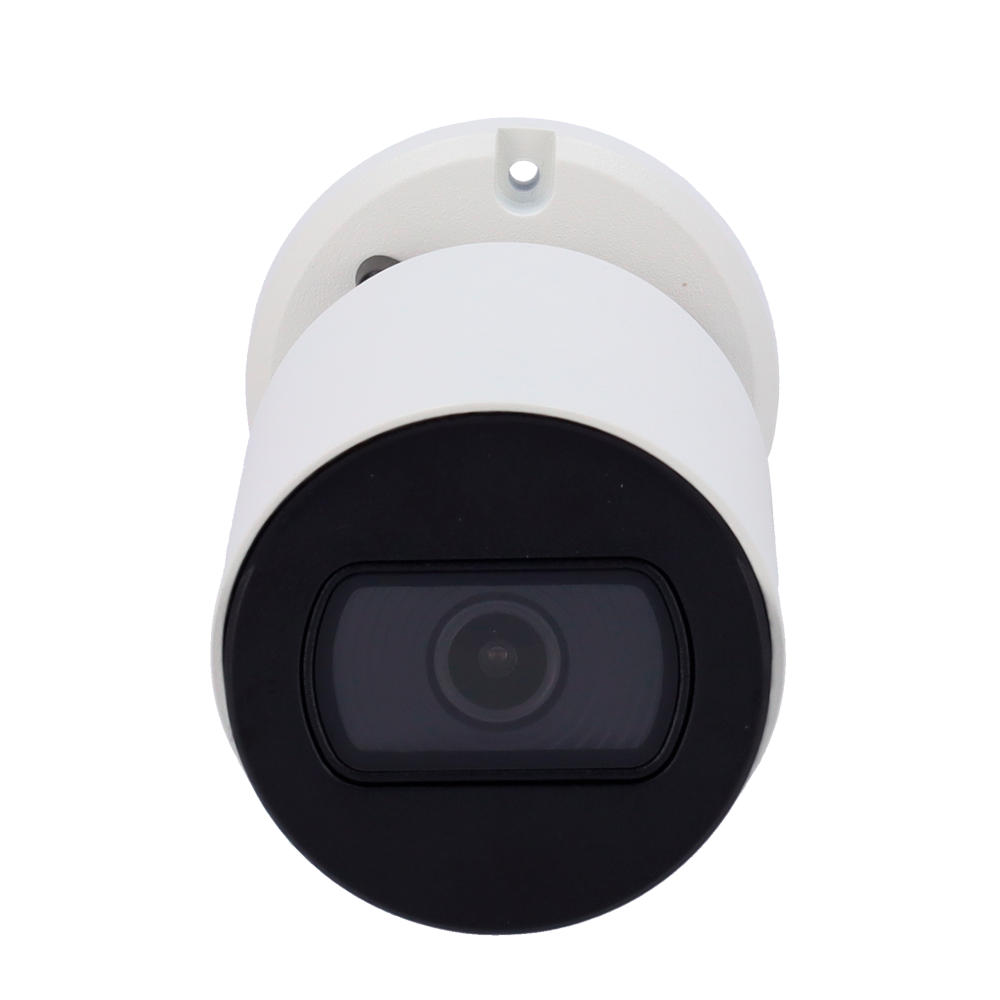

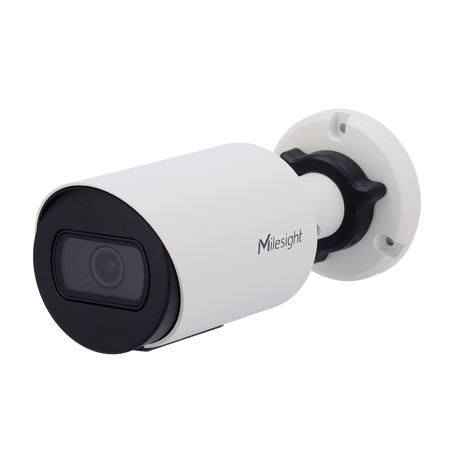

Milesight Mini Bullet IP Camera - 4MP Resolution

SKU: MS-C4564-PD
(0)
Out of stock
€202,91 Final price
€203,06 €202,91 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Mini Bullet IP Camera - 4Mpx Resolution - 1/2.8" CMOS | 2.8mm Lens - 30m IR | Super WDR 120dB - AI video analysis based on humans and vehicles - IP67 | IK10

📋 SPECIFICATIONS:
• Brand: Milesight
• Optical sensor: 1/2.8" Progressive Scan CMOS
• Maximum resolution: 4 Megapixel (2688x1520)
• Lens: 2.8mm
• Main Stream frame rate: 60Hz: 30fps@(2688x1520, 2304x1296, 1920x1080, 1280x720); 50Hz: 25fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
• Sub Stream frame rate: 60Hz: 30fps@(1280x720, 704x576, 640x480); 50Hz: 25fps@(1280x720, 704x576, 640x480)
• 3rd Stream: 60Hz: 30fps@(1280x720, 704x576, 640x480); 50Hz: 25fps@(1280x720, 704x576, 640x480)
• Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• Bitrate: 16 Kbps ~ 16 Mbps (CBR / VBR Adjustable)
• FOV: H106°/D124°/V58°
• Minimum illumination: Color: 0.005Lux@F1.6; B/W: 0 Lux with IR ON
• IR: 30 m
• Day / Night: Day / Night / Auto / Custom / Programmable
• Image enhancements: Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, Defog function, AWB, IP address filtering, AGC, Anti-flicker, Corridor mode, Deblur
• ROI: Up to 8 areas
• Intelligent analysis: Motion detection, Line crossing, Loitering detection, Region Entrance, Region Exiting, Object Abandoned, Object Removed
• People Counting & Reports: People counting for entrances and exits.
• Event Trigger: Motion Detection, Network Disconnection, Alarm Input
• Event Action: Upload image to FTP, SMTP, MicroSD card, Alarm output activation, SIP phone, HTTP notification
• Communication Interface: 1*RJ45 10M/100M Ethernet port
• Internal storage: MicroSD card, Max 1TB
• Remote access: Web Browser, Smartphone App, and Milesight Central Management System Software
• Interoperability: ONVIF (Profile G/Q/S/T), API
• Power supply: DC 12 V / MAX 5W (with IR ON), PoE+ IEEE802.3at
• Protection rating: Waterproof IP67, Vandal-proof IK10
• Operating Temp.: -40º C ~ +60º C
• Dimensions: 64 (Ø) X 160 (H) mm
• Weight: 450 g

📦 INCLUDED:
• Mini Bullet IP Camera • Installation hardware • Installation template
Image sensor 1/2.8" Progressive Scan CMOS
Maximum resolution 4 Megapixel (2688x1520)
Lens 2.8mm
Main Stream frame rate 60Hz: 30fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 25fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Sub Stream frame rate 60Hz: 30fps@(1280x720, 704x576, 640x480) 50Hz: 25fps@(1280x720, 704x576, 640x480)
3rd Stream 60Hz: 30fps@(1280x720, 704x576, 640x480) 50Hz: 25fps@(1280x720, 704x576, 640x480)
Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Bitrate 16 Kbps ~ 16 Mbps (CBR / VBR adjustable)
FOV H106°/D124°/V58°
Minimum illumination Color: 0.005Lux@F1.6 B/W: 0 Lux with IR ON
IR 30 m
Day / Night Day / Night / Auto / Custom / Scheduled
Image enhancement Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, Defog function, AWB, IP address filter, AGC, Anti-flicker, Corridor mode, Deblur
ROI Up to 8 areas
Intelligent analysis Motion detection, Line crossing, Loitering detection, Area entrance, Area exit, Abandoned object, Removed object
People Counting & Report Counting people entering and exiting.
Event trigger Motion detection, Exceptions, Alarm input
Event action Image upload to FTP, SMTP, MicroSD card, Alarm output activation, SIP phone, HTTP notification
Communication interface 1*RJ45 10M/100M Ethernet port
Internal storage MicroSD card, Max 1TB
Remote access Web browser, Smartphone app, and Milesight Central Management System software
Interoperability ONVIF (Profile G/Q/S/T), API
Power supply DC 12 V / MAX 5W (with IR ON), PoE+ IEEE802.3at
Protection rating Waterproof IP67, Vandal-proof IK10
Operating temp. -40º C ~ +60º C
Dimensions 64 (Ø) X 160 (H) mm
Weight 450 g
