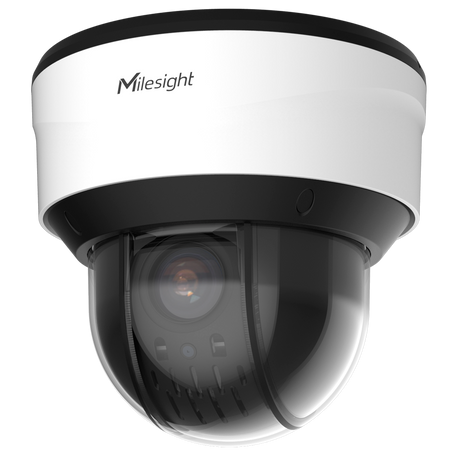

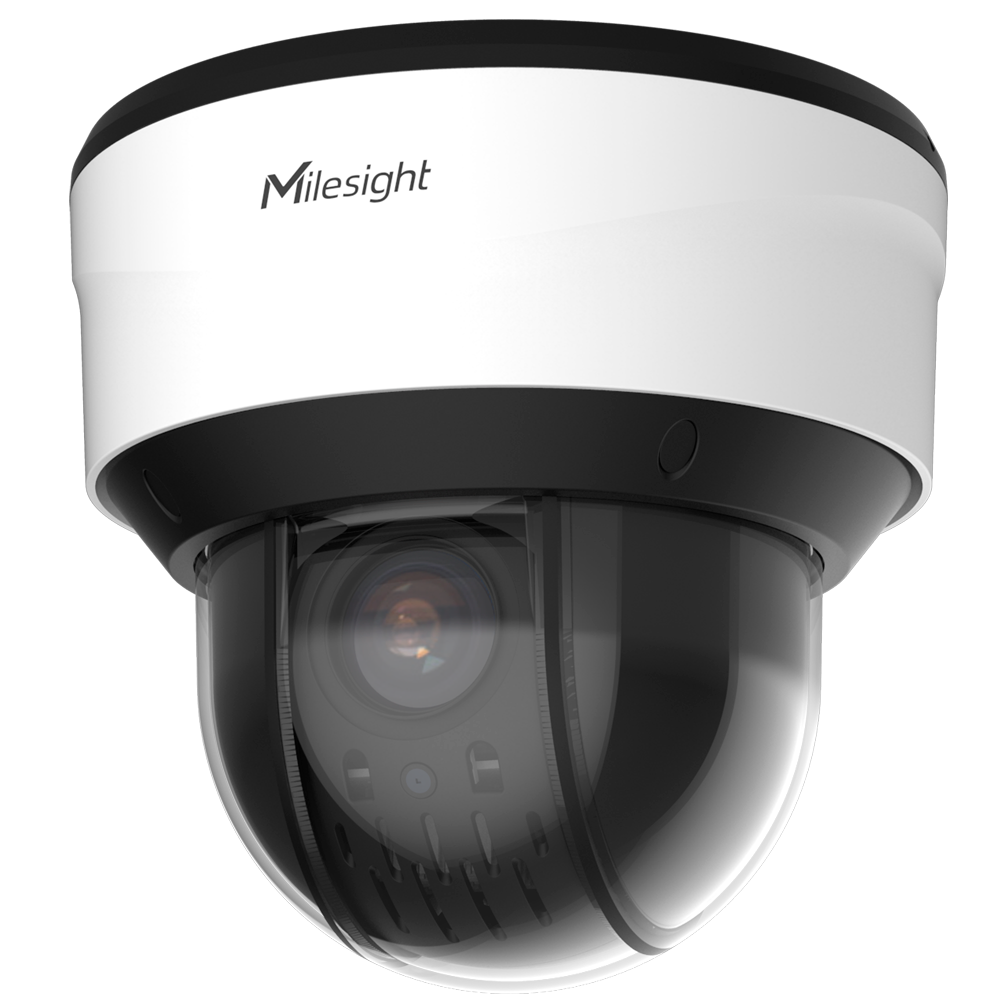

Milesight 20X AI PTZ IP Camera

20X AI PTZ IP Camera - 4MP Resolution - 1/2.8" CMOS 6.4~128mm lens - 20X Optical Zoom | IR 130 m - VCA 2.0 | Super WDR 140 dB - IP66 | IK10 | ONVIF, API

📋 SPECIFICATIONS:
• Brand: Milesight
• Range: AI 20X
• Optical sensor: 1/2.8" Progressive Scan CMOS
• Min. illumination: Color: 0.002 Lux; B/W: 0 Lux with IR
• WDR: 140dB
• DORI: D: 120~2110m; O: 47~831m; R: 23.5~415m; l: 12~208m
• Digital Zoom: 16X
• Day / Night: Day / Night / Auto / Customizable / Programmable
• Lens: 6.4~128mm
• FOV: 60º~3º(H), 37º~1º(V), 67º~4º(D)
• Focus control: Auto/Semi-auto/Manual
• Iris control: Auto
• Pan range/pan speed: 360° endless / manual pan speed: 0.1°~350°/s, preset pan speed: 350°/s
• Tilt range/tilt speed: -5°~90° (Auto Flip) / manual tilt speed: 0.1°~360°/s, preset tilt speed: 360°/s
• Proportional zoom: Supported
• Number of presets: 300
• Patrols: 8 patrols, up to 48 presets per patrol
• Patterns: 4 patterns
• Auto tracking: Supported
• Power-off memory: Supported
• Other features: Auto Scan, Auto Home, preset freezing, 3D positioning, PTZ limits, Home Position
• Infrared illumination: 160 m
• IR angle: Auto/Manual
• Ethernet interface: 1*RJ45 10M/100M Ethernet port
• Audio connections: 1 input / 1 output
• Alarm connections: 4 inputs / 2 outputs
• Max resolution: 5Mpx (2592x1944)
• Frame rate Main Stream: 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720); 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720)
• Frame rate Sub Stream: 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240); 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
• 3rd Stream: 60Hz: 30fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240); 50Hz: 25fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240)
• Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• Bitrate: 16 Kbps ~ 16Mbps (CBR / VBR adjustable)
• Privacy: Up to 8 areas (masked area and mosaic area are optional)
• ROI: Up to 8 Areas
• Image enhancement: BLC, HLC, 2D DNR, 3D DNR, defog, AWB, AGC, anti-flicker, corridor mode, deblur, LDC
• Network storage: NAS (supports NFS, SMB/CIFS), ANR
• Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2
• Audio compression: G.711/AAC/G.722/G.726
• Audio Bit Rate: 16~256Kbps
• Video analysis: VCA 2.0: Advanced motion detection, line crossing, loitering detection, region entrance, region exiting, abandoned object, removed object
• Feature detection: Simultaneously detects up to 50 objects and captures people and vehicles in real time; Recognizes characteristics, including upper and lower clothing color, helmet, and vehicle types (bicycle, car, motorcycle, bus, truck, and electric scooter)
• Face and feature detection: Detects and captures faces, takes snapshots in real time; characteristics include age, gender, glasses, mask, and hat; Supports face privacy mode, detected faces in the detection area will be automatically masked.
• Object counting and reporting: Detects the number of objects crossing a line, including humans and vehicles; Supports people counting up to 4 detection areas.
• Basic event: Motion Detection, Exceptions, Alarm Input, Audio Alarm, etc.
• Event actions: Upload image to FTP, SMTP, MicroSD card, enable alarm output, SIP call, HTTP notification
• Internal memory: Supports local storage on microSD/SDHC/SDXC card up to 1TB
• SIP/VoIP: Yes. Voice and video over IP
• Compatibility: ONVIF (Profile G/S/T/M)
• Remote access: Web browser, smartphone App and Milesight Central Management System software, Milesight VMS Enterprise
• Operating temp: -40ºC~+60ºC
• Operating humidity: 0~95% (non-condensing)
• Power supply: PoE (802.3at) / AC 24V / DC 24V / 3A±10%
• Consumption: Max.: 15.5W (DC 12V), 17.3W (PoE)
• Surge protection: 4KV
• Dimensions: Φ183mm. x 174.8mm.
• Weight: 2.6 kg
• Protection rating: IP67, IK10

📦 INCLUDED:
• AI 20X Speed Dome IP Camera• Installation material• Installation template
