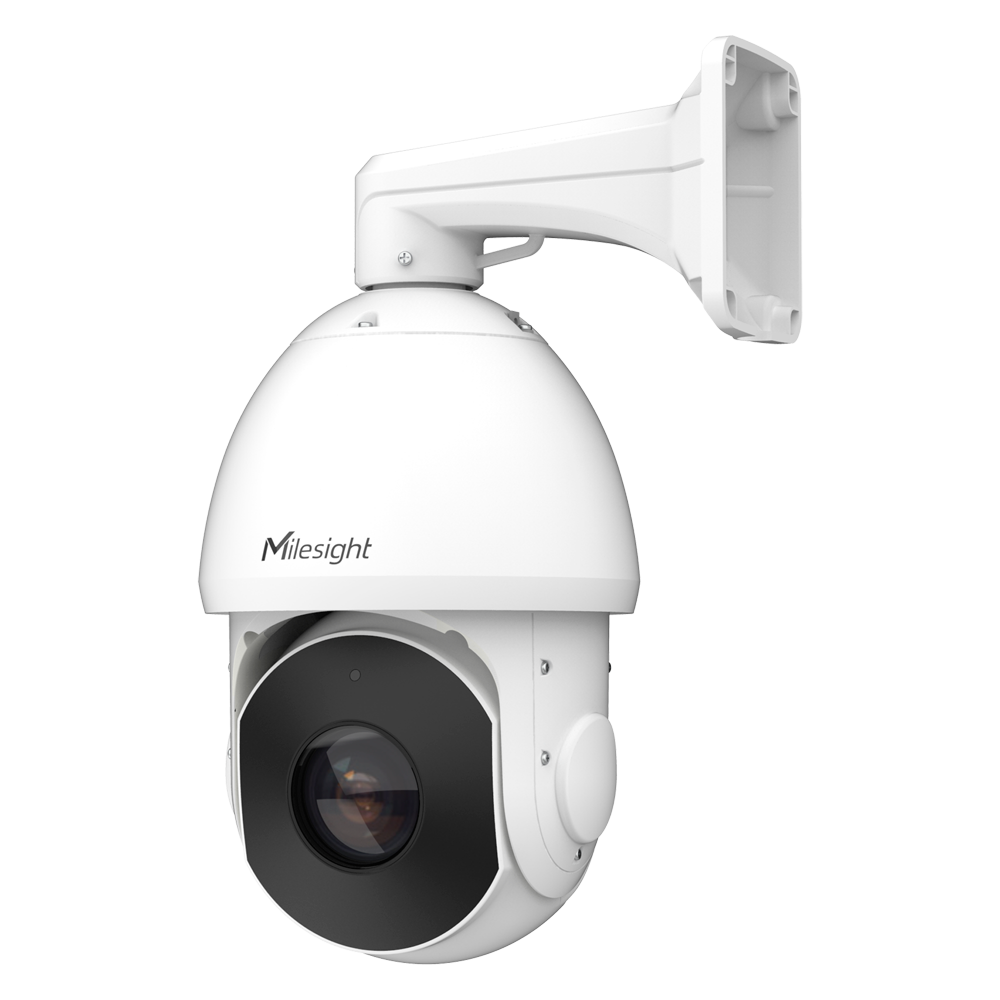

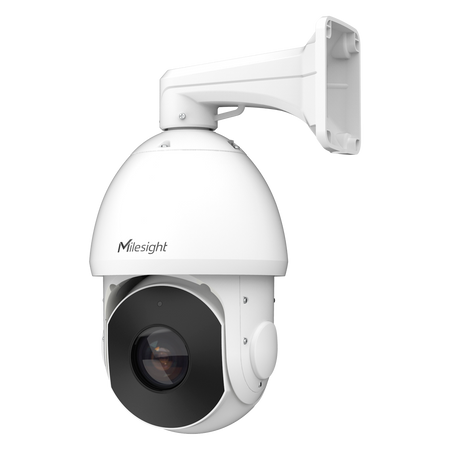

Milesight 36X AI Speed Dome IP Camera - 4 MP Resolution (2688x1520)

36X AI Speed Dome IP Camera - 4 MP Resolution (2688x1520) - 1/1.8" CMOS 5.7~205.3mm lens - 36X optical zoom - AI video analytics based on people and vehicles - IP66 | 120 dB Super WDR

📋 SPECIFICATIONS:
• Optical sensor: 1/1.8" Progressive Scan CMOS
• Minimum illumination: Color: 0.002 Lux@F1.4; B/W: 0 Lux with IR ON
• WDR: 140dB Super WDR
• Day/Night: Day/Night/Auto/Custom/Programmable
• Lens: 5.7mm~205.3mm, 36X optical zoom
• FOV: H63°~H2.2° / D69°~D2.5° / V38°~V1.2° (5.7~205.3mm)
• Focus control: Auto/Semi-auto/Manual
• Iris control: Auto
• Pan range/pan speed: 360° endless / manual pan speed: 0.1°~250°/s, preset pan speed: 250°/s
• Tilt range/tilt speed: -5°~90° (Auto Flip) / manual tilt speed: 0.1°~160°/s, preset tilt speed: 200°/s
• Proportional zoom: Supported
• Number of presets: 300
• Patrols: 8 patrols, up to 48 presets per patrol
• Patterns: 4 patterns
• Auto tracking: Supported
• Power-off memory: Supported
• Other features: Auto Scan, Auto Home, preset freezing, 3D positioning, PTZ limits, Home Position
• Infrared illumination: 300 m
• IR angle: Auto/Manual
• Ethernet interface: 1*RJ45 10M/100M Ethernet port
• Audio connections: 1 input / 1 output
• Alarm connections: 4 inputs / 2 outputs
• RS485 interface: Supported
• Maximum resolution: 4 MP (2688x1520)
• Main Stream frame rate: 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720); 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
• Sub Stream frame rate: 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240); 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
• 3rd Stream: 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240), 60Hz: 15fps@(1920x1080); 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240), 50Hz: 15fps@(1920x1080)
• Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• Bitrate: 16 Kbps ~ 16Mbps (CBR / VBR adjustable)
• Privacy: Up to 8 areas (masked area and mosaic area are optional)
• ROI: Up to 8 Areas
• Image enhancement: BLC, HLC, 2D DNR, 3D DNR, defog, AWB, AGC, anti-flicker, corridor mode, deblur
• Network storage: NAS (support NFS, SMB/CIFS), ANR
• Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
• Audio compression: G.711/AAC/G.722/G.726
• Audio bit rate: 16~256Kbps
• Video analytics: VCA 2.0: Advanced motion detection, line crossing, loitering detection, area entry, area exit, abandoned object, removed object
• Feature detection: Simultaneously detects up to 5 objects and captures people and vehicles in real-time; Recognizes characteristics, including upper and lower garment color, helmet, and vehicle types (bicycle, car, motorcycle, bus, truck, and electric scooter)
• Face and feature detection: Detects and captures faces, takes snapshots in real-time; Features include age, gender, glasses, mask, and cap
• Object counting and reporting: Calculates the quantity of objects that cross a line, which can be both people and vehicles; Supports people counting up to 4 detection areas
• Basic event: Motion detection, exceptions, alarm input, audio alarm, etc.
• Event actions: Image upload to FTP, SMTP, MicroSD card, alarm output enabling, SIP call, HTTP notification
• Internal storage: Supports local storage on microSD/SDHC/SDXC card up to 1TB
• SIP/VoIP: Yes. Voice and video over IP
• Compatibility: ONVIF (Profile G/S/T/M), API
• Remote access: Web browser, smartphone app and Milesight Central Management System software, Milesight VMS Enterprise
• Operating temp: -40ºC~+60ºC
• Operating humidity: 0~95% (non-condensing)
• Power supply: PoE (802.3at) / AC 24V / DC 24V / 3A±10%
• Consumption: Max.: 24.5W (DC 12V), 26.8W (PoE)
• Heater: Supported
• Wiper: Optional
• Surge protection: 6KV
• Dimensions: Φ205mm. x 308mm.
• Weight: 4Kg.
• EMC: CE-EMC (EN 55032, EN 55035), FCC (PART 15B)
• Security: CE-LVD (EN IEC 62368-1)
• Environmental protection: CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
• Protection rating: IP66

📦 INCLUDED:
• 36X AI Speed Dome IP Camera • Installation material • Installation template
