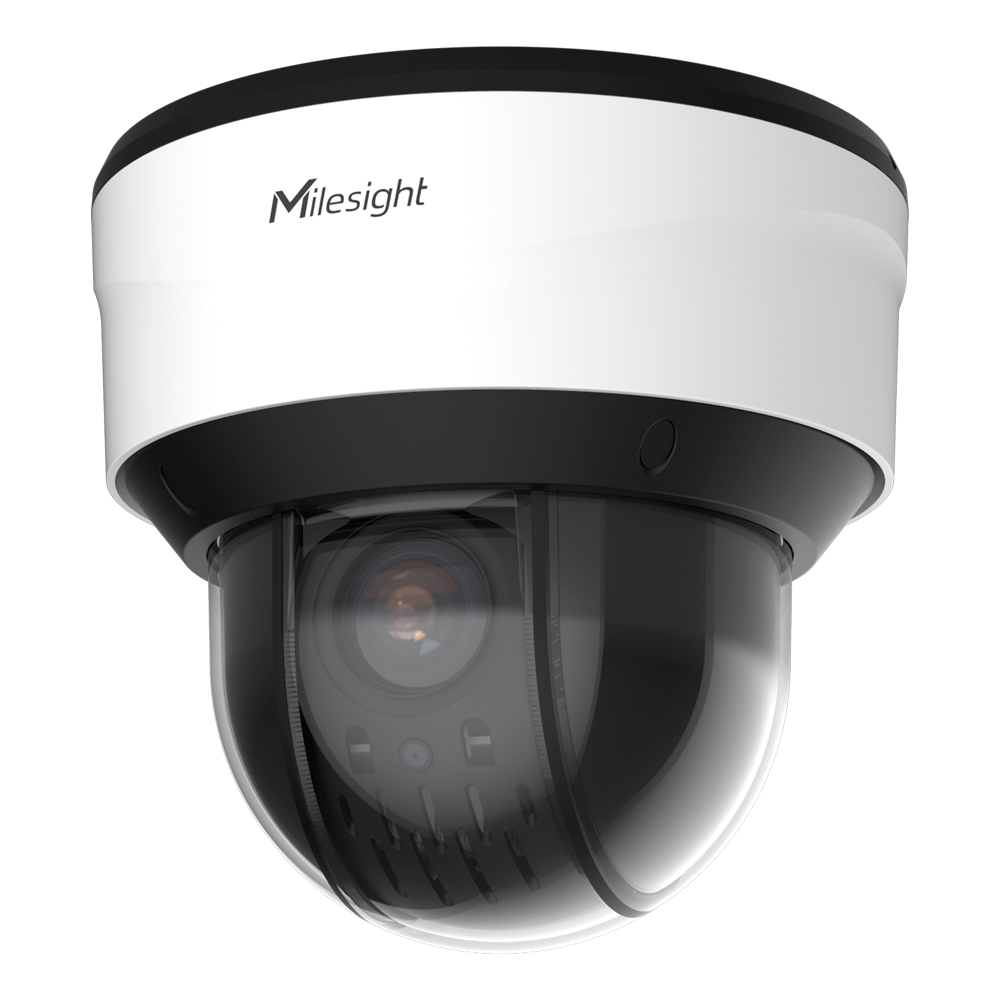

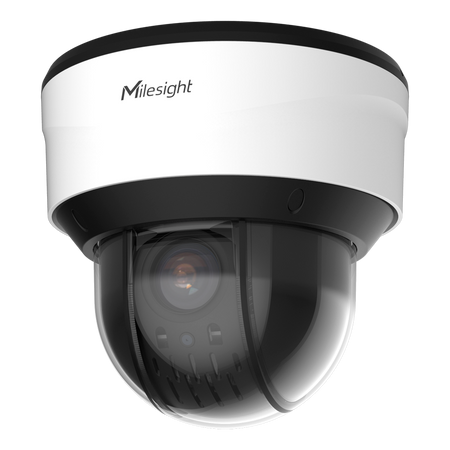

Milesight 20X AI PTZ Dome IP Camera
Regular price
€1.021,38
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
AI 20X PTZ Dome IP Camera - 2 MP resolution - 1/2" CMOS 6.4~128mm lens - 20X Optical zoom | 160m IR - VCA 2.0 | 140dB Super WDR - IP66 | IK10 | 4000V Surge protection
📋 SPECIFICATIONS:
• Brand: Milesight
• Range: AI 12X/20X/23X PTZ Dome
• Optical sensor: 1/2" Progressive Scan CMOS
• Minimum illumination: Color: 0.002 Lux; B/W: 0 Lux with IR
• WDR: 140dB
• DORI: D: 120~210m; O: 47~831m; R: 23.5~415m; l: 12~208m
• Digital Zoom: 16X
• Day / Night: Day / Night / Auto / Customizable / Programmable
• Lens: 6.4~128mm
• FOV: H60°~H3°/D67°~D4°/V37°~V1°
• Focus control: Auto/Semi-auto/Manual
• Iris control: Auto
• Pan range/pan speed: 360° endless / manual pan speed: 0.1°~450°/s, preset pan speed: 450°/s
• Tilt range/tilt speed: -5°~90° (Auto Flip) / manual tilt speed: 0.1°~360°/s, preset tilt speed: 360°/s
• Proportional zoom: Supported
• Number of presets: 300
• Patrols: 8 patrols, up to 48 presets per patrol
• Patterns: 4 patterns
• Auto tracking: Supported
• Power loss recovery: Supported
• Other features: Auto Scan, Auto Home, preset freezing, 3D positioning, PTZ limits, Home position
• Infrared illumination: 160 m
• IR angle: Auto/Manual
• Ethernet interface: 1*RJ45 10M/100M Ethernet port
• Audio connections: 1 input / 1 output
• Alarm connections: 1 input / 1 output
• Maximum resolution: 2Mpx (1920x1080)
• Main Stream frame rate: 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576); 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
• Sub Stream frame rate: 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240); 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
• 3rd Stream: 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240); 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
• Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• Bitrate: 16 Kbps ~ 16Mbps (CBR / VBR adjustable)
• Privacy: Up to 8 areas (masked area and mosaic area are optional)
• ROI: Up to 8 areas
• Image enhancement: BLC, HLC, 2D DNR, 3D DNR, defog, AWB, AGC, anti-flicker, corridor mode, deblur, LDC
• Network storage: NAS (supports NFS, SMB/CIFS), ANR
• Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
• Audio compression: G.711/AAC/G.722/G.726
• Audio Bit Rate: 16~256Kbps
• Video analysis: VCA 2.0: Advanced motion detection, line crossing, loitering detection, area entry, area exit, abandoned object, removed object
• Feature detection: Detects up to 50 objects simultaneously and captures people and vehicles in real time; recognizes features including top and bottom clothing color, helmet, and vehicle types (bicycle, car, motorcycle, bus, truck, and e-scooter)
• Face and feature detection: Detects and captures faces, takes snapshots in real time; features include age, gender, glasses, mask, and hat; supports face privacy mode, faces detected in the detection area will be automatically masked.
• Object counting and reporting: Detects the number of objects crossing a line, including humans and vehicles; supports people counting for up to 4 detection areas.
• Basic event: Motion detection, exceptions, alarm input, audio alarm, etc.
• Event actions: Image upload to FTP, SMTP, MicroSD card, alarm output activation, SIP call, HTTP notification
• Internal storage: Supports local storage on microSD/SDHC/SDXC card up to 256 GB
• SIP/VoIP: Yes. Voice and video over IP
• Compatibility: ONVIF (Profile G/S/T/Q), API
• Remote access: Web browser, smartphone app and Milesight Central Management System software, Milesight VMS Enterprise
• Operating temp: -40ºC~+60ºC
• Operating humidity: 0~95% (non-condensing)
• Power supply: PoE (802.3at) / DC 12V / 3A±10%
• Power consumption: Max.: 12W (DC 12V), 20W (PoE)
• Surge protection: 4KV
• Dimensions: Φ183mm. x 174.8mm.
• Weight: 2 kg
• Protection rating: IP66, IK10, 4000V surge protection
📦 INCLUDED:
• AI 20X Speed Dome IP Camera • Installation hardware • Mounting template
| Series | AI 12X/20X/23X PTZ Dome |
|---|---|
| Optical Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002 Lux, B/W: 0 Lux with IR |
| WDR | 140dB |
| DORI | D: 120~210m O: 47~831m R: 23.5~415m l: 12~208m |
| Digital Zoom | 16X |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Lens | 6.4~128mm |
| FOV | H60°~H3°/D67°~D4°/V37°~V1° |
| Focus Control | Auto/Semi-auto/Manual |
| Iris Control | Auto |
| Pan Range/Pan Speed | 360° continuous / manual pan speed: 0.1°~450°/s, preset pan speed: 450°/s |
| Tilt Range/Tilt Speed | -5°~90° (Auto Flip) / manual tilt speed: 0.1°~360°/s, preset tilt speed: 360°/s |
| Proportional Zoom | Supported |
| Number of Presets | 300 |
| Patrols | 8 patrols, up to 48 presets per patrol |
| Patterns | 4 patterns |
| Auto Tracking | Supported |
| Power Off Memory | Supported |
| Other Features | Auto Scan, Auto Home, preset freezing, 3D positioning, PTZ limits, Home Position |
| Infrared Illumination | 160 m |
| IR Angle | Auto/Manual |
| Ethernet Interface | 1*RJ45 10M/100M Ethernet port |
| Audio Connections | 1 input / 1 output |
| Alarm Connections | 1 input / 1 output |
| Max. Resolution | 2Mpx (1920x1080) |
| Main Stream Frame Rate | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Sub Stream Frame Rate | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| 3rd Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Bitrate | 16 Kbps ~ 16Mbps (CBR / VBR adjustable) |
| Privacy | Up to 8 areas (privacy area and mosaic area are optional) |
| ROI | Up to 8 Areas |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, defog, AWB, AGC, anti-flicker, corridor mode, deblur, LDC |
| Network Storage | NAS (support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Bit Rate | 16~256Kbps |
| Video Analysis | VCA 2.0: Advanced motion detection, line crossing, loitering detection, area entry, area exiting, abandoned object, removed object |
| Feature Detection | Simultaneously detects up to 50 objects and captures people and vehicles in real time. Recognizes characteristics, including upper and lower garment color, helmet, and vehicle types (bicycle, car, motorcycle, bus, truck, and e-scooter) |
| Face and Feature Detection | Detects and captures faces, takes snapshots in real time; characteristics include age, gender, glasses, mask, and hat. Supports face privacy mode; faces detected in the detection area will be automatically masked. |
| Object Counting and Reporting | Detects the number of objects crossing a line, including humans and vehicles. Supports people counting in up to 4 detection areas. |
| Basic Event | Motion detection, exceptions, alarm input, audio alarm, etc. |
| Event Actions | Image upload to FTP, SMTP, MicroSD card, alarm output activation, SIP call, HTTP notification |
| Internal Memory | Supports local storage on microSD/SDHC/SDXC card up to 256 GB |
| SIP/VoIP | Yes. Voice and video over IP |
| Compatibility | ONVIF (Profile G/S/T/Q), API |
| Remote Access | Web browser, smartphone App and Milesight Central Management System software, Milesight VMS Enterprise |
| Operating Temp. | -40ºC~+60ºC |
| Operating Humidity | 0~95% (non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V / 3A±10% |
| Power Consumption | Max.: 12W (DC 12V), 20W (PoE) |
| Surge Protection | 4KV |
| Dimensions | Φ183mm. x 174.8mm. |
| Weight | 2 kg |
| Protection Rating | IP66, IK10, 4000V surge protection |
