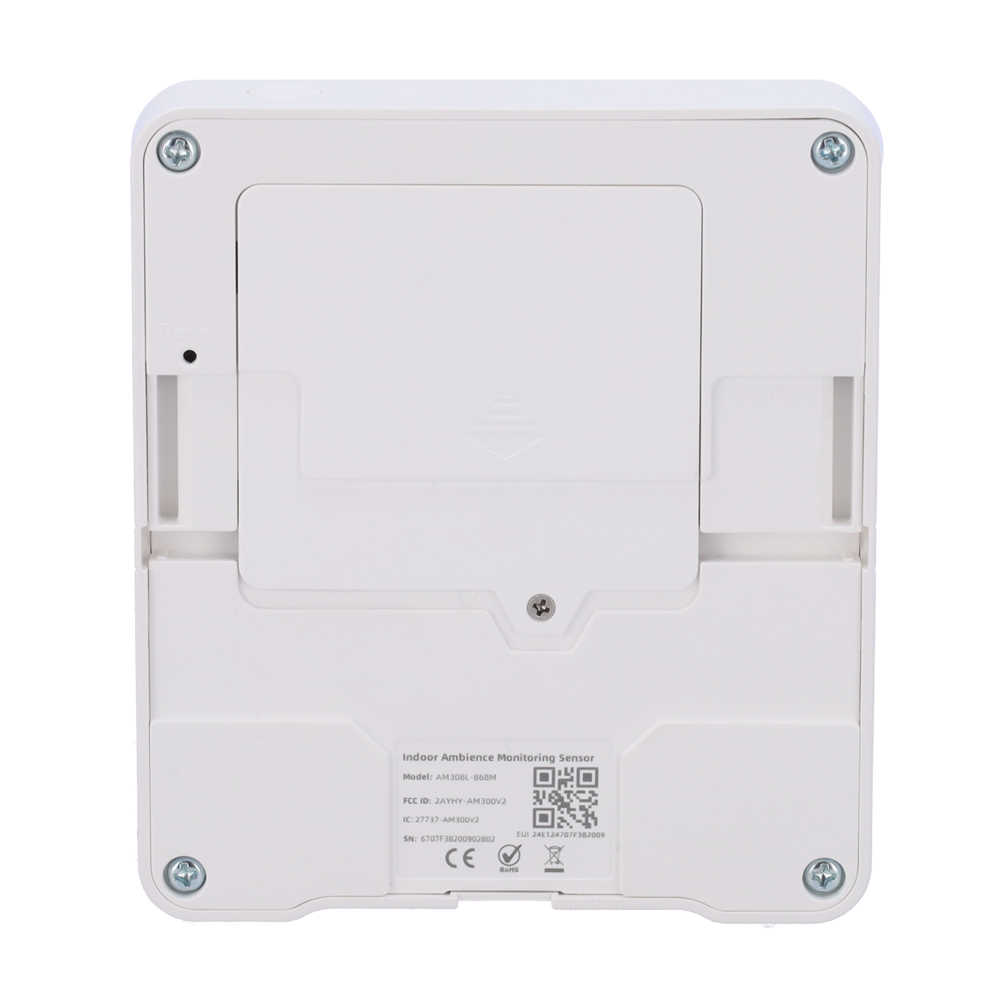

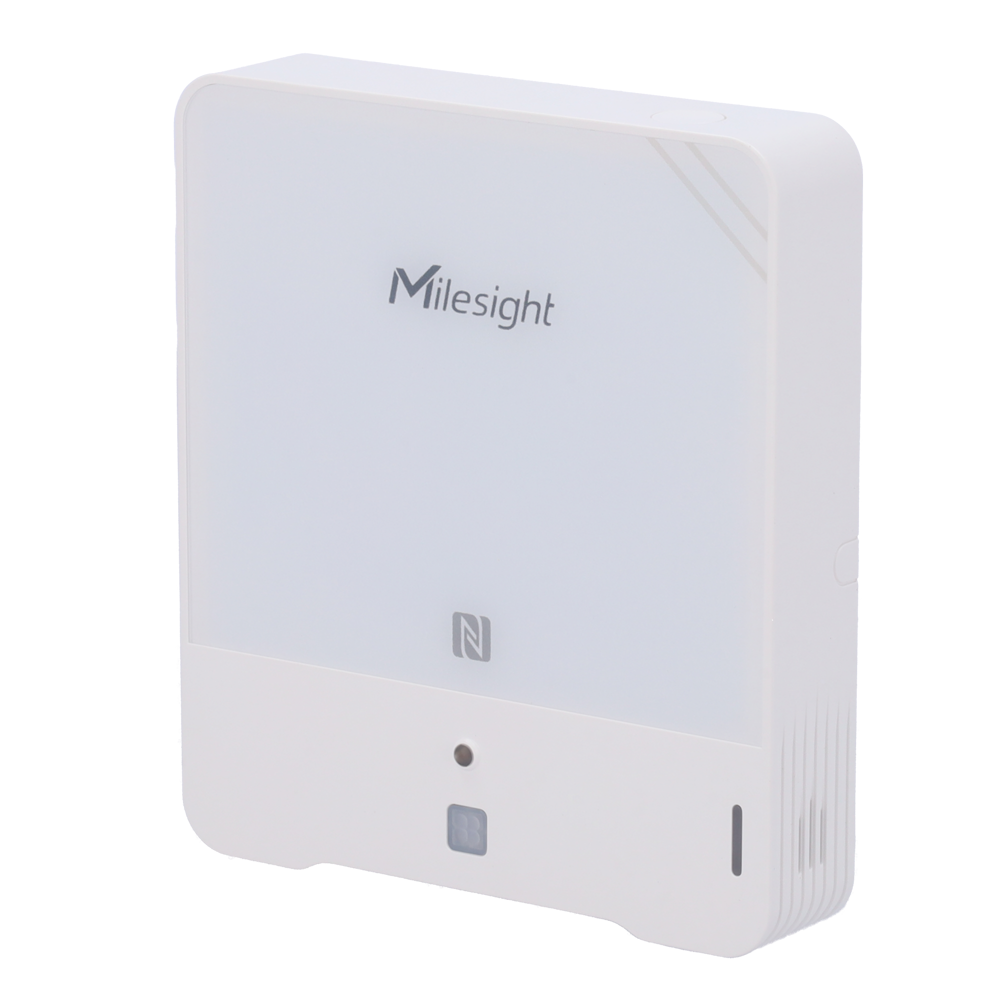

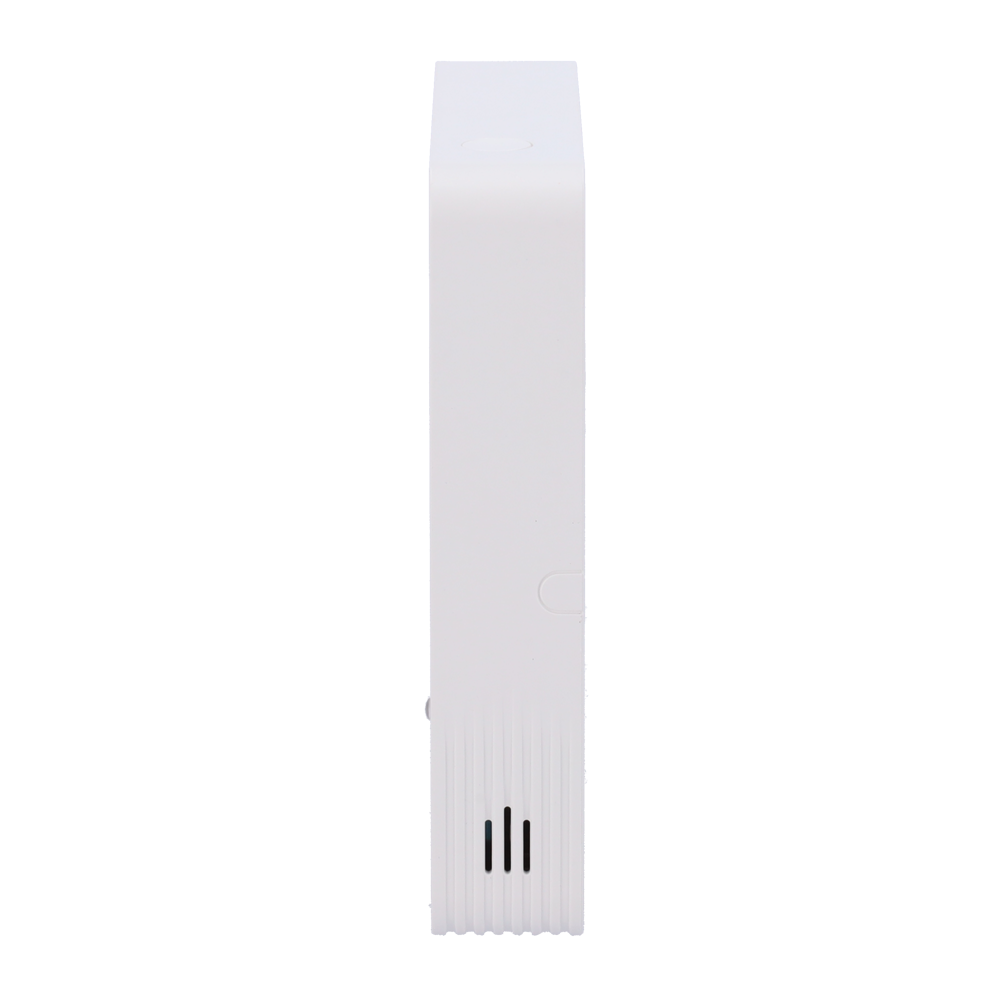

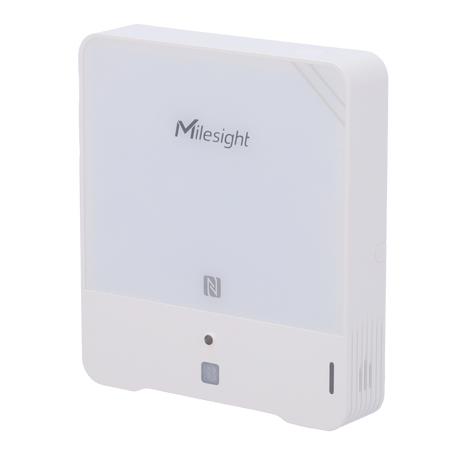

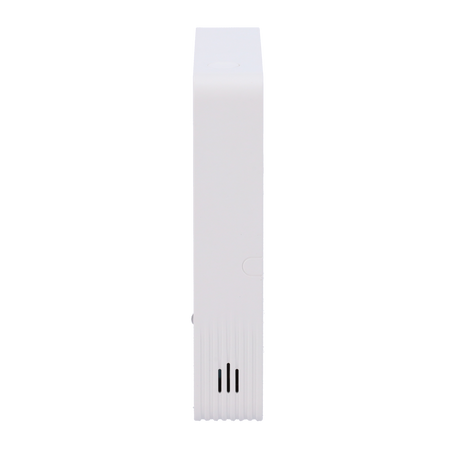

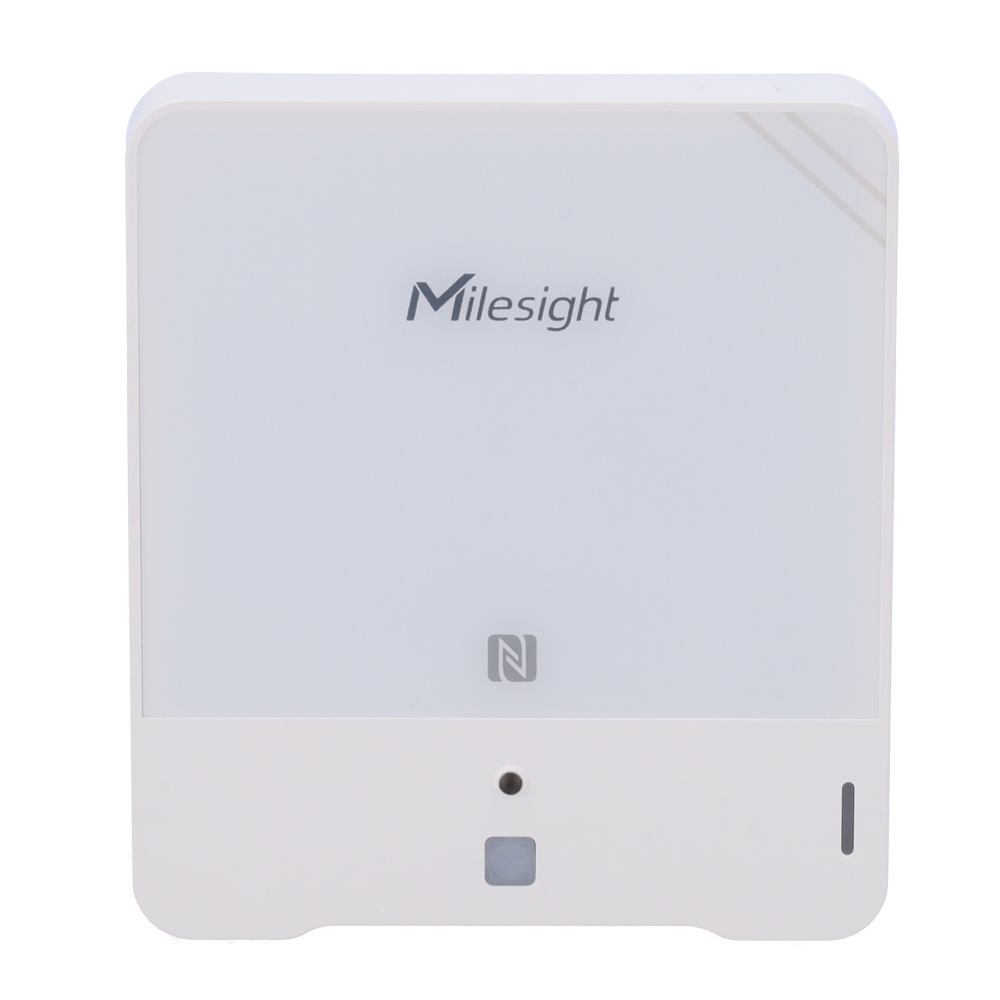

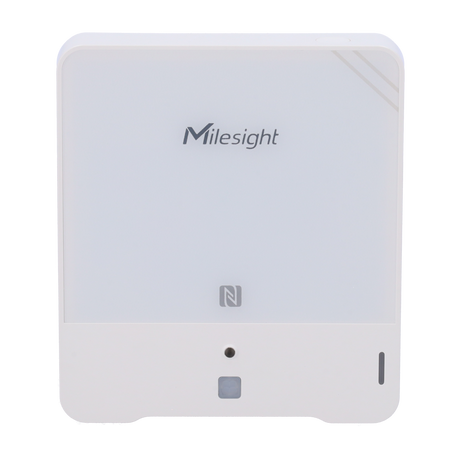

Milesight humidity / temperature / CO2 / light / pressure multisensor
Regular price
€441,49
Final price
Regular price
-7%
€475,38
Sale price
€441,49
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Humidity / temperature / CO2 / Light / Pressure multisensor - Multiple operating modes - DC and battery power - Visual and audible indicators - Local data storage - LoRaWAN protocol
📋 SPECIFICATIONS:
• Technology: LoRaWAN®
• Antenna: Internal antenna
• Frequency: CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4
• Transmit power: 16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)
• Sensitivity: -137dBm @300bps
• Operating mode: OTAA/ABP Class A
• Operating principle: DigitalCMOSens® technology (MEMS)
• Range: -20°C~60°C
• Accuracy: Typical: ±0.3°C (-20°C ~ 0°C), ±0.2°C (0°C ~ 60°C)
• Resolution: 0.1°C
• Operating principle: DigitalCMOSens® technology (MEMS)
• Range: 0%~100%RH
• Accuracy: Typical ±2% RH (25°C)
• Resolution: 0.5% RH
• Operating principle: Passive infrared (PIR)
• Detection range: 80° horizontal, 55° vertical, 3 m
• States: Standby/Activation
• Operating principle: Photodiode
• Range: 0-60000 Lux
• Reporting mode: Light level (0-5)
• Operating principle: Non-dispersive infrared (NDIR)
• Range: 400~5000ppm
• Accuracy: ±(30 ppm + 3% of reading); (0°C to 50°C, 0% to 85% relative humidity)
• Resolution: 1 ppm
• Operating principle: Piezoresistive absolute pressure sensor (MEMS)
• Range: 260-1260hPa
• Accuracy: ±0.5hPa
• Resolution: 0.1hPa
• Operating principle: MOX (MEMS)
• Range: 1.00~5.00 (IAQ classification)
• Accuracy: ±1
• Resolution: 0.01
• Operating principle: Laser scattering
• Range: 0~1000μg/m3
• Accuracy: 0~100(±10μg/m3),; 100~500(±10%); (-10°C~60°C)
• Resolution: 1μg/m3
• Screen: AM307 and AM308: 4.2-inch black and white E-ink display; AM304L, AM305L and AM308L: Not supported
• Buttons: 1 power button + 1 reset button
• LED: 1 status indicator
• Buzzer: Integrated
• USB: 1 Type-C port for power supply, configuration or console
• Configuration: 1. Mobile app via NFC; 2. PC software via USB Type-C port; 3. Downlink mode connection
• Advanced features: Calibration, Threshold alarm, Data storage (18,000 entries), Data retrieval, Data retransmission, Smart screen mode, Button lock

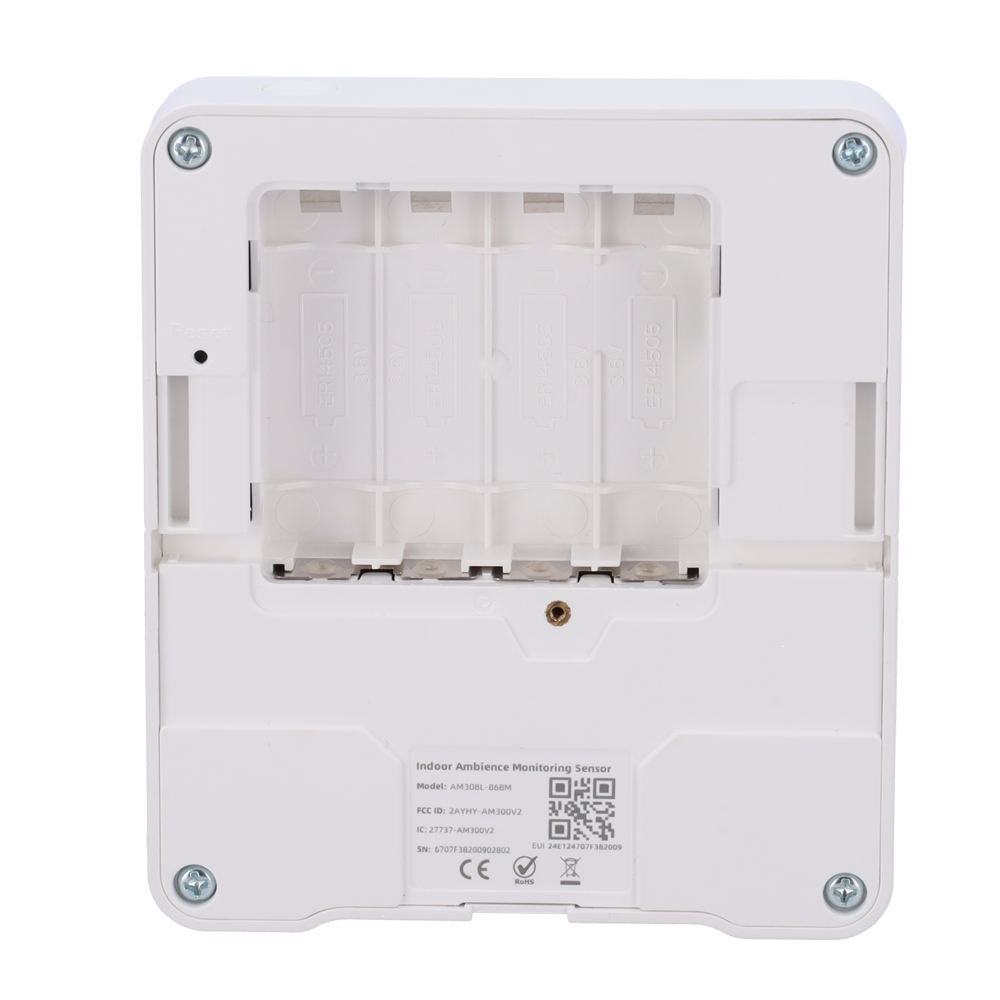

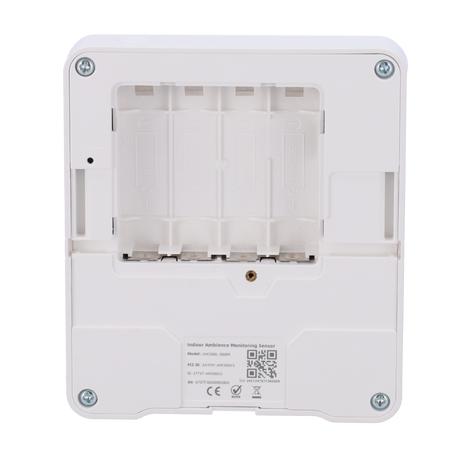

• Power supply: 1. 4 replaceable ER14505 Li-SOCl2 batteries of 2700 mAh; 2. 5 V/1 A via Type-C port
• Battery life (10 min interval, 25 °C): Approx. 1.3 years; (SF7, EU868 and US915); Approx. 1.2 years; (SF10, EU868); Approx. 1 year; (SF10, US915)
• Operating temperature: -20 °C-60 °C (E-ink screen: 0 °C-40 °C)
• Relative humidity: 10%-90% (non-condensing)
• Protection: IP30
• Housing and color: PC + ABS (V0), white
• Weight (with batteries): 222.6g
• Dimensions: 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 inches)

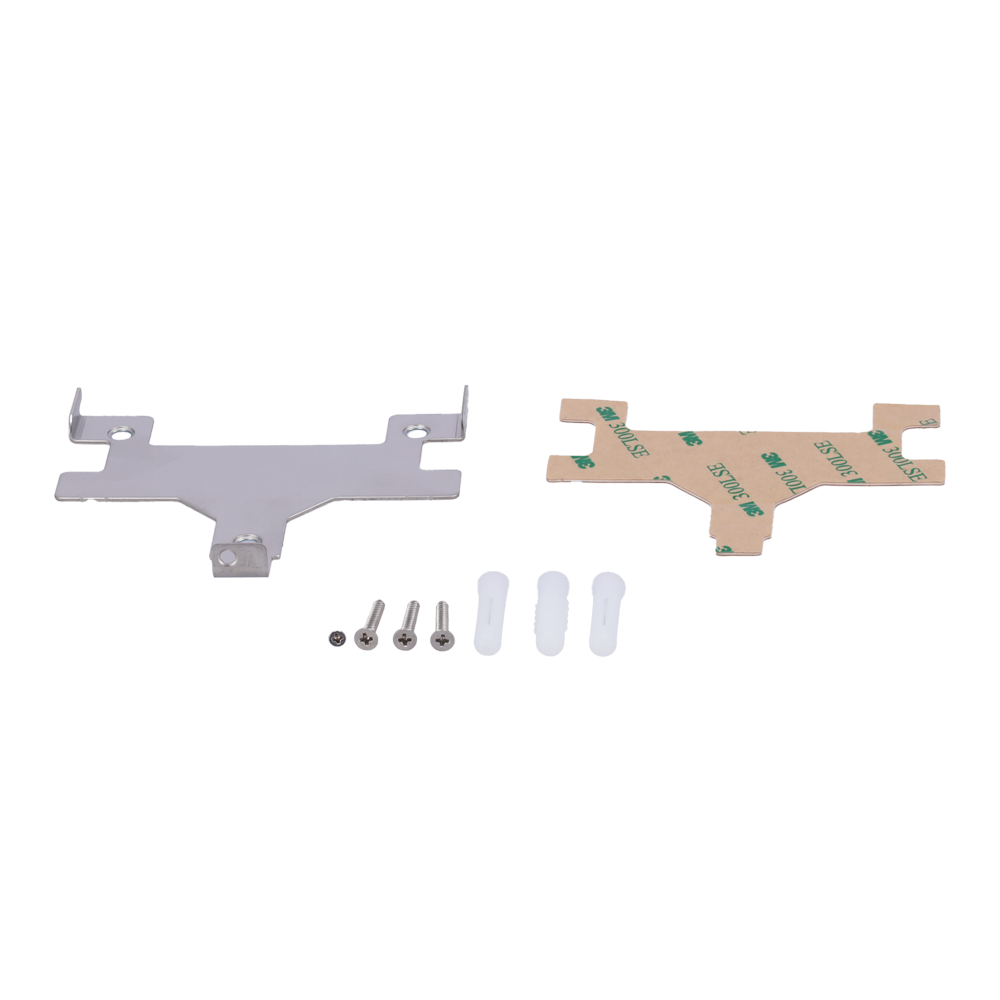

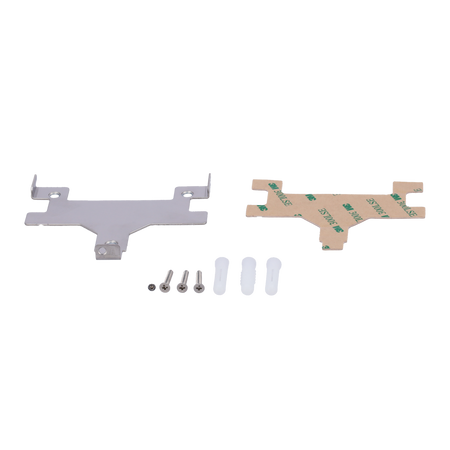

• Installation: Wall mounting via 3M adhesive tape or screws
• Compliance: CE, CE(RED), FCC, ISED, RoHS
| Technology | LoRaWAN® |
|---|---|
| Antenna | Internal antenna |
| Frequency | CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Transmit power | 16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz) |
| Sensitivity | -137dBm @300bps |
| Working mode | OTAA/ABP Class A |
| Operating principle | DigitalCMOSens® Technology (MEMS) |
| Range | -20°C~60°C |
| Accuracy | Typical: ±0.3°C (-20°C ~ 0°C), ±0.2°C (0°C ~ 60°C) |
| Resolution | 0.1°C |
| Operating principle | DigitalCMOSens® Technology (MEMS) |
| Range | 0%~100%RH |
| Accuracy | Typical ±2% RH (25°C) |
| Resolution | 0.5% RH |
| Operating principle | Passive infrared (PIR) |
| Detection range | 80° horizontal, 55° vertical, 3 m |
| States | Standby/Triggered |
| Operating principle | Photodiode |
| Range | 0-60000 Lux |
| Reporting mode | Light level (0-5) |
| Operating principle | Non-dispersive infrared (NDIR) |
| Range | 400~5000ppm |
| Accuracy | ±(30 ppm + 3% of reading) from (0°C to 50°C, 0% to 85% RH) |
| Resolution | 1 ppm |
| Operating principle | Piezoresistive absolute pressure sensor (MEMS) |
| Range | 260-1260hPa |
| Accuracy | ±0.5hPa |
| Resolution | 0.1hPa |
| Operating principle | MOX (MEMS) |
| Range | 1.00~5.00 (IAQ index) |
| Accuracy | ±1 |
| Resolution | 0.01 |
| Operating principle | Laser scattering |
| Range | 0~1000μg/m3 |
| Accuracy | 0~100(±10μg/m3), 100~500(±10%) (-10°C~60°C) |
| Resolution | 1μg/m3 |
| Screen | AM307 and AM308: 4.2-inch black and white E-ink display; AM304L, AM305L and AM308L: Not supported |
| Buttons | 1 power button + 1 reset button |
| LED | 1 status indicator |
| Buzzer | Built-in |
| USB | 1 Type-C port for power supply, configuration or console |
| Configuration | 1. Mobile App via NFC 2. PC software via USB Type-C port 3. Downlink mode connection |
| Advanced features | Calibration, Threshold alarm, Data storage (18,000 entries), Data retrieval, Data retransmission, Smart screen mode, Key lock |
| Power supply | 1. 4 replaceable 2700 mAh ER14505 Li-SOCl2 batteries 2. 5V/1A via Type-C port |
| Battery life (10 min interval, 25°C) | Approx. 1.3 years (SF7, EU868 and US915) Approx. 1.2 years (SF10, EU868) Approx. 1 year (SF10, US915) |
| Operating temperature | -20°C-60°C (e-ink screen: 0°C-40°C) |
| Relative humidity | 10%-90% (non-condensing) |
| Protection | IP30 |
| Housing and color | PC + ABS (V0), white |
| Weight (with batteries) | 222.6g |
| Dimensions | 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 inches) |
| Installation | Wall mounting via 3M adhesive tape or screws |
| Regulations | CE, CE(RED), FCC, ISED, RoHS |
