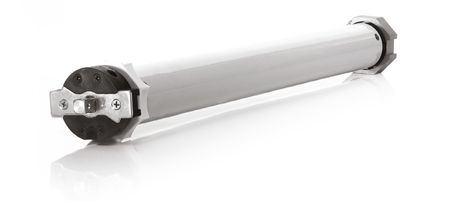

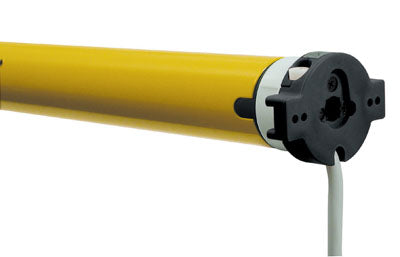

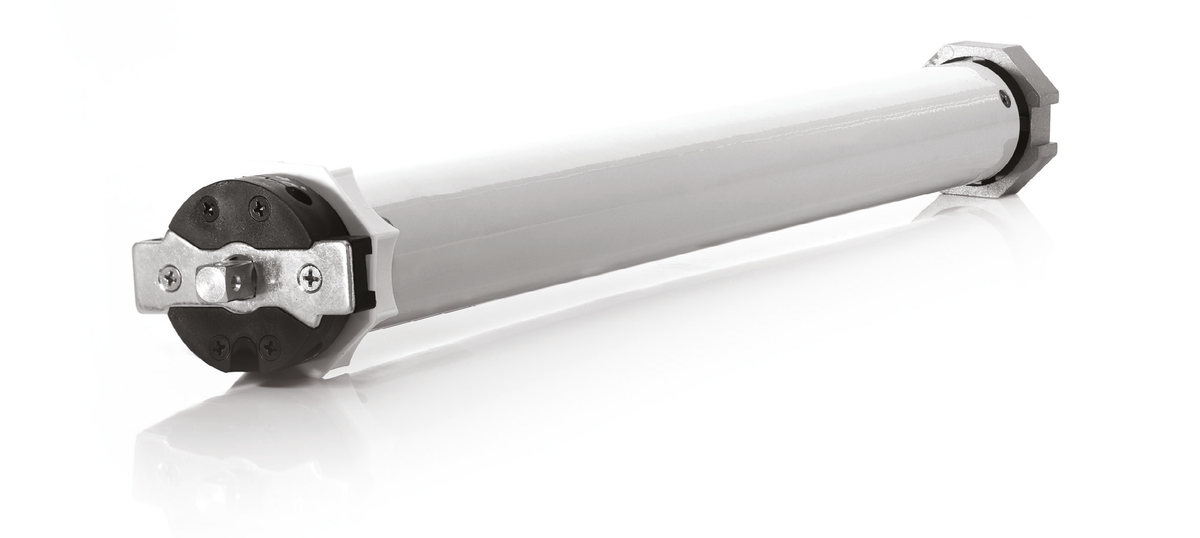

Irreversible electromechanical tubular gear motor with 20 Nm limit switch, with a lifting force of up to 38 kg. Supplied complete with support and 60 mm diameter adapter for winding tube. Suitable for automating shutters, even existing ones.
Kit contents:
- MRC20 tubular gear motor
- Support
- Ø 60 mm adapter
Technical data:
- Motor diameter: Ø 45 mm
- Power supply: 230 V AC (50 - 60 Hz)
- Lifting force: 38 kg
- Torque: 20 Nm
- Power consumption: 205 W
- Current consumption: 0.92 A
- Motor crown speed: 13 rpm
- Operating time: 4 min
- Protection rating: IP44
- Operating temperature: -10°C ÷ +60°C
- Weight: 1.8 kg
TAU code: 850MRC20
- User manual Link
