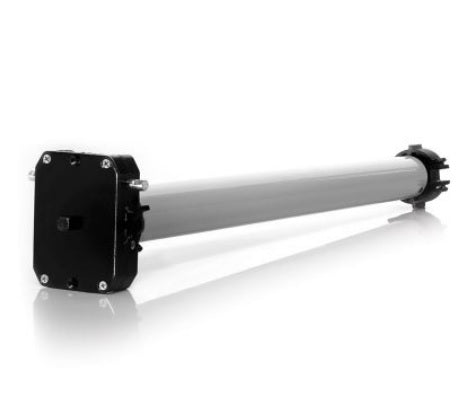

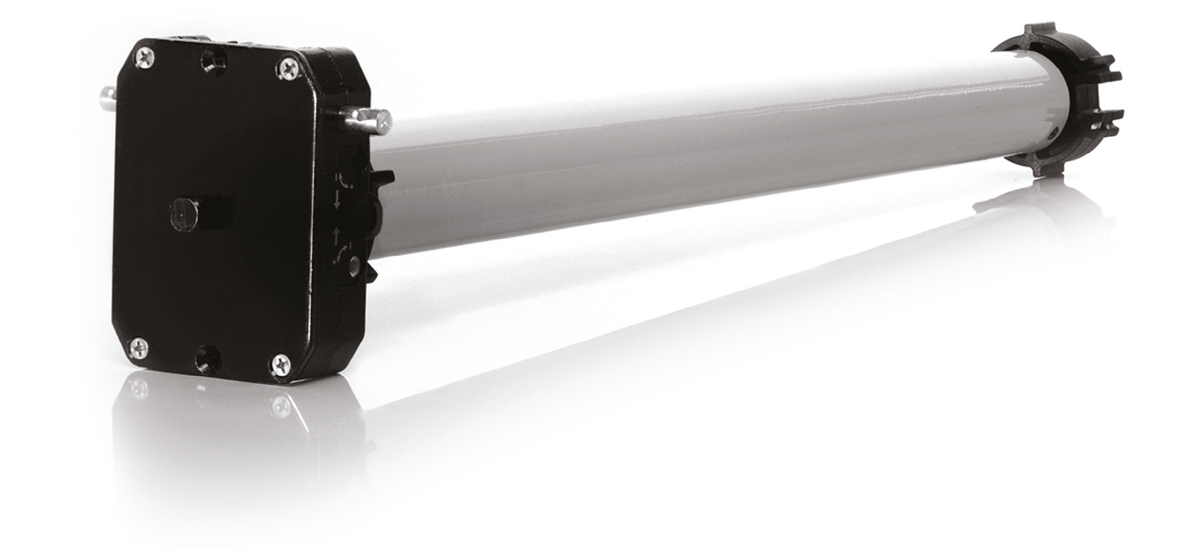

TAU MRC30M 30 Nm 230V tubular motor for awnings

Irreversible electromechanical tubular gear motor 230 V AC, 45 mm diameter, with built-in manual override. Designed for awnings with a maximum projection of 4 m; includes support and Ø 70 mm adapter. Allows for simple limit switch adjustment and manual operation of the awning using a dedicated rod.

Kit contents:

• Support
• Ø 70 mm adapter

Technical data:

• Power supply: 230 V AC (50 - 60 Hz)
• Torque: 30 Nm
• Lifting force: 56 kg
• Motor speed: 13 rpm
• Power input: 230 W
• Current: 1.1 A
• Operating time: 4 min
• Protection rating: IP 44
• Operating temperature: -10°C ÷ +60°C
• Motor diameter: 45 mm
• Gear motor weight: 2.9 kg

TAU code: 850MRC30M
