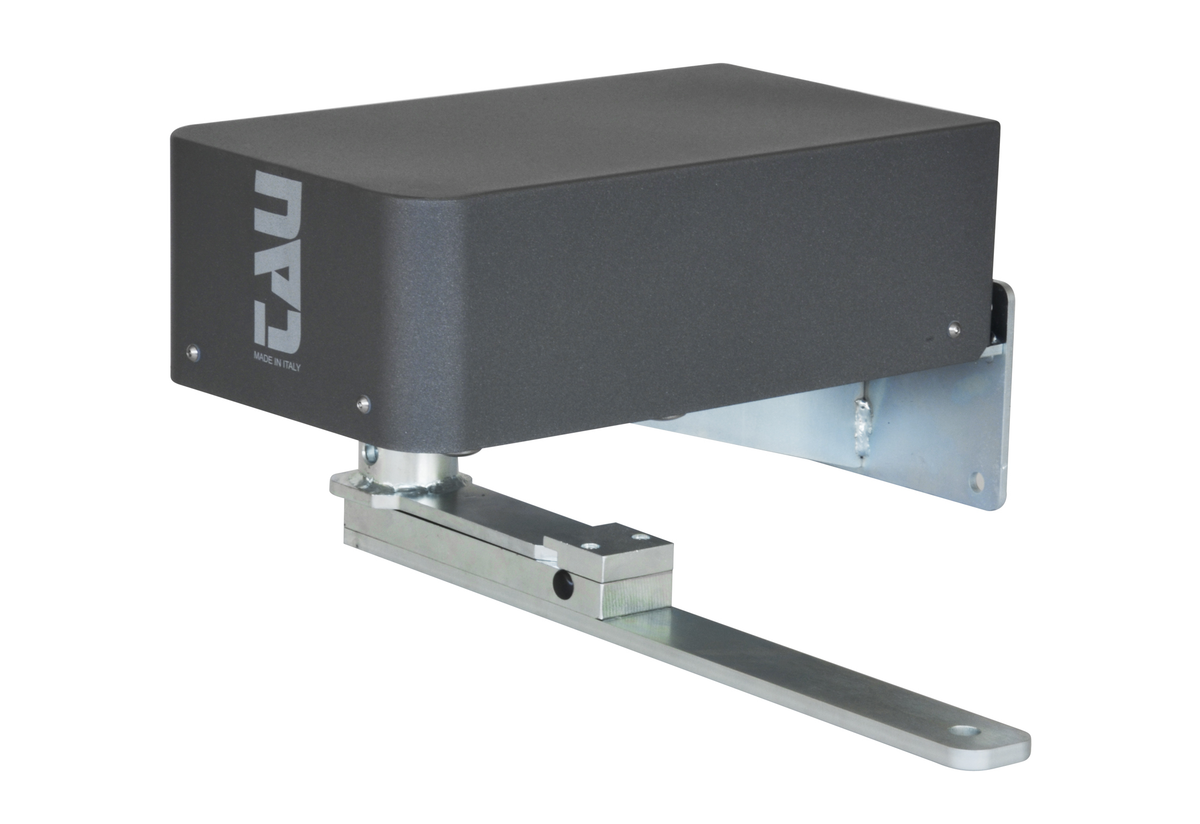

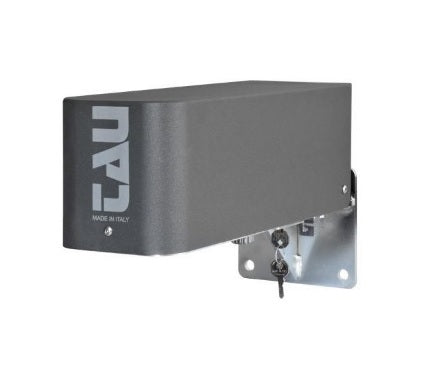

TAU ZIPPOXL 230V articulated arm gear motor for 4 m gate leaf

230 V AC electromechanical gear motor for swing gates up to 4 meters and a maximum of 400 kg. Supplied complete with articulated arm and mounting bracket, it is ideal for applications on large pillars in residential and industrial settings. Equipped with obstacle detection and anti-crushing safety.

Kit contents:

• Gear motor
• Articulated arm
• Mounting bracket

Compatible with: D770M.

Technical data:

• Power supply: 230 V AC (50 - 60 Hz)
• Motor power supply: 230 V AC
• Consumption: 1.4 A
• Rated power: 260 W
• 90° opening time: 16.5 s
• Duty cycle: 50%
• Operating temperature: -20° C ÷ +55° C
• Motor thermal protection: 160° C
• Protection rating: IP 44
• Control unit to be paired: D770M
• Gear motor weight: 24 kg
• Max gate leaf length: 4 m
• Max gate leaf capacity: 400 kg

TAU code: 650ZIPPOXL
