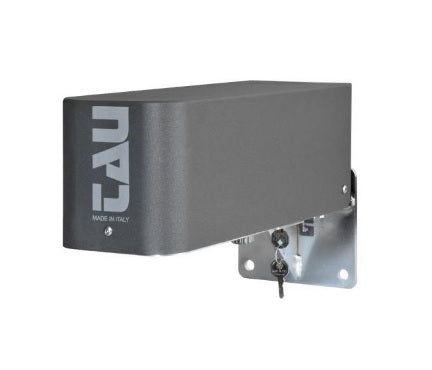

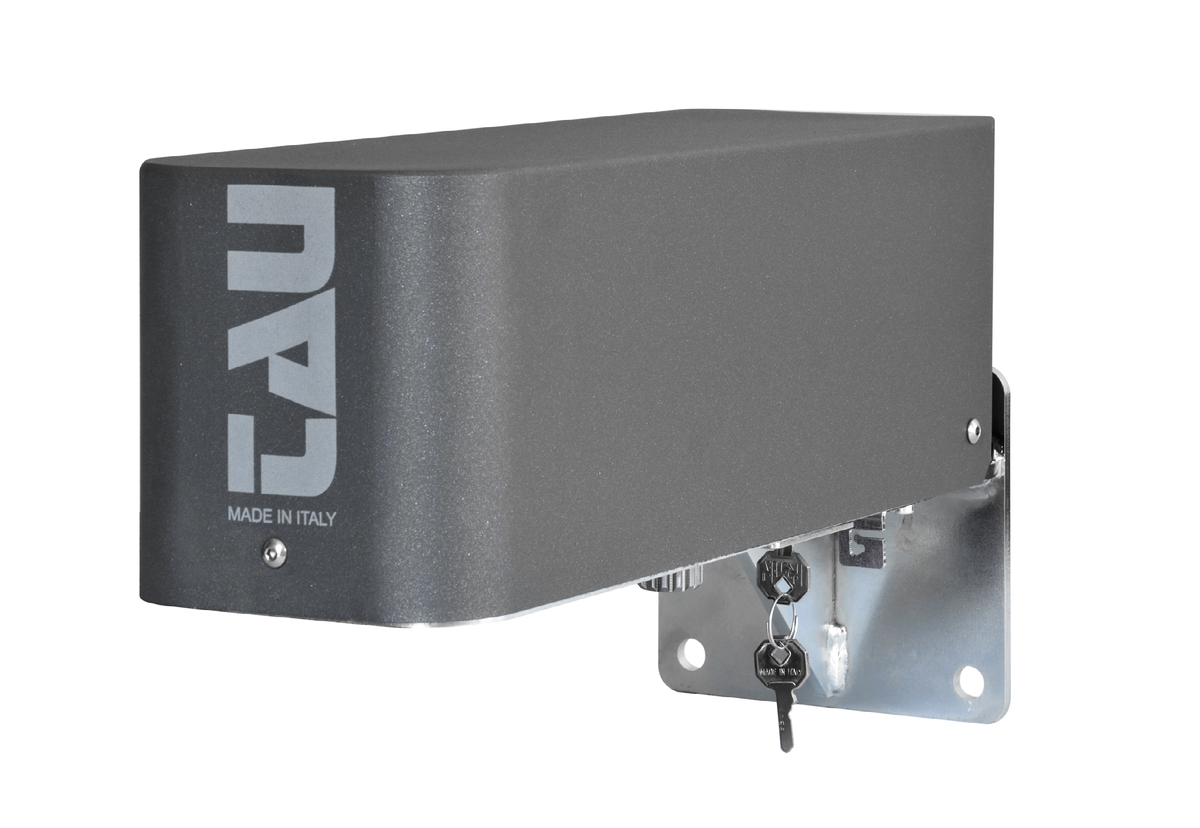

TAU ZIPPO 230V articulated arm gear motor for gates up to 3 m

230 V AC electromechanical gear motor for swing gates up to 3 m, ideal for residential and industrial applications even on small pillars. Supplied complete with articulated arm and mounting bracket, with a 90° opening time between 8 and 13 seconds. Offers obstacle detection and anti-crushing safety, and must be paired with the D770M control unit.

Kit contents:

• Articulated arm
• Mounting bracket

Compatible with: D770M.

Technical data:

• Power supply: 230 V AC (50 - 60 Hz)
• Motor power supply: 230 V AC
• Max gate leaf weight: 200 kg
• Max gate leaf length: 3 m
• Current consumption: 1 A
• Rated power: 190 W
• Opening time 90°: 8-13 s
• Duty cycle: 50%
• Operating temperature: -20° C ÷ +55° C
• Motor thermal protection: 150° C
• Protection rating: IP 44
• Gear motor weight: 25 kg

TAU code: 650ZIPPO
