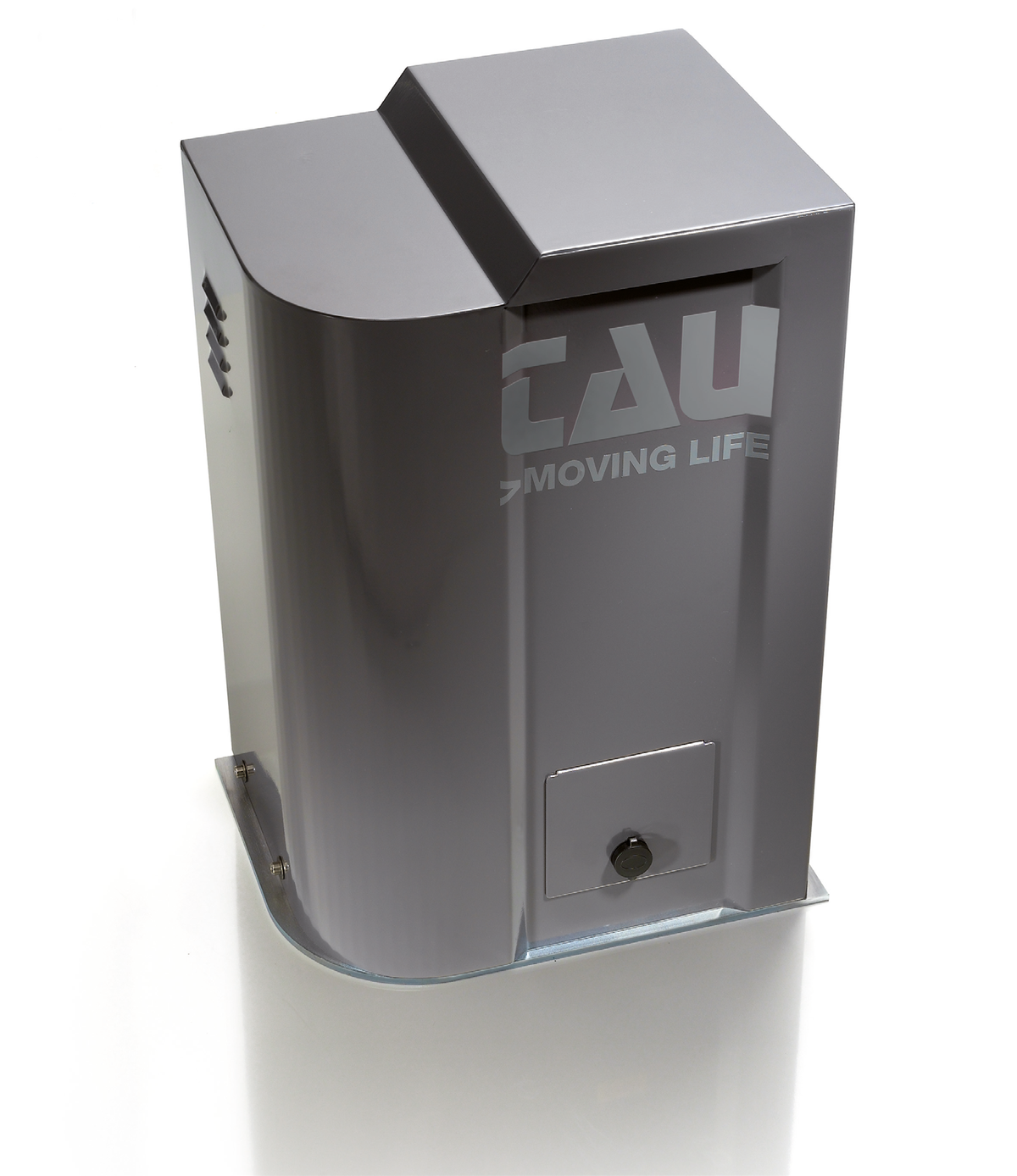

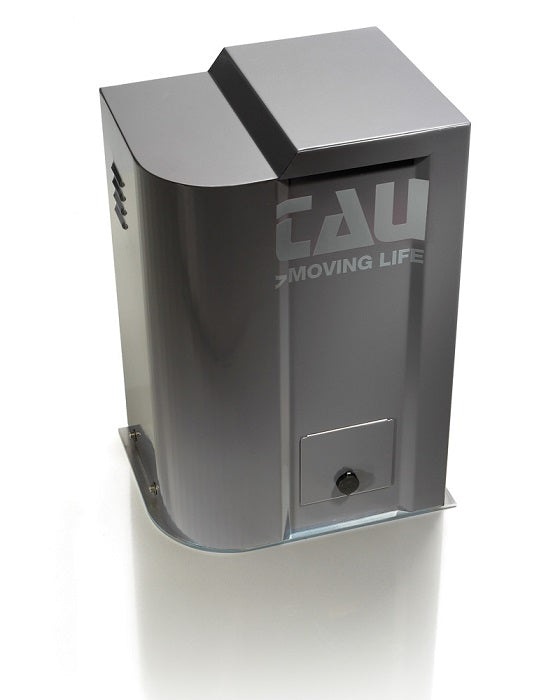

TAU BIG40QI 230 V gear motor, 4000 kg capacity

Electromechanical gearmotor for industrial use, suitable for sliding gates up to 4000 kg (2800 kg for cantilever gates). Equipped with a self-ventilated 230 V AC three-phase motor and complete with a D820M control unit with an electronic inverter for speed adjustment from 7 to 18 m/min. Features an oil-bath gearbox with steel and bronze gears, a painted sheet metal housing, manual release, and a mechanical anti-crushing clutch.

Technical data:

• Power supply: 230 V AC (50 - 60 Hz)
• Motor power supply: 230 V AC (three-phase)
• Current consumption: 3.6 A
• Rated power: 1500 W
• Operating speed: adjustable 7 ÷ 18 m/min
• Duty cycle: 100%
• Operating temperature: -20° C ÷ +55° C
• Motor thermal protection: 150° C
• Protection rating: IP 54
• Max. gate leaf weight: 4000 kg
• Max. cantilever gate leaf weight: 2800 kg
• Pinion module: 4
• Control unit: D820M
• Gearmotor weight: 62 kg

TAU code: 500BIG40QI
