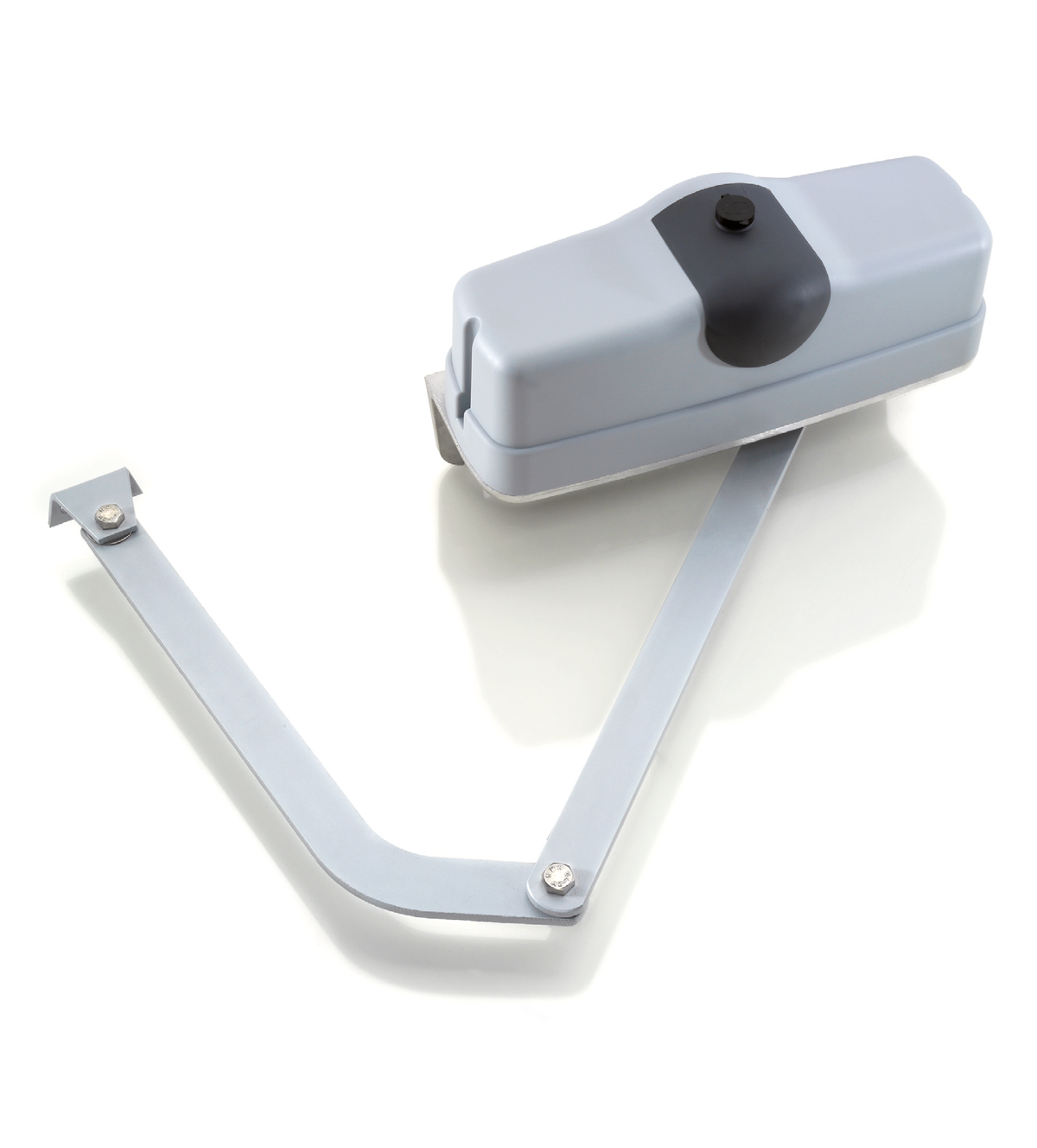

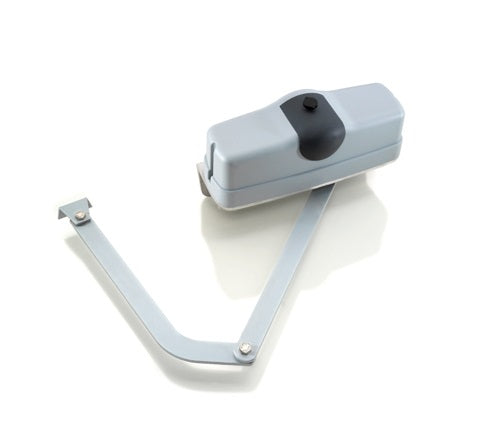

TAU ZIP 230V articulated arm gear motor for swing gates up to 3.5 m

230 V AC electromechanical gear motor with articulated arm and mounting bracket, for swing leaves up to 3.5 m. Equipped with integrated electrical limit switches and encoder, ideal for residential or industrial installations on large pillars. Requires a dedicated external control panel for operation.

Compatible with: D770M, 750D770.

Technical data:

• Power supply: 230 V AC (50 - 60 Hz)
• Motor power supply: 230 V AC
• Motor consumption: 1 A
• Rated power: 190 W
• 90° opening time: 13 s
• Duty cycle: 50 %
• Operating temperature: -20° C ÷ +55° C
• Motor thermal protection: 150° C
• Protection rating: IP 44
• Weight: 14 kg

TAU code: 650ZIP
