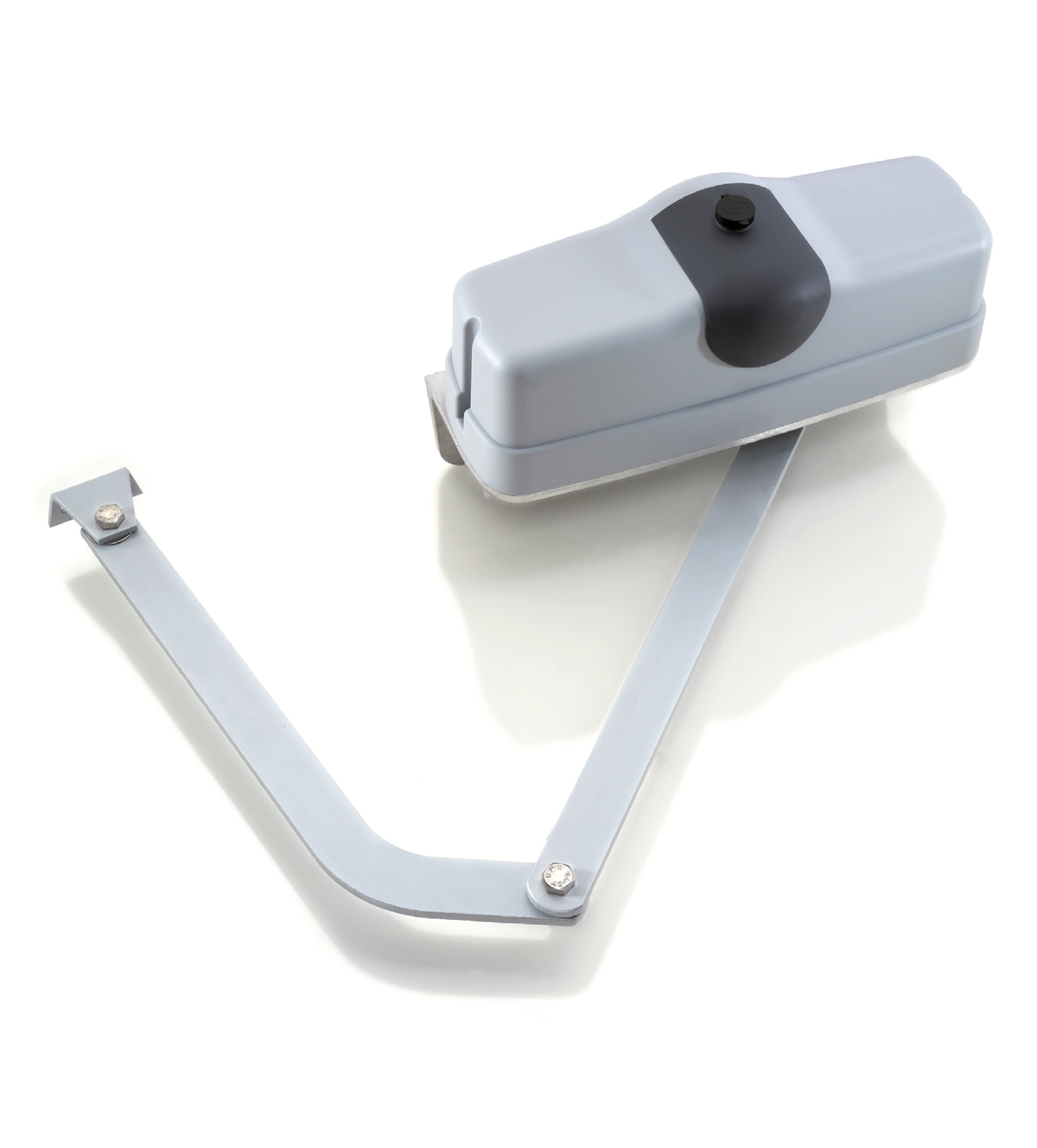

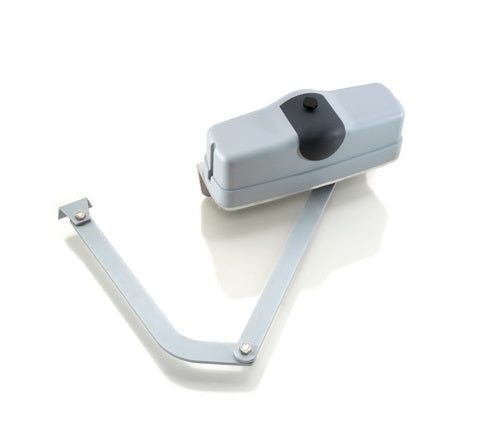

TAU ZIP12 articulated arm gearmotor 18 V DC

Low-voltage electromechanical articulated arm gearmotor with optical encoder technology for swing gates up to 3.5 meters. Ideal for installations on large pillars for residential, apartment building, or intensive continuous use. Supplied complete with articulated arm and mounting bracket, requires an external control panel. Ensures obstacle detection, anti-crushing safety, and operation even during power outages via optional batteries.

Compatible with: 750D749, D749MA.

Technical data:

• Power supply: 230 V AC (50 - 60 Hz)
• Motor power supply: 18 V DC
• Motor consumption: 1 A
• Rated power: 250 W
• 90° opening time: 8 s
• Duty cycle: 100 %
• Operating temperature: -20° C ÷ +55° C
• Protection rating: IP 44
• Weight: 14 kg
• Max gate leaf length: 3.5 m

TAU Code: 650ZIP12
