TAU R18 18V underground gear motor for gates up to 1.8 m
TAU R18 18V underground gear motor for gates up to 1.8 m
Regular price
€304,09
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

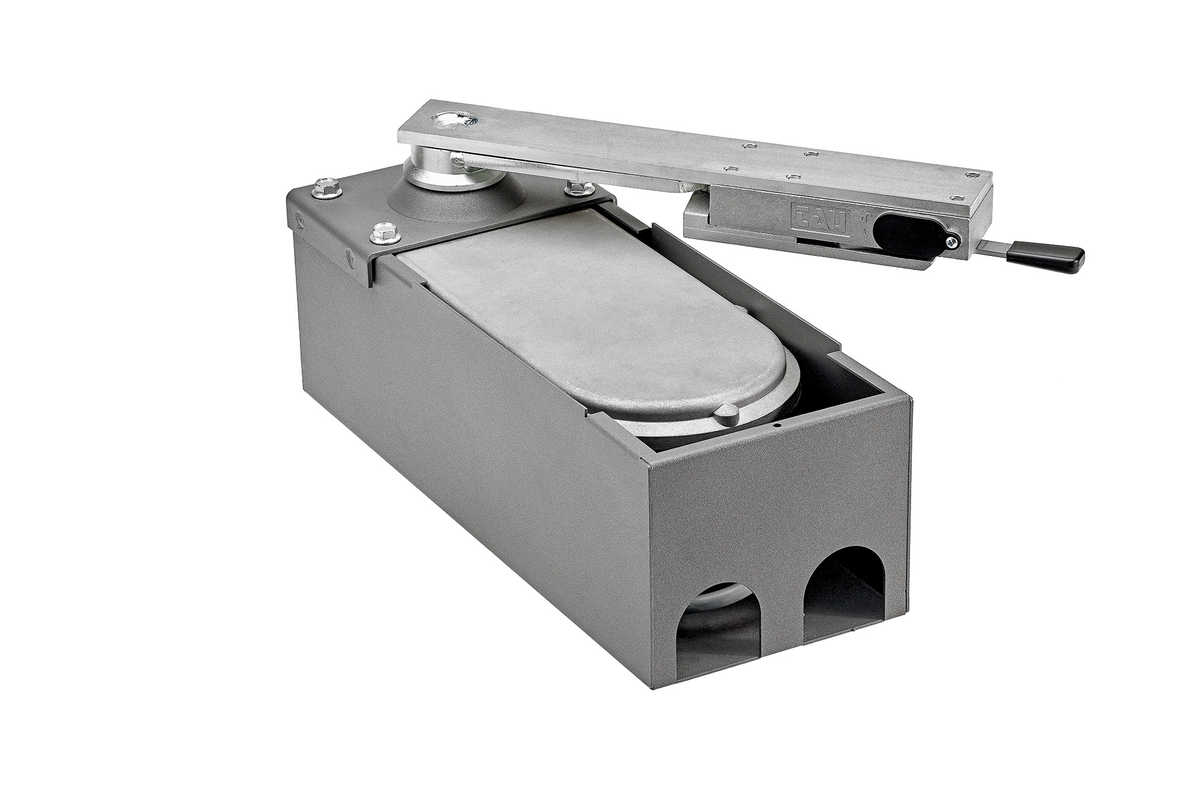

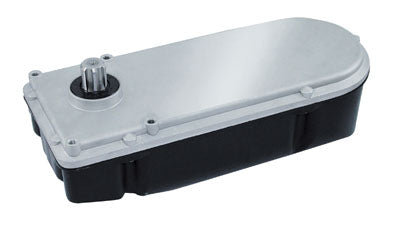

Low-voltage 18 V DC underground gear motor with optical encoder technology, ideal for swing leaves up to 1.8 m and 200 kg. Offers 360° leaf opening without additional accessories, obstacle detection with crush prevention safety, and continuous operation. Supplied with power cable; foundation box and release device excluded.
Compatible with: D749MA.
Technical data:
- Power supply: 230 V AC (50 - 60 Hz)
- Motor power supply: 18 V DC
- No-load motor current draw: 0.7 A
- Rated power: 120 W
- Opening time 90°: 13 s
- Duty cycle: 100 %
- Operating temperature: -20° C ÷ +55° C
- Protection rating: IP 67
- Max. leaf: 1.8 m / 200 kg
- Cable length: 2.3 m
- Weight: 6.9 kg
TAU code: 650R18BENC
- User manual Link
