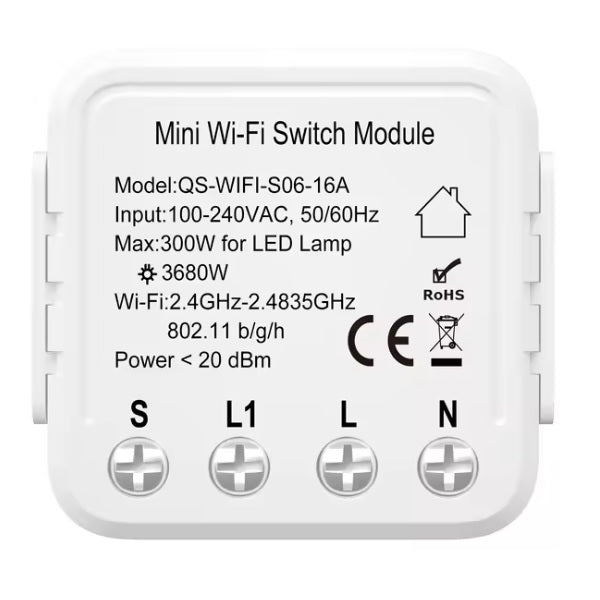

Ipertronic smart WiFi 1-channel switch module

The smart Wi-Fi module turns a traditional switch or socket into a smart control point for lights and appliances. Thanks to its extremely compact size, it fits easily inside an electrical wall box (such as a 503 box) without requiring changes to the existing system or additional hubs. It allows you to manage connected loads both manually via the wall switch and remotely via smartphone and voice commands.

What you can do

• Turn lights or appliances on and off from your smartphone using the Tuya Smart or Smart Life apps, wherever you are
• Control devices via voice using Amazon Alexa and Google Assistant
• Maintain the use of the traditional manual switch, which remains synchronized with the application
• Set timers and scheduling for turning devices on and off
• Continue to control the switch manually even in the event of a temporary Wi-Fi connection loss
• Share device management with other family members via the app

Technical specifications

• Model: QS-WIFI-S06-16A
• Supply voltage: 100-250 V AC
• Maximum current: 16 A
• Maximum load: 3680 W (max 300 W for LED loads)
• Connectivity: Wi-Fi 802.11 b/g/n at 2.4 GHz - 2.4835 GHz
• Wi-Fi range: up to 200 m (in open space/without obstacles)
• Protection rating: IP20
• Operating temperature: -10 °C / +40 °C
• Dimensions: 39 x 39 x 15 mm

Installation

Installation must be performed by a qualified electrician in accordance with local regulations, after disconnecting the main power supply. The module must be wired according to the diagram and inserted into the junction box or 503 box behind the existing switch/socket. To ensure proper radio signal reception, avoid proximity to strong sources of interference (such as microwave ovens) and avoid metal or reinforced concrete obstacles.
