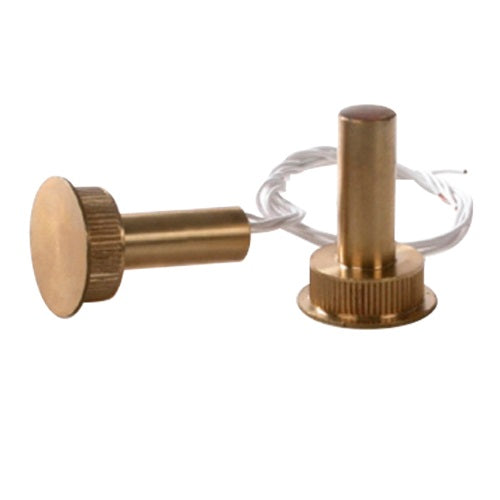

MINI CONTATTO MAGNETICO FDP 4 FILI
Mini contatto magnetico FDP - Adatto per installazione in metallo
Mini contatto magnetico FDP - Adatto per installazione in metallo
Mini contatto magnetico FDP - Adatto per installazione in metallo
Mini contatto magnetico FDP - Adatto per installazione in metallo
MINI CONTATTO MAGNETICO FDP 4 FILI
Mini contatto magnetico FDP - Adatto per installazione in metallo
Mini contatto magnetico FDP - Adatto per installazione in metallo
Mini contatto magnetico FDP - Adatto per installazione in metallo
Mini contatto magnetico FDP - Adatto per installazione in metallo

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Ipertronic

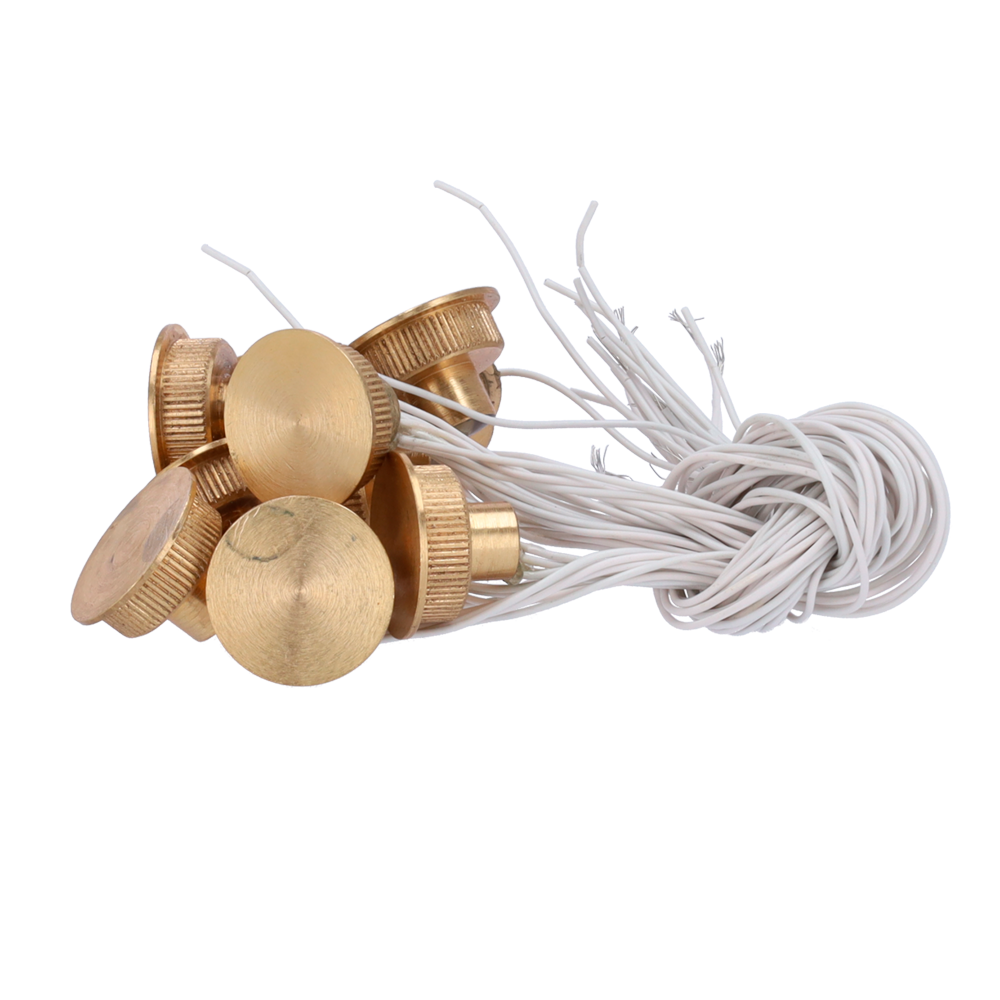

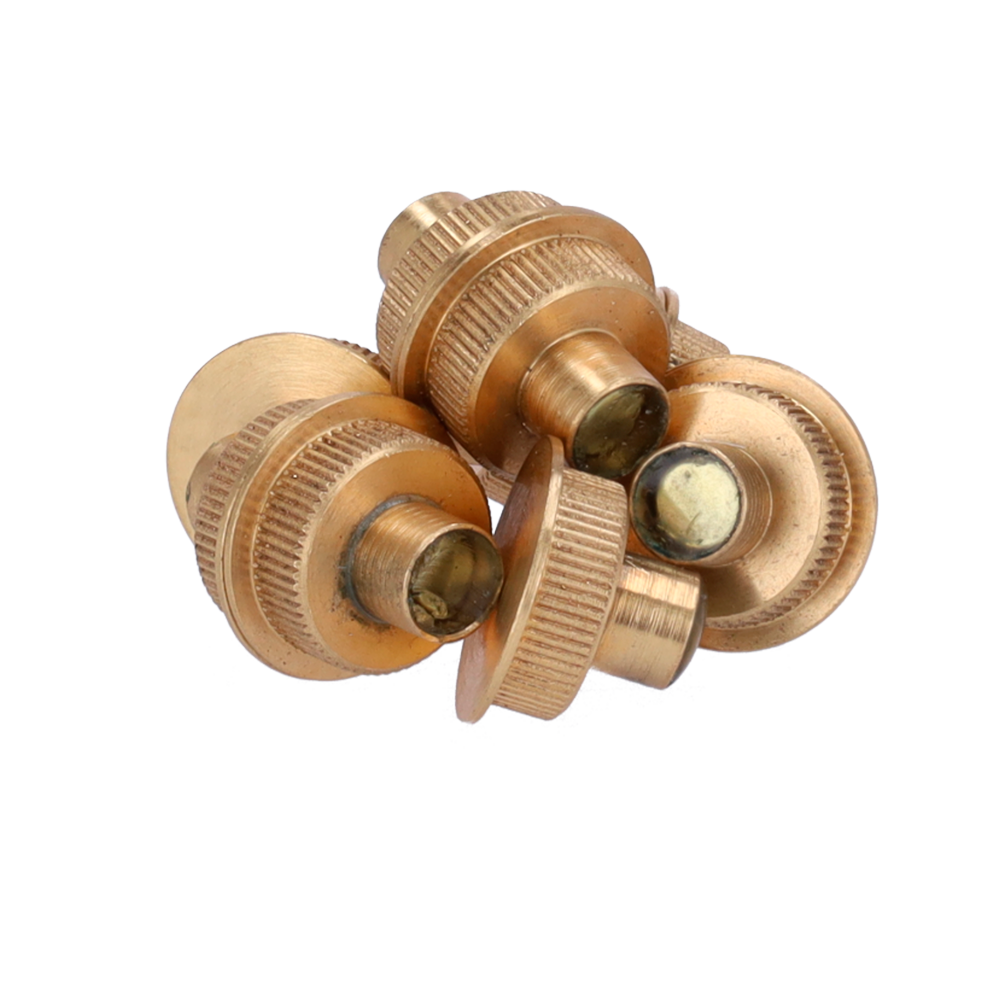

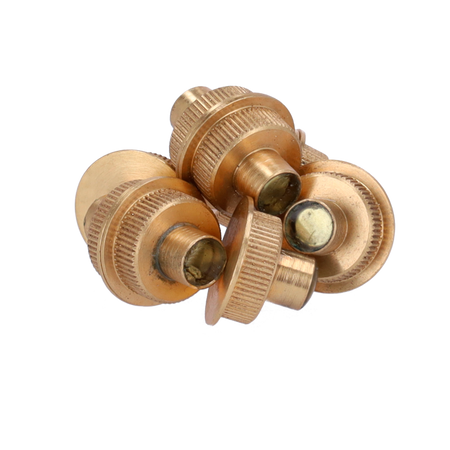

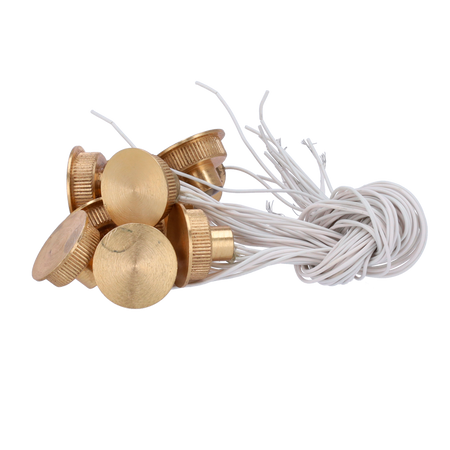

FDP mini magnetic contact - Suitable for installation on metal

SKU: A-CO
(0)
In stock
Usually shipped within 24 hours
€6,91 Final price

Venduto a confezioni da 10 pezzi.

Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

FDP mini magnetic contact - Suitable for metal installation - High-power Reed technology - 4-wire system - Copper housing - Suitable for outdoor use IP65 - Grade 2 certified

  • FDP
  • Recessed magnetic detector
  • Reed technology
  • High power
  • Suitable for metal installation
  • High resistance to mechanical and electrical shocks
  • 4-wire system
  • Copper housing
  • Suitable for outdoor use IP65
  • Grade 2 certified

Technical datasheet

Security level Grade 2 (EN50131-2-6)
Environmental class Class 4 / Suitable for outdoor use IP65
Technology Reed
Power High power
Maximum detection distance Wood 20 mm Ferrous materials 10 mm Aluminum 20 mm
Installation method Recessed
Cable length 4 wires of 25cm (2 alarm / 2 tamper)
Magnet neodymium
Electrical parameters 180 VDC max, 0.5A, 10W
Material Copper
Dimensions 15 (8-7) x Ø24-20-10 mm

Technical features

  • Reed technology. 4-wire system
  • Copper housing. Suitable for outdoor use IP65
  • Grade 2 certified

Download the user manual (PDF)
Security level Grade 2 (EN50131-2-6)
Environmental class Class 4 / Suitable for outdoor IP65
Technology Reed
Power High power
Maximum detection distance In wood 20 mm In ferrous materials 10 mm In aluminum 20 mm
Installation type Recessed
Cable length 4 wires of 25cm (2 alarm / 2 tamper)
Magnet neodymium
Electrical parameters 180 VDC max, 0.5A, 10W
Material Copper
Dimensions 15 (8-7) x Ø24-20-10 mm
