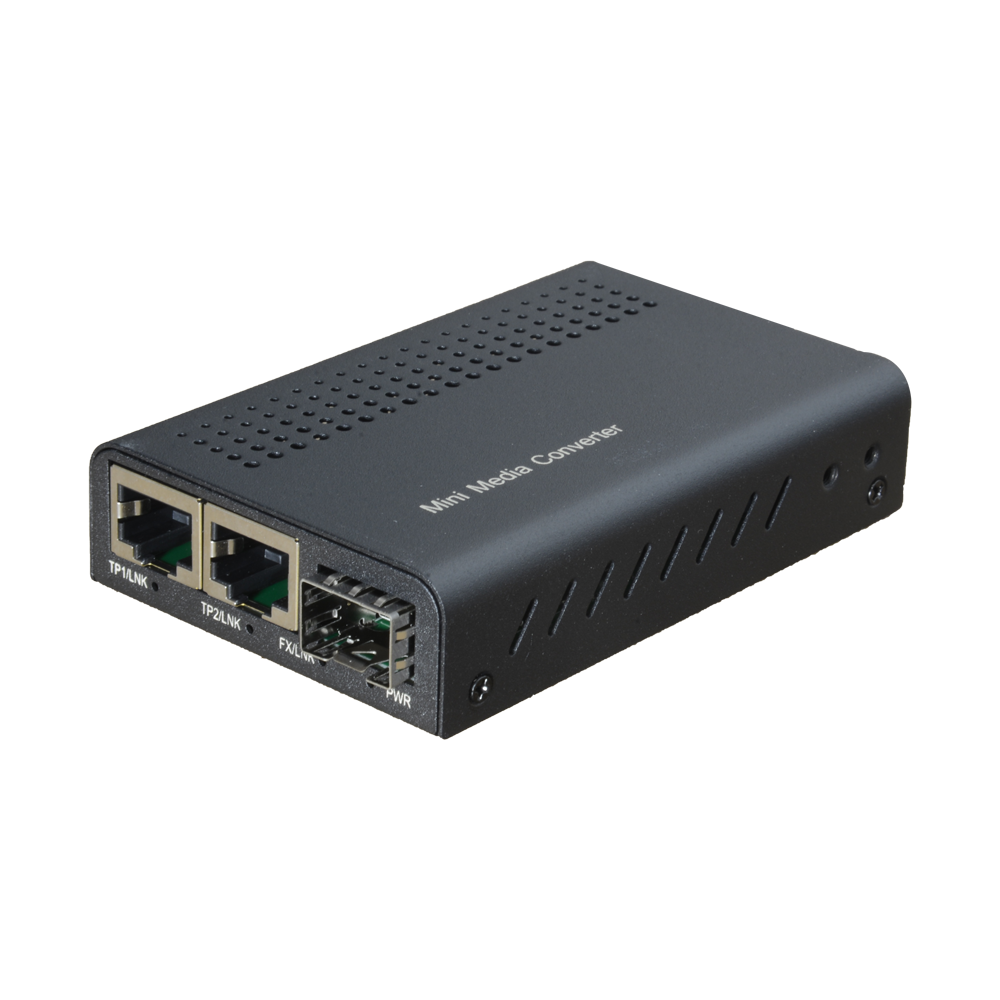

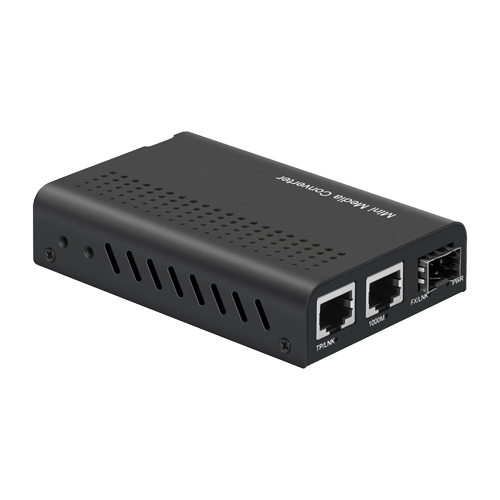

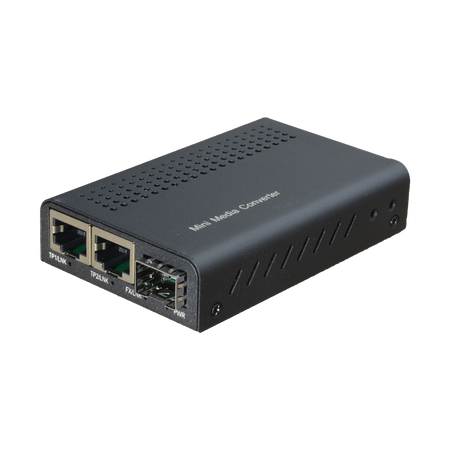

Media Converter 2x RJ45 Ethernet
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Media Converter - 2x RJ45 Ethernet - 1x SFP - Gigabit - 10/100/1000 Base-TX - Compact size
📋 SPECIFICATIONS:
• Product category: Mini Gigabit Ethernet fiber optic to copper media converter
• Factory base model: FR-2206

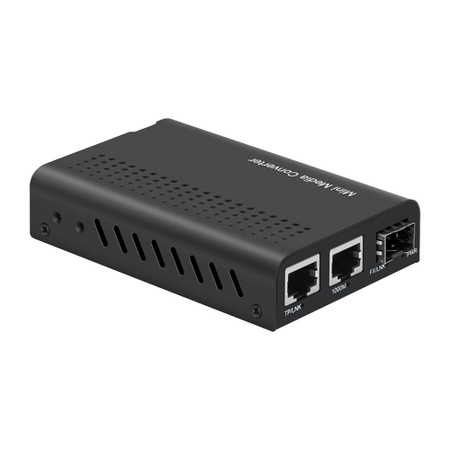

• Copper interfaces: 2 × 10/100/1000 Base-TX RJ45
• Fiber optic interfaces: 1 × 1000Base-X (Independent SFP slot)
• Network standards: IEEE 802.3ab (1000Base-T) and IEEE 802.3z (1000Base-X)
• Switching capacity: 6 Gbps
• MAC address table: 2000 entries
• Jumbo Frame size: Supports frames up to 10K bytes (up to 9KB via DIP)
• Connectivity control: Intelligent auto-negotiation for optimal speed

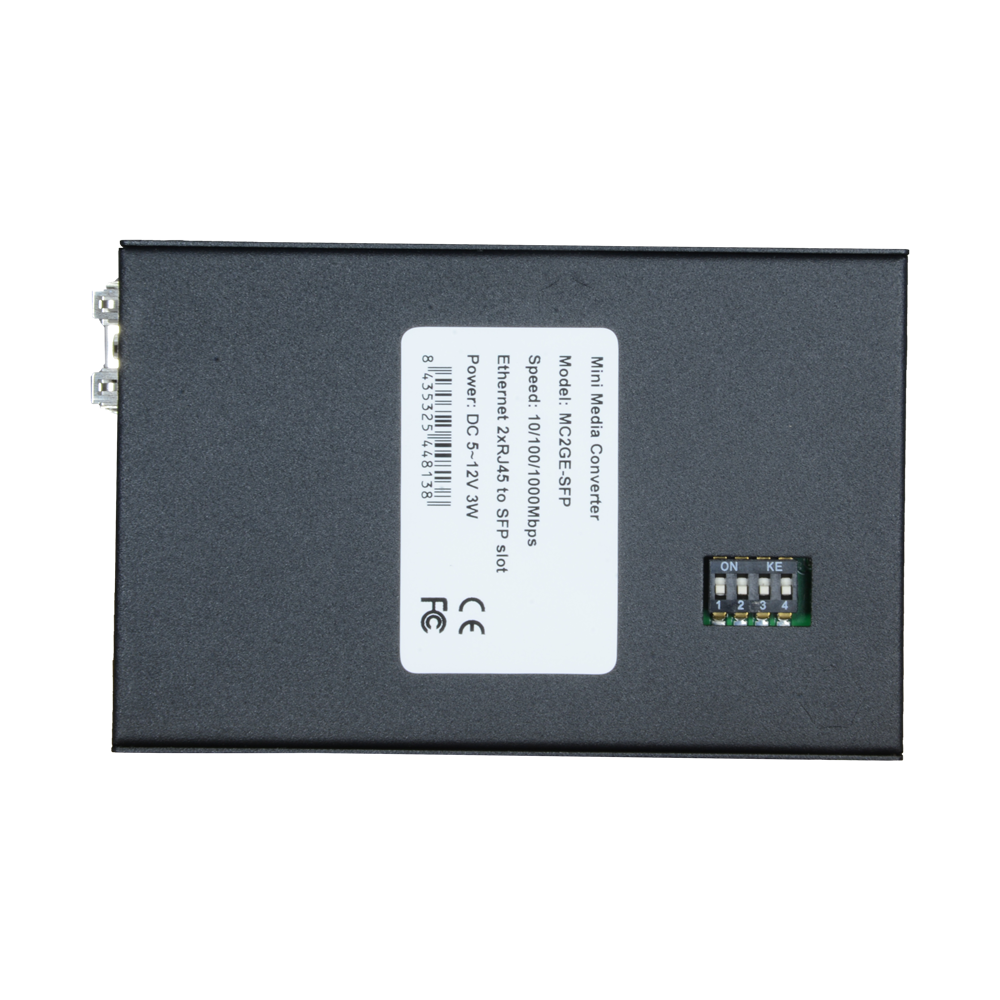

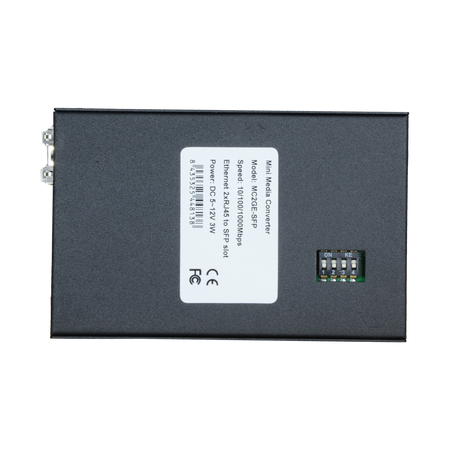

• DIP switch settings: DIP 2: Jumbo Frame / DIP 3: Port Isolation / DIP 4: FX Speed Set
• Smart HW functions: Hardware port isolation (Port Isolation)

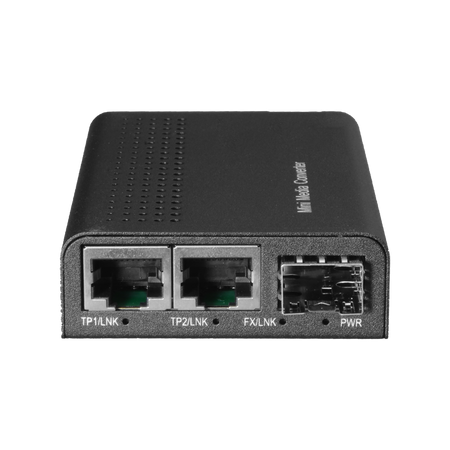

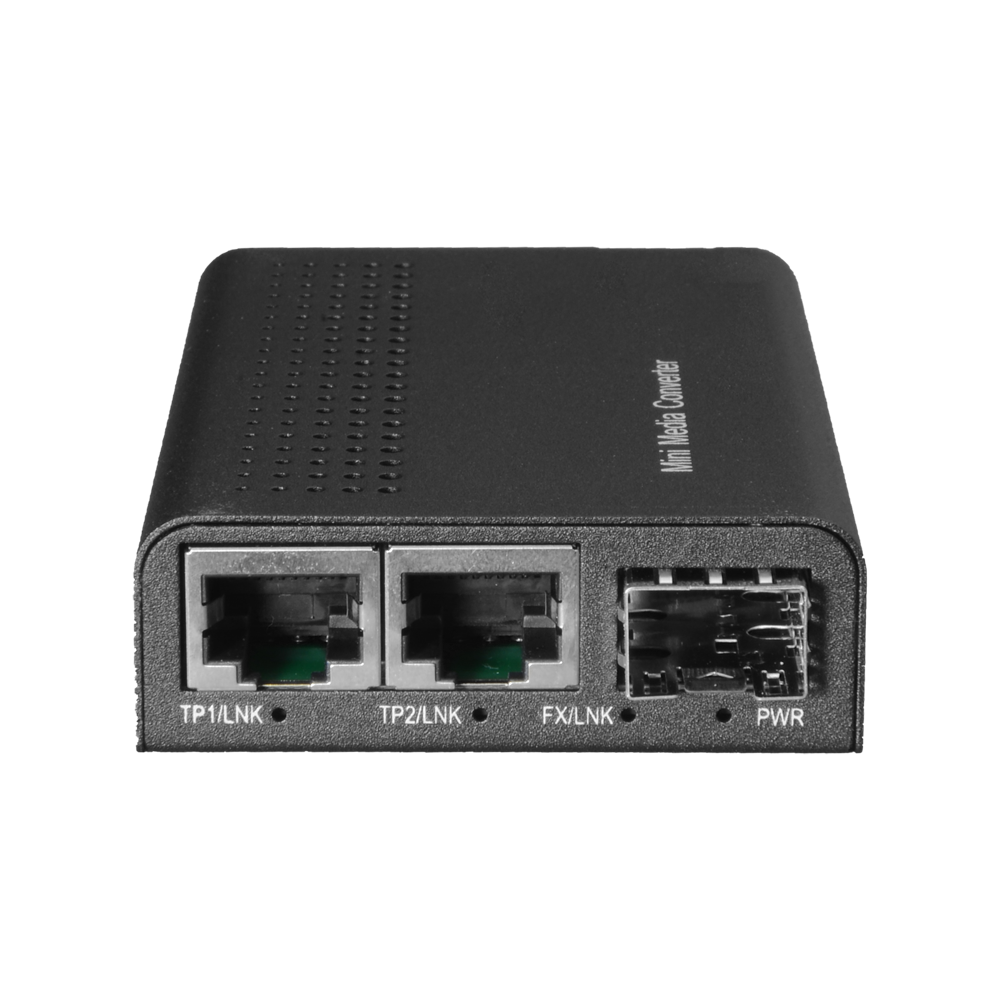

• System monitoring: Power, SFP Link/Activity, and RJ45 Link/Activity LEDs
• Copper cable length: Up to 100 meters using CAT5 or higher cable
• Estimated optical range: Varies based on the installed SFP transceiver (up to 80km)
• Structure and materials: Shielded metal housing
• Protection rating: Industrial IP30 protection rating against solid particles
• Cooling system: Passive cooling via natural convection
• Noise emission level: 0 dBA (Completely silent operation)
• Installation options: Desktop, wall-mount, and rack-mount (optional)
• Hardware reliability: MTBF of 100,819 hours according to Telcordia SR-332 standard

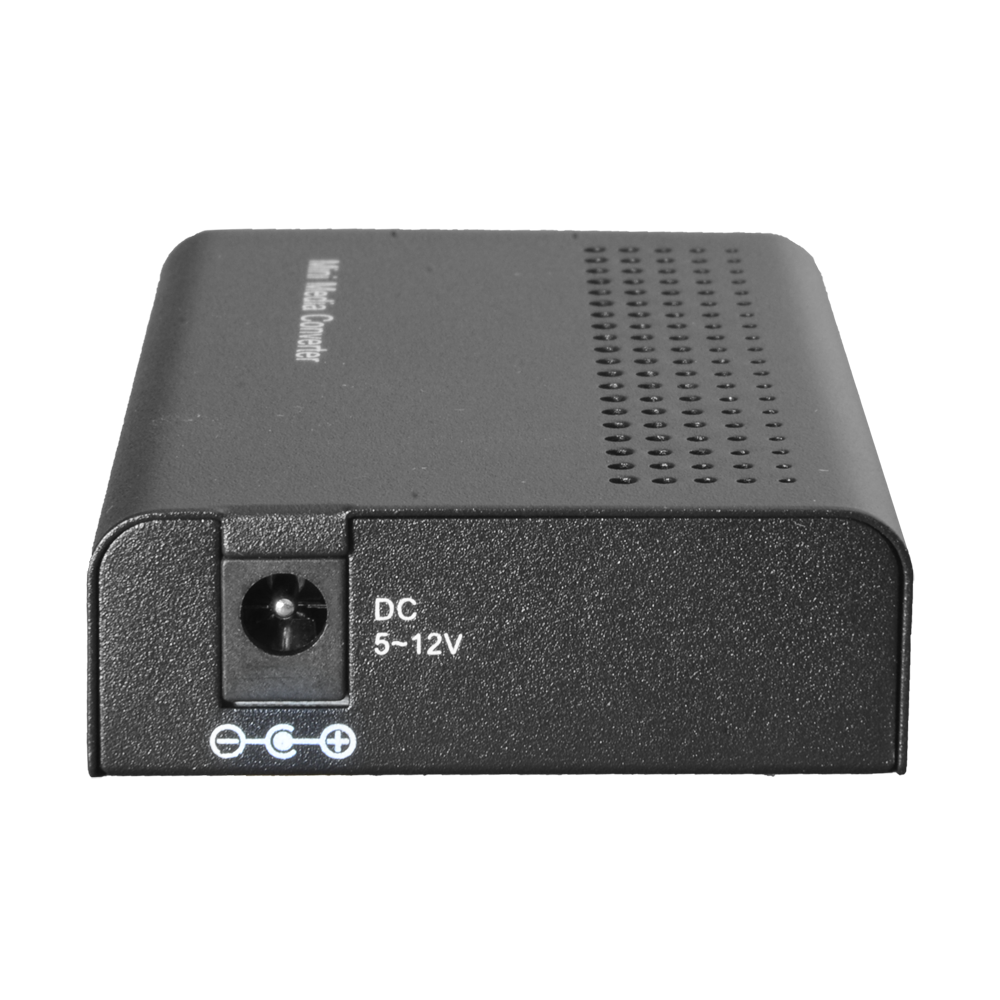

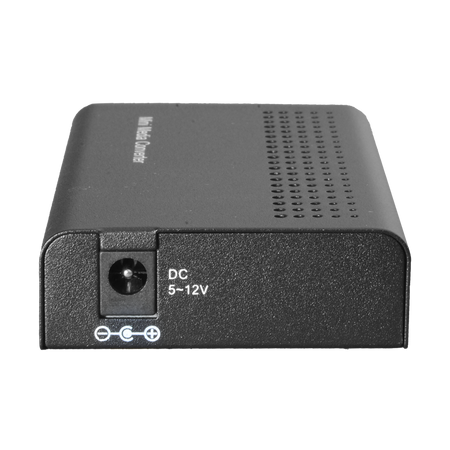

• DC power input: External DC connector for a voltage range between 5V and 12V DC
• Power consumption: Absolute maximum consumption of 3 W
• Net heat dissipation: 10 BTU/h (Gigabit model without transceiver installed)
• Operating temperature: Controlled temperature range between 0 °C and 50 °C
• Operating humidity: 5% to 95% RH (non-condensing)
• Chassis dimensions (W×D×H): 90 x 60 x 20 mm
• Net weight of the converter: 0.12 kg / 0.26 lb (Factory-supplied hardware without accessories)
📦 INCLUDED:
• Media Converter
| Connector | 2x RJ45 - 1x SFP |
|---|---|
| Maximum Ethernet distance | 100 m |
| Data connection | Gigabit |
| Ethernet | 2x RJ45 10/100/1000 Base-TX |
| LFP mode | Supported |
| Power supply | DC 5~12 V / 0.5~0.25 A <3W [%VAR%] |
| Dimensions / Weight | 20 (W) x 60 (L) x 90 (H) mm / 0.13 Kg |
| Operating temperature | 0° C - 50° C |
