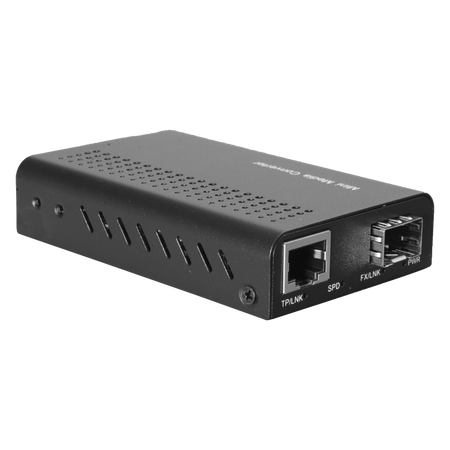

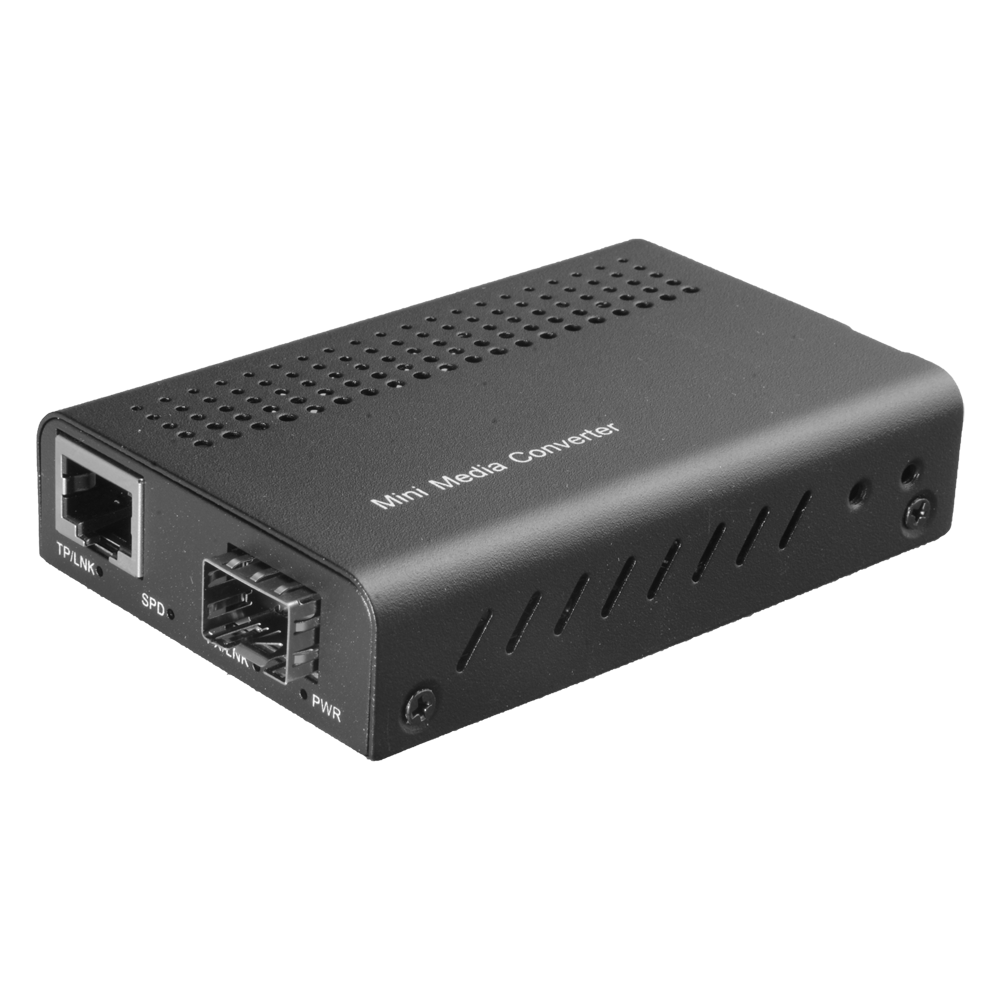

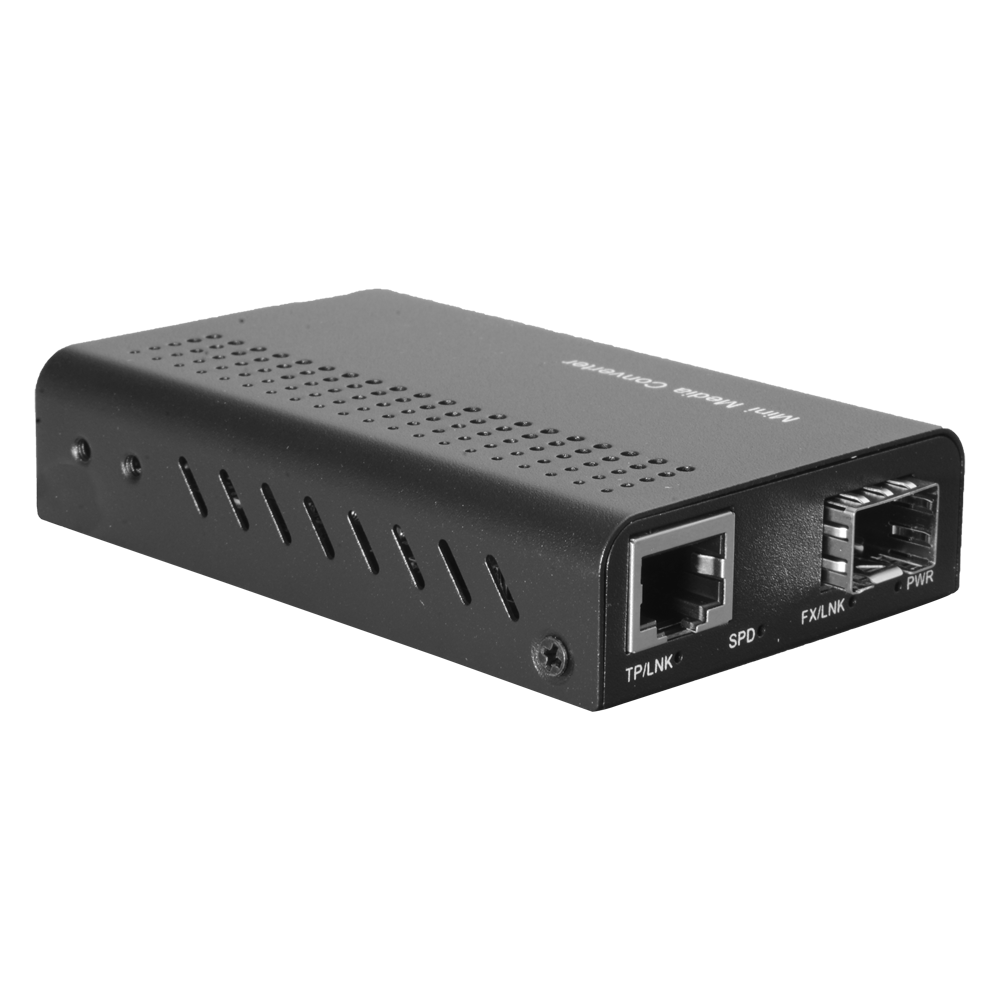

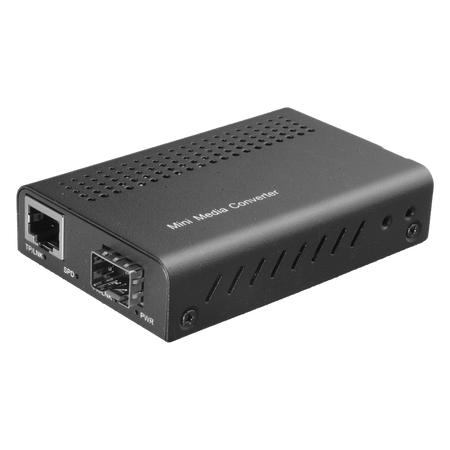

Media Converter - 1x Ethernet RJ45 - 1x SFP - Fast Ethernet - 10/100 Base-TX - Compact size
📋 SPECIFICATIONS:
• Product category: Mini Fast Ethernet fiber-to-copper media converter
• Copper interfaces: 1 × 10/100Base-TX RJ45
• Fiber optic interfaces: 1 × 100Base-X (Independent SFP slot / 1x9 transceiver)
• Network standards: IEEE 802.3i (10Base-T) and IEEE 802.3u (100Base-TX & 100Base-FX)
• Switching capacity: 200 Mbps
• MAC address table: 2000 entries
• Jumbo Frame size: Supports large frames, with a maximum length of 10K bytes
• Connectivity control: Intelligent auto-negotiation for optimal speed

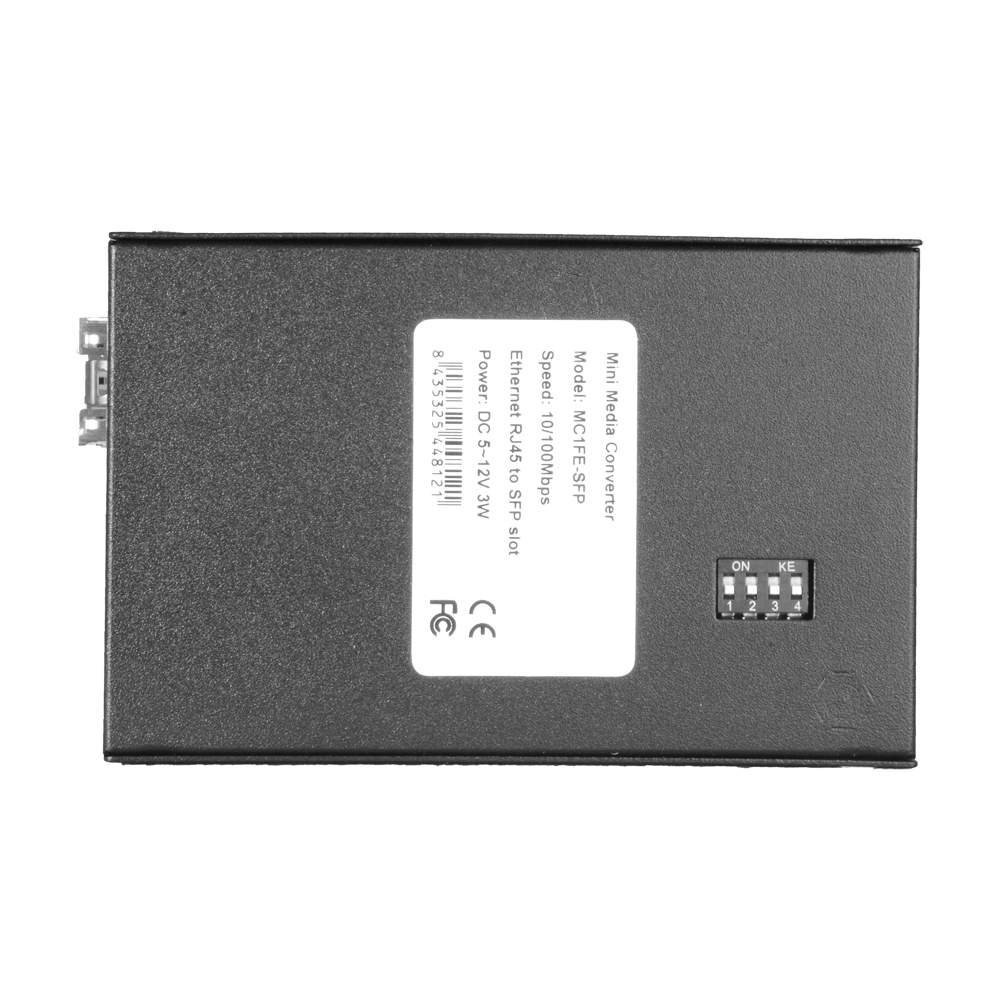

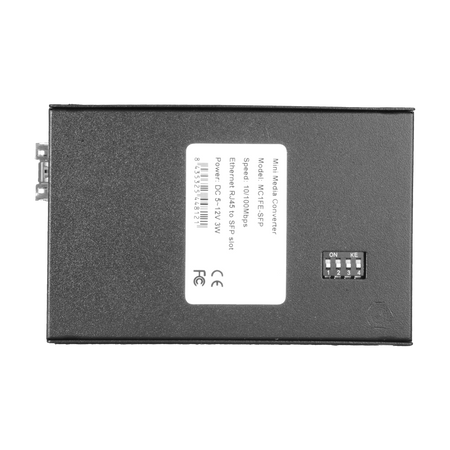

• DIP switch settings: DIP 1: LFP / DIP 2: ALS [cit: 82]
• Smart HW functions: Link Fault Pass-Through (LFP), Auto Laser Shutdown (ALS)

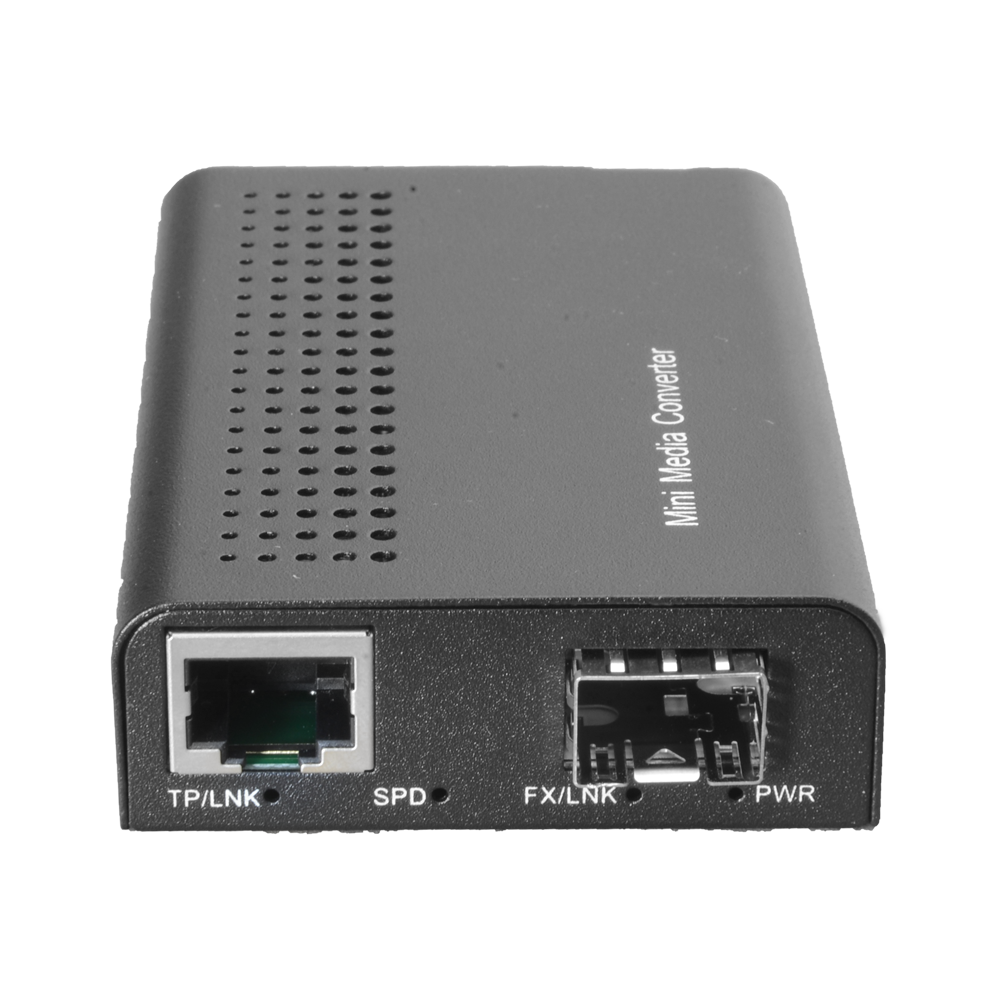

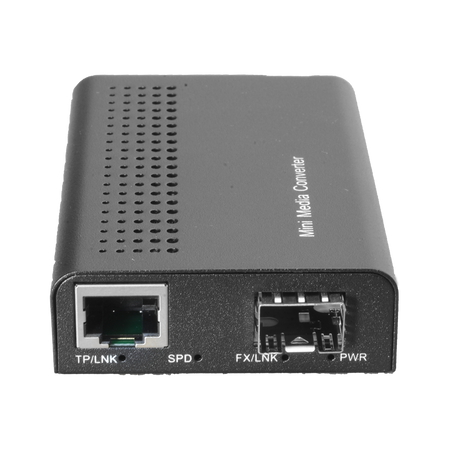

• System monitoring: Power, SFP/1x9 Link/Activity, and RJ45 Link/Activity LEDs
• Copper cable length: Up to 100 meters using CAT5 cable or better
• Estimated optical range: Varies depending on the installed SFP transceiver (single-mode / multi-mode)
• Structure and materials: Shielded metal housing
• Protection rating: IP30 industrial protection rating against solid particles
• Cooling system: Passive cooling via natural convection
• Noise emission level: 0 dBA (Completely silent operation)
• Installation options: Desktop, wall-mount, and rack-mount (optional)
• Hardware reliability: MTBF of 100,819 hours according to Telcordia SR-332 standard

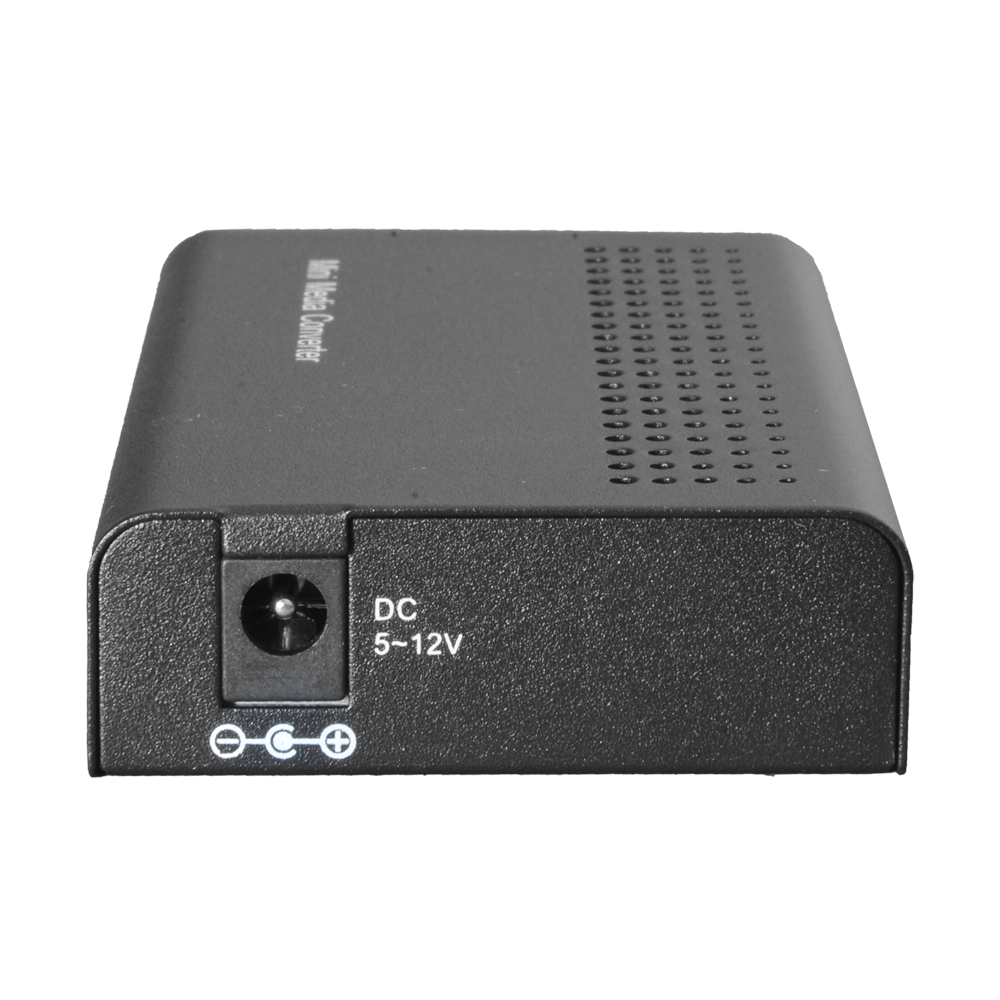

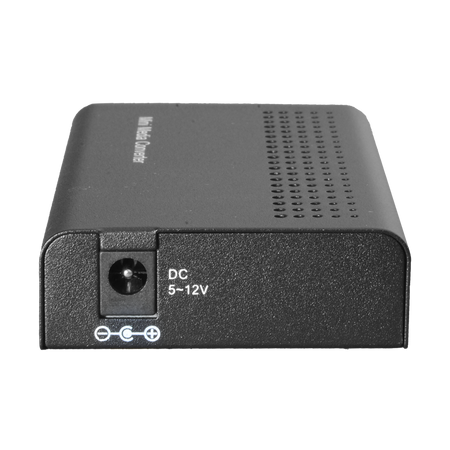

• DC power input: External DC connector for a voltage range between 5V and 12V DC
• Power consumption: Absolute maximum consumption of 3 W
• Net heat dissipation: 10 BTU/h (100M model without transceiver inserted)
• Operating temperature: Controlled temperature range between 0 °C and 50 °C
• Operating humidity: 5% to 95% RH (non-condensing)
• Chassis dimensions (W×D×H): 90 x 60 x 20 mm
• Net weight of converter: 0.12 kg / 0.26 lb (Hardware provided by factory without accessories)
📦 INCLUDED:
• Media Converter
| Connector | 1x RJ45 - 1x SFP |
|---|---|
| Maximum Ethernet distance | 100 m |
| Data link | Fast Ethernet |
| Ethernet | 1x RJ45 10/100 Base-TX |
| LFP mode | Supported |
| Power supply | DC 5~12 V / 0.5~0.25 A <3W [%VAR%] |
| Dimensions / Weight | 20 (W) x 60 (L) x 90 (H) mm / 0.13 kg |
| Operating temperature | 0° C - 50° C |
