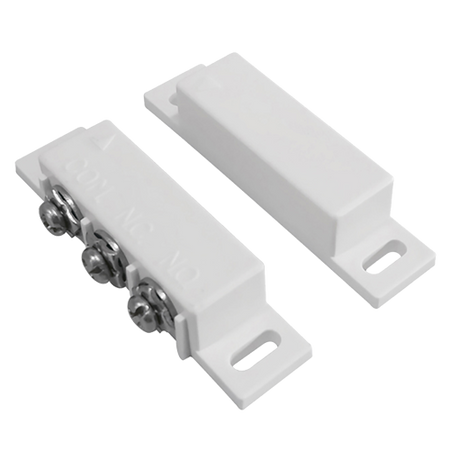

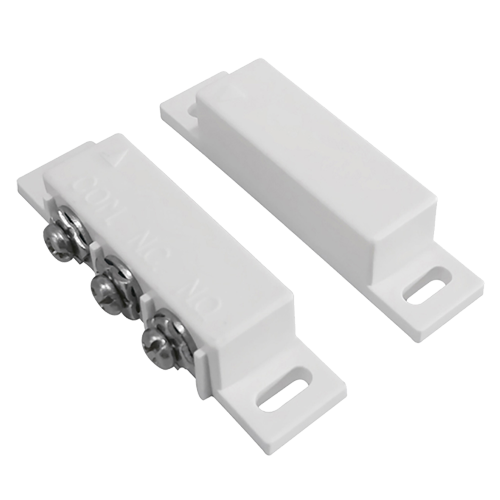

Magnetic contact suitable for wood installation - NC/NO terminal connection system

SKU: MC-SWPS-N
(0)
In stock
Usually shipped within 24 hours
€6,91 Final price
-4% €7,20 €6,91 Final price

Venduto a confezioni da 10 pezzi.

Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Magnetic contact - Suitable for installation on wood - Reed technology - NC/NO terminal connection system - Resistance to mechanical and electrical shocks

📋 SPECIFICATIONS:
• Technology: Reed
• Power: Medium power
• Maximum detection distance: Up to 20mm depending on the material on which it is installed
• Material: Plastic
• Cable: Connector for 3 terminals (COM/NC)
• Magnet: Neodymium
• Mechanical shock resistance: Up to 16KgS
• Electrical parameters: 100 VDC/VAC max, 500mA, 10W
• Dimensions: Detector: 63.5 (H) x 13 (W) x 19 (D) mm; Magnet: 63.5 (H) x 12.8 (W) x 12 (D) mm

📦 INCLUDED:
• Magnetic sensor• User manual
Technology Reed
Power Medium power
Maximum detection distance Up to 20mm depending on the material it is installed on
Material Plastic
Cable 3-terminal connector (COM/NC)
Magnet Neodymium
Mechanical shock resistance Up to 16KgS
Electrical parameters 100 VDC/VAC max, 500mA, 10W
Dimensions Detector: 63.5 (H) x 13 (W) x 19 (D) mm Magnet: 63.5 (H) x 12.8 (W) x 12 (D) mm
