MC-EWPC
MC-EWPC

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Ipertronic

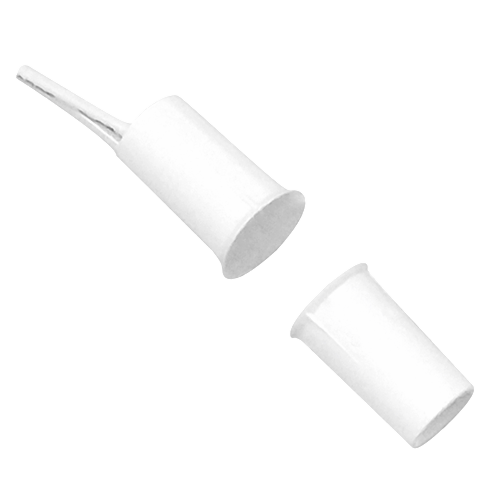

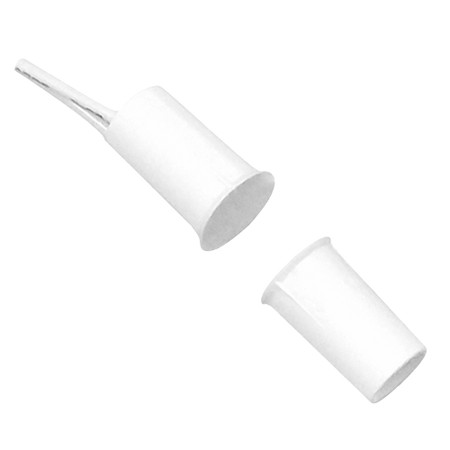

Magnetic contact suitable for installation in wood - 2-wire connection system

SKU: MC-EWPC
(0)
In stock
Usually shipped within 24 hours
€2,08 Final price
-13% €2,40 €2,08 Final price

Venduto a confezioni da 10 pezzi.

Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Magnetic contact - Suitable for installation in wood - Reed technology - 2-wire connection system - Resistance to mechanical and electrical shocks

📋 SPECIFICATIONS:
• Technology: Reed
• Power: Medium power
• Contact type: Normally closed
• Maximum detection distance: Up to 15mm depending on the material it is installed on
• Material: Plastic
• Cable: 2 wires
• Cable length: 35 cm
• Magnet: neodymium
• Mechanical shock resistance: Up to 15KgS
• Electrical parameters: 100 VDC/VAC max, 500mA, 10W
• Dimensions: Detector: 17 x Ø11-9 mm; Magnet: 17 x Ø11-9 mm

📦 INCLUDED:
• magnetic sensor• User instructions
Technology Reed
Power Medium power
Contact type Normally closed
Maximum sensing distance Up to 15mm depending on the material it is installed on
Material Plastic
Cable 2 wires
Cable length 35 cm
Magnet Neodymium
Mechanical shock resistance Up to 15KgS
Electrical parameters 100 VDC/VAC max, 500mA, 10W
Dimensions Detector: 17 x Ø11-9 mm Magnet: 17 x Ø11-9 mm
