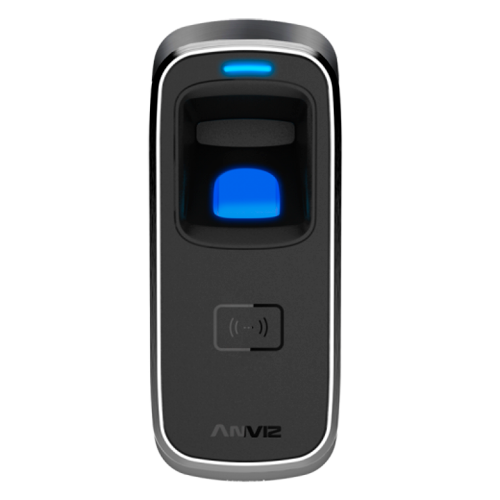

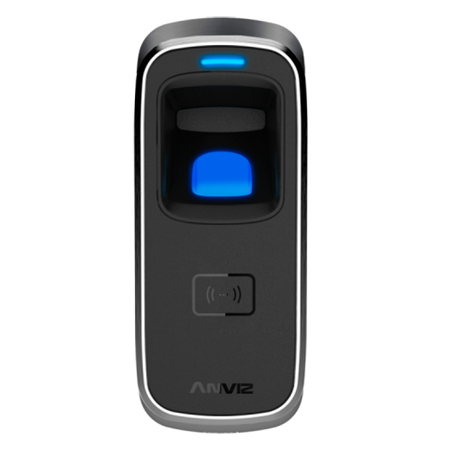

Anviz IP65 IK10 Access Control - Biometric and EM card
Regular price
€274,39
Final price
Regular price
-5%
€290,00
Sale price
€274,39
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
IP65 IK10 Access Control - Biometric and EM card - 3,000 users | 50,000 logs - TCP/IP, WiFi, Bluetooth, USB, RS485 and Wiegand - Integrated controller - CrossChex Standard / Mobile
📋 SPECIFICATIONS:
• Processor: Linux Based 1Ghz CPU
• Algorithm: BioNano V10
• Fingerprint optical sensor: Optical sensor
• Activation sensor: Infrared auto-activation
• Scan area: 22 x 18 mm
• Resolution: 500 DPI
• Identification time: < 0.5 Sec
• Capacity: Up to 3,000 fingerprints or cards
• Logs: Up to 50,000
• Identification modes: Fingerprint, Card and fingerprint+card
• Proximity card: EM
• PC communication: WiFi, Bluetooth, TCP/IP and mini USB
• Inputs: Door sensor, Exit button
• Outputs: Wiegand 26, RS485, NO/NC relay output
• Software: CrossChex Standard: free local PC software for access control and time attendance; CrossChex Mobile: free mobile application for access control
• Protection: Suitable for outdoor use IP65, IK10 vandal-proof
• Power supply: DC 12 V / 150 mA
• Operating temp.: -30 ºC ~ +60 ºC
• Dimensions: 34.5 (D) x 50 (H) x 124 (W) mm
• Weight: 450 g
📦 INCLUDED:
• Anviz biometric access reader• 4 wall plugs and 4 mounting screws• Connection cables• User instructions
| Processor | Linux Based 1Ghz CPU |
|---|---|
| Algorithm | BioNano V10 |
| Optical fingerprint sensor | Optical sensor |
| Activation sensor | Auto-activation via infrared |
| Scanning area | 22 x 18 mm |
| Resolution | 500 DPI |
| Identification time | < 0.5 Sec |
| Capacity | Up to 3,000 fingerprints or cards |
| Logs | Up to 50,000 |
| Identification modes | Fingerprint, Card, and fingerprint+card |
| Proximity card | EM |
| PC communication | WiFi, Bluetooth, TCP/IP and mini USB |
| Inputs | Door sensor, Exit button |
| Outputs | Wiegand 26, RS485, NO/NC relay output |
| Software | CrossChex Standard: free local PC software for access control and time attendance; CrossChex Mobile: free mobile application for access control |
| Protection | Suitable for outdoor use IP65, IK10 vandal-proof |
| Power supply | DC 12 V / 150 mA |
| Operating temp. | -30 ºC ~ +60 ºC |
| Dimensions | 34.5 (D) x 50 (H) x 124 (W) mm |
| Weight | 450 g |
- User manual Link
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
