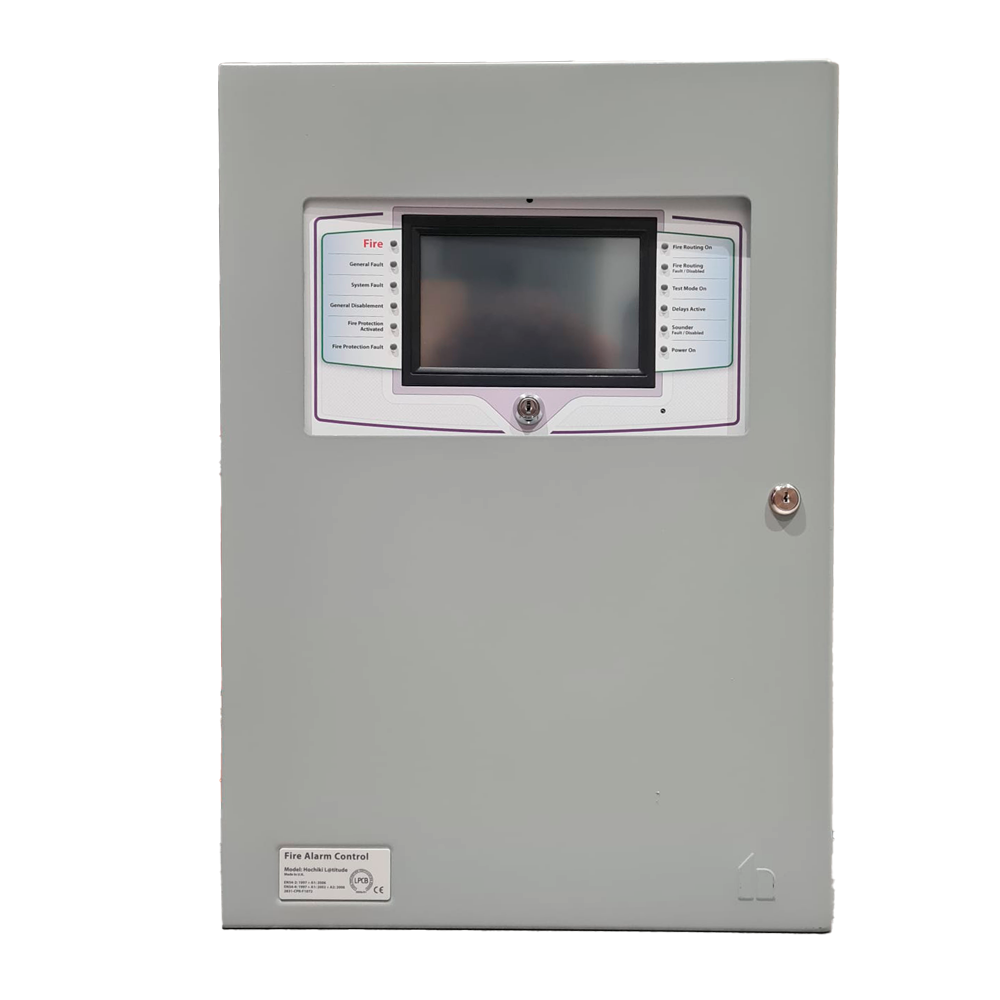

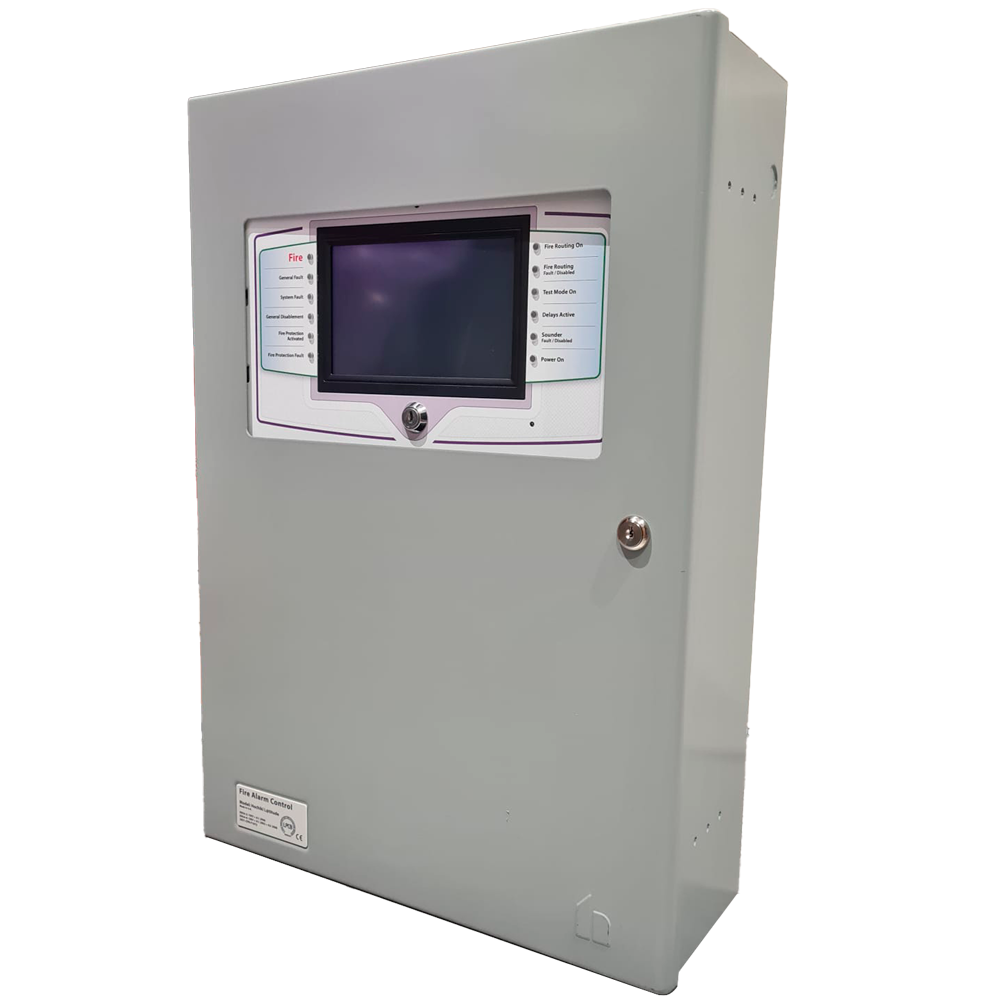

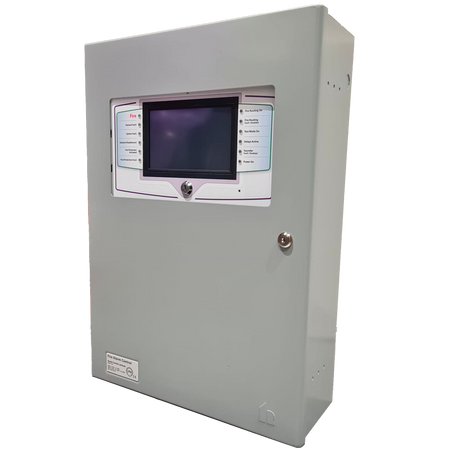

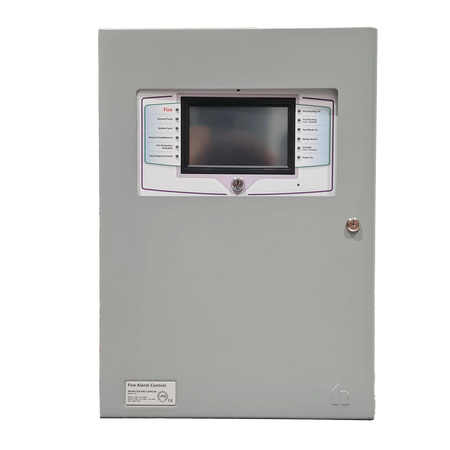

Hochiki 2-loop addressable fire alarm panel - 10.25 A power supply - Expandable up to 16 loops
Hochiki 2-loop addressable fire alarm panel - 10.25 A power supply - Expandable up to 16 loops
Regular price
€7.386,70
Final price
Regular price
-6%
€7.885,60
Sale price
€7.386,70
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
2-loop addressable fire panel - 10.25 A power supply - 500 mA loop current - 4 sounder circuits and 5 programmable relays - Resistive touch screen - Expandable up to 16 loops
📋 SPECIFICATIONS:
• Reference: LAAEE11010H1HEUK1
• Battery capacity: Up to 45 Ah
• Supply voltage: 230 VAC or 115 VAC
• Power supply: 24 V DC 10.25 A (charges up to 45 Ah)
• Certificates: EN54-2, EN54-4, EN54-13
• LCD screen: 800 x 480 color with resistive touch screen and automatic backlight dimming
• Printer: 40-column, front thermal loading (optional)
• LED zone indicators: Up to 3 groups of 48 (144) (optional)
• Software zones: 2000
• Software groups: 5000
• Event log: 10,000 events, 1-second resolution. Ability to filter and print
• Detection loops: 2 to 16 expandable with (K758 2-loop card)
• Detection loop current: 500 mA each
• Sounder circuits: 4 each with 2.5 A, 24 V DC rating, programmable
• Auxiliary power 24 V 1: 24 V DC with 500 mA fuse
• Auxiliary power 24 V 2: 24 V DC with 500 mA fuse
• Default Fault relay: Fire, Alarm, Programmable 1 and Programmable 2 (all re-programmable)
• Programmable inputs: 3, activated by voltage-free contacts.
• Auxiliary serial port A: Programmable RS232
• Auxiliary serial port B: Programmable RS232
• Fire routing serial port (Ifam): Programmable RS485
• USB host port: USB type A
• USB device port: USB type B
• Dimensions: 420mm (W) x 585mm (H) x 195mm (D)
• Construction: 1.5 mm sheet steel.
• Finish: Epoxy powder coating.
• Color - Lid and box: BS 00 A 05 fine texture
• Weight (kg): 20
• Fire routing output: Supervised
• Fire routing input: Supervised
• Fault routing output: Supervised
• Fault routing input: Supervised
• Extinguisher output: Supervised
• Extinguisher input: Supervised
• Extinguisher fault input: Supervised
📦 INCLUDED:
• 2-loop addressable fire panel, expandable to 16
| Reference | LAAEE11010H1HEUK1 |
|---|---|
| Battery capacity | Up to 45 Ah |
| Supply voltage | 230 VAC or 115 VAC |
| Power supply | 24 V DC 10.25 A (charges up to 45 Ah) |
| Certificates | EN54-2, EN54-4, EN54-13 |
| LCD screen | 800 x 480 color with resistive touch screen and automatic backlight dimming |
| Printer | 40 columns, front-loading thermal (optional) |
| LED zone indicators | Up to 3 groups of 48 (144) (optional) |
| Software zones | 2000 |
| Software groups | 5000 |
| Event log | 10,000 events, 1-second resolution. Filter and print capability |
| Detection loops | 2 to 16, expandable with (K758 2-loop card) |
| Detection circuit current | 500 mA each |
| Sounder circuits | 4, each rated at 2.5 A, 24 V DC, programmable |
| Auxiliary power 24 V 1 | 24 V DC with 500 mA fuse |
| Auxiliary power 24 V 2 | 24 V DC with 500 mA fuse |
| Default fault relays | Fire, Alarm, Programmable 1, and Programmable 2 (all reprogrammable) |
| Programmable inputs | 3, activated by voltage-free contacts. |
| Auxiliary serial port A | Programmable RS232 |
| Auxiliary serial port B | Programmable RS232 |
| Fire routing serial port (Ifam) | Programmable RS485 |
| USB host port | USB type A |
| USB device port | USB type B |
| Dimensions | 420mm (W) x 585mm (H) x 195mm (D) |
| Construction | 1.5 mm sheet steel. |
| Finish | Epoxy powder coating. |
| Color - Cover and box | BS 00 A 05 fine texture |
| Weight (kg) | 20 |
| Fire routing output | Supervised |
| Fire routing input | Supervised |
| Fault routing output | Supervised |
| Fault routing input | Supervised |
| Extinguisher output | Supervised |
| Extinguisher input | Supervised |
| Extinguisher fault input | Supervised |
