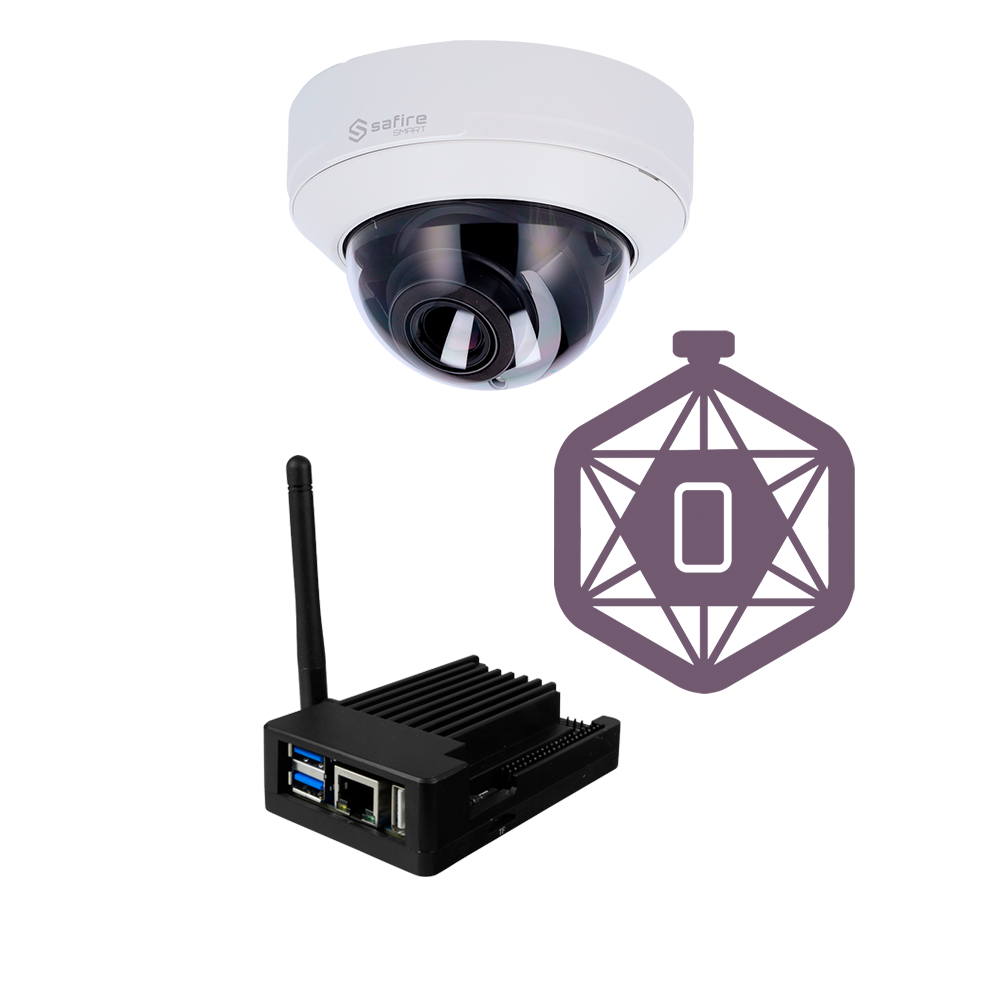

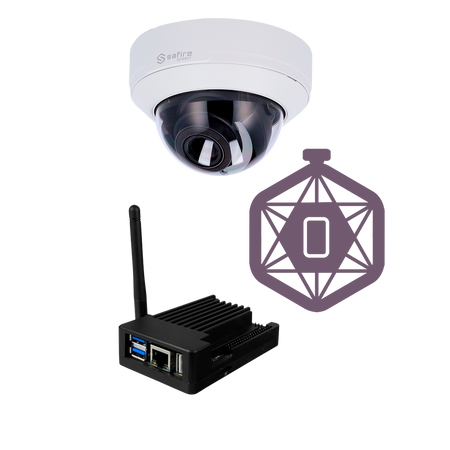

Safire LITE Capacity Control Kit - Safire Smart SF-IPD540ZA-6I1 Camera

SKU: KIT-PEOPLECOUNT-SF-LITE
(0)
Out of stock
€1.787,00 Final price
-6% €1.900,00 €1.787,00 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

LITE Capacity Control Kit - Safire Smart SF-IPD540ZA-6I1 Camera - PC with SF-SW-COUNT-LITE software (installed) - Remote viewing from anywhere via web browser - Custom reports - Multi-channel system for up to 20 inputs/outputs

📋 SPECIFICATIONS:
• CPU: 6-core
• Memory: 4GB LPDDR4
• Communication: 1x Gigabit Ethernet, Wifi 5 (802.11ac dual band), Bluetooth 5.0, USB 3.0, USB 2.0, USB 3.0 (Type C)
• Audio: MIC Input / 3.5mm Jack & HDMI Output
• Video: 1 x HDMI 2.0 (Type A) Up to 4K @ 60 FPS
• Operating System: Linux Based
• Power Supply: DC 5V / 3A
• Type: Software
• Quantity: Up to 20 People Counting cameras (expandable) and 1 room
• Features: Real-time footfall information / custom reports
• Installation: Windows x64, Linux x64 and Linux arm64
• Expiration: Single, perpetual license (can only be installed on one device)
• Compatibility: People Counting cameras (Safire, Uniview, Hikvision, X-Security and Dahua)
• Brand: Safire Smart
• Range: I1
• Optical sensor: 1/2.8" Progressive Scan CMOS
• Maximum resolution: 6 Megapixels (3296×1856)
• Minimum illumination: Color: 0.008 Lux @(F1.6, AGC ON), 0 Lux with IR
• IR range: 50 m
• Day/night: Removable mechanical ICR filter
• Electronic Shutter: 1/2~1/100,000 s
• Main Stream frame rate: 30 FPS (6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P)
• Sub Stream frame rate: 30 FPS (720P, D1, VGA, 480x240)
• Third Stream frame rate: 30 FPS (D1, CIF, 480x240)
• Compression: H.265+ / H.265 / H.264+ / H.264
• Bitrate: 64 Kbps ~ 12 Mbps
• Lens: Motorized 2.8-12 mm
• Field of view (FOV): H: 108-36°, V: 57-20°, D: 129-42°
• DORI: W: 66 m (D), 27 m (O), 13 m (R), 7m (I); T: 204 m (D), 82 m (O), 41 m (R), 20 m (I)
• Image enhancements: WDR (120dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI
• Motion detection: Yes
• Intelligent functions: Advanced AI based on classification of people, vehicles and two-wheeled vehicles for: Area intrusion, Line crossing, Area entry, Area exit; Other intelligent events: abandoned object, removed object, video exceptions (scene change, video loss, ...)
• Audio: 1 Input / 1 Output / Built-in microphone
• Alarms: 1 Input / 1 Relay
• Audio compression: G711A / U
• Network interface: Ethernet 10 / 100M BaseT
• Internal memory: microSD card up to 256GB
• Remote access: Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software
• Interoperability: ONVIF, P2P
• 3 Axis: Yes
• Power supply: DC 12 V / 10 W max. / PoE IEEE802.3af
• Protection rating: Waterproof IP67, Vandal-proof IK10
• Material: Metal
• Operating temp: -30º C ~ +60º C
• Dimensions: 141 (Ø) x 100.2(H) mm
• Weight: 910 g

📦 INCLUDED:

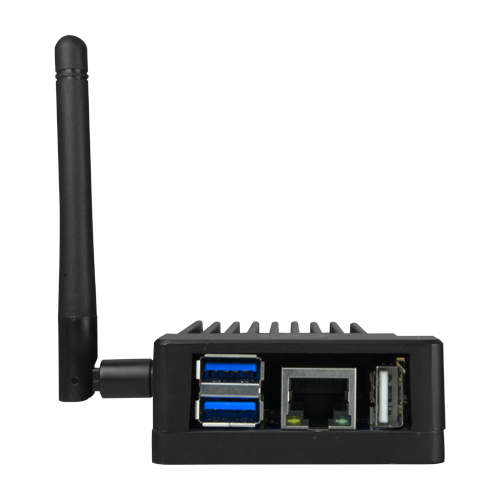

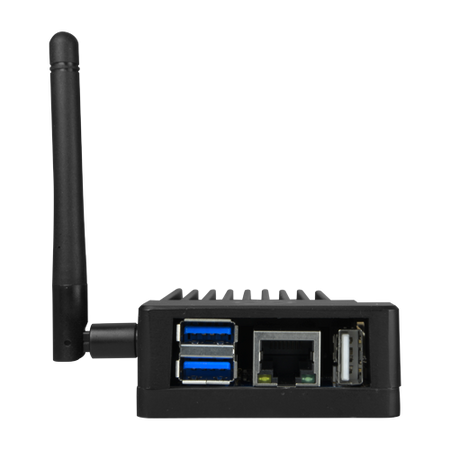

• IP Camera SF-IPD540ZA-6I1• Mini PC• SF-SW-COUNT-LITE
CPU 6-core
Memory 4GB LPDDR4
Communication 1x Gigabit Ethernet, Wifi 5 (802.11ac dual band), Bluetooth 5.0, USB 3.0, USB 2.0, USB 3.0 (Type C)
Audio MIC Input / 3.5mm Jack & HDMI Output
Video 1 x HDMI 2.0 (Type A) Up to 4K @ 60 FPS
Operating System Linux Based
Power Supply DC 5V / 3A
Type Software
Quantity Up to 20 People Counting cameras (expandable) and 1 room
Features Real-time footfall information / custom reports
Installation Windows x64, Linux x64 and Linux arm64
Expiration Single and perpetual license (can only be installed on one device)
Compatibility People Counting Cameras (Safire, Uniview, Hikvision, X-Security and Dahua)
Range I1
Optical sensor 1/2.8" Progressive Scan CMOS
Maximum resolution 6 Megapixel (3296×1856)
Minimum illumination Color: 0.008 Lux @(F1.6, AGC ON), 0 Lux with IR
IR range 50 m
Day/night Removable ICR mechanical filter
Electronic Shutter 1/2~1/100,000 s
Main Stream frame rate 30 FPS (6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P)
Sub Stream frame rate 30 FPS (720P, D1, VGA, 480x240)
Third Stream frame rate 30 FPS (D1, CIF, 480x240)
Compression H.265+ / H.265 / H.264+ / H.264
Bitrate 64 Kbps ~ 12 Mbps
Lens Motorized 2.8-12 mm
Field of view (FOV) H: 108-36°, V: 57-20°, D: 129-42°
DORI W: 66 m (D), 27 m (O), 13 m (R), 7m (I) T: 204 m (D), 82 m (O), 41 m (R), 20 m (I)
Image enhancements WDR (120dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI
Motion detection Yes
Intelligent functions Advanced artificial intelligence based on classification of people, vehicles and two-wheeled vehicles for: Area intrusion, Line crossing, Area entry, Area exit Other intelligent events: unattended object, object removal, video exceptions (scene change, video loss, ...)
Audio 1 Input / 1 Output / Built-in microphone
Alarms 1 Input / 1 Relay
Audio compression G711A / U
Network interface Ethernet 10 / 100M BaseT
Internal memory microSD card up to 256GB
Remote access Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software
Interoperability ONVIF, P2P
3 Axis Yes
Power supply DC 12 V / 10 W max. / PoE IEEE802.3af
Protection rating Waterproof IP67, Vandal-proof IK10
Material Metal
Operating temp. -30º C ~ +60º C
Dimensions 141 (Ø) x 100.2 (H) mm
Weight 910 g
