Thermal Camera + Android Mini PC Kit
Thermal Camera + Android Mini PC Kit
Regular price
€922,32
Final price
Regular price
-23%
€1.200,00
Sale price
€922,32
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

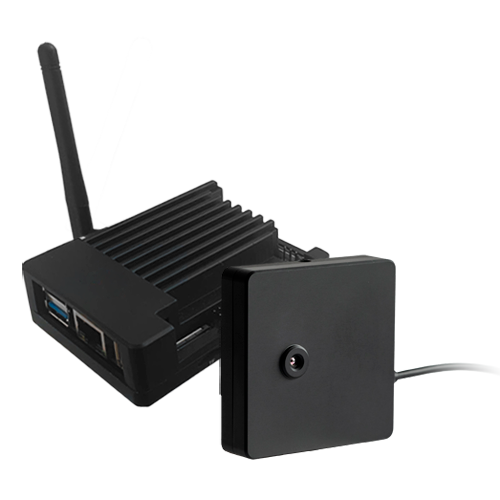

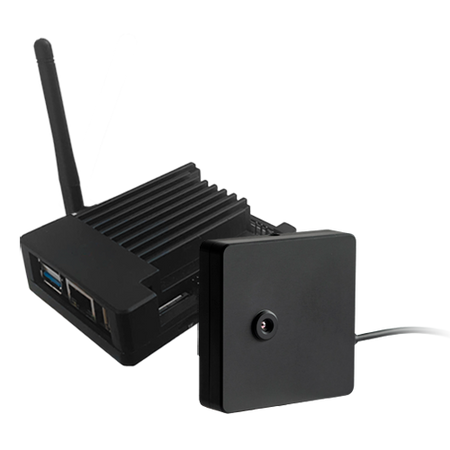

Thermal imaging camera KIT + Android Mini PC - Real-time body temperature measurement - Thermal resolution 256x192 | Accuracy ±0.5ºC - Thermal sensitivity ≤50mK - Temperature measurement on faces up to 2m away - Plug & Play system
📋 SPECIFICATIONS:
• Thermal imaging camera: BODYTEMP-256-USB
• Thermal sensor: 256x192 Vox
• Viewing angle (thermal): 56º x 42º
• Accuracy: ± 0.5ºC
• Thermal sensitivity (NETD): ≤ 50mK
• Spectral range: 12um
• Smart functions: Body temperature measurement
• Temperature measurement: Up to 2m distance (4 faces at a time)
• Measurement range: 30ºC ~ 45ºC
• Image mode: Thermal
• Image capture: Automatic
• Internal memory: MicroSD card slot up to 32 GB (in the Android mini PC)

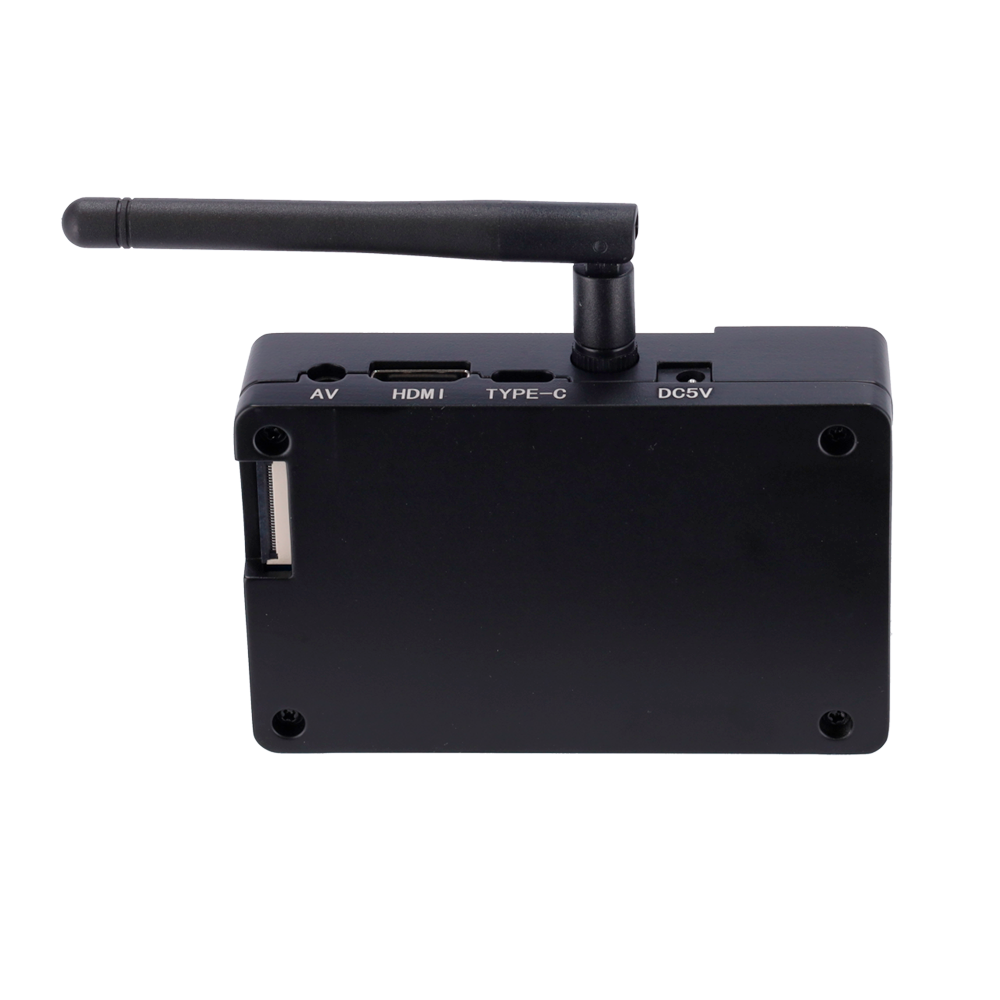

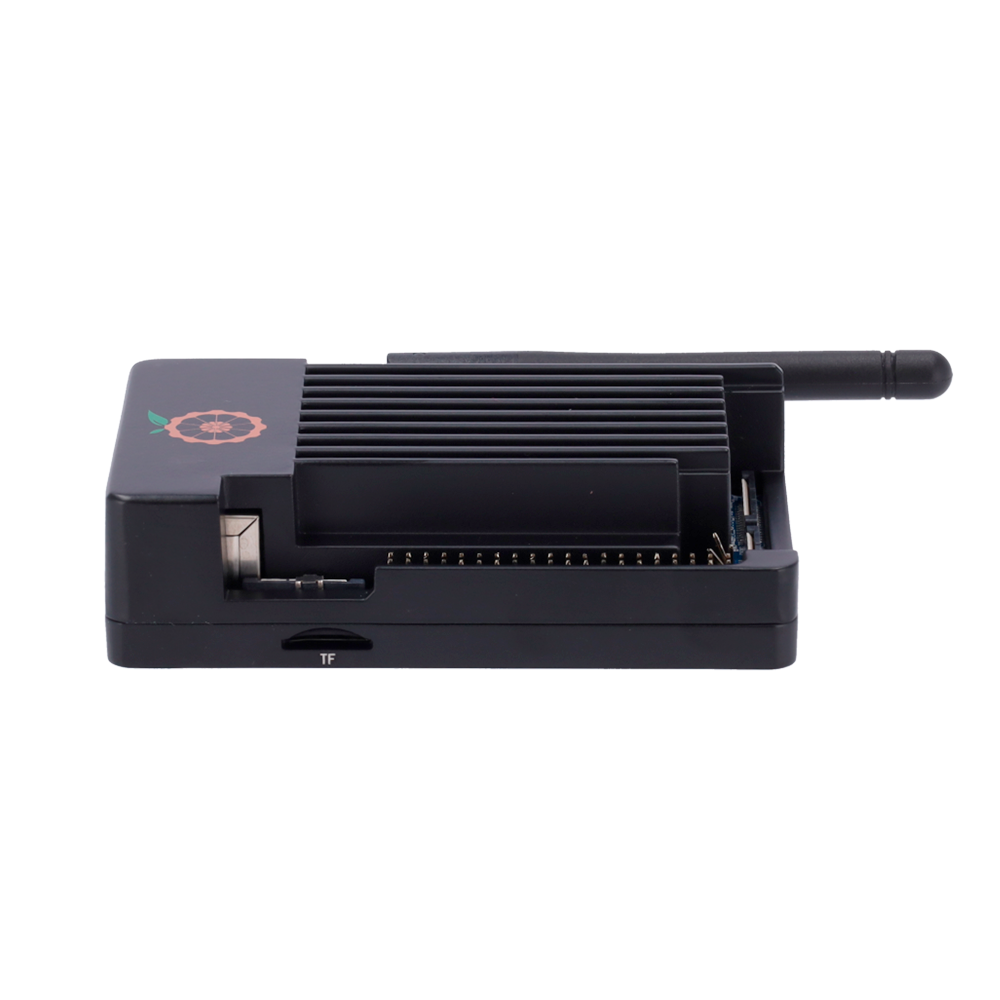

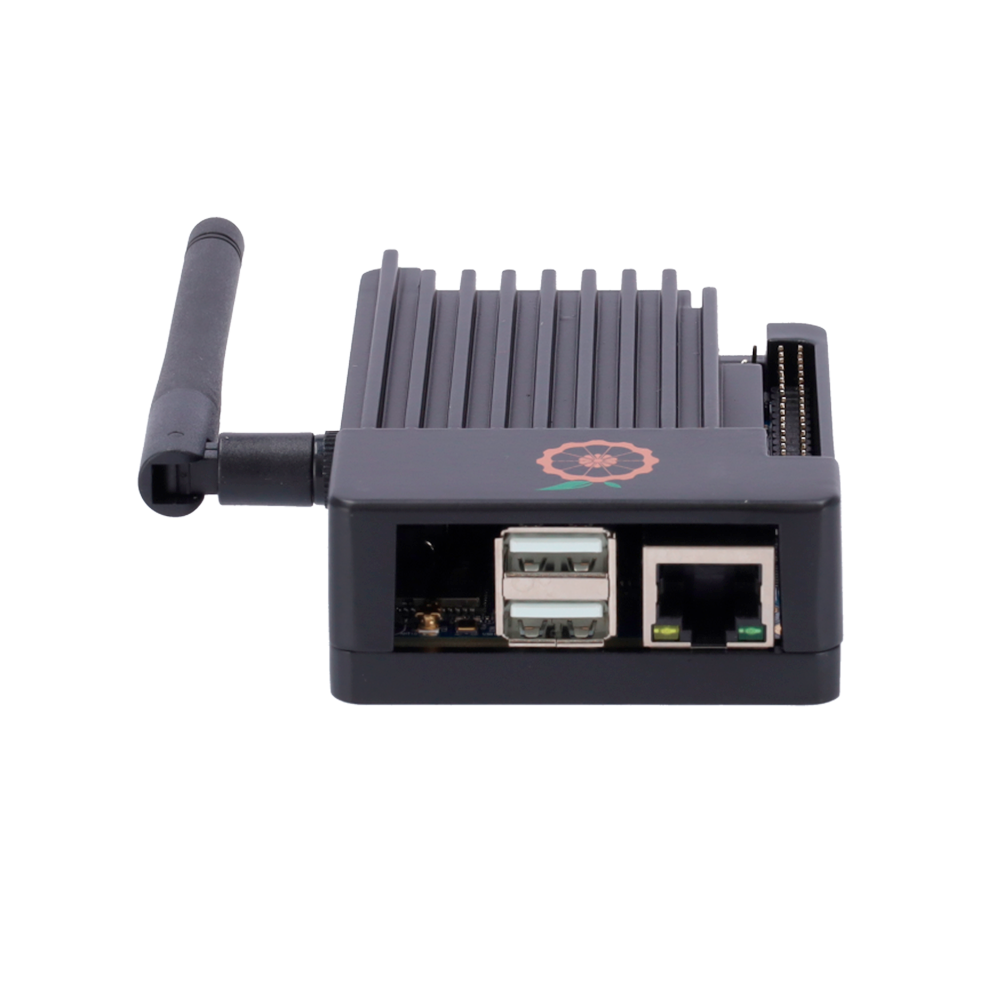

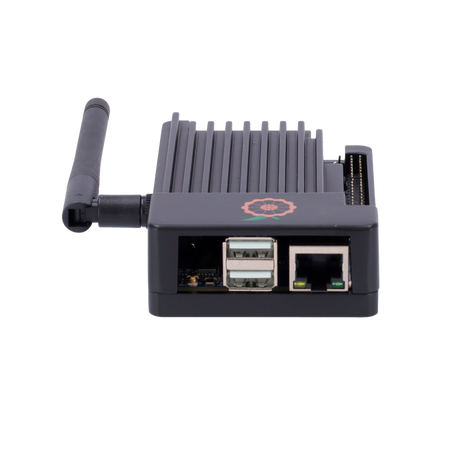

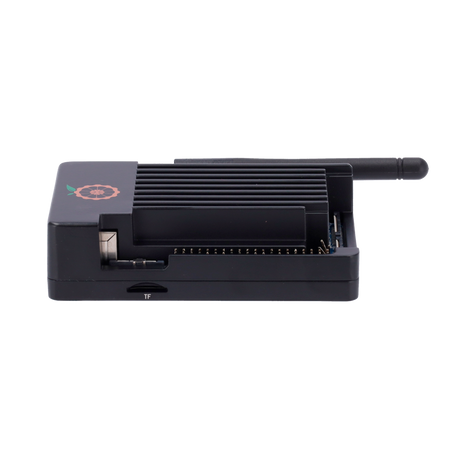

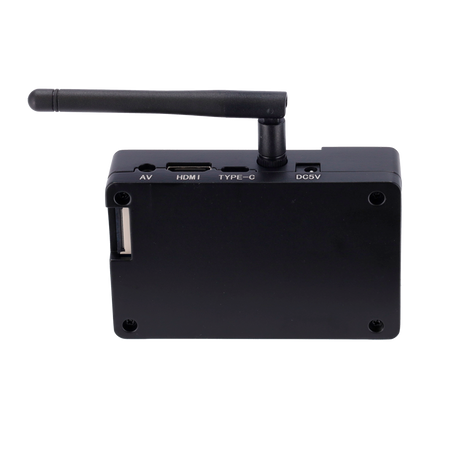

• Display: Android Mini-PC (Monitor not included)
• Communication: USB-A / USB Type-C (USB-A to USB-C adapter included)
• On-screen monitoring: Live image, event history with image capture, audible notification for overtemperature
• Operating temp.: 2º C ~ + 50º C
• Protection rating: Indoor use
• Dimensions: 14.2 (D) x 80 (W) x 80 (H) mm
• Weight: 450 g
📦 INCLUDED:
• Thermal imaging camera• User instructions• USB to USB Type-C adapter• Mounting brackets• Installation tripod• Android Mini PC
| Thermal imaging camera | BODYTEMP-256-USB |
|---|---|
| Thermal sensor | 256x192 Vox |
| Field of view (thermal) | 56º x 42º |
| Accuracy | ± 0.5ºC |
| Thermal sensitivity (NETD) | ≤ 50mK |
| Spectral range | 12um |
| Smart functions | Body temperature measurement |
| Temperature measurement | Up to 2m distance (4 faces at a time) |
| Measurement range | 30ºC ~ 45ºC |
| Image mode | Thermal |
| Image capture | Automatic |
| Internal memory | MicroSD card slot up to 32 GB (in Android mini PC) |
| Display | Android Mini-PC (Monitor not included) |
| Communication | USB-A / USB Type-C (USB-A to USB-C adapter included) |
| On-screen monitoring | Live image, event history with image capture, audible notification for over-temperature |
| Operating temp. | 2ºC ~ + 50ºC |
| Protection rating | Indoor use |
| Dimensions | 14.2 (D) x 80 (W) x 80 (H) mm |
| Weight | 450 g |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
