Onvif precise remote temperature measurement system
Onvif precise remote temperature measurement system
Regular price
€4.611,60
Final price
Regular price
-8%
€5.000,00
Sale price
€4.611,60
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

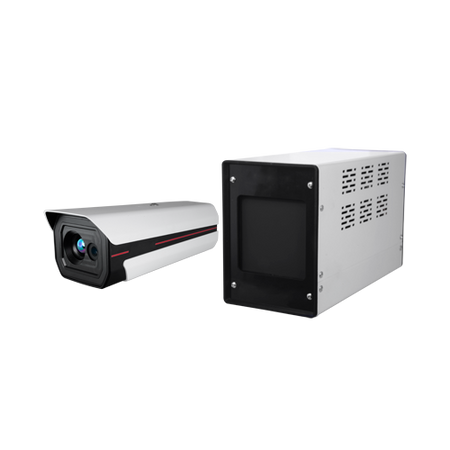

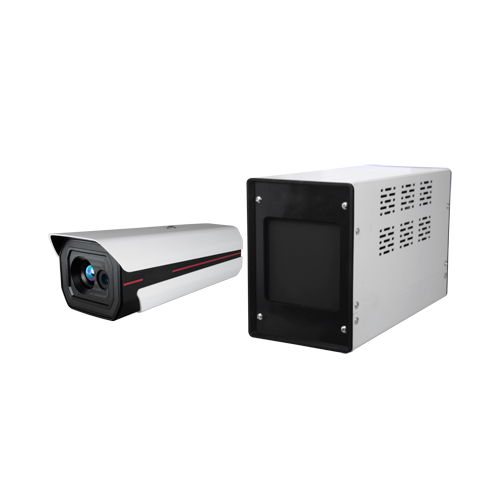

Precise remote temperature measurement system - Remote body temperature measurement - Thermographic camera: 384x288 Vox | 10mm lens - Blackbody for automatic calibration and to ensure accuracy - High precision ±0.3ºC - Monitoring and management software
📋 SPECIFICATIONS:
• Thermal sensor: 384x288 Vanadium oxide
• Optical sensor: 1/2.7” Progressive Scan CMOS 2 Megapixel
• Minimum illumination (for the optical part): Color: 0.09 Lux @ (F1.6, AGC ON), IR up to 50 m distance
• Main Stream: 384x288(50fps) Therm / 1920x1080 (25fps) Optical
• Extra Stream: 384x288 (50fps) Therm / 704x576 (25fps) Optical
• Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Lens: 10 mm (Therm)
• Viewing angle: 37.5°×28.6° (Therm)
• Thermal sensitivity: < 40mK (0.05 º C)
• Thermal measurement range: 20 ~ 50ºC / High precision ± 0.3ºC (Only when using the blackbody)
• Spectral range: 8~14μm
• Pixel pitch: 17μm
• Intelligent functions: Body temperature measurement
• Measurement features: Up to 30 face detections in the same scene / Between 2 ~ 6 m detection distance (optimal point 3~ 4 m)
• Audio: Not available
• Alarm: 1 Relay (NO/NC)
• Internal memory: Not available
• Network interface: Ethernet 10/100 BaseT
• Remote access: WEB interface, CMS and NVR
• Interoperability: ONVIF
• Recommended installation: 2 m high
• Power supply: 12VDC, 4W max.
• Operating temp.: 0º C ~ +30º C
• Protection rating: Waterproof IP66
• Dimensions: 293.9 mm (D) x 120.7 (H) x 119 (W) mm
• Weight: 2 Kg

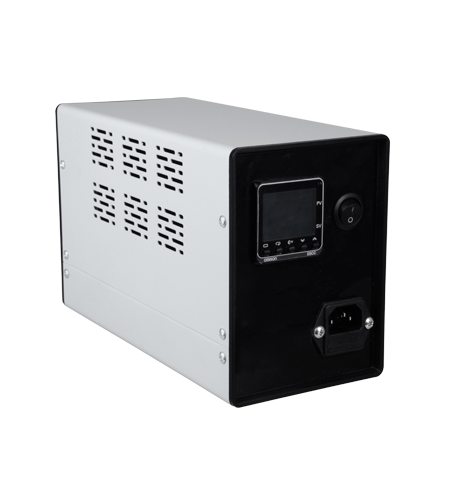

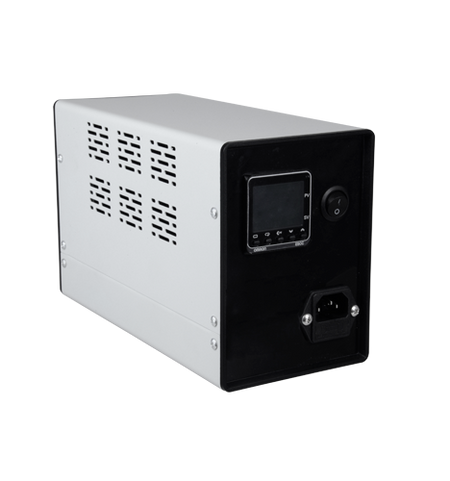

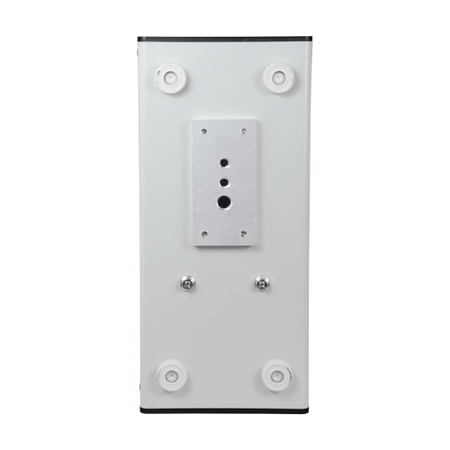

• Temperature range: 30ºC ~ 50ºC Adjustable
• Temperature stability: ±(0.1-0.2)ºC/ 30 min
• Recommended installation: 2 m max. from the ceiling (always within the camera's FOV)
• Power supply: 220 VAC, 50 Hz (Max. 40W, nominal 25W)
• Dimensions: 240 (D) x 150 (W) x 160 (H)
📦 INCLUDED:

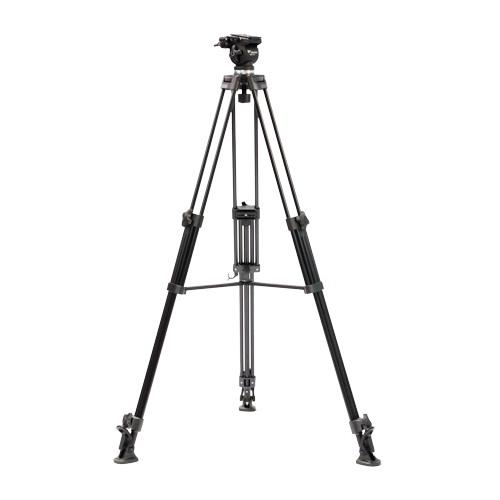

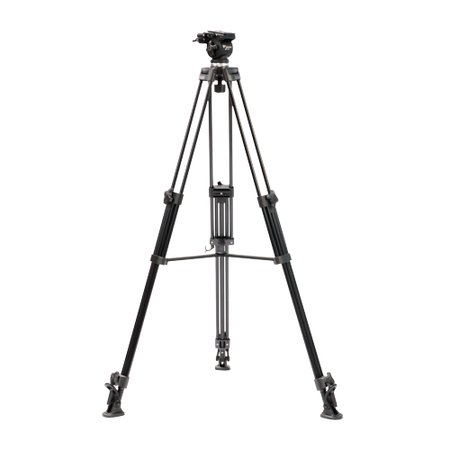

• Dual thermographic camera• Blackbody• Installation material• User manual• Includes 1 tripod
| Thermal sensor | 384x288 Vanadium oxide |
|---|---|
| Optical sensor | 1/2.7” Progressive Scan CMOS 2 Megapixel |
| Minimum illumination (for the optical part) | Color: 0.09 Lux @ (F1.6, AGC ON), IR up to 50 m distance |
| Main Stream | 384x288(50fps) Thermal / 1920x1080 (25fps) Optical |
| Extra Stream | 384x288 (50fps) Thermal / 704x576 (25fps) Optical |
| Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Lens | 10 mm (Thermal) |
| Field of view | 37.5°×28.6° (Thermal) |
| Thermal sensitivity | < 40mK (0.05 ºC) |
| Thermal measurement range | 20 ~ 50ºC / High precision ± 0.3ºC (Only using blackbody) |
| Spectral range | 8~14μm |
| Pixel size | 17μm |
| Smart functions | Body temperature measurement |
| Measurement features | Up to 30 face detections in the same scene / Between 2 ~ 6 m detection distance (optimal point 3~ 4 m) |
| Audio | Not available |
| Alarm | 1 Relay (NO/NC) |
| Internal memory | Not available |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB interface, CMS and NVR |
| Interoperability | ONVIF |
| Recommended installation | 2 m in height |
| Power supply | 12VDC, 4W max. |
| Operating temp. | 0ºC ~ +30ºC |
| Protection level | Waterproof IP66 |
| Dimensions | 293.9 mm (D) x 120.7 (H) x 119 (W) mm |
| Weight | 2 Kg |
| Temperature range | 30ºC ~ 50ºC Adjustable |
| Temperature stability | ±(0.1-0.2)ºC/ 30 min |
| Recommended installation | 2 m max. from the ceiling (always within the camera's FOV) |
| Power supply | 220 VAC, 50 Hz (Max. 40W, nominal 25W) |
| Dimensions | 240 (D) x 150 (W) x 160 (H) |
