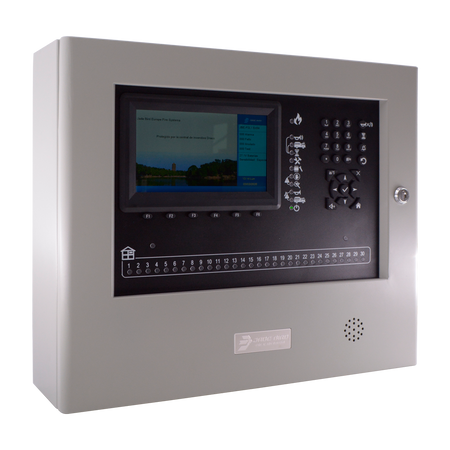

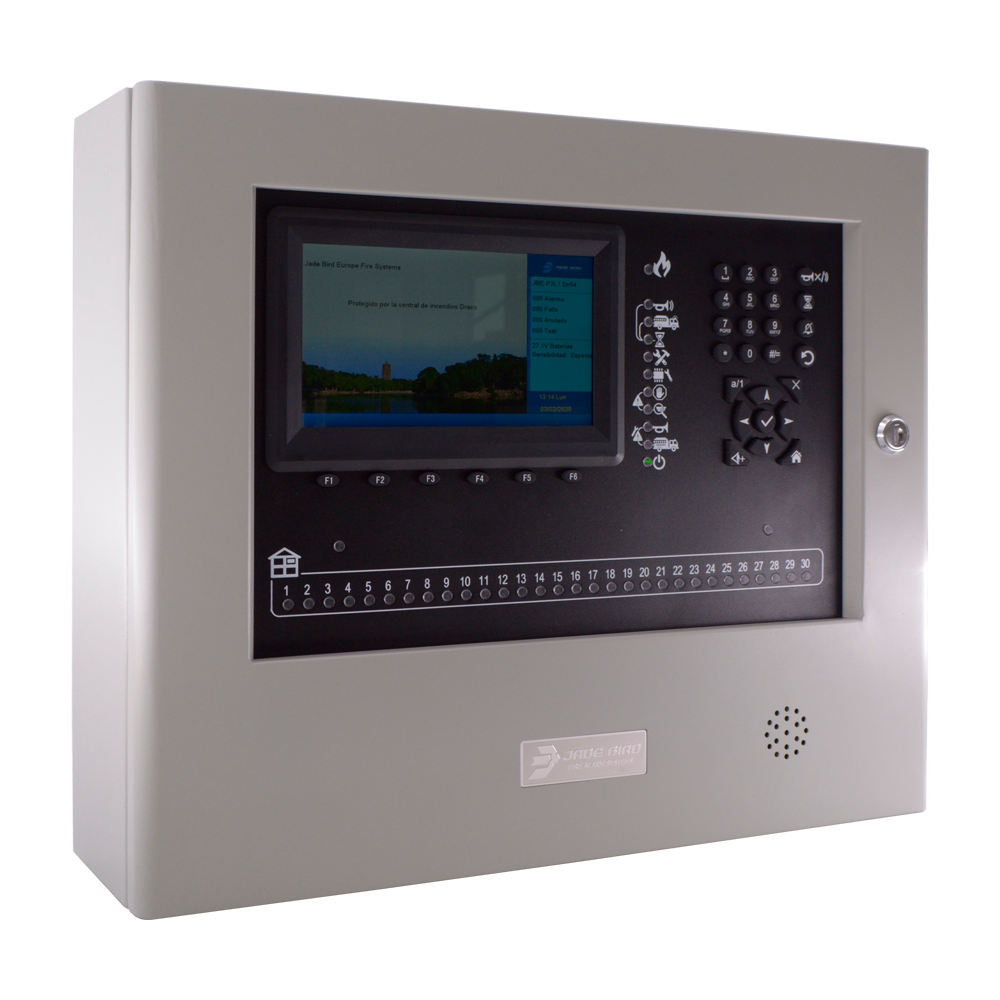

Jade Bird 4-loop addressable control panel, expandable
Jade Bird 4-loop addressable control panel, expandable
Regular price
€1.069,44
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Jade Bird 4-loop addressable fire alarm control panel, expandable - Up to 8 loops with JBE-P2L2-2LP and JBE-EXP - Up to 200 devices per loop - USB for programming and data updates - 7” color LCD display - EN54-2, EN54-4 certified
📋 SPECIFICATIONS:
• Number of loops: 4 - (expandable up to 8 with JBE-P2L2-2LP and external JBE-EXP box)
• User-selectable loop topologies: Class A (ring) or Class B (spur up to 32 devices)
• 24 VDC outputs for field devices: 2
• Maximum number of devices: 800 (expandable to 1600)
• Maximum number of output groups: 400
• Maximum loop distance: 2,000 m
• Recommended cable type: 2 x 1.5 mm² unshielded twisted pair
• Maximum number of addressable points: 200 per Class A loop (max 2 x 200)
• Loop voltage: 20~30V
• Current available per loop: 200 mA
• External power outputs: 2 x 2A@24 VDC
• Cable entry: Ø20 mm knockouts (14x)
• Alarm and Fault outputs: Volt-free normally open relays (up to 2A@30 VDC)
• Power supply: 230 VAC (196 – 253 V) 2.5A max.
• Protection fuse: 2.5 A
• Max. continuous output current (Imax a): 5.5 A
• Max. DC alarm output current (Imax b): 4 A
• Battery capacity: 2x 12V 7Ah~12Ah
• Operating temperature: -5 to +40 °C
• Storage temperature: -20 to +55 °C
• Humidity (non-condensing): < 95 %
• Protection rating: IP30
• Dimensions: 440 (H) x 370 (W) x 126 (D) mm
• Weight (without batteries): 4 kg
• Standards: EN 54-2 and EN 54-4
• DoP: DoP-0370-CPR-3813-1
📦 INCLUDED:
• Fire alarm control panel• Battery cables• Supervision resistor• Fuses• Access keys• Mounting bracket
| Number of loops | 4 - (expandable to 8 with JBE-P2L2-2LP and external JBE-EXP box) |
|---|---|
| User-selectable loop topologies | Class A (loop) or Class B (line up to 32 devices) |
| 24 VDC outputs to field devices | 2 |
| Maximum number of devices | 800 (expandable to 1600) |
| Maximum number of output groups | 400 |
| Maximum loop distance | 2,000 m |
| Recommended cable type | 2 x 1.5 mm² unshielded twisted pair |
| Maximum number of addressable points | 200 per Class A loop (max 2 x 200) |
| Loop voltage | 20~30V |
| Current available per loop | 200 mA |
| External power supply outputs | 2 x 2A@24 VDC |
| Cable entry | Ø20 mm knockouts (14x) |
| Alarm and Fault outputs | Voltage-free normally open relays (up to 2A@30 VDC) |
| Power supply | 230 VAC (196 – 253 V) 2.5A max. |
| Protection fuse | 2.5 A |
| Max. continuous output current (Imax a) | 5.5 A |
| Max. alarm DC output current (Imax b) | 4 A |
| Battery capacity | 2x 12V 7Ah~12Ah |
| Operating temperature | -5 to +40 °C |
| Storage temperature | -20 to +55 °C |
| Humidity (non-condensing) | < 95 % |
| Protection rating | IP30 |
| Dimensions | 440 (H) x 370 (W) x 126 (D) mm |
| Weight (without batteries) | 4 kg |
| Standards | EN 54-2 and EN 54-4 |
| DoP | DoP-0370-CPR-3813-1 |
- User manual Link
