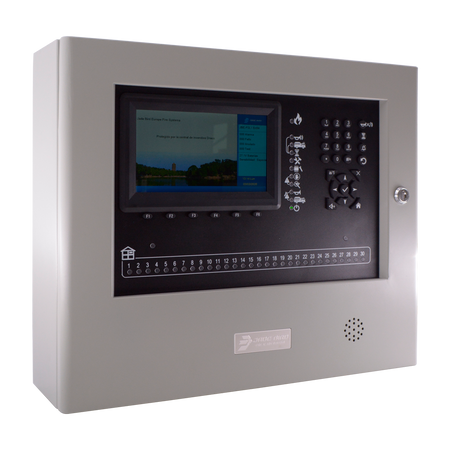

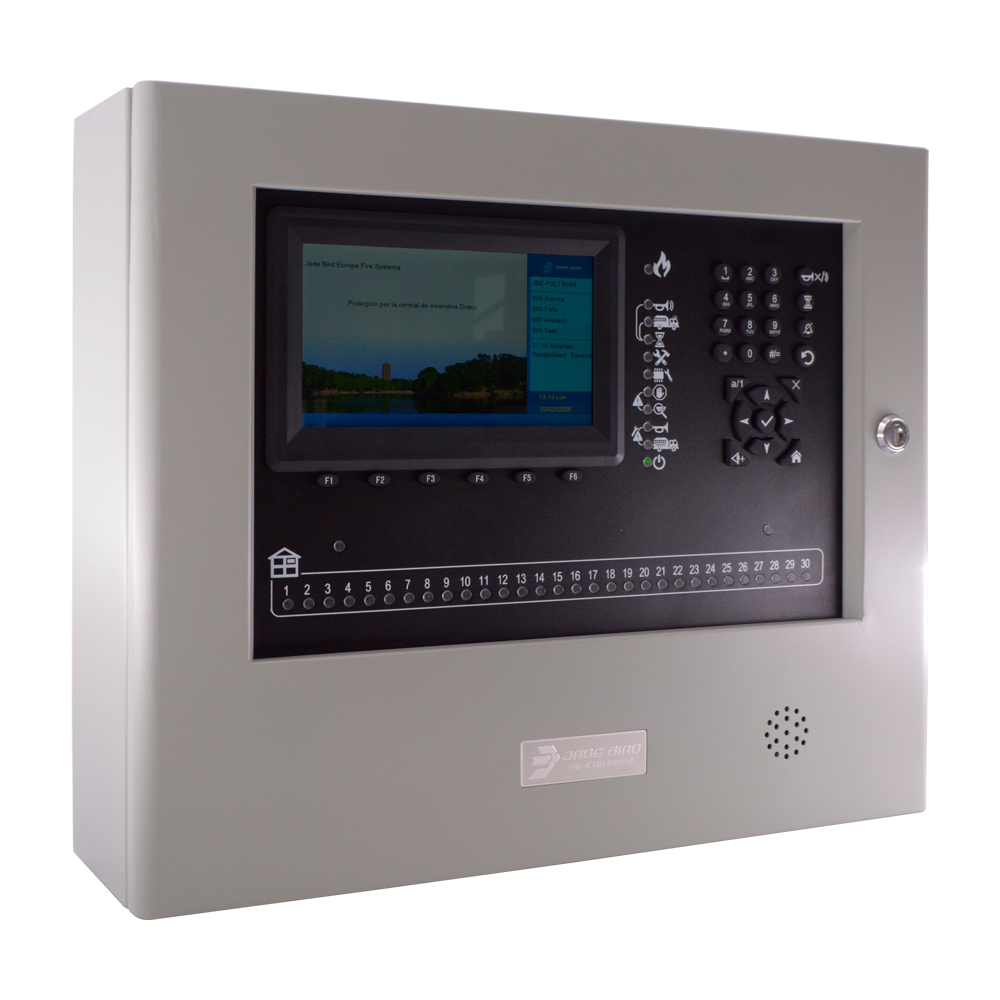

Jade Bird 2-loop analog control panel
Regular price
€775,80
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Jade Bird 2-loop analog control panel - Up to 200 devices per loop - USB for data programming and updates - 7” color LCD display - EN54-2, EN54-4 certified
📋 SPECIFICATIONS:
• Number of loops: 2
• User-selectable loop topologies: Class A (loop) or Class B (line up to 32 devices)
• 24 VDC outputs to field devices: 2
• Maximum number of devices: 400
• Maximum number of output groups: 400
• Maximum loop distance: 2,000 m
• Recommended cable type: 2 x 1.5 mm² unshielded twisted pair
• Maximum number of addressable points: 200 per Class A loop (max 2 x 200)
• Loop voltage: 20~30V
• Available current per loop: 200 mA
• External power supply outputs: 2 x 2A@24 VDC
• Cable entry: Ø20 mm knockouts (14x)
• Alarm and Fault outputs: Voltage-free normally open relays (up to 2A@30 VDC)
• Power supply: 230 VAC (196 – 253 V) 2.5A max.
• Protection fuse: 2.5 A
• Max. continuous output current (Imax a): 5.5 A
• Max. DC alarm output current (max b): 4 A
• Battery capacity: 2x 12V 7Ah~12Ah
• Operating temperature: -5 to +40 °C
• Storage temperature: -20 to +55 °C
• Humidity (non-condensing): < 95 %
• Protection rating: IP30
• Dimensions: 440 (H) x 370 (W) x 126 (D) mm
• Weight (without batteries): 4 kg
• Standards: EN 54-2 and EN 54-4
• DoP: DoP-0370-CPR-3813-1
📦 INCLUDED:
• Fire control panel• Battery cables• End-of-line resistor• Fuses• Access keys• Mounting bracket
| Number of loops | 2 |
|---|---|
| User-selectable loop topologies | Class A (loop) or Class B (line up to 32 devices) |
| 24 VDC outputs to field devices | 2 |
| Maximum number of devices | 400 |
| Maximum number of output groups | 400 |
| Maximum loop distance | 2,000 m |
| Recommended cable type | 2 x 1.5 mm² twisted pair without shielding |
| Maximum number of addressable points | 200 per Class A loop (max 2 x 200) |
| Loop voltage | 20~30V |
| Available current per loop | 200 mA |
| External power supply outputs | 2 x 2A@24 VDC |
| Cable entry | Ø20 mm knockouts (14x) |
| Alarm and Fault outputs | Volt-free normally open relay (up to 2A@30 VDC) |
| Power supply | 230 VAC (196 – 253 V) 2.5A max. |
| Protection fuse | 2.5 A |
| Max. continuous output current (Imax a) | 5.5 A |
| Max. alarm DC output current (max b) | 4 A |
| Battery capacity | 2x 12V 7Ah~12Ah |
| Operating temperature | -5 to +40 °C |
| Storage temperature | -20 to +55 °C |
| Humidity (non-condensing) | < 95 % |
| Protection rating | IP30 |
| Dimensions | 440 (H) x 370 (W) x 126 (D) mm |
| Weight (without batteries) | 4 kg |
| Standards | EN 54-2 and EN 54-4 |
| DoP | DoP-0370-CPR-3813-1 |
- User manual Link
