JADE BIRD

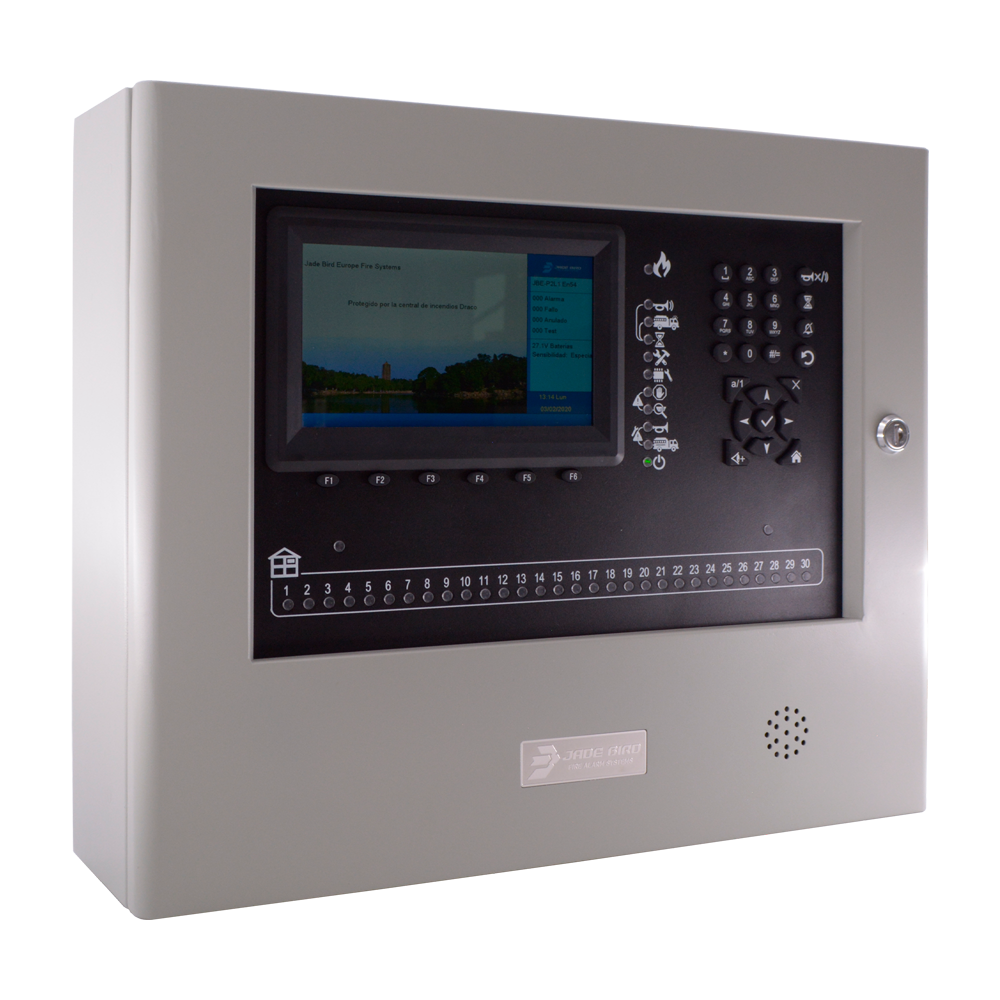

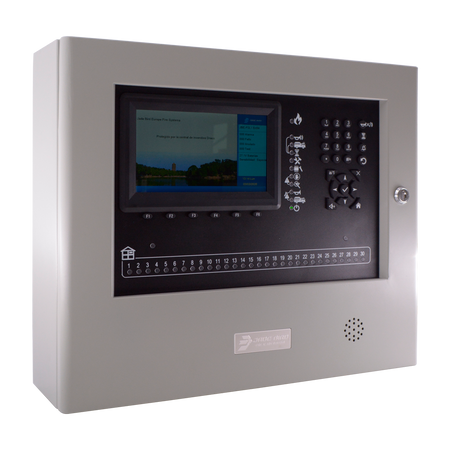

Jade Bird 1-loop expandable analogue control panel

SKU: JBE-P2L1.1L
(0)
In stock
Usually shipped within 24 hours
€633,52 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Jade Bird 1-loop expandable analog control panel - Up to 200 devices per loop - USB for programming and data updating - 7” color LCD display - EN54-2, EN54-4 certified

📋 SPECIFICATIONS:
• Number of loops: 1 (expandable to 2)
• User-selectable loop topologies: Class A (loop) or Class B (line up to 32 devices)
• 24 VDC outputs to field devices: 2
• Maximum number of devices: 200 (expandable to 400)
• Maximum number of output groups: 400
• Maximum loop distance: 2,000 m
• Recommended cable type: 2 x 1.5 mm² unshielded twisted pair
• Maximum number of addressable points: 200 per Class A loop (max 2 x 200)
• Loop voltage: 20~30V
• Available current per loop: 200 mA
• External power outputs: 2 x 2A@24 VDC
• Cable entry: Ø20 mm knockouts (14x)
• Alarm and Fault outputs: Volt-free normally open relay (up to 2A@30 VDC)
• Power supply: 230 VAC (196 – 253 V) 2.5A max.
• Protection fuse: 2.5 A
• Max. continuous output current (Imax a): 5.5 A
• Max. alarm DC output current (max b): 4 A
• Battery capacity: 2x 12V 7Ah~12Ah
• Operating temperature: -5 to +40 °C
• Storage temperature: -20 to +55 °C
• Humidity (non-condensing): < 95 %
• Protection rating: IP30
• Dimensions: 440 (H) x 370 (W) x 126 (D) mm
• Weight (without batteries): 4 kg
• Standards: EN 54-2 and EN 54-4
• DoP: DoP-0370-CPR-3813-1

📦 INCLUDED:
• Fire alarm control panel• Battery cables• Supervision resistor• Fuses• Access keys• Mounting bracket
Number of loops 1 (expandable to 2)
User-selectable loop topologies Class A (ring) or Class B (line up to 32 devices)
24 VDC outputs to field devices 2
Maximum number of devices 200 (expandable to 400)
Maximum number of output groups 400
Maximum loop distance 2,000 m
Recommended cable type 2 x 1.5 mm² unshielded twisted pair
Maximum number of addressable points 200 per Class A loop (max 2 x 200)
Loop voltage 20~30V
Available current per loop 200 mA
External power outputs 2 x 2A@24 VDC
Cable entry Ø20 mm knockouts (14x)
Alarm and Fault outputs Normally open potential-free relay (up to 2A@30 VDC)
Power supply 230 VAC (196 – 253 V) 2.5A max.
Protection fuse 2.5 A
Max. continuous output current (Imax a) 5.5 A
Max. DC alarm output current (max b) 4 A
Battery capacity 2x 12V 7Ah~12Ah
Operating temperature -5 to +40 °C
Storage temperature -20 to +55 °C
Humidity (non-condensing) &lt; 95 %
Protection rating IP30
Dimensions 440 (H) x 370 (W) x 126 (D) mm
Weight (without batteries) 4 kg
Standards EN 54-2 and EN 54-4
DoP DoP-0370-CPR-3813-1
