Jade Bird analog module - Conventional zone module
Jade Bird analog module - Conventional zone module
Regular price
€69,44
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

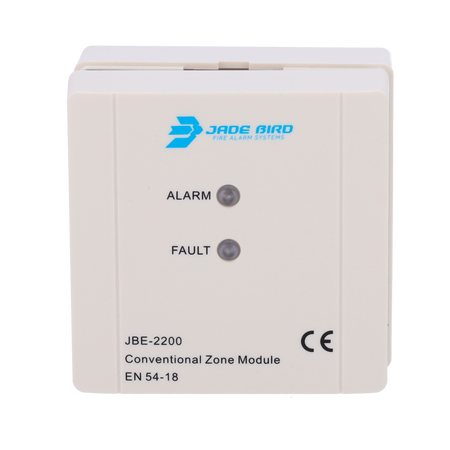

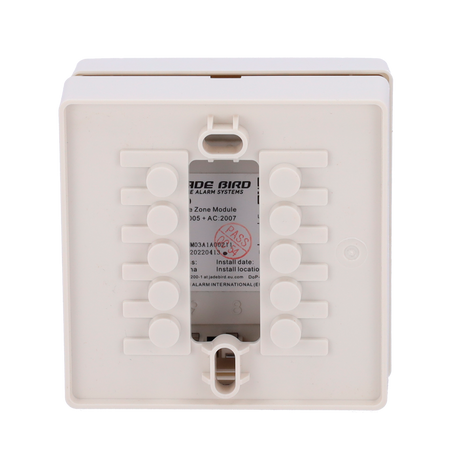

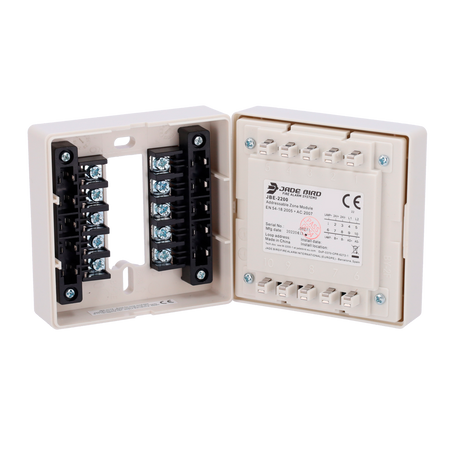

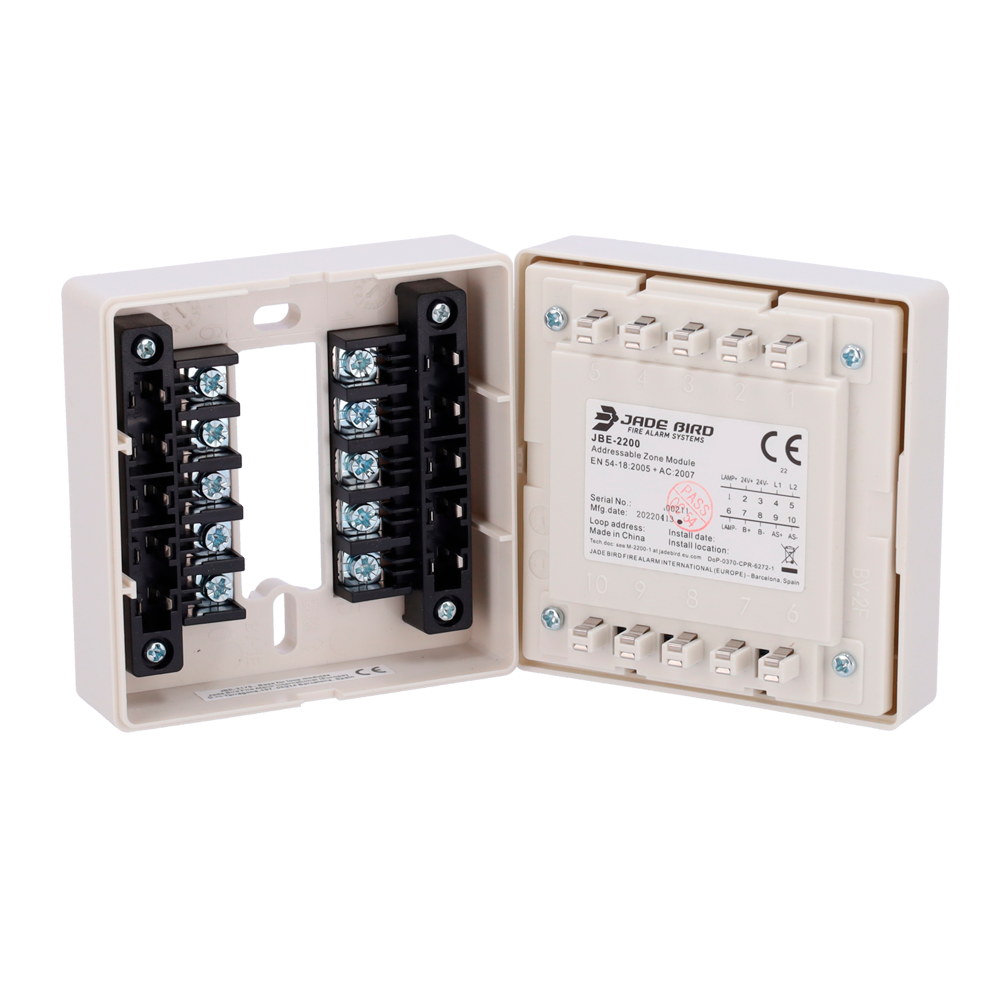

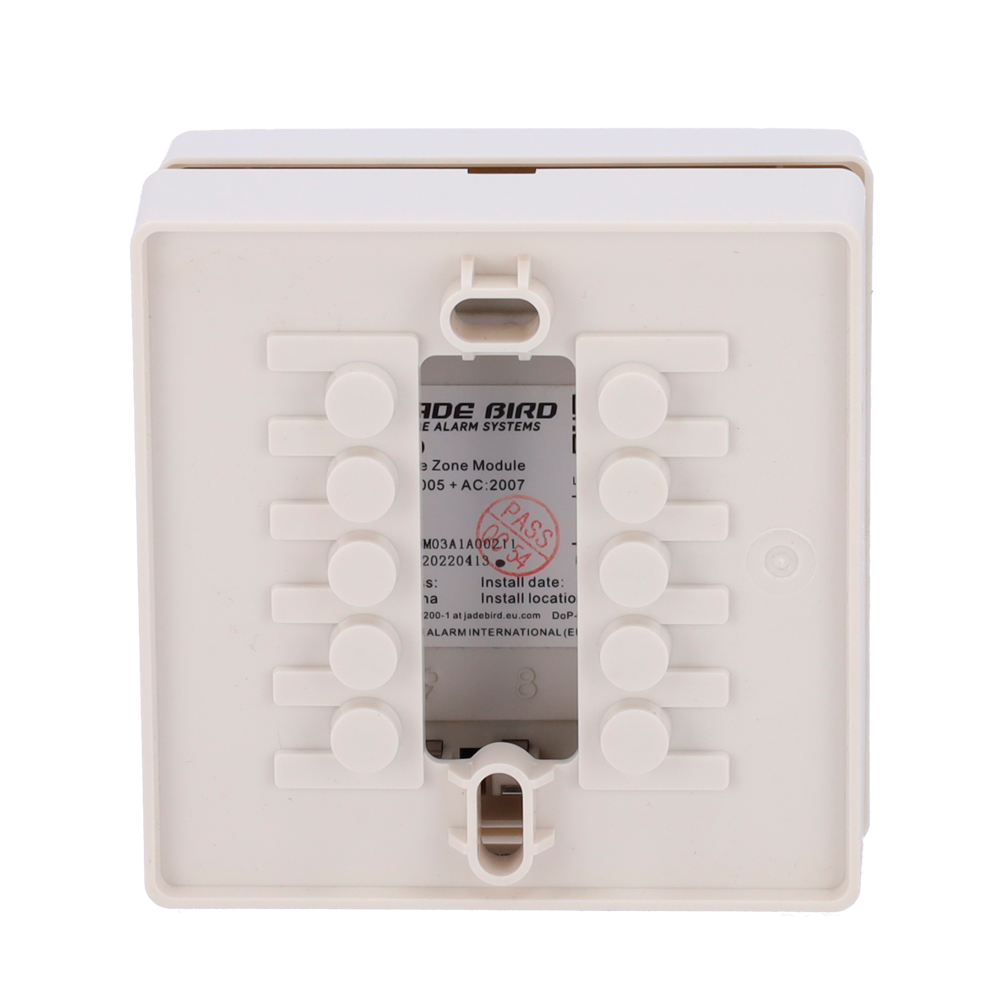

Jade Bird analog module - Conventional zone module - Loop or external power supply - Conductor cable up to 2.5mm2 - 4k7 Ω EOL resistor (supplied) - EN 54-18 certified
📋 SPECIFICATIONS:
• Brand: Jade Bird

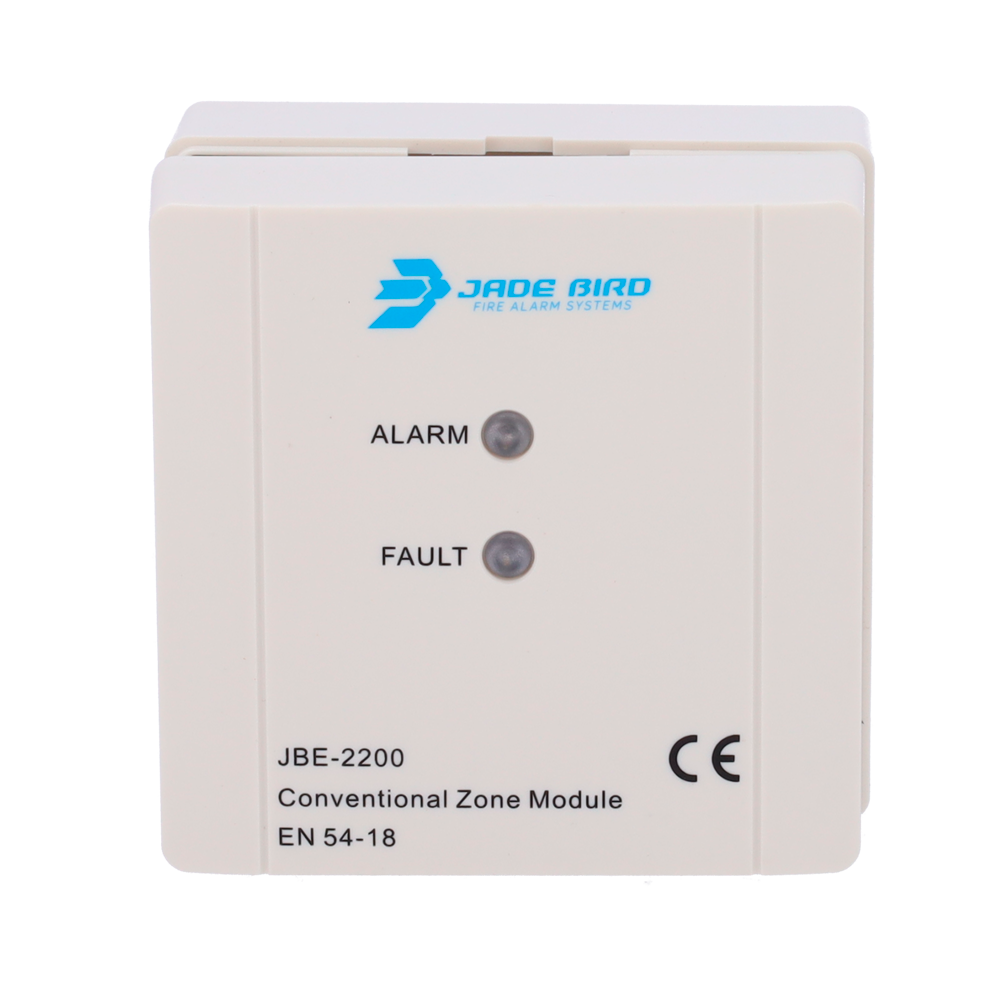

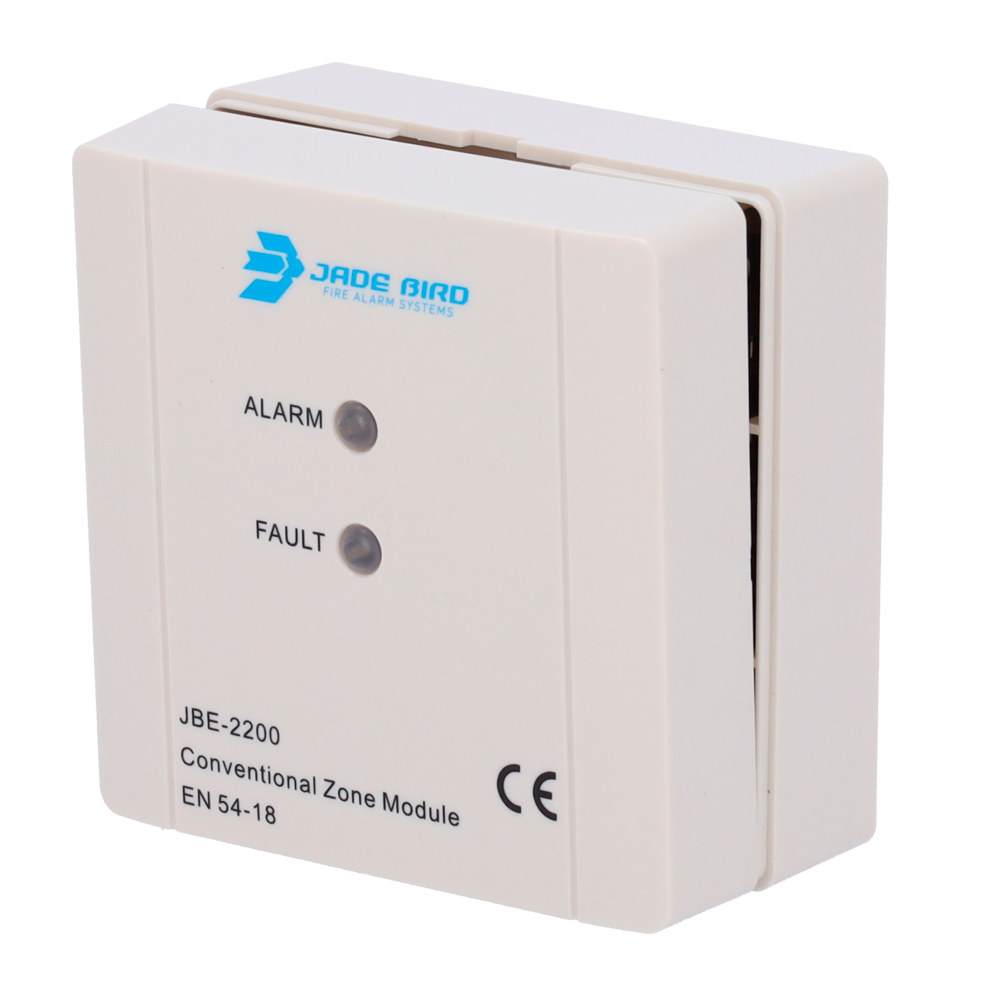

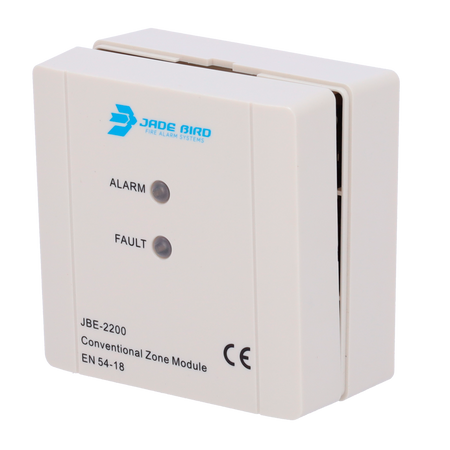

• Type: Conventional zone module
• Operating voltage: DC 19 - 30 V
• Connection: JBE 2-wire communication bus, non-polarized; 24V DC 2-wire power supply, non-polarized
• Wiring: Non-shielded twisted pair 0.5 – 2.5 mm2
• Power consumption; from Loop: ≤9 mA @24 V (Loop consumption - Standby); ≤46 mA @24 V (Loop consumption - Active)
• Power consumption; with 24VDC: ≤2 mA @24 V (Loop consumption); ≤8 mA @24 V (24 V DC consumption - Standby); ≤42 mA @24 V (24 V DC consumption - Active)

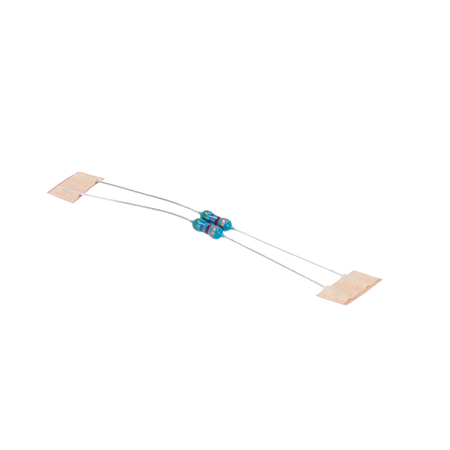

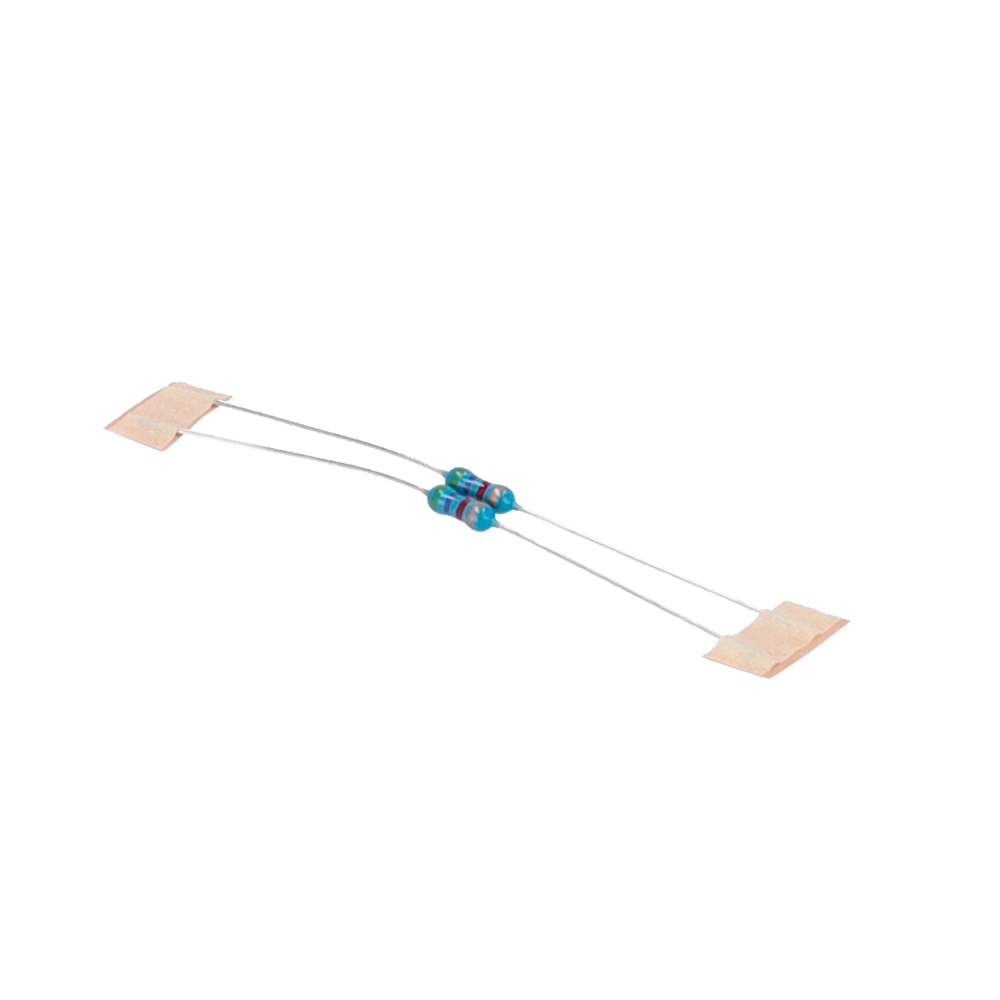

• Zone EOL resistor: 4.7 kΩ
• External PSU EOL resistor: 4.7 kΩ
• Operating temp.: -10℃ ~ +55℃
• Storage temp.: -20℃ ~ +60℃
• Environment: ≤ 95% RH (40±2℃) (non-condensing and non-icing)
• Addressing: JBE-AT1 addressing tool
• Address range: 1-200
• LED indicator; Red (ALARM): Standby: Flashing during monitoring; Alarm: Steady on when activated
• LED indicator; Orange (FAULT): Open: Steady on; Low voltage: Flashes once per second; Short circuit: Flashes twice per second; Overconsumption: Continuous flickering; Reset: Flashes during reset (3 seconds)
• Dimensions: 85×85x41 mm (length x width x height)
• Weight: 0.1 kg (base included)
• IP rating: IP40
• Remote indicator: LED with or without series resistor (Rs <4 kOhm)
• Certificate: EN 54-18:2005; EN 54-18:2005/AC:2007
| Type | Conventional zone module |
|---|---|
| Operating voltage | DC 19 - 30 V |
| Connection | JBE 2-wire communication bus, non-polarized 24V DC power supply, non-polarized |
| Wiring | Non-shielded twisted pair 0.5 – 2.5 mm2 |
| Loop power consumption | ≤9 mA @24 V (Loop consumption - Standby) ≤46 mA @24 V (Loop consumption - Active) |
| Power consumption with 24VDC | ≤2 mA @24 V (Loop consumption) ≤8 mA @24 V (24 V DC consumption - Standby) ≤42 mA @24 V (24 V DC consumption - Active) |
| Zone EOLR | 4.7 kΩ |
| External PSU EOLR | 4.7 kΩ |
| Operating temp. | -10℃ ~ +55℃ |
| Storage temp. | -20℃ ~ +60℃ |
| Environment | ≤ 95% RH (40±2℃) (non-condensing and non-icing) |
| Addressing | JBE-AT1 addressing tool |
| Address range | 1-200 |
| Red LED indicator (ALARM) | Standby: Flashing during monitoring Alarm: Steady on when activated |
| Orange LED indicator (FAULT) | Open: Steady on Low voltage: Flashes once per second Short circuit: Flashes twice per second Overcurrent: Continuous flickering Reset: Flashes during reset (3 seconds) |
| Dimensions | 85×85x41 mm (length x width x height) |
| Weight | 0.1 kg (including base) |
| IP protection rating | IP40 |
| Remote indicator | LED with or without series resistor (Rs <4 kOhm) |
| Certificate | EN 54-18:2005 EN 54-18:2005/AC:2007 |
