Jade Bird Analog Module - Short-circuit Isolator
Jade Bird Analog Module - Short-circuit Isolator
Regular price
€23,14
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

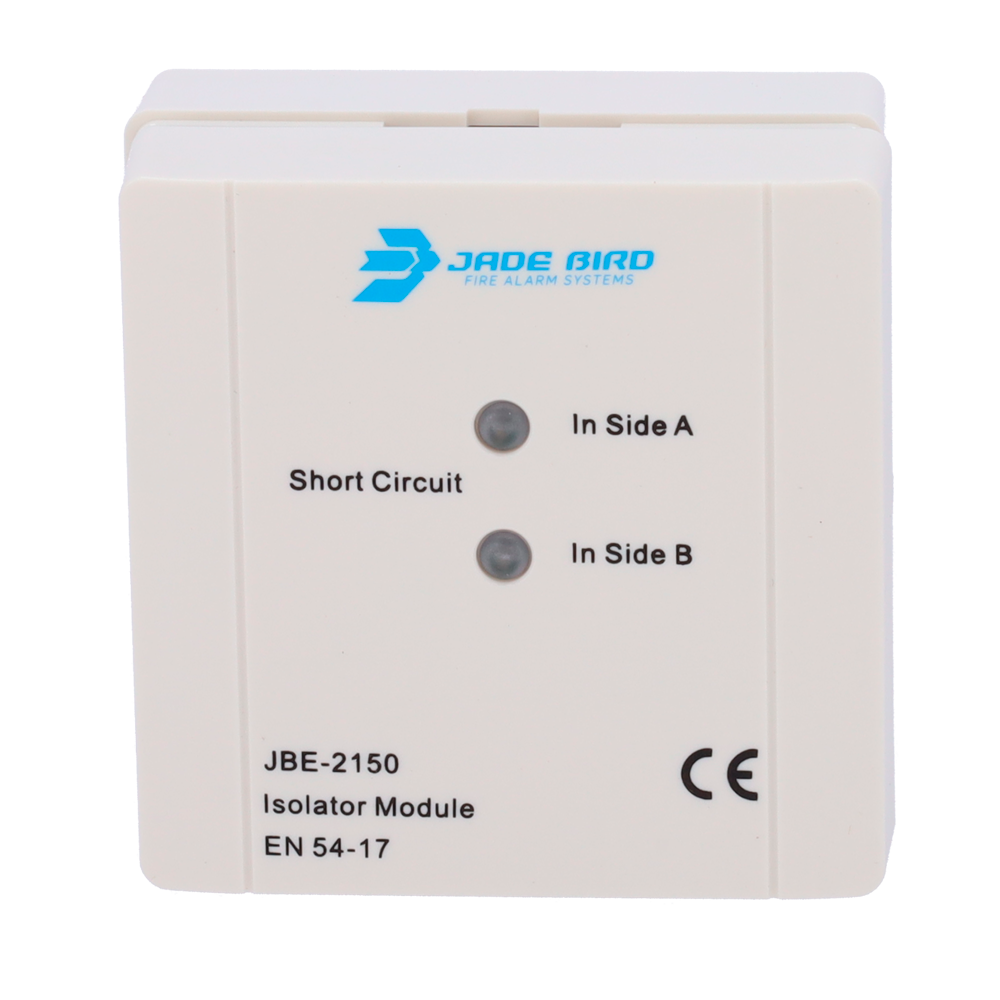

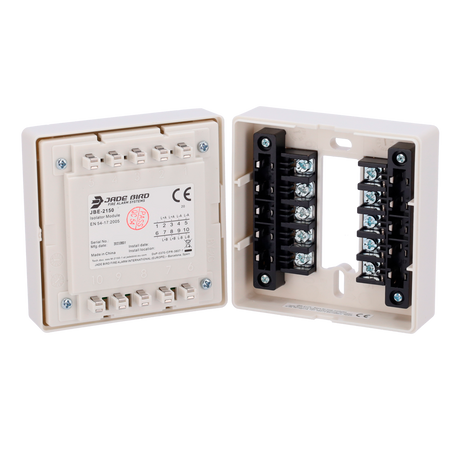

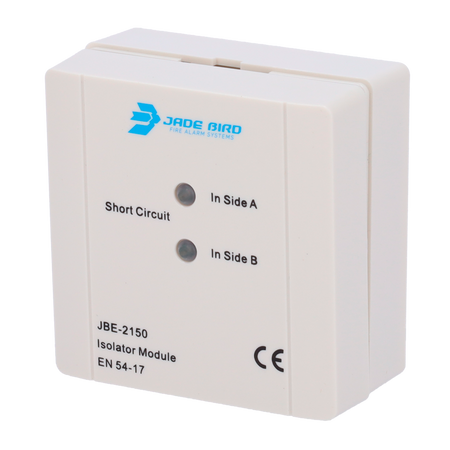

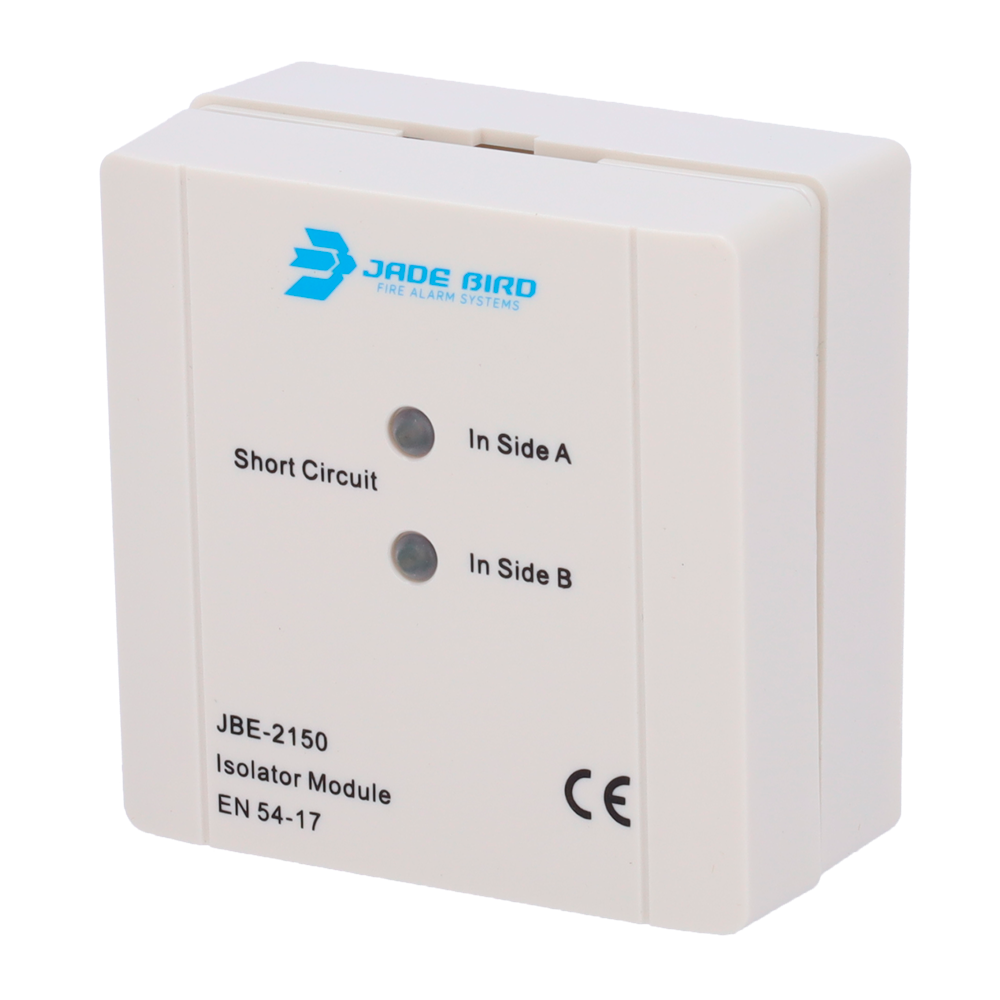

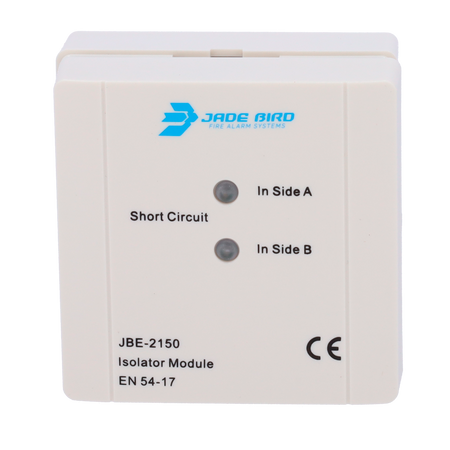

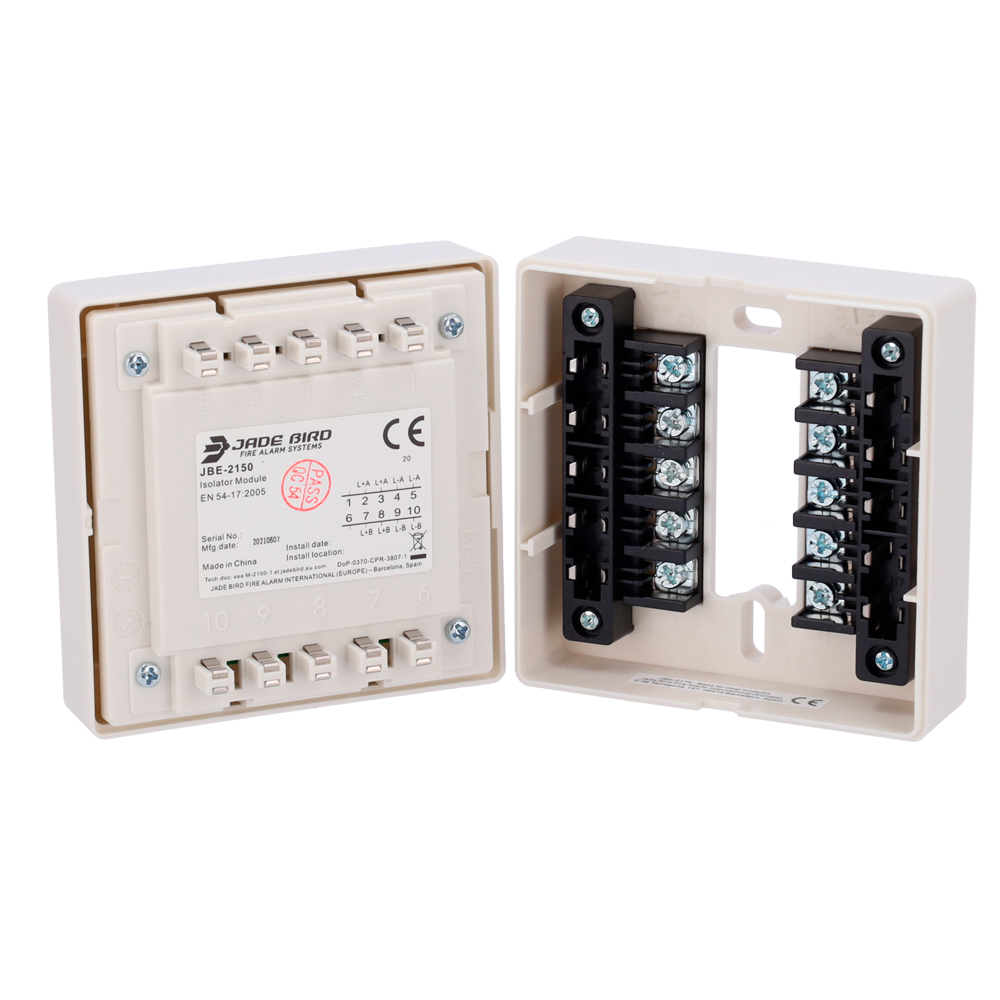

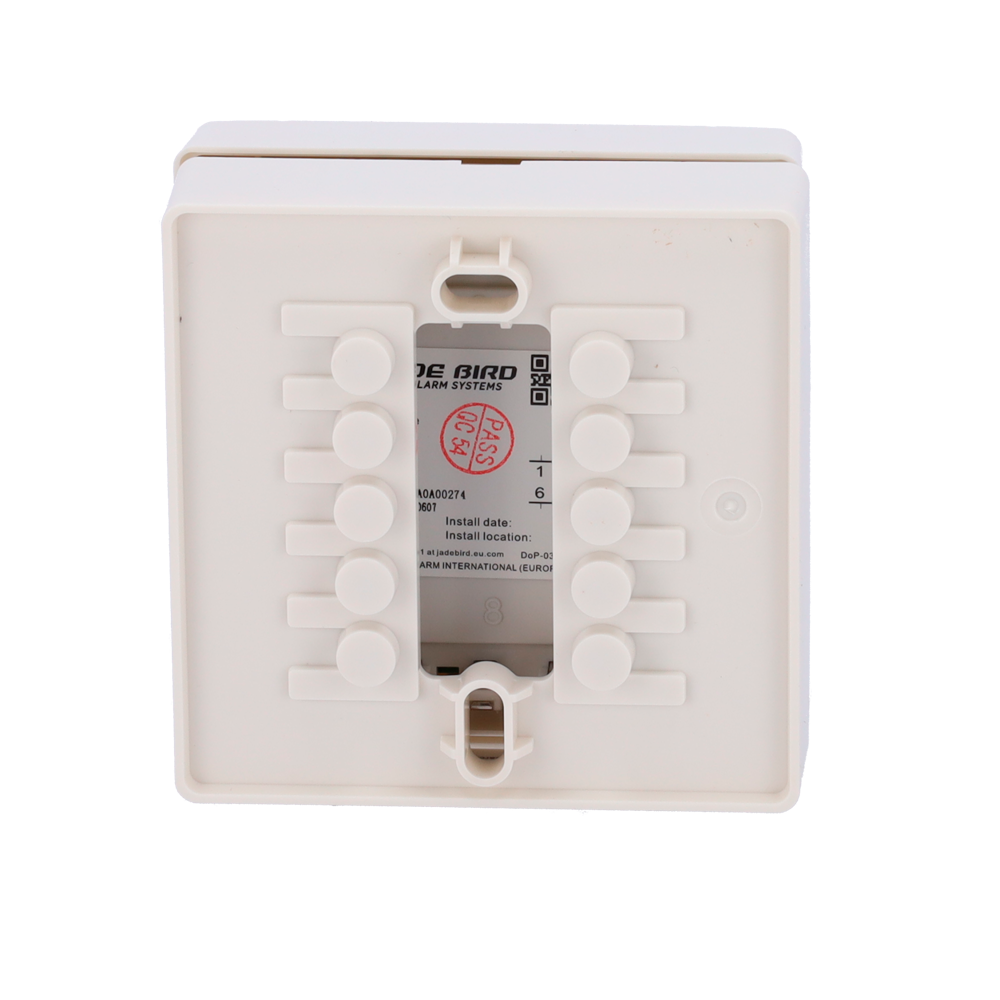

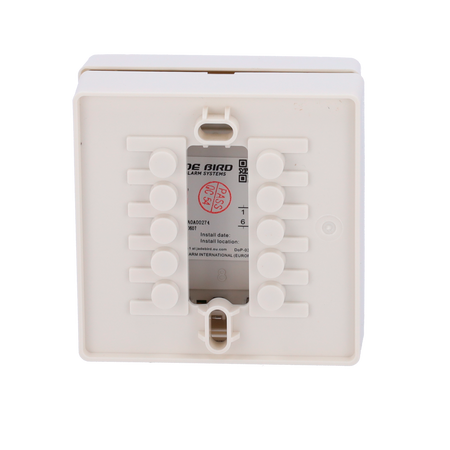

Jade Bird analog module - Short-circuit isolator - Loop-powered - Conductor cable up to 2.5mm2 - Max 32 devices per segment - EN 54-17 certified
📋 SPECIFICATIONS:
• Brand: Jade Bird
• Type: Isolator
• Working voltage: DC 20 - 30 V
• Connection: JBE 2-wire communication bus, non-polarized
• Wiring: Unshielded twisted pair 0.5 – 2.5 mm2
• Standby current: ≤ 0.25mA @27VDC
• Active current: ≤ 15mA @27VDC
• Maximum number of devices between isolators: 32
• Working temp.: 0℃ ~ +40℃
• Storage temp.: -20℃ ~ +60℃
• Environment: ≤ 95% RH (40±2℃) (non-condensing and ice-free)
• LED indicator: Orange (FAULT): Quiescent: Both LEDs off; Side A short-circuit: Top LED on; Side B short-circuit: Bottom LED on
• Dimensions: 85×85x41 mm (length x width x height)
• Weight: 0.1 kg (base included)
• IP rating: IP40

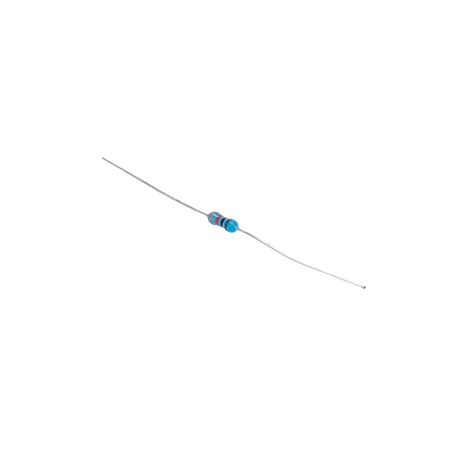

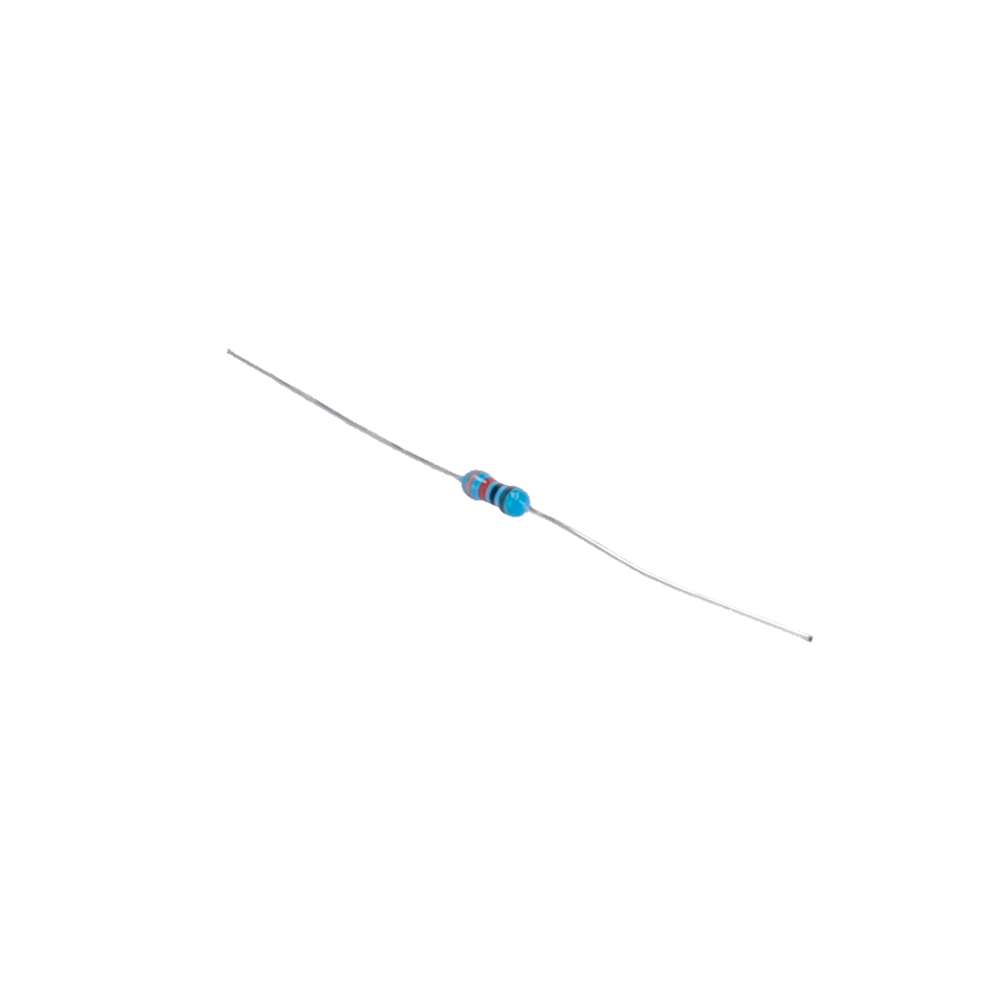

• Remote indicator: LED with or without series resistor (Rs <4 kOhm)
• Certificate: EN 54-17:2005; EN 54-17:2005/AC:2007
📦 INCLUDED:
• Analog module¡ERROR! INAPPROPRIATE FORMAT
| Type | Isolator |
|---|---|
| Operating voltage | DC 20 - 30 V |
| Connection | JBE 2-wire communication bus, polarity-independent |
| Wiring | Twisted pair without shielding 0.5 – 2.5 mm2 |
| Standby consumption | ≤ 0.25mA @27VDC |
| Active consumption | ≤ 15mA @27VDC |
| Maximum number of devices between isolators | 32 |
| Operating temp. | 0℃ ~ +40℃ |
| Storage temp. | -20℃ ~ +60℃ |
| Environment | ≤ 95% RH (40±2℃) (non-condensing and non-icing) |
| Orange LED indicator (FAULT) | Rest: Both LEDs off Short-circuit on side A: Top LED on Short-circuit on side B: Bottom LED on |
| Dimensions | 85×85x41 mm (length x width x height) |
| Weight | 0.1 kg (including base) |
| IP protection rating | IP40 |
| Remote indicator | LED with or without series resistor (Rs <4 kOhm) |
| Certificate | EN 54-17:2005 EN 54-17:2005/AC:2007 |
- User manual Link
