Jade Bird analog siren - High power output 100 dB(A) @ 1m
Jade Bird analog siren - High power output 100 dB(A) @ 1m
Regular price
€53,66
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

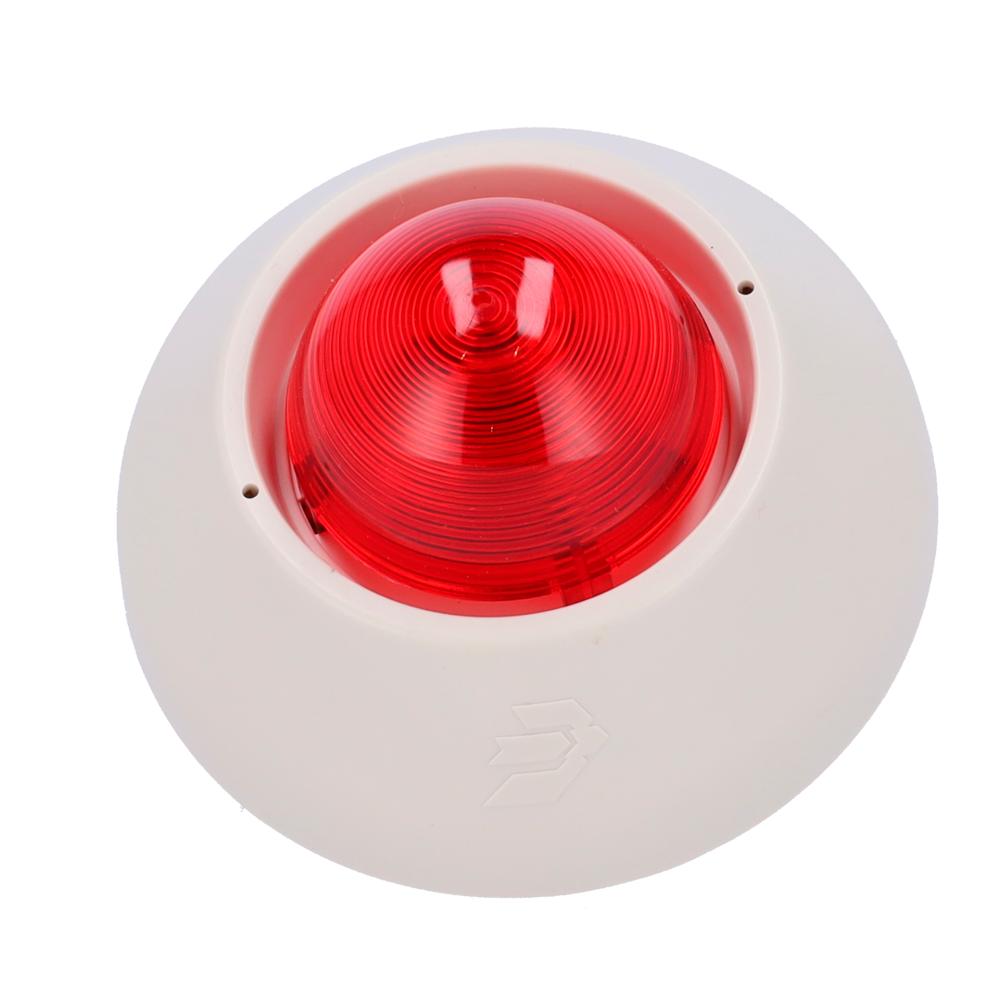

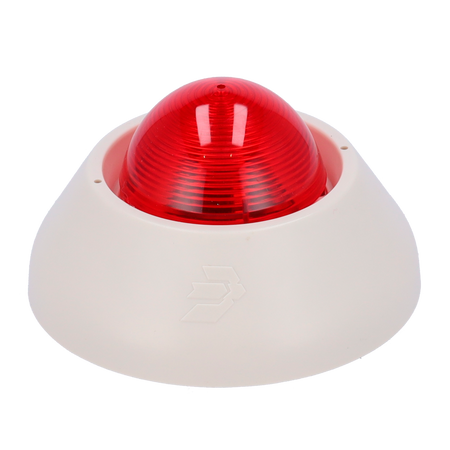

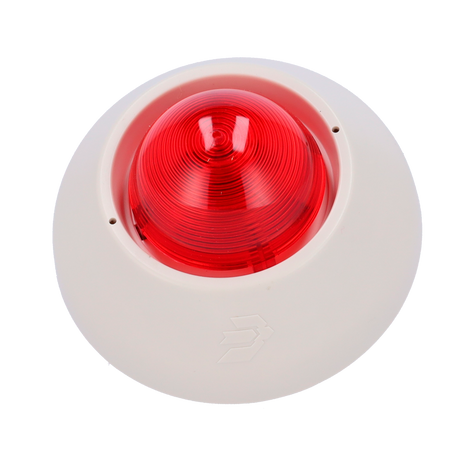

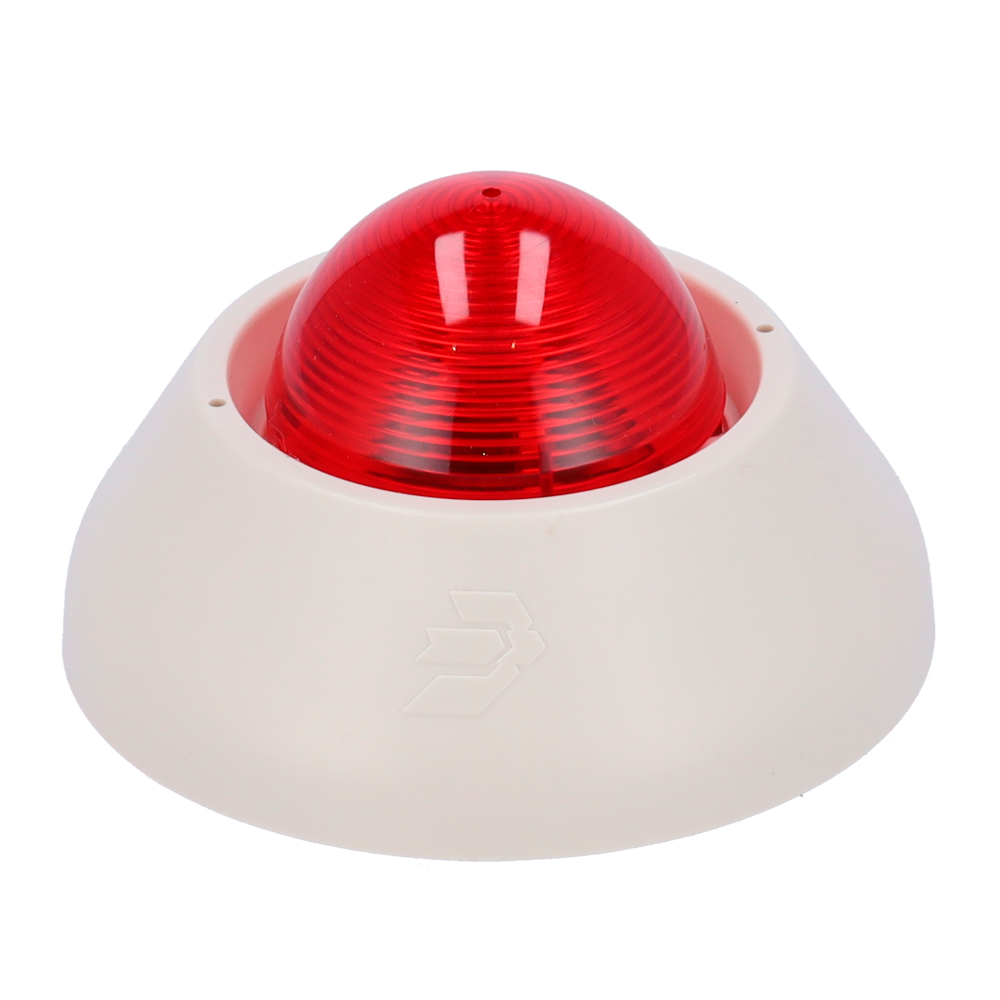

Jade Bird analog sounder - High output power 100 dB(A) @ 1m - Requires 24 VDC auxiliary power supply - Base not included - Indoor installation - EN 54-3 certified
📋 SPECIFICATIONS:
• Brand: Jade Bird
• Type: High-power sounder
• Operating voltage: DC 16 - 30 V
• Connection: JBE 2-wire communication bus, polarity-free; 2-wire 24V DC power supply (mandatory)
• Wiring: Twisted pair, non-shielded 0.5 – 2.5 mm²
• JBE bus consumption; 24V DC bus consumption: ≤ 0.25 mA @24 V; ≤ 50 mA @24 V; ≤ 1.2 W @24 V (active)
• Sound pressure level: 100 dBA @1 m; 1-2 kHz swept tone (0.25 Hz)
• Operating temperature: -10℃ ~ +55℃
• Storage temperature: -20 to +60ºC
• Environment: ≤ 95% RH (no condensation or icing)
• Addressing: JBE-AT1 addressing tool
• Address range: 1-200
• Dimensions (ØxH): Ø100 × 67 mm
• Weight: 0.1 kg (including base)
• Protection rating: IP31
• Compatible base: JBE-2165
• Certificate: EN 54-3:2001; EN 54-3:2001/A1:2002; EN 54-3:2001/A2:2006
📦 INCLUDED:
• Jade Bird sounder¡ERROR! FORMATO INADECUADO
| Type | High-power siren |
|---|---|
| Operating voltage | 16 - 30 V DC |
| Connection | JBE 2-wire communication bus, non-polarized 24V DC 2-wire power supply (mandatory) |
| Wiring | Unshielded twisted pair 0.5 – 2.5 mm² |
| JBE bus consumption 24V DC bus consumption | ≤ 0.25 mA @24 V ≤ 50 mA @24 V; ≤ 1.2 W @24 V (active) |
| Sound pressure level | 100 dBA @1 m; 1-2 kHz Swept tone (0.25 Hz) |
| Operating temperature | -10℃ ~ +55℃ |
| Storage temperature | -20 to +60ºC |
| Environment | ≤ 95% RH (no condensation or icing) |
| Addressing | JBE-AT1 addressing tool |
| Address range | 1-200 |
| Dimensions (ØxH) | Ø100 × 67 mm |
| Weight | 0.1 kg (including base) |
| Protection rating | IP31 |
| Compatible base | JBE-2165 |
| Certificate | EN 54-3:2001 EN 54-3:2001/A1:2002 EN 54-3:2001/A2:2006 |
- User manual Link
