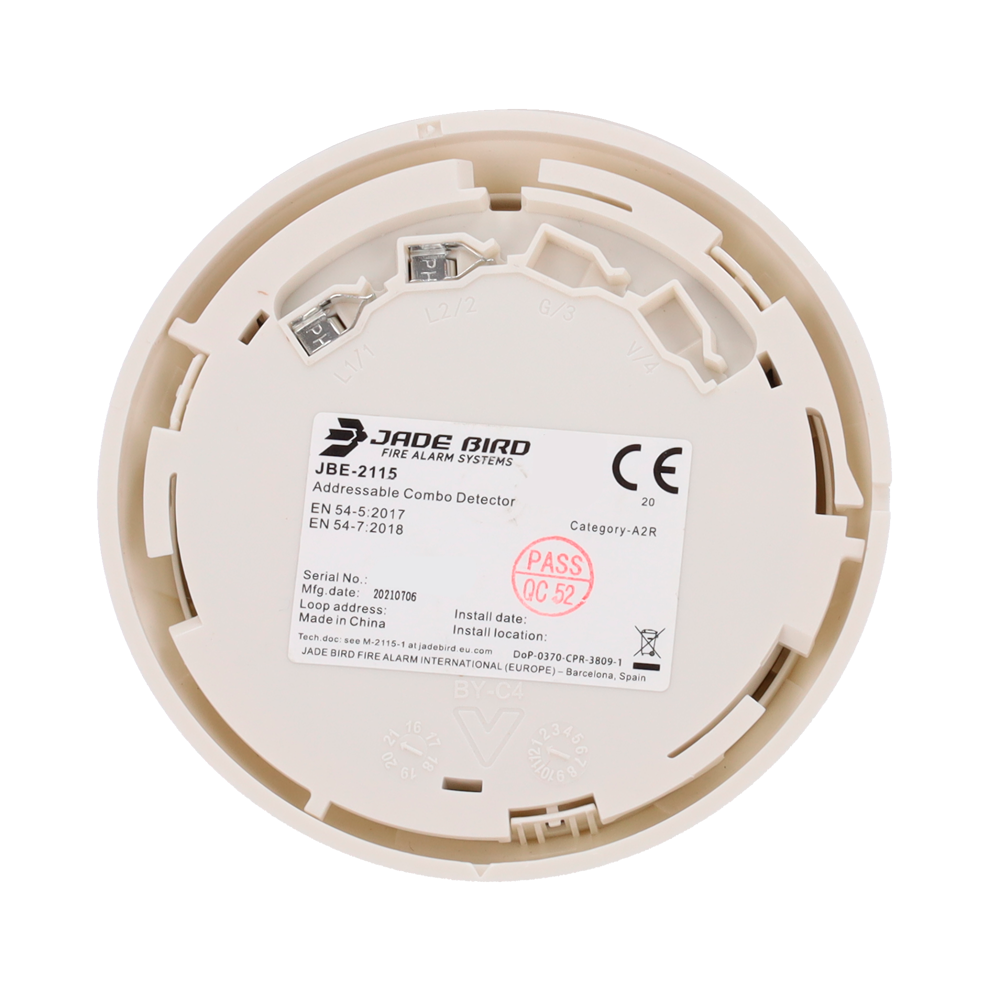

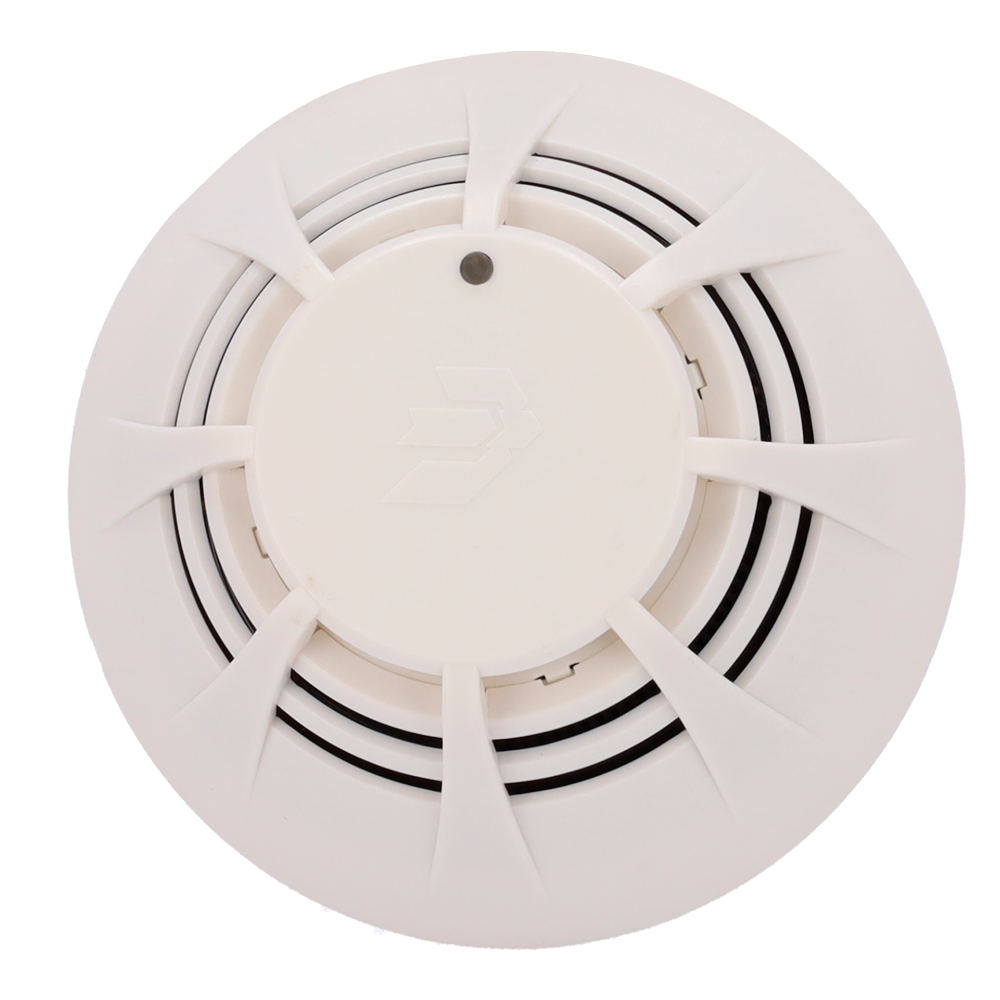

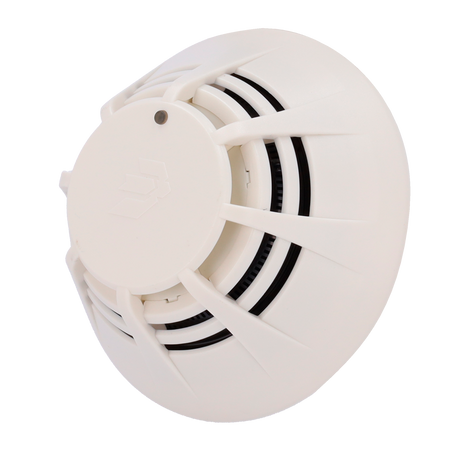

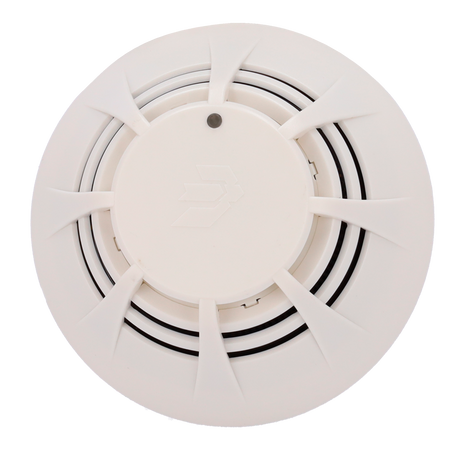

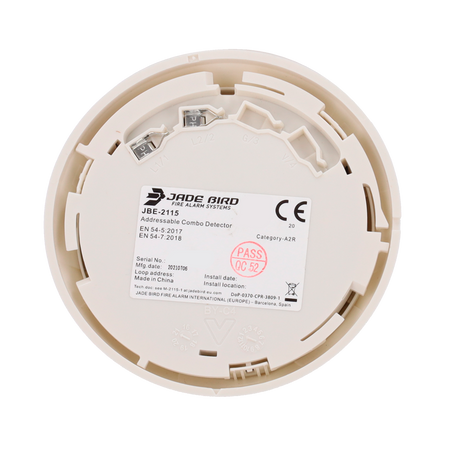

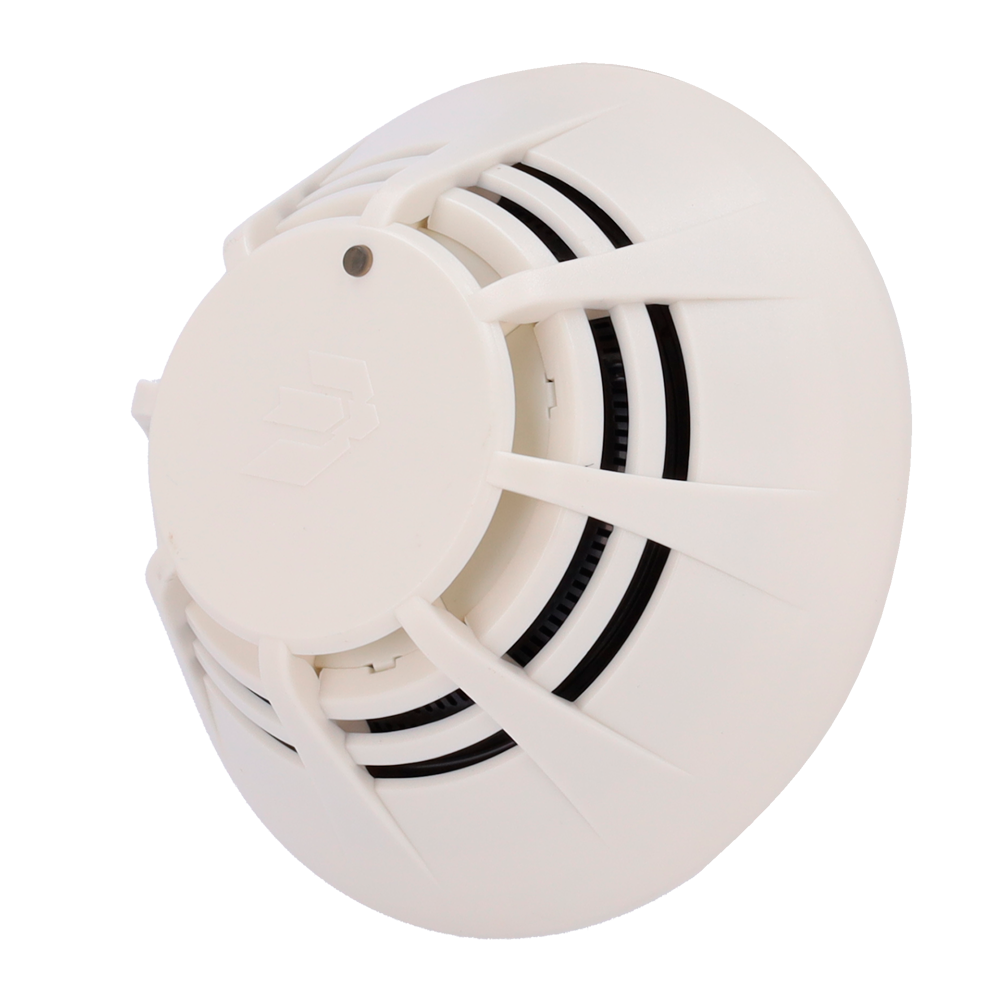

Jade Bird analogue optical-thermal detector
Jade Bird analogue optical-thermal detector
Regular price
€34,20
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Jade Bird analog optical-thermal detector - Adjustable sensitivity and class - 360° view LED - Base not included - EN 54-5 and EN54-7 certified
📋 SPECIFICATIONS:
• Brand: Jade Bird
• Type: Optical-Thermal Detector
• Sensitivity: Both optical and thermal parts adjustable
• Operating voltage: 19-28 VDC
• Connection: JBE 2-wire communication bus, non-polarized
• Wiring: Twisted pair 0.5 – 2.5 mm²
• Standby consumption: ≤0.3mA @24 V
• Alarm consumption: ≤1 mA @24 V (up to 8 mA for remote indicator)
• Operating temp.: -10 to +60ºC
• Storage temp.: -30 to +70ºC
• Humidity: ≤ 95% RH (40 ±2ºC) (non-condensing)
• Addressing: Via JBE-AT1 addressing tool
• Address range: 1-200
• Coverage: 20 to 30 m2
• LED indicator: Quiescent: Flashing during supervision; Alarm: Steady on
• Dimensions (ØxH): 100 mm × 53 mm
• Weight: 0.1 kg
• Protection rating: IP40
• Supported bases: JBE-2160 and JBE-2165
• Remote indicator: LED with or without series resistor (R <4KΩ)
• Certificate: EN 54-5:2017+A1:2018; EN 54-7:2018
📦 INCLUDED:
• Jade Bird analog detector¡ERROR! IMPROPER FORMAT
| Type | Optical-Thermal Detector |
|---|---|
| Sensitivity | Adjustable for both optical and thermal components |
| Operating voltage | 19-28 VDC |
| Connection | JBE 2-wire communication bus, polarity-free |
| Wiring | Unshielded twisted pair 0.5 – 2.5 mm² |
| Standby current | ≤0.3mA @24 V |
| Alarm current | ≤1 mA @24 V (up to 8 mA for remote indicator) |
| Operating temp. | -10 to +60ºC |
| Storage temp. | -30 to +70ºC |
| Humidity | ≤ 95% RH (40 ±2ºC) (non-condensing) |
| Addressing | Via JBE-AT1 addressing tool |
| Address range | 1-200 |
| Coverage | 20 to 30 m2 |
| LED Indicator | Quiescent: Flashing during supervision Alarm: Steady on |
| Dimensions (ØxH) | 100 mm × 53 mm |
| Weight | 0.1 kg |
| Protection Rating | IP40 |
| Supported bases | JBE-2160 and JBE-2165 |
| Remote indicator | LED with or without series resistor (R <4KΩ) |
| Certificate | EN 54-5:2017+A1:2018 EN 54-7:2018 |
- User manual Link
