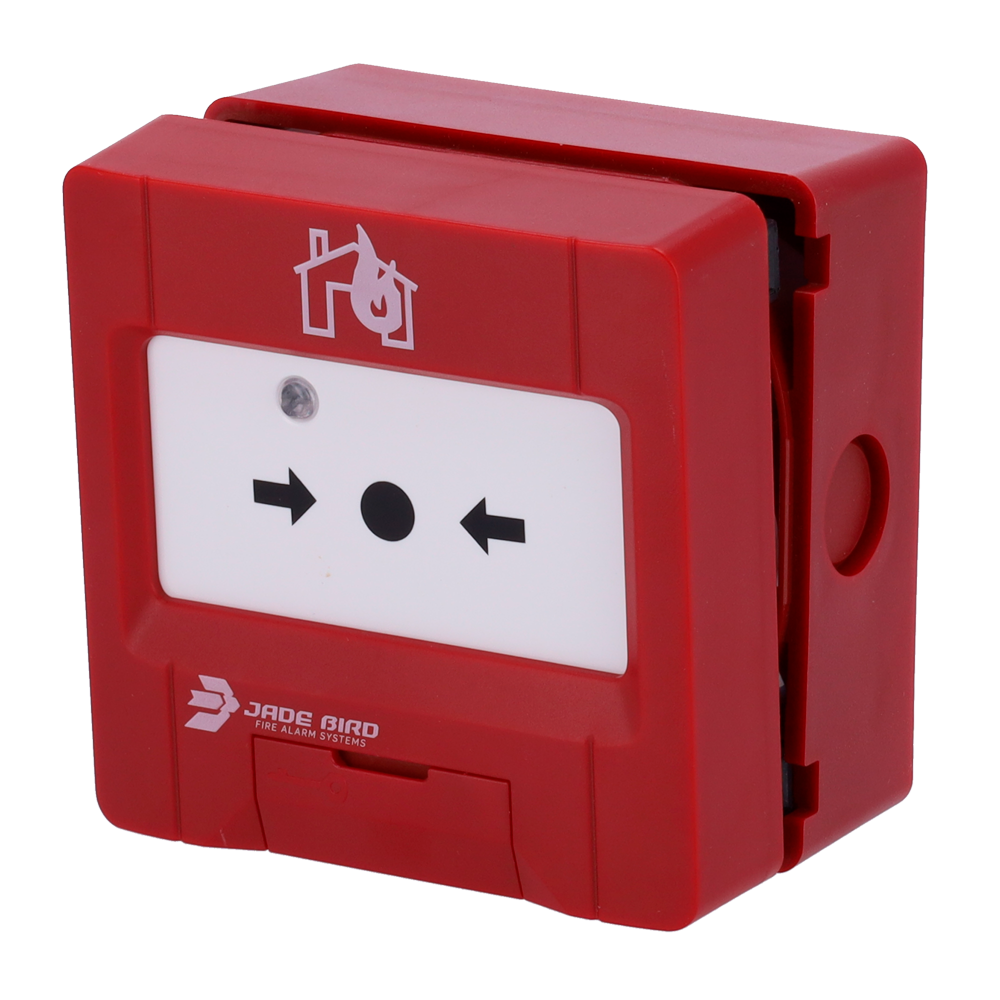

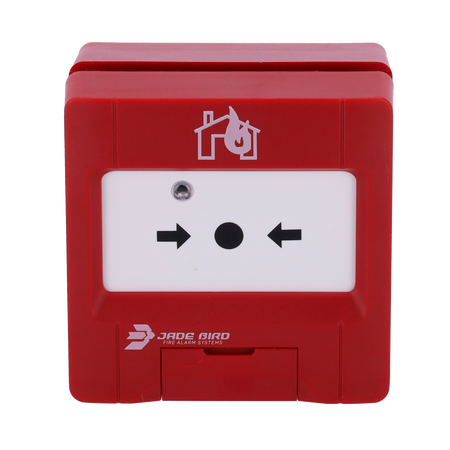

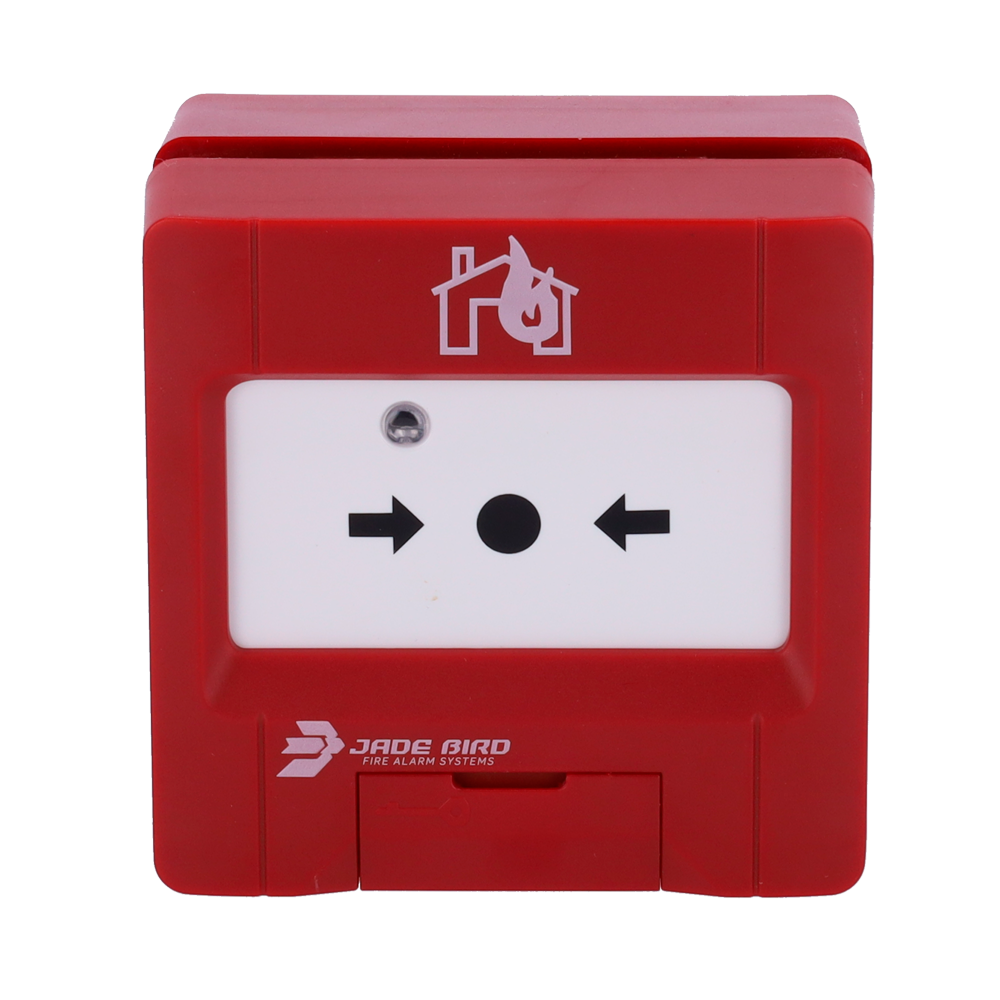

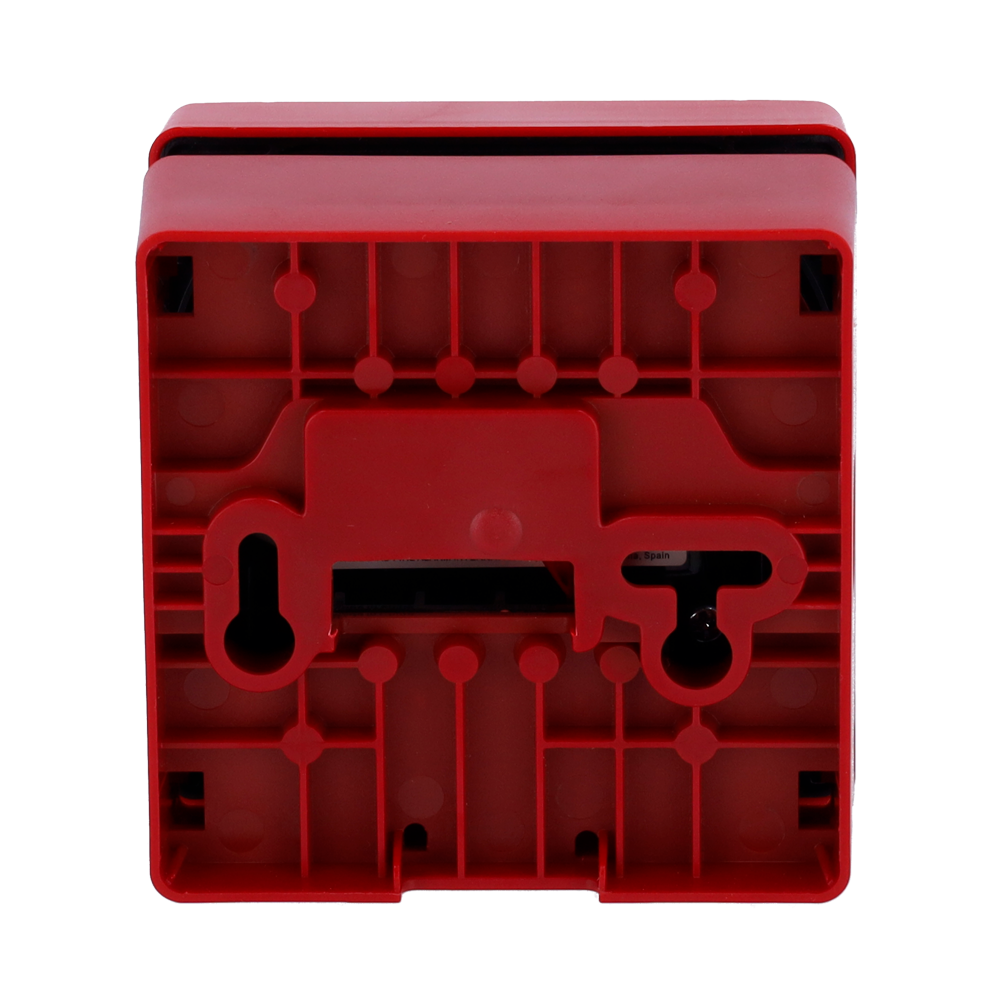

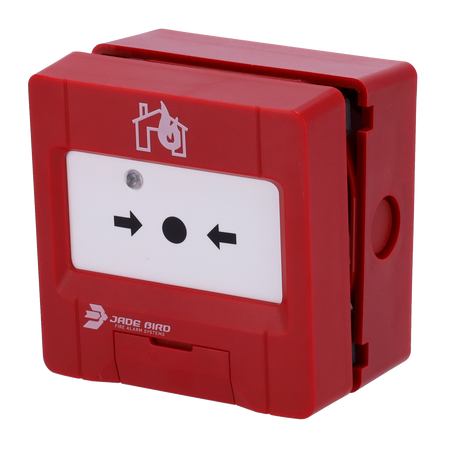

Jade Bird analog call point - Resettable
Regular price
€43,58
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

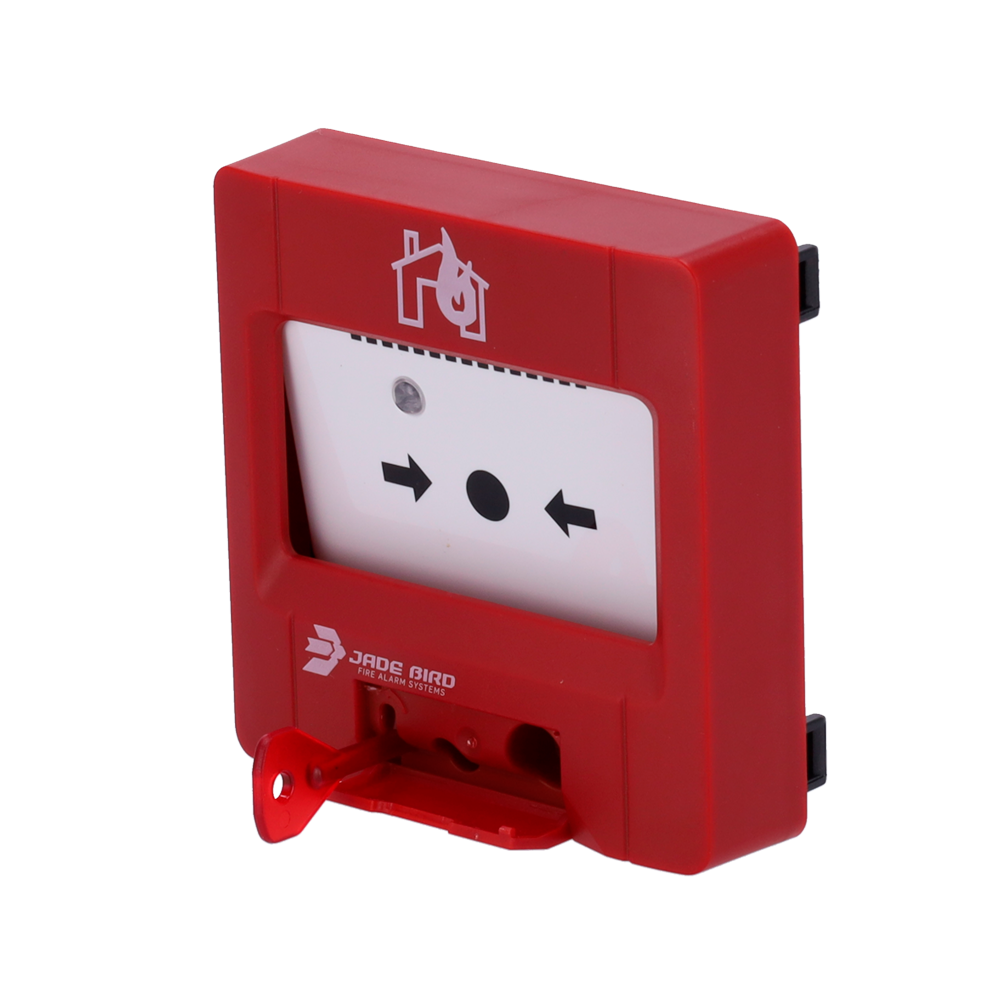

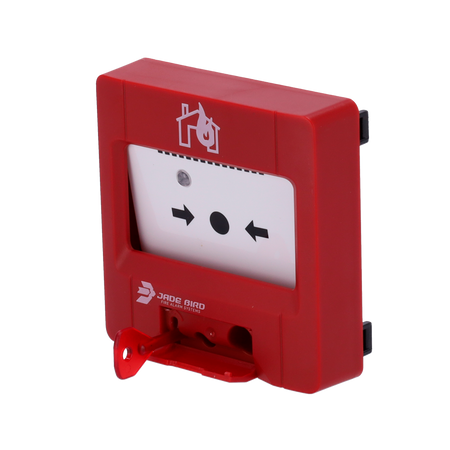

Jade Bird analogue call point - Resettable - Visual activation indicator - Auxiliary dry contact - EN 54-11 certified
📋 SPECIFICATIONS:
• Brand: Jade Bird
• Type: Manual call point
• Operating voltage: 19-28 VDC (JBE protocol pulse width)

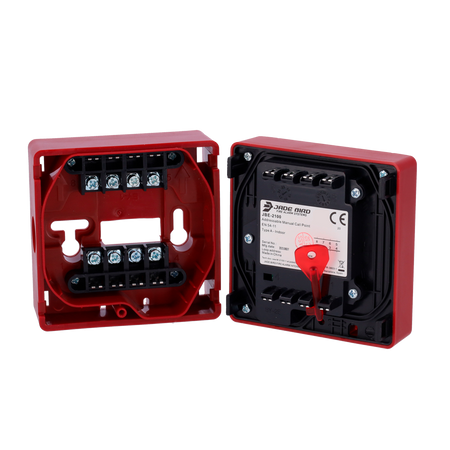

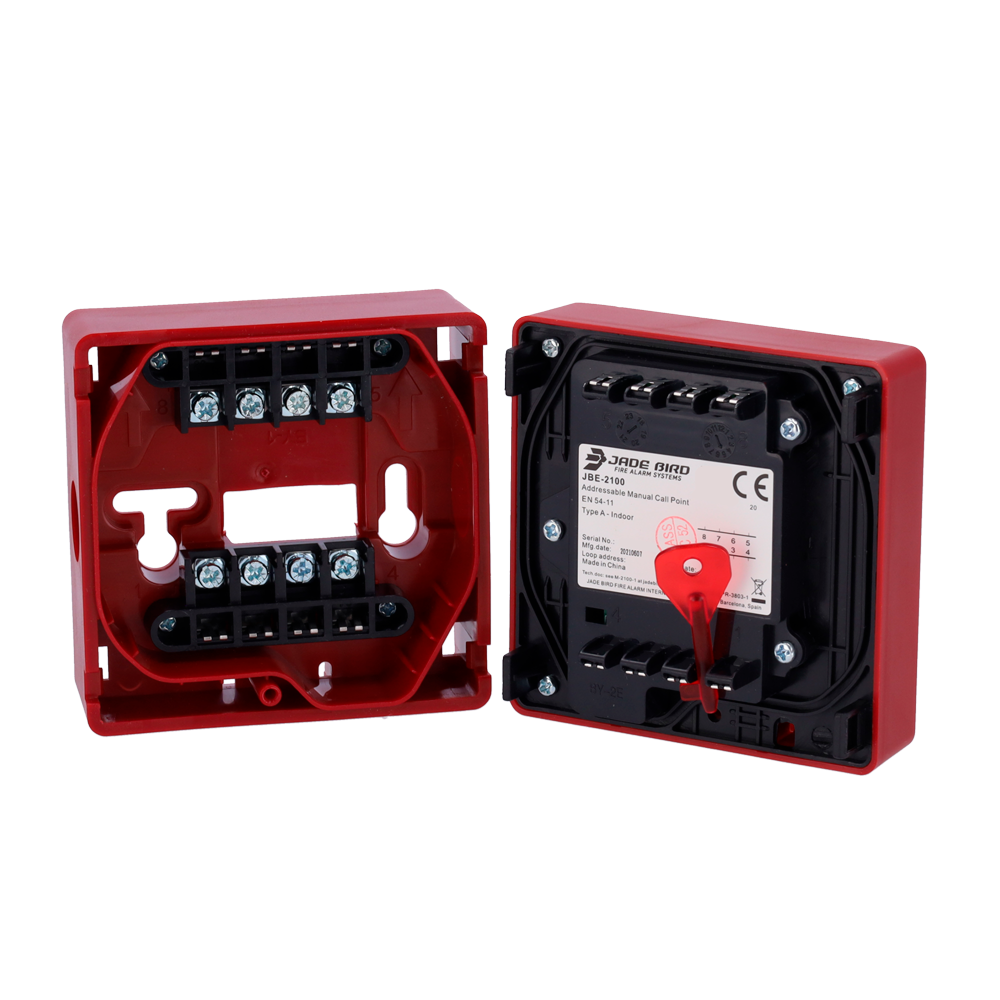

• Connection: 2-wire JBE communication bus, polarity-free
• Cable size: Unshielded twisted pair 0.5 – 2.5 mm²
• Standby current: ≤0.3 mA @24 V
• Alarm current: ≤1.0 mA @24 V
• Dry contact: 0.1 A / 30 VDC
• Operating temp.: -10ºC to 55ºC
• Storage temp.: -20ºC to 60ºC
• Humidity: ≤ 95% RH (non-condensing)
• Addressing: JBE-AT1 addressing tool
• Address range: 1-200
• LED indicator: Quiescent: Flashing with loop connection; Alarm: Steady on
• Dimensions (HxWxD): 90 mm × 90 mm × 52 mm
• Protection rating: IP40
• Weight: 0.16 kg
• Standard: EN 54-11
📦 INCLUDED:
• Analogue call point¡ERROR! FORMATO INADECUADO
| Type | Manual call point |
|---|---|
| Operating voltage | 19-28 VDC (JBE protocol pulse width) |
| Connection | 2-wire JBE communication bus, polarity-free |
| Cable size | Non-shielded twisted pair 0.5 – 2.5 mm² |
| Standby consumption | ≤0.3 mA @24 V |
| Alarm consumption | ≤1.0 mA @24 V |
| Dry contact | 0.1 A / 30 VDC |
| Operating temp. | -10ºC to 55ºC |
| Storage temp. | -20ºC to 60ºC |
| Humidity | ≤ 95% RH (non-condensing) |
| Addressing | JBE-AT1 addressing tool |
| Address range | 1-200 |
| LED indicator | Quiescent: Flashing when connected to the loop Alarm: Steady on |
| Dimensions (HxWxD) | 90 mm × 90 mm × 52 mm |
| Protection rating | IP40 |
| Weight | 0.16 kg |
| Standard | EN 54-11 |
- User manual Link
