Uniview Explosion-Proof Junction Box
Regular price
€484,22
Final price
Regular price
-15%
€570,00
Sale price
€484,22
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

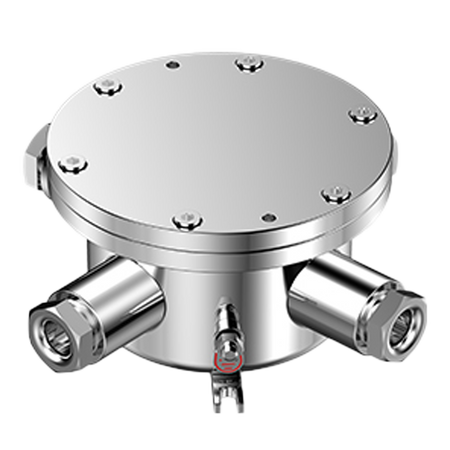

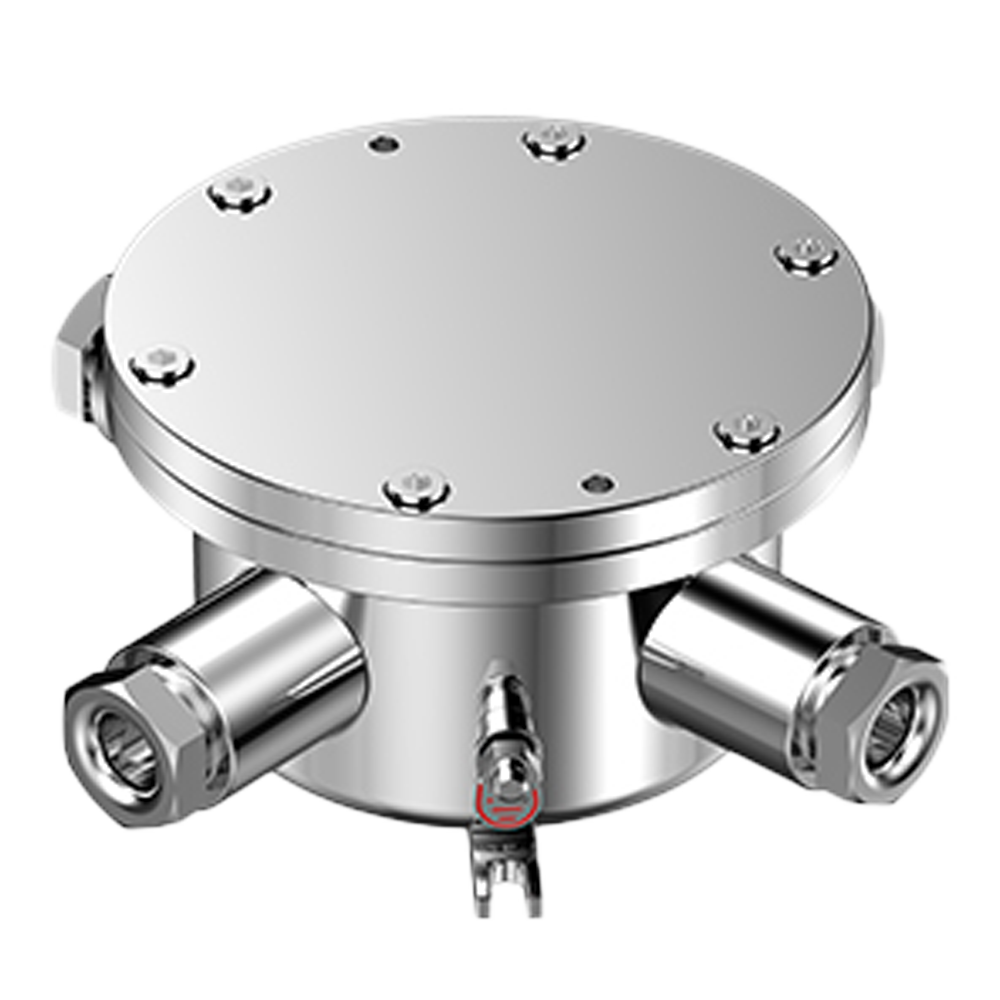

Explosion-Proof junction box - For wiring connection - 304 or 316L stainless steel - Cable gland - IP68 protection rating
📋 SPECIFICATIONS:
• Certificate: ExdⅡCT6 Gb/ Ex tD A21 IP68 T80℃
• Material: 304 or 316L stainless steel (Optional choice)
• Protection rating: IP68
• Threaded cable hole: 4x G3/4 or NPT3/4 (Optional choice)
• Material: Aluminum alloy
• Supported power supply: AC 85V ~ 265V, <3A

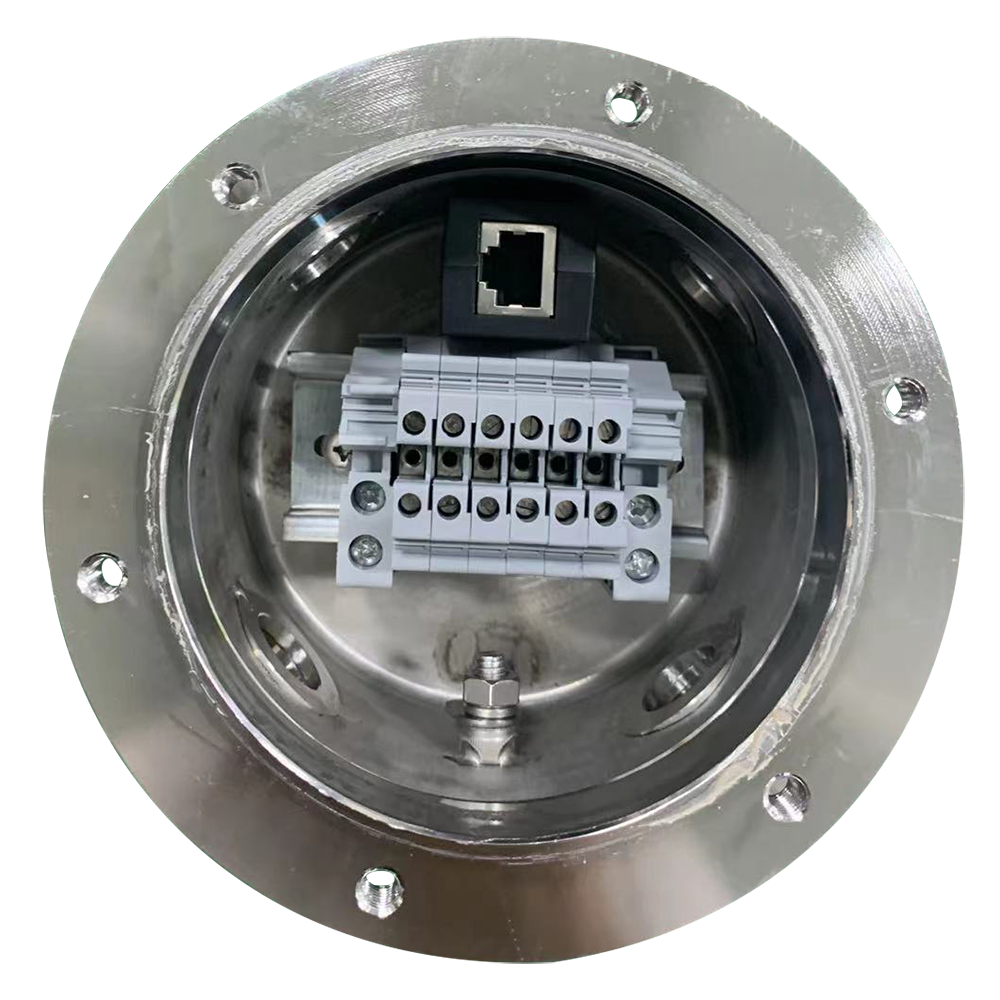

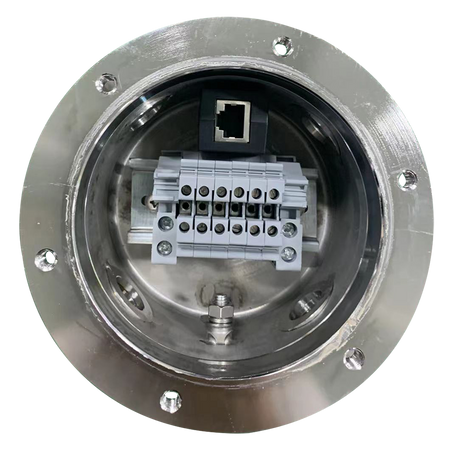

• Connection terminal block: Up to 20 points
• Ambient temperature: -25ºC ~ 60ºC
• Air pressure: 80Kpa - 106Kpa
• Relative humidity: <95% (non-condensing)
• External dimensions: 187 (φ) x 84 (H) mm
• Internal dimensions: 100 (φ) x 75 (H) mm
📦 INCLUDED:
• Junction box
• 4 anchors and 4 mounting screws
• 3 screws for camera mounting
| Certificate | ExdⅡCT6 Gb/ Ex tD A21 IP68 T80℃ |
|---|---|
| Material | 304 or 316L stainless steel (Optional to choose) |
| Protection Grade | IP68 |
| Threaded cable hole | 4x G3/4 or NTP3/4 (Optional to choose) |
| Material | Aluminum alloy |
| Supported power supply | AC 85V ~ 265V, <3A |
| Connection terminal | Up to 20 points |
| Ambient Temperature | -25ºC ~ 60ºC |
| Air Pressure | 80Kpa - 106Kpa |
| Relative Humidity | <95% (non-condensing) |
| External Dimension | 187 (φ) x 84 (H) mm |
| Internal Dimension | 100 (φ) x 75 (H) mm |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
