ATEX Explosion-Proof junction box
Regular price
€1.752,41
Final price
Regular price
-15%
€2.070,00
Sale price
€1.752,41
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

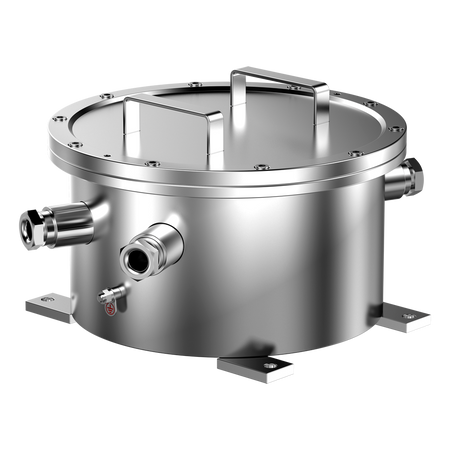

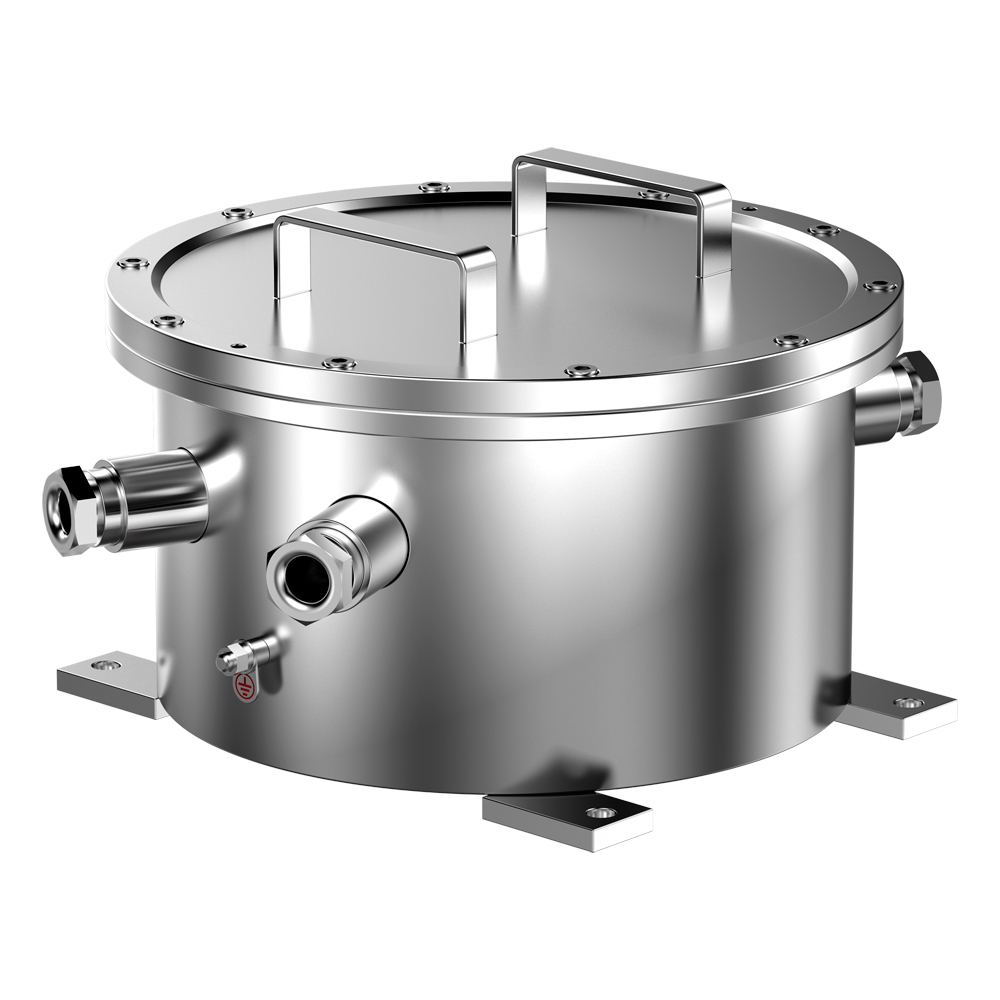

ATEX Explosion-Proof junction box - For wiring connection - Made of 316L stainless steel - Cable gland - IP68 protection rating
📋 SPECIFICATIONS:
• ATEX Certificate: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db; Ex db IIC T6 Gb, Ex tb IIIC T80°C Db
• Material: 316L stainless steel
• Protection rating: IP68
• Outlet hole: M25x1.5
• Material: Aluminum alloy
• Supported power supply: AC 85V ~ 265V, <3A
• Connection terminal block: Up to 20 points
• Ambient temperature: -40ºC ~ 60ºC
• Relative humidity: <95% (non-condensing)
• External dimensions: 310 (φ) x 183 (H) mm
• Weight: 14.17 kg
📦 INCLUDED:
• Junction box
• 4 wall plugs and 4 screws for mounting
• 3 screws for camera mounting
| ATEX Certificate | II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db Ex db IIC T6 Gb, Ex tb IIIC T80°C Db |
|---|---|
| Material | 316L stainless steel |
| Protection Rating | IP68 |
| Cable outlet | M25x1.5 |
| Material | Aluminum alloy |
| Supported power supply | AC 85V ~ 265V, <3A |
| Connection terminal | Up to 20 points |
| Ambient temperature | -40ºC ~ 60ºC |
| Relative humidity | <95% (non-condensing) |
| External dimensions | 310 (φ) x 183 (H) mm |
| Weight | 14.17 kg |
