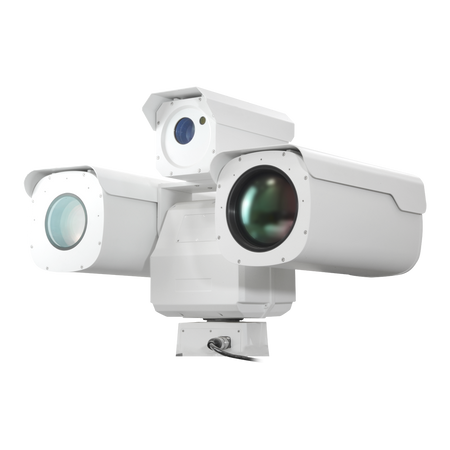

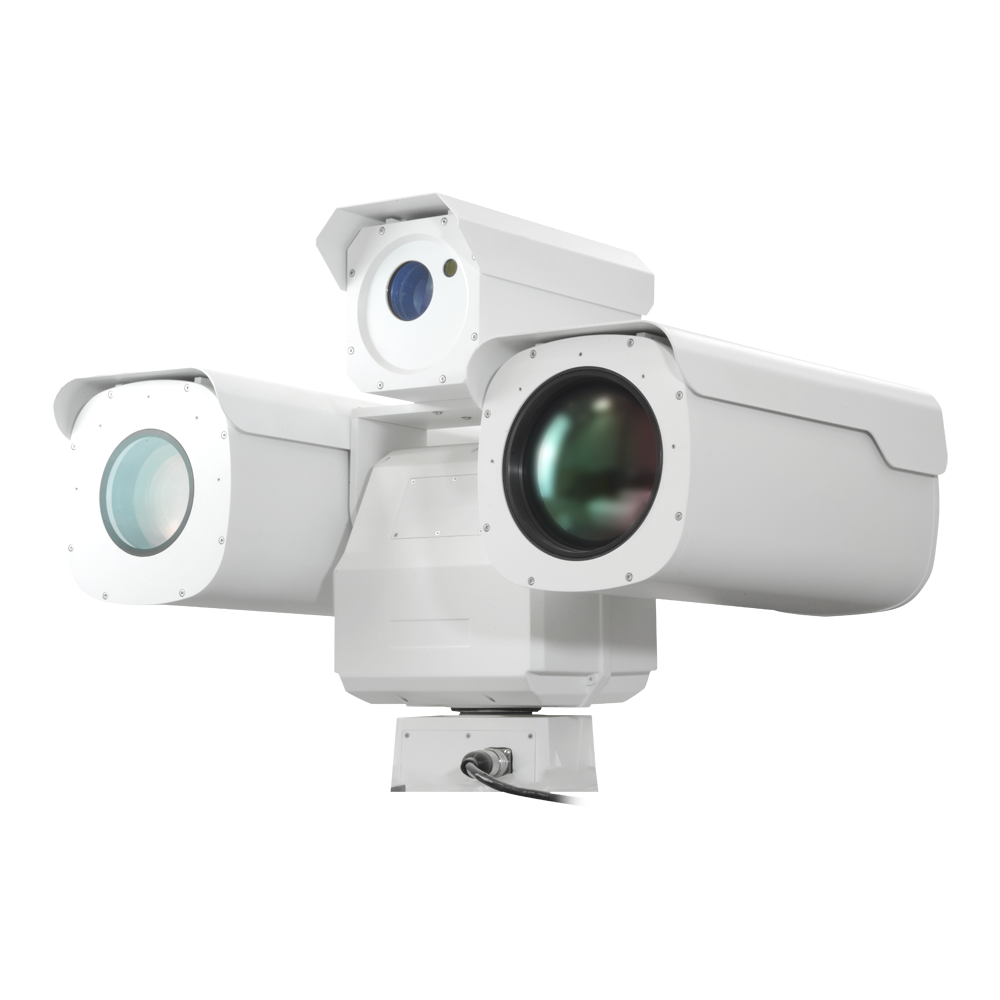

ThermTec IP Dual-Lens PTZ Thermal Camera - 640x512 Cooled InSb | 30~660mm Thermal Lens

SKU: IPPTZ900A-150D4-C
(0)
Out of stock
€341.258,40 Final price
-24% €450.000,00 €341.258,40 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

ThermTec Dual-lens PTZ IP Thermal Camera - 640x512 Cooled InSb| 30~660mm Thermal Lens - Thermal sensitivity ≤20mK - Accuracy ± 8ºC - Temperature detection and alarm - Alarms | SD Card

📋 SPECIFICATIONS:
• Brand: ThermTec
• Thermal sensor: 640x512 Cooled InSb
• Spectral range: 3 ~ 5 um
• Optical sensor: 1/1.8" Sony CMOS
• Main Stream frame rate: 640x512 (25fps) (Therm) / 2560x1440 (25fps) (Opt)
• Sub Stream frame rate: CIF (25fps)(Therm) / D1, VGA, 640x360, CIF, QCIF, QVGA (25fps) (Opt)
• Compression: H.265 / H.264 / MJPEG
• Lens: Motorized Autofocus 30 ~ 660 mm (Therm) 22X / Motorized Autofocus 10.5 ~ 645 mm (Opt) 90X
• Angle: H: 18.2º - 0.9º (Therm) / H: 24.55º - 2.77º (Opt)
• Pan/Tilt range: Horizontal: 0°~360° (endless), Vertical: -60° ~ 60°
• Manual speed: Horizontal: 0.01° ~ 60° /s, Vertical: 0.01° ~ 30° /s
• Preset positions: 256 presets
• Thermal sensitivity: ≤20mK
• Thermal image processing: DDE/ACE/DRC/Automatic defective pixel replacement
• Detectable temperature range: -20 ℃ to 150 ℃ (from -4 ℉ to 302 ℉)
• Accuracy: ± 8ºC / ±2%
• Image enhancements: Defog, Privacy Masking, Mirror, ROI, 3D DNR, BLC, HLC
• VCA Range: Person detection (1.8x0.5 m): 20 Km; Vehicle detection (4x1.4 m): 75 Km; Person recognition (1.8x0.5 m): 7.2 Km; Vehicle recognition (4x1.4 m): 25 Km; Person identification (1.8x0.5 m): 3.5 Km; Vehicle identification (4x1.4 m): 13.5 km
• Intelligent functions: Over-temperature alarm, Motion detection,
• Audio: Not available
• Alarm: 2 Outputs
• Internal memory: Micro SD card up to 64GB
• Network interface: 1x Ethernet 10/100M BaseT
• Other: RS 485, CVBS output
• Remote access: WEB interface, VMS and NVR
• Interoperability: ONVIF, SDK
• Power supply: 48VDC / 400W
• Operating temp.: -35º C ~ +75º C
• Protection rating: Waterproof IP66
• Dimensions: 660 (D) x 786 (W) x 610 (H) mm
• Weight: 50 Kg

📦 INCLUDED:
• Dual-lens PTZ IP thermal camera• 48V DC power supply• Installation material• User instructions
Thermal sensor 640x512 InSb Cooled
Spectral range 3 ~ 5 µm
Optical sensor 1/1.8" Sony CMOS
Main Stream frame rate 640x512 (25fps) (Therm) / 2560x1440 (25fps) (Opt)
Sub Stream frame rate CIF (25fps) (Therm) / D1, VGA, 640x360, CIF, QCIF, QVGA (25fps) (Opt)
Compression H.265 / H.264 / MJPEG
Lens Motorized Autofocus 30 ~ 660 mm (Therm) 22X / Motorized Autofocus 10.5 ~ 645 mm (Opt) 90X
Angle H: 18.2º - 0.9º (Therm) / H: 24.55º - 2.77º (Opt)
Pan/Tilt range Horizontal: 0°~360° (continuous), vertical: -60° ~ 60°
Manual speed Horizontal: 0.01° ~ 60°/s, Vertical: 0.01° ~ 30°/s
Preset positions 256 presets
Thermal sensitivity ≤20mK
Thermal image processing DDE/ACE/DRC/Automatic defective pixel replacement
Detectable temperature range -20°C to 150°C (-4°F to 302°F)
Accuracy ± 8ºC / ±2%
Image enhancement Defog, Privacy Masking, Mirror, ROI, 3D DNR, BLC, HLC
VCA range Human detection (1.8x0.5 m): 20 Km, Vehicle detection (4x1.4 m): 75 Km, Human recognition (1.8x0.5 m): 7.2 Km, Vehicle recognition (4x1.4 m): 25 Km, Human identification (1.8x0.5 m): 3.5 Km, Vehicle identification (4x1.4 m): 13.5 Km
Intelligent functions Over-temperature alarm, Motion detection
Audio Not available
Alarm 2 Outputs
Internal storage Micro SD card up to 64GB
Network interface 1x Ethernet 10/100M BaseT
Others RS 485, CVBS output
Remote access WEB interface, VMS and NVR
Interoperability ONVIF, SDK
Power supply 48VDC / 400W
Operating temp -35º C ~ +75º C
Protection rating Waterproof IP66
Dimensions 660 (W) x 786 (H) x 610 (D) mm
Weight 50 Kg
