ThermTec Dual-lens IP PTZ Thermal Camera - 640x512VOx | 30~150mm Thermal Lens
ThermTec Dual-lens IP PTZ Thermal Camera - 640x512VOx | 30~150mm Thermal Lens
Regular price
€41.504,40
Final price
Regular price
-5%
€43.600,00
Sale price
€41.504,40
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

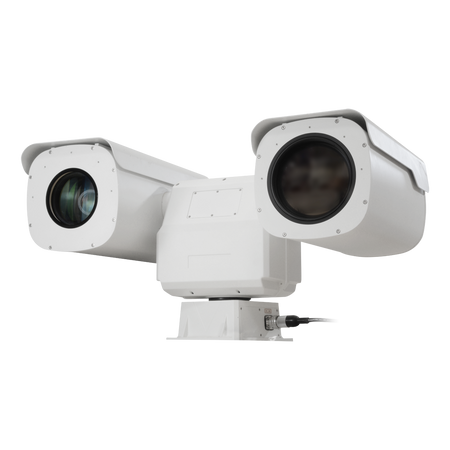

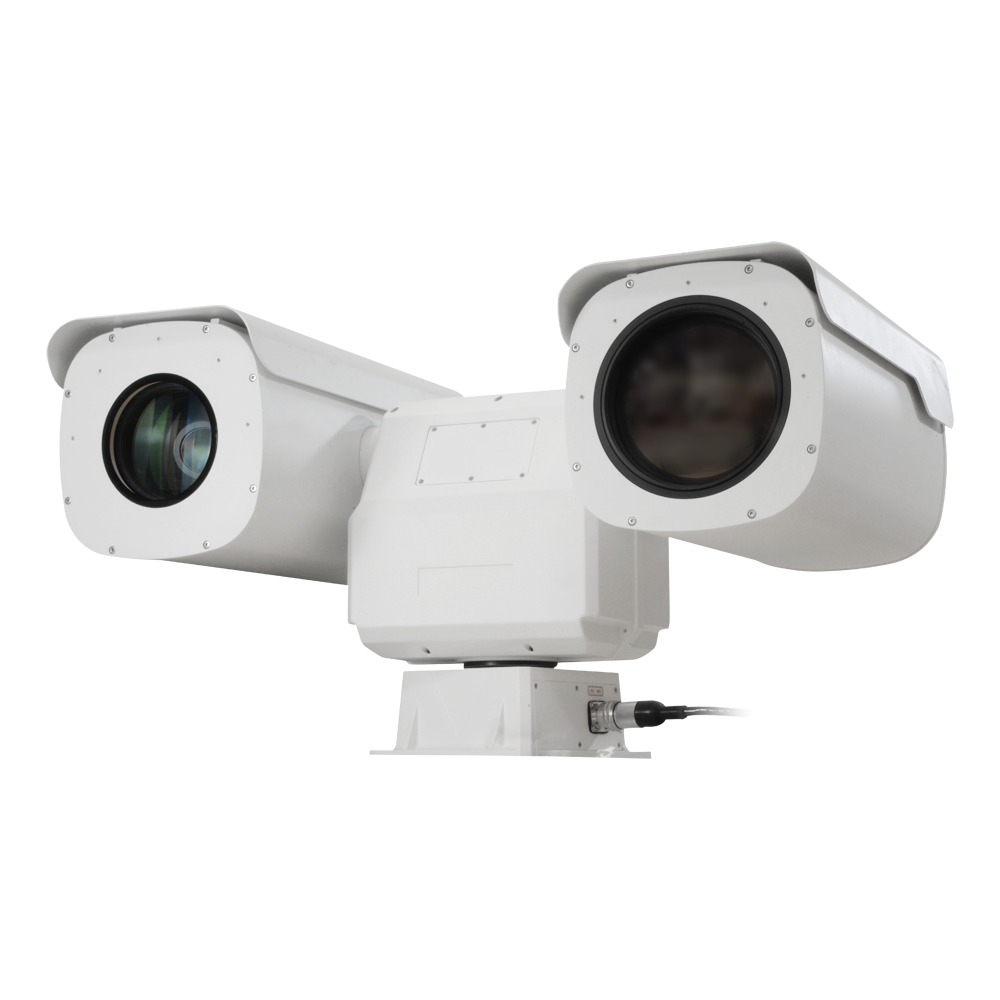

ThermTec IP Dual-Lens PTZ Thermal Camera - 640x512 VOx | 30~150mm Thermal Lens - Thermal Sensitivity ≤40mK - Accuracy ± 8ºC - Temperature detection and alarm - Alarms | SD Card
📋 SPECIFICATIONS:
• Brand: ThermTec
• Thermal sensor: 640x512 VOx
• Spectral range: 8 ~ 14um
• Optical sensor: 1/1.8" Sony CMOS
• Main Stream frame rate: 640x512 (25fps) (Therm) / 2560x1440 (25fps) (Opt)
• Sub Stream frame rate: CIF (25fps) (Therm) / D1, VGA, 640x360, CIF, QCIF, QVGA (25fps) (Opt)
• Compression: H.265 / H.264 / MJPEG
• Lens: Motorized Autofocus 30 ~ 150 mm (Therm) 5X / Motorized Autofocus 10.5 ~ 945 mm (Opt) 90X
• Angle: H: 20.6º - 4.15º (Therm) / H: 24.55º - 2.77º (Opt)
• Pan/Tilt range: Horizontal: 0°~360° (endless), vertical: -45° ~ 45°
• Manual speed: Horizontal: 0.01° ~ 25° /s, Vertical: 0.01° ~ 15° /s
• Preset positions: 256 presets
• Thermal sensitivity: ≤40mK
• Detectable temperature range: -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉)
• Accuracy: ± 8ºC / ±2%
• Image enhancements: Defog, Privacy Masking, Mirror, ROI, 3D DNR, BLC, HLC
• VCA Range: Person detection (1.8x0.5 m: 4410 m); Vehicle detection (4x1.4 m: 20290 m); Person recognition (1.8x0.5 m: 1100 m); Vehicle recognition (4x1.4 m: 5070 m); Person identification (1.8x0.5 m: 550 m); Vehicle identification (4x1.4 m: 2530 m)
• Smart functions: Over-temperature alarm, Motion detection
• Audio: Not available
• Alarm: 2 Outputs
• Internal memory: Micro SD card up to 64GB
• Network interface: 1x Ethernet 10/100M BaseT
• Others: RS 485, CVBS output
• Remote access: WEB interface, VMS and NVR
• Interoperability: ONVIF, SDK
• Power supply: 24 VAC, 12VDC / 30W
• Operating temp.: -25º C ~ +55º C
• Protection rating: Waterproof IP66
• Dimensions: 373 (D) x 400 (H) x 434 (W) mm
• Weight: 50 Kg
📦 INCLUDED:
• IP Dual-Lens PTZ thermal camera• 24V AC power supply• Installation material• User manual
| Thermal sensor | 640x512 VOx |
|---|---|
| Spectral range | 8 ~ 14um |
| Optical sensor | 1/1.8" Sony CMOS |
| Main Stream frame rate | 640x512 (25fps) (Term) / 2560x1440 (25fps) (Opt) |
| Sub Stream frame rate | CIF (25fps) (Term) / D1, VGA, 640x360, CIF, QCIF, QVGA (25fps) (Opt) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | Motorized Autofocus 30 ~ 150 mm (Term) 5X / Motorized Autofocus 10.5 ~ 945 mm (Opt) 90X |
| Angle | H: 20.6º - 4.15º (Term) / H: 24.55º - 2.77º (Opt) |
| Pan/Tilt range | Horizontal: 0°~360° (continuous), Vertical: -45° ~ 45° |
| Manual speed | Horizontal: 0.01° ~ 25°/s, Vertical: 0.01° ~ 15°/s |
| Preset positions | 256 presets |
| Thermal sensitivity | ≤40mK |
| Detectable temperature range | -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉) |
| Accuracy | ± 8ºC / ±2% |
| Image enhancements | Defog, Privacy Masking, Mirror, ROI, 3D DNR, BLC, HLC |
| VCA range | Human detection (1.8x0.5 m): 4410 m, Vehicle detection (4x1.4 m): 20290 m, Human recognition (1.8x0.5 m): 1100 m, Vehicle recognition (4x1.4 m): 5070 m, Human identification (1.8x0.5 m): 550 m, Vehicle identification (4x1.4 m): 2530 m |
| Intelligent functions | Over-temperature alarm, Motion detection |
| Audio | Not available |
| Alarm | 2 Outputs |
| Internal memory | Micro SD card up to 64GB |
| Network interface | 1x Ethernet 10/100M BaseT |
| Others | RS 485, CVBS output |
| Remote access | WEB interface, VMS and NVR |
| Interoperability | ONVIF, SDK |
| Power supply | 24 VAC, 12VDC / 30W |
| Operating temp. | -25º C ~ +55º C |
| Protection rating | Waterproof IP66 |
| Dimensions | 373 (D) x 400 (H) x 434 (W) mm |
| Weight | 50 Kg |
